Amana 1095R (BOM: P6968404R)

Model: 1095R (BOM: P6968404R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

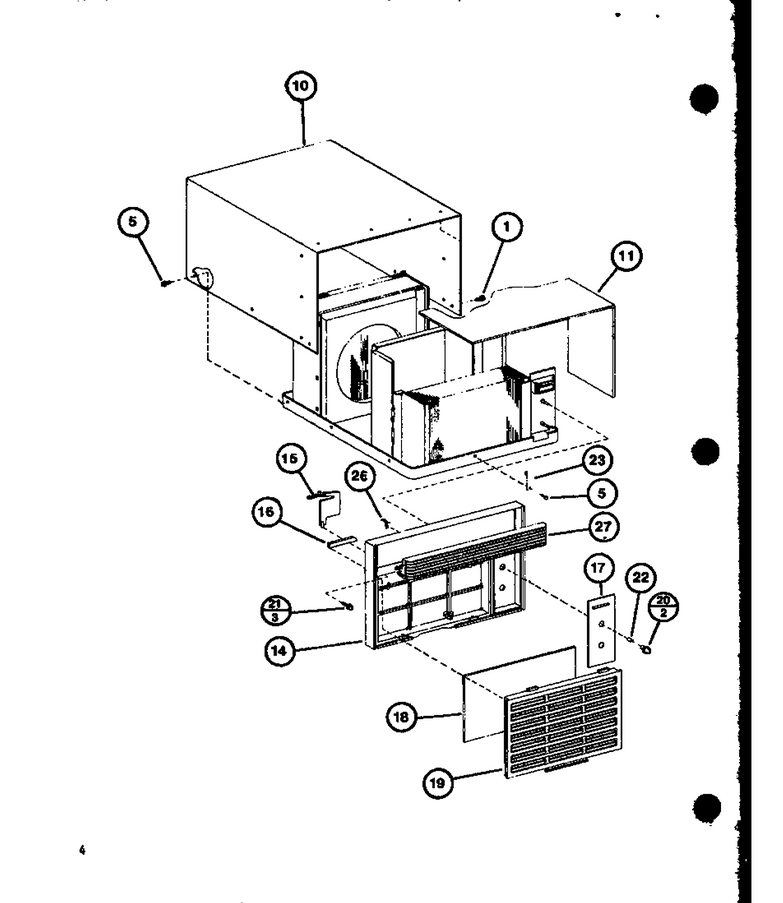

01 - Page 1

...
...
1
Screw WPL-WP90767
...
5
Screw WPL-WP90767
...
10
Outercase WPL-D6970604
...
11
Insulation, Side WPL-C6399102
...
14
Front Frame WPL-D6963301
...
15
Baffle Air WPL-C6444102
...
16
Gasket (per Foot) WPL-A3030303
...
17
Escutcheon WPL-D6399801
...
18
Filter, Air WPL-A3445902
...
19
Front Insert WPL-D6972201
...
20
Knob WPL-D7009806
...
21
Screw WPL-WP98165
...
22
Clip,retainer WPL-M0115902
...
23
Clamp WPL-A3465101
...
26
Clip WPL-B1404801
...
27
Louver Box WPL-D6972101

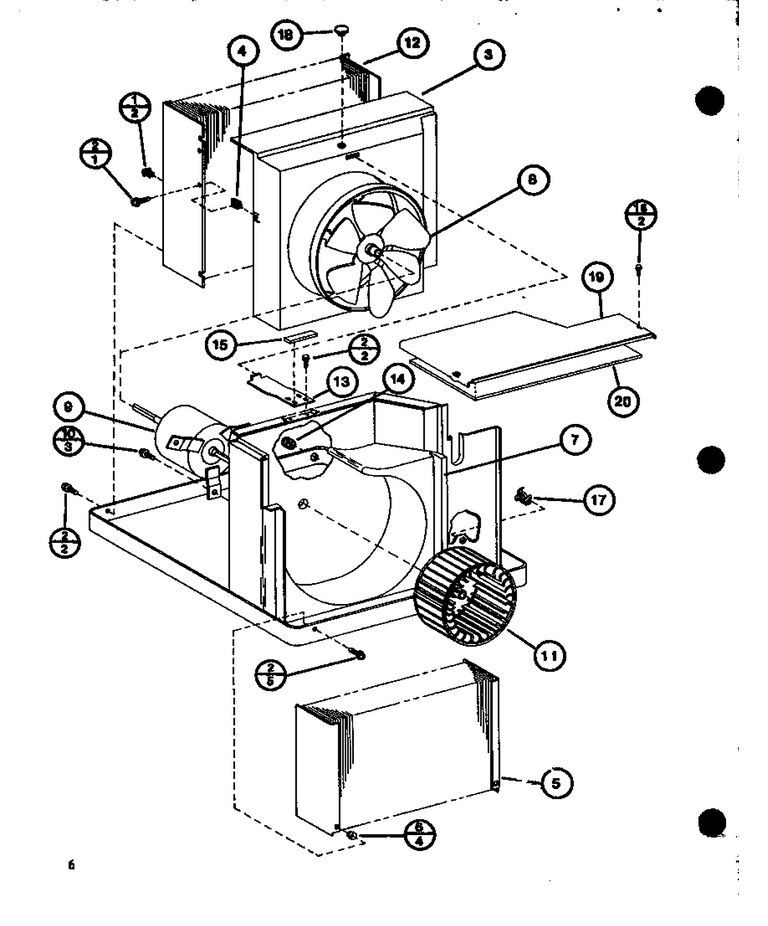

02 - Page 2

...
...
1
Grommet WPL-A3315701
...
2
Screw WPL-WP90767
...
3
Shroud, Condenser WPL-D6974701
...
4
Speed Nut WPL-M0288107
...
5
Evaporator Assy WPL-D9906703
...
6
Screw WPL-M0586001
...
7
Scroll WPL-D6976401
...
8
Fan Blade WPL-C6399901
...
9
Motor Fan WPL-C6400103
...
10
Screw WPL-M0253555
...
11
Blower Wheel WPL-C6172701
...
12
Condenser Assy WPL-D6980801
...
13
Brace-Tie WPL-B1399601
...
14
Plug Button WPL-A3080003
...
15
Gasket (per Foot) WPL-A3030303
...
16
Screw WPL-WP90767
...
17
Clip-Guide WPL-M0118702
...
18
Plug Button K WPL-M0570801
...
19
Top Cover WPL-D6982002
...
20
Insulation WPL-D9914301

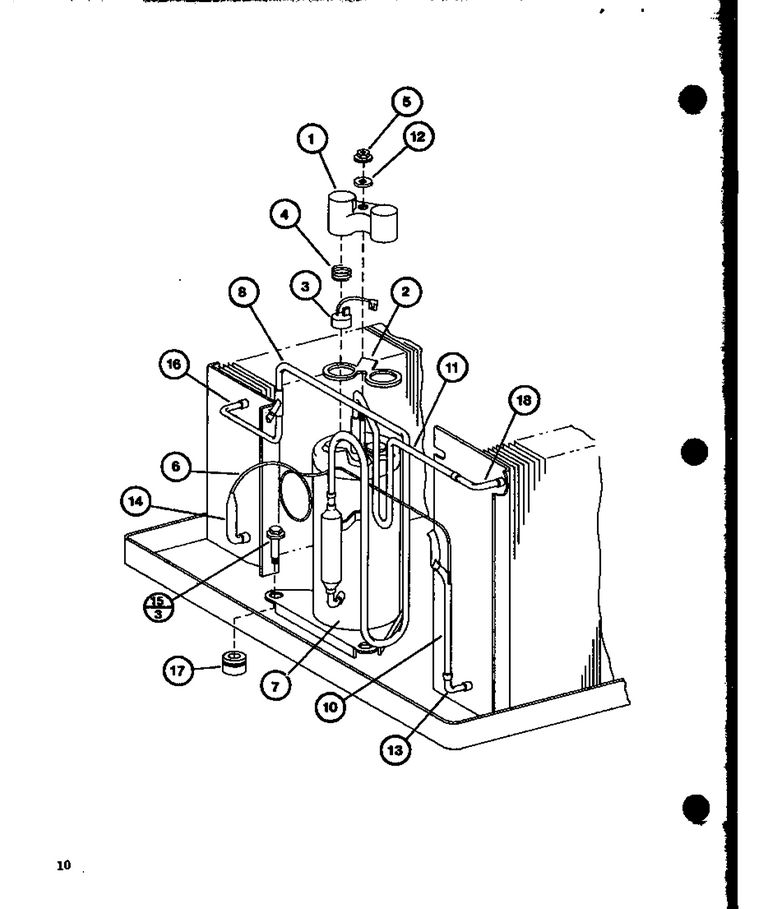

04 - Page 4

...
...
1
Cap,comp Term Cover WPL-20120101
...
2
Gasket, Terminal WPL-A3436701
...
3
Overload WPL-D4976667
...
4
Spring, Overload WPL-A3436901
...
5
Nut WPL-WP776338
...
6
Capillary Preform WPL-D9905601
...
7
Compressor WPL-D6926114H
...
8
Suction Tube WPL-D9913701
...
10
Strainer WPL-B4143101
...
11
Discharge Tube WPL-D6985303
...
12
Washer WPL-A3436801
...
13
Elbow WPL-A3311909
...
14
Elbow WPL-A4083931
...
15
Screw, Shldr WPL-M0253610
...
16
Elbow WPL-B1410801
...
17
Grommet. Comp WPL-A3448601
...
18
Elbow WPL-A3320801

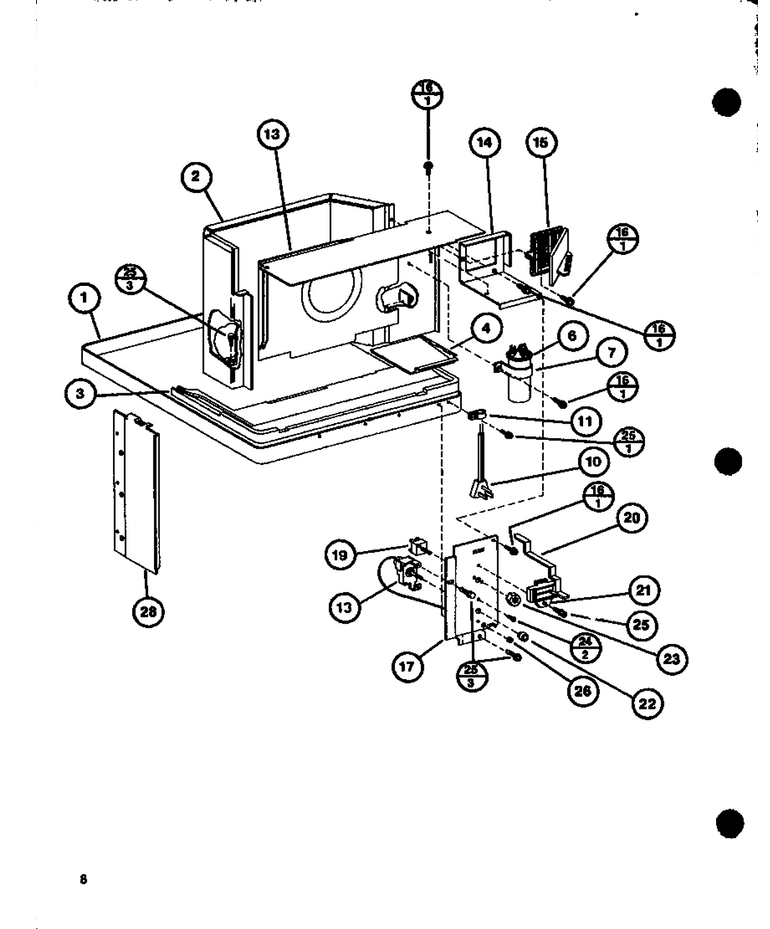

03 - Page 3

...
...
1
Basepan-Pnt WPL-D6975502
...
2
Partition Panel WPL-D6975701
...
3
Filler Block WPL-D6976601
...
4
Shield, Filler Blk WPL-C6399601
...
6
Capacitor WPL-876905
...
7
Strip-Capacitor WPL-B1399901
...
10
Cord, Power WPL-C5283104
...
11
Clamp WPL-M0104501
...
13
Panel, Inlet WPL-D6974101
...
14
Barrier WPL-C6399502
...
15
Vent Door WPL-D6948801
...
16
Screw WPL-WP90767
...
17
Panel-Control WPL-D6977701
...
18
Thermostat WPL-C6412204
...
19
Switch WPL-B5114405
...
20
Slide Vent Door WPL-C6382901
...
21
Control-Vent Door WPL-C6397701
...
22
Bushing WPL-A3073601
...
23
Palnut WPL-M0289601
...
24
Screw WPL-M0232012
...
25
Screw WPL-WP90767
...
26
Grommet WPL-M0500101
...
28
Ext Part. Panel WPL-D6982601
