Amana 109-5N (BOM: P5497506R)

Model: 109-5N (BOM: P5497506R)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

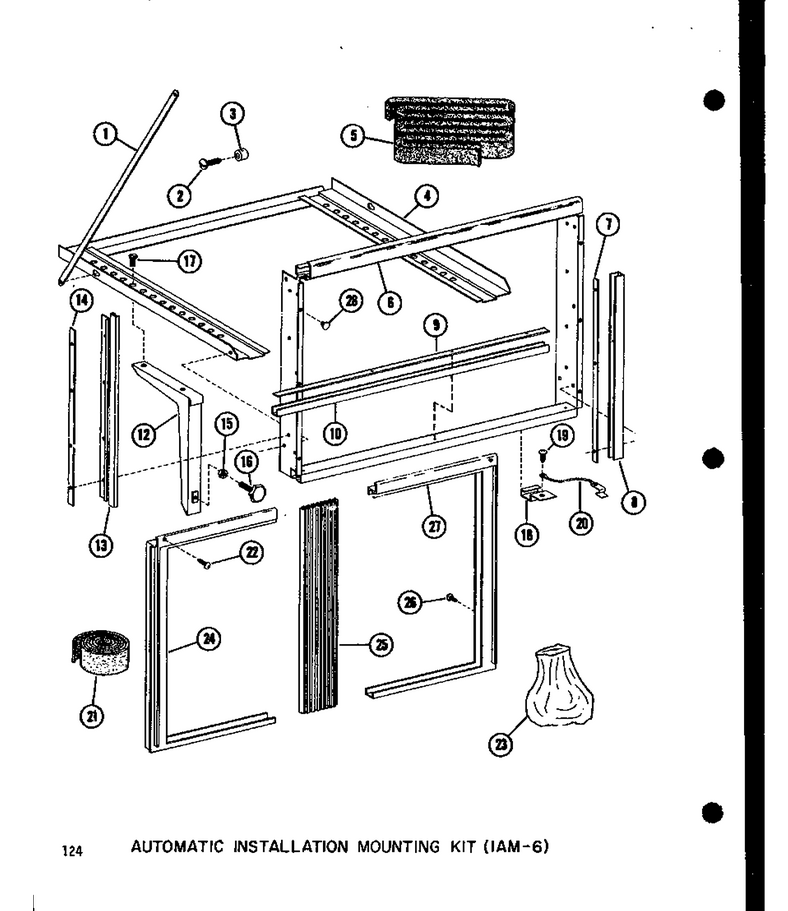

01 - Automatic Installation Mtg Kit (1am-6)

...
...
1
Support, Strap WPL-B5107706
...
2
Screw WPL-M0212062
...
3
Spacer K WPL-A4065501
...
4
Frame, Support WPL-C5935405
...
5
Gasket WPL-10839702
...
6
Wld-Frame WPL-C5949901
...
7
Backer Strip WPL-B1158902
...
8
Gasket WPL-B1158802
...
9
Backer Strip WPL-B1158901
...
10
Gasket WPL-B1158801
...
12
Angle Support Weld WPL-C5872103
...
13
Curtain 1 WPL-11118401
...
14
Backer Strip, Curtain Support WPL-B1158906
...
15
Nut-Keps WPL-M0282019
...
16
Screw Adjusting WPL-M0200003
...
17
Screw WPL-M0206557
...
18
Clip, Sill WPL-A3321002
...
19
Screw WPL-M0211532
...
20
Cable Assy WPL-B5113103
...
21
Gasket WPL-A3030302
...
22
Screw WPL-M0213032
...
23
Accessory Kit WPL-B1139005
...
24
Frame Kit L WPL-10659811
...
25
Curtain WPL-D5516701
...
26
Screw WPL-M1250031
...
27
Crtn Frame Kit WPL-10659812
...
28
Plug WPL-M0310312

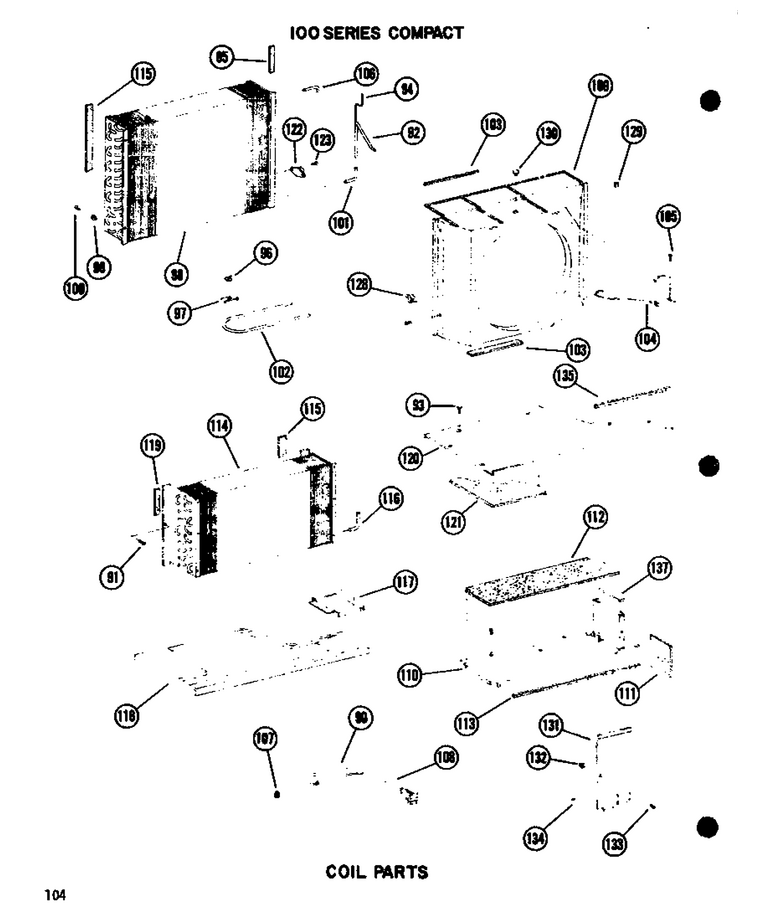

03 - Coil Parts

...
...
90
Sleeve WPL-M0321016
...
91
Screw WPL-WP489464
...
92
Strainer WPL-B4143101
...
93
Screw WPL-WP90767
...
94
Capillary Assy WPL-C5942301
...
95
Gasket-Per Inch WPL-A3030311
...
96
Fastener WPL-M0285701
...
97
Clamp WPL-A4685101
...
98
Condenser Assy WPL-D5507701
...
99
Grommet WPL-A3309801
...
100
Screw WPL-M0216531
...
101
Elbow WPL-A3311901
...
102
Tube-Sub Cooler WPL-C5938601
...
103
Gasket (inch) WPL-A3030301
...
104
Tie Brace Ptd WPL-C5922704
...
105
Screw WPL-WP90767
...
106
Elbow WPL-A3320801
...
107
Grommet WPL-M0500101
...
108
Cord, Power WPL-Y20057502
...
109
Shroud-Cond WPL-D5504101
...
110
Cover Evap. WPL-C5936101
...
111
Insulation WPL-A3324601
...
112
Insulation WPL-C5939602
...
113
Gasket (1=1ft.) WPL-10839713
...
114
Evap Assy WPL-D5508001
...
115
Gasket (per Foot) WPL-A3030313
...
116
Elbow WPL-A3309102
...
117
Shield-Filler Block WPL-B1147101
...
118
Filler Block WPL-D5502701
...
119
Gasket WPL-C5952402
...
120
Cover, Top WPL-C5936901
...
121
Insulation WPL-C5939801
...
128
Fastener WPL-B1145301
...
129
Clip WPL-M0113603
...
130
Plug Button WPL-M0310008
...
131
Bracket-Ext WPL-C5939901
...
132
Grommet WPL-A3315701
...
133
Screw WPL-WP90767
...
134
Clip K WPL-M0118401
...
135
Gasket WPL-B1106209
...
137
Gasket WPL-A3030302

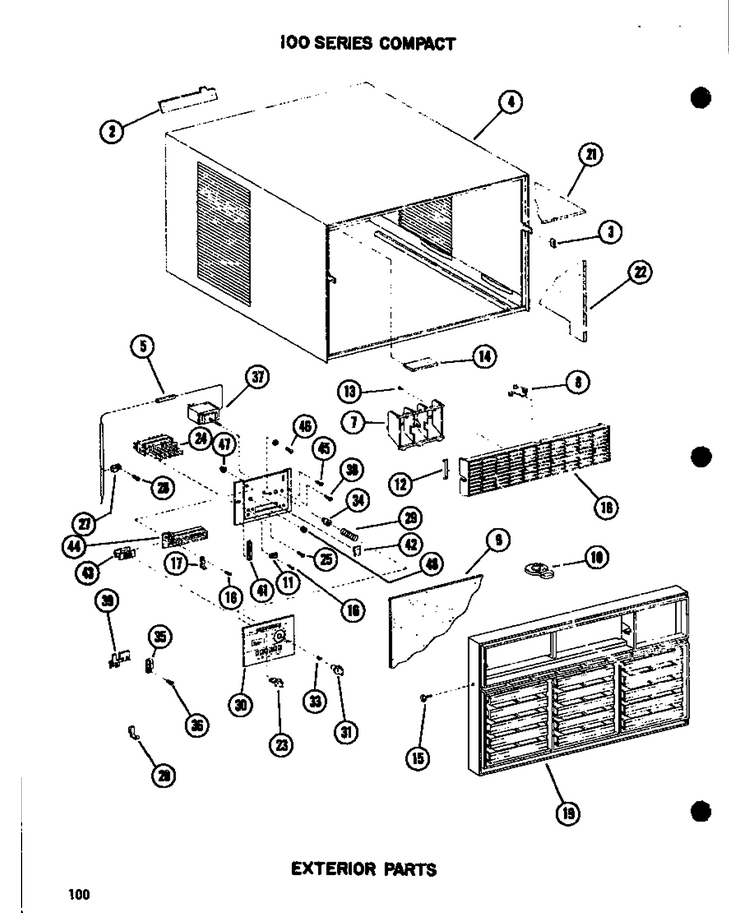

05 - Exterior Parts

...
...
2
Nameplate WPL-B4115501
...
3
Speed Nut WPL-M0288412
...
4
Outer Case Weld WPL-D5506808
...
5
Sleeve WPL-WPM0321014
...
7
Air Deflector WPL-C5934401
...
8
Slide WPL-B5183001
...
9
Filter, Air Inlet WPL-B1151101
...
10
Retainer WPL-A4542805
...
11
Clamp WPL-M0102320
...
12
Spring Tension WPL-M0117501
...
13
Screw WPL-M0229004
...
14
Gasket WPL-A3030321
...
15
Thumb Screw K WPL-M0234916
...
16
Screw WPL-WP90767
...
17
Clamp WPL-A3314501
...
18
Louver Box WPL-D5502801
...
19
Front WPL-D5502015
...
20
Spring WPL-A4634103
...
21
Insulation-Oc WPL-C5938401
...
22
Insulation-Oc WPL-C5938401
...
23
Knob WPL-B1151001
...
24
Switch-Push Button WPL-C5940002
...
25
Screw-Machine WPL-M0255014
...
26
Control Bracket WPL-C6228301
...
29
Spring WPL-A4663604
...
30
Escutcheon WPL-C5938101
...
31
Knob WPL-D7009804
...
33
Clip,retainer WPL-M0115902
...
34
Bushing WPL-A3073601
...
35
Clamp WPL-M0104501
...
36
Screw WPL-WP90767
...
37
Thermostat WPL-B4795203
...
38
Screw WPL-M0232012
...
39
Bracket-Cord Clamp WPL-B1151301
...
41
Gasket (per Foot) WPL-A3030303
...
42
Gasket-Pad WPL-A3324501
...
43
Slide-Damper Door WPL-C5940801
...
44
Bracket WPL-C5940901
...
45
Screw WPL-WP90767
...
46
Sems Fastner WPL-M0255015
...
47
Nut WPL-WP488130

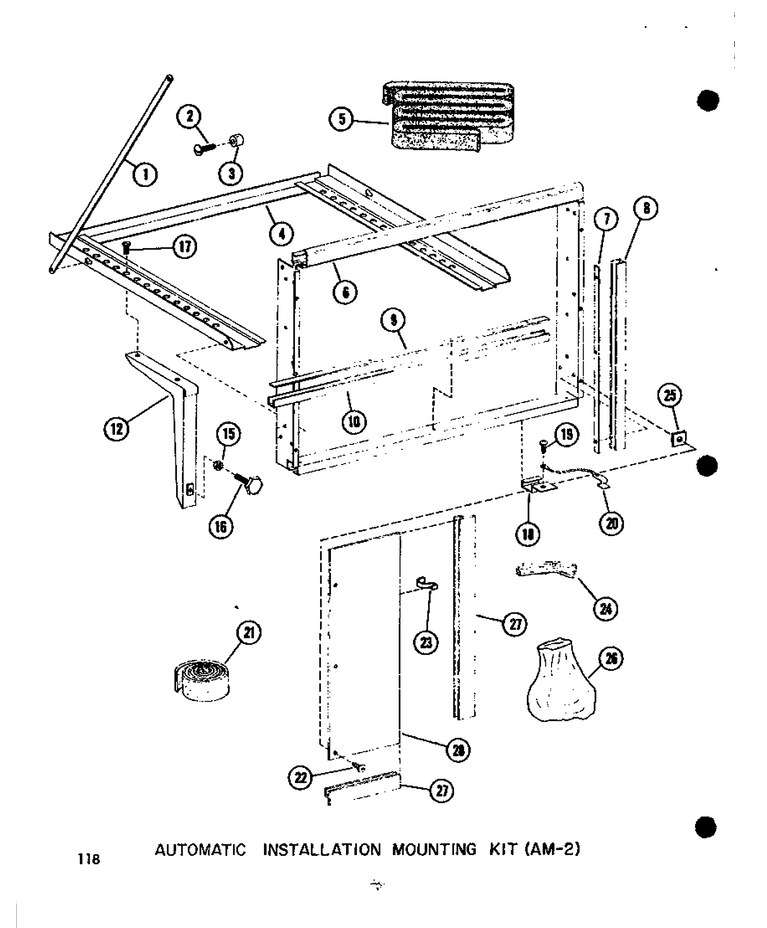

02 - Automatic Installation Mtg Kit (am-2)

...
...
1
Support, Strap WPL-B5107706
...
2
Screw WPL-M0212062
...
3
Spacer K WPL-A4065501
...
4
Frame, Support WPL-C5935405
...
5
Gasket WPL-10839702
...
6
Wld-Frame WPL-C5949901
...
7
Backer Strip WPL-B1158902
...
8
Gasket WPL-B1158802
...
9
Backer Strip WPL-B1158901
...
10
Gasket WPL-B1158801
...
12
Weldment, Angle Support, L.h. WPL-C5872102
...
15
Nut-Keps WPL-M0282019
...
16
Screw Adjusting WPL-M0200003
...
17
Screw WPL-M0206557
...
18
Clip, Sill WPL-A3321002
...
19
Screw WPL-M0211532
...
20
Cable Assy WPL-B5113103
...
21
Gasket WPL-A3030302
...
22
Screw WPL-M0211519
...
23
Spring WPL-B1100601
...
24
Sealer WPL-M0275521
...
25
Speed Nut WPL-M0288305
...
26
Accessory Mtg Kit WPL-A3313002
...
27
Gasket WPL-B4144504
...
28
Window Board WPL-A3321501

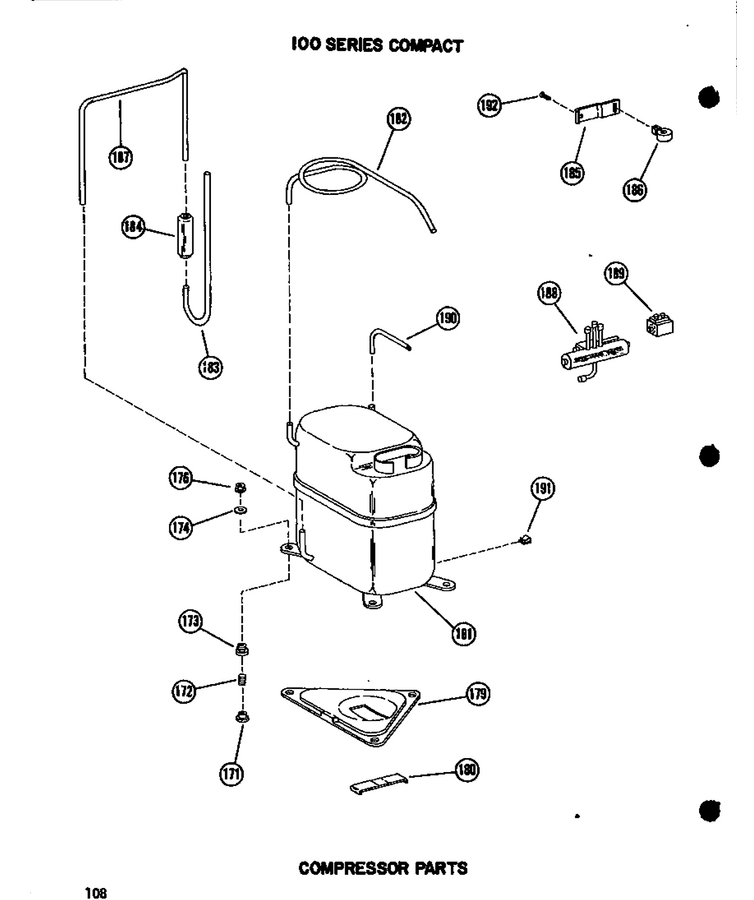

04 - Compressor Parts

...
...
174
Washer,fibre WPL-M0274008
...
176
Nut WPL-M0283610
...
179
Mtg Plate-Comp WPL-C5940301
...
180
Spring K WPL-A4635601
...
182
Suction Tube WPL-C5941301
...
183
Tube-Discharge WPL-C5941501
...
184
Muffler WPL-C5885806
...
185
Clamp WPL-A3310502
...
186
Bumper WPL-A3311002
...
187
Tube-Discharge WPL-C5941601
...
190
Proces WPL-A4637802
...
192
Screw WPL-WP90767

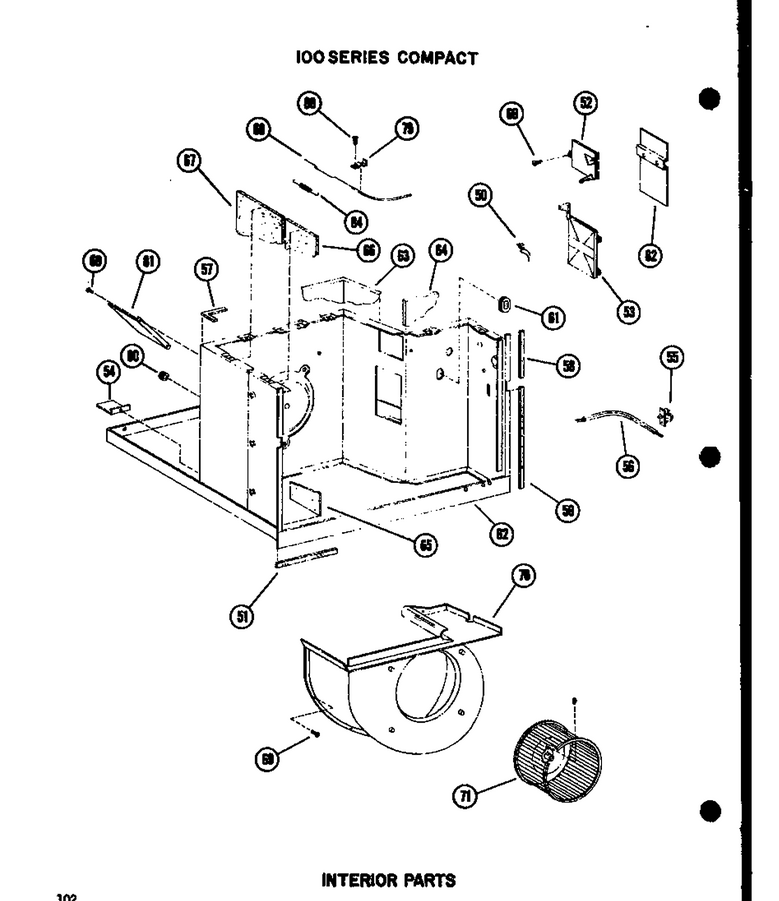

06 - Interior Parts

...
...
50
Spring WPL-A3314301
...
51
Gasket WPL-B1106212
...
52
Door-Damper WPL-C5924701
...
53
Door-Fresh Air WPL-C5931201
...
54
Condensate-Baffle WPL-A3325801
...
55
Clip, Wire WPL-M0585101
...
56
Wiring Harness-Comp WPL-B1151601
...
57
Gasket WPL-A3030302
...
58
Gasket WPL-B1106210
...
59
Gasket WPL-B1106211
...
60
Plug Button WPL-A3080003
...
61
Grommet WPL-A3310201
...
62
Basepan Wld WPL-D5506402
...
63
Insulation-Part Pnl WPL-D5507401
...
65
Insulation WPL-B1167701
...
66
Insulation WPL-A3315002
...
67
Insulation WPL-A3315003
...
68
Cable-Damper Door WPL-C5941101
...
69
Screw WPL-WP90767
...
70
Scroll-Evap WPL-D5502601
...
71
Blower Wheel WPL-C6172701
...
79
Clamp WPL-A3314501
...
80
Screw WPL-WP90767
...
81
Baffle WPL-B1150701
...
84
Spring WPL-A3314401

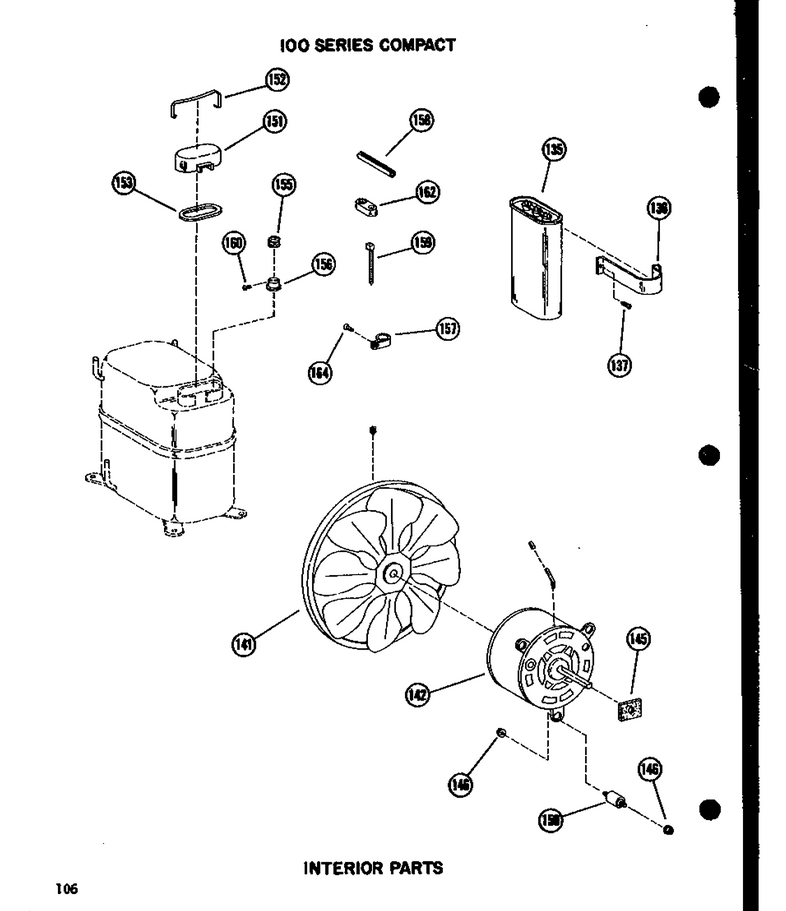

07 - Interior Parts

...
...
135
Capacitor WPL-D6879703
...
136
Strap-Capacitor WPL-A3335001
...
137
Screw WPL-WP90767
...
141
Fan, Condenser WPL-C5939403
...
145
Gasket WPL-B5107608
...
146
Nut WPL-WP487939
...
150
Grommet WPL-M0500601
...
151
Cover,terminal WPL-B5187501
...
152
Strap WPL-A4635901
...
153
Gasket,cover WPL-A4673301
...
155
Spring,overload WPL-A4674801
...
157
Clamp WPL-M0102304
...
160
Screw WPL-M0206116
...
162
Spacer WPL-A0372901
...
164
Screw WPL-WP90767
...
171
Grommet WPL-A3314101
...
172
Spring WPL-A3412101
...
173
Grommet WPL-A3314001
