Amana 109-3C

Model: 109-3C

Save Part Not Listed?
product name

01 - Page 1

...
...
NI
Screw WPL-M0200101
...
1
Cabinet Front Assy WPL-D4990420
...
2
Deflector Wheel WPL-D4965601
...
3
Knob WPL-D5373102
...
6
Strike WPL-A4561001
...
9
Filter-Air WPL-WP876775
...
10
Retainer, Filter WPL-A4542801
...
11
Clip WPL-M0111401
...
13
Plug Button WPL-A3080003
...
15
Fan Shroud WPL-C5271301
...
16
Blower Wheel WPL-D5318801
...
17
Fan Blade WPL-D5388501
...
21
Escutcheon, Control WPL-D5385201
...
22
Clip WPL-M0113003
...
23
Damper Door Assembly WPL-B5126402
...
25
Spring WPL-B4778001
...
26
Rod WPL-A4608602
...
27
Screw WPL-WP489464
...
39
Bracket, Control WPL-D5384801
...
45
Thermostat WPL-B4795201
...
49
Knob, Control Assy. WPL-B5125903
...
57
Support WPL-A4573601
...
58
Motor Fan WPL-C5272001
...
59
Capacitor, Run WPL-B4758515
...
60
Strap, Capacitor WPL-A4559101
...
61
Cord Set WPL-C5258701
...
63
Condenser WPL-C5271701
...
64
Evaporator WPL-D5376101
...
65
Compressor WPL-D5319202
...
66
Cover WPL-B4793701
...
67
Nut WPL-M0283509
...
73
Strainer WPL-B4143101
...
74
Capillary Tube, Preform WPL-D5377801
...
75
Tube, Suction WPL-C5260201
...
76
Discharge Line WPL-C5272201

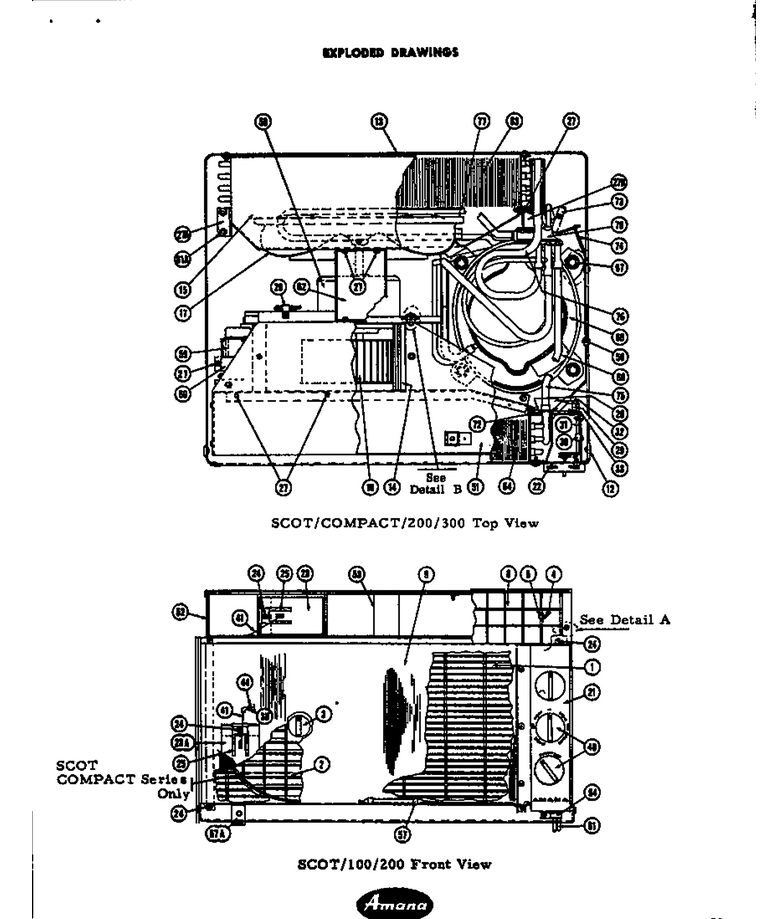

Schematic Image Zoomed
