Amana 1050.000

Model: 1050.000

Save Part Not Listed?
product name

Popular Parts

Popular Parts

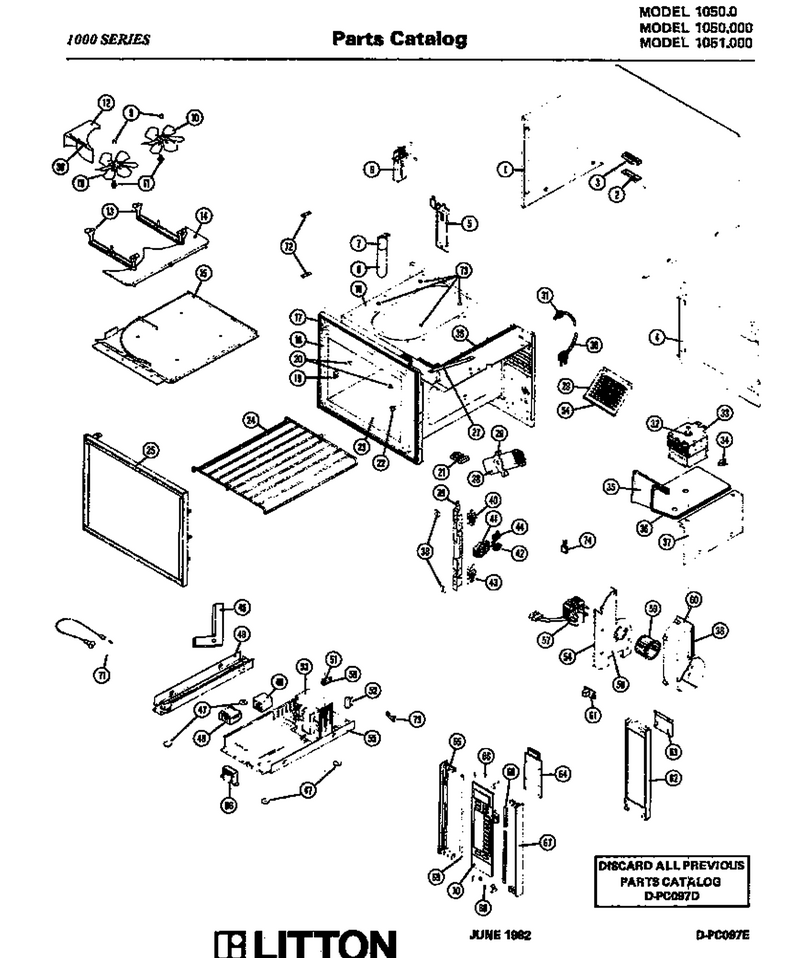

01 - Page 1

...
...
1
Screw (25) WPL-M1D827
...
2
Bezel WPL-M6D247
...
3
Button WPL-33020P01
...
4
Screw (25) WPL-M1D827
...
5
Screw (25) WPL-M1D827
...
6
H.v. Lead WPL-M5D290
...
7
Wire Harness WPL-M5D186
...
8
Bulb WPL-M9D91
...
9
Teflon Sleeve (1) WPL-M1D834
...
10
Blade, Fan WPL-M35D25
...
11
Insert, Stirrer WPL-M2D332
...
12
Air Baffle, Stirrer Kit WPL-M65D203
...
13
Stir-Supt-Bar Kit WPL-M20D149
...
14
Wave Director WPL-M65D204
...
15
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
16
Not Available WPL-M77D91
...
17
Gasket WPL-M25D59
...
18
Choke Filler WPL-M55D15
...
19
Rack Support C-Type Wht WPL-3010010002
...
20
Poly Button (10) WPL-M1D844
...
21
3/8 Int Tooth Lockwasher WPL-M1D598
...
22
Support Rack WPL-B8371001
...
23
Shelf-W/snt Kit WPL-M50D35
...
24
Bumper Rack WPL-M2D425
...
25
Door Assembly WPL-M68D107
...
26
Bracket WPL-10825501
...
27
Support-Bkt WPL-M8D188
...
28
Capacitor-.69 WPL-59001160
...
29
Screw (25) WPL-M1D827
...
30
Flat Washer (1) WPL-M1D56
...
31
Bush, Strain Relf (10) WPL-M1D600
...
32
Gasket-Rf WPL-M2D296
...
33
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
34
Screw Thrm WPL-M1D666
...
35
Screw (25) WPL-M1D827
...
36
Gasket WPL-A3030302
...
37
Screw (25) WPL-M1D827
...
38
M2d479 Bearing WPL-M2D479
...
39
Latch Slide Bracket WPL-M20D159
...
40
Ia Screw No.10-32 WPL-M1D370
...
41
Guide-Sw WPL-M2D441
...
42
Switch, Monitor WPL-35370P01
...
43
Ia Screw No.10-32 WPL-M1D370
...
44
Door Logic WPL-M14D222
...
45
Duct, Tranx WPL-M65D205
...
46
Screw (25) WPL-M1D827
...
47
Foot 4/pkg WPL-M2D534
...
48
Screw (25) WPL-M1D590
...
49
Relay WPL-31133P01
...
50
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
51
Fuse 20 A WPL-WPM0805101
...
52
H.v. Diode Lead WPL-M5D293
...
53
Transformer WPL-M60D79
...
54
Edge Guard A WPL-M2D374
...
55
Base Right WPL-M79D74
...
56
Nut WPL-WP488130
...
57
Nut WPL-WP488130
...
58
Not Available WPL-M20D160
...
59
Squirrel Cage Kit WPL-M35D24
...
60
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
61
Screw (25) WPL-M1D590
...
62
Screw (25) WPL-M1D827
...
63
Baffle C.p. WPL-M8D210
...
64
No.6 Thread Forming Screw WPL-M1D627
...
65
Screw WPL-WP90767
...
66
Screw (25) WPL-M1D540
...
67
Bezel, Right WPL-M7D404
...
68
Bottom Cap WPL-M7D401
...
69
Spacer WPL-M2D440
...
70
Clip,ground WPL-M1D857
...
71
Ia Probete WPL-34005P01
...
72
Not Available WPL-M25D58
...
73
Tinnerman Clip (1) WPL-M1D833
...
74
R C Asy WPL-M3D66
