Amana 1020.000

Model: 1020.000

Save Part Not Listed?
product name

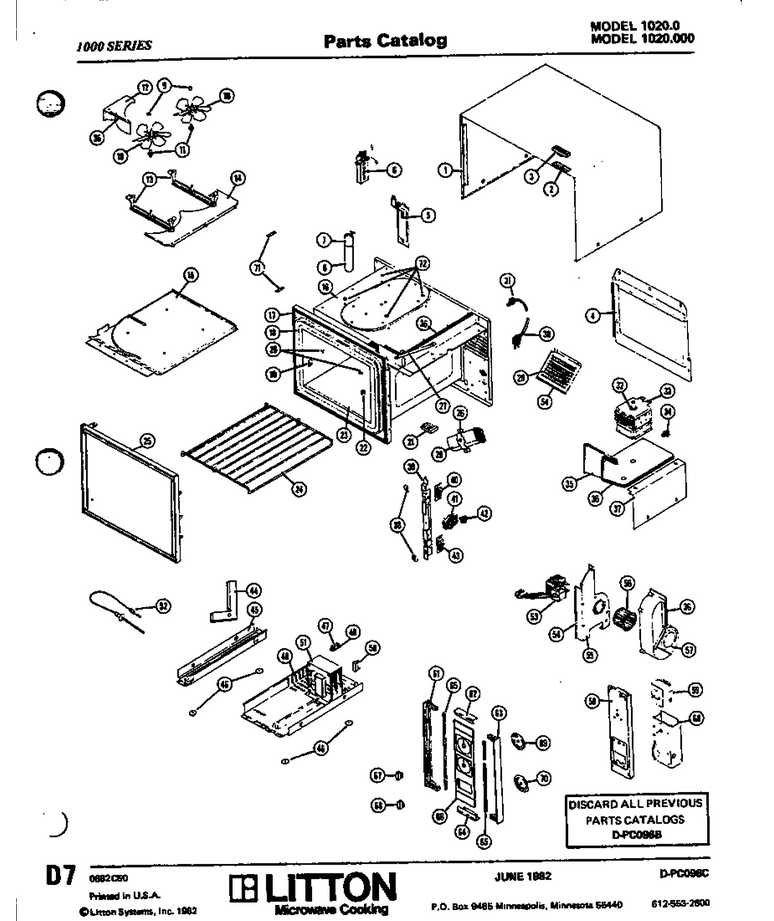

01 - Page 1

...
...
1
Screw (25) WPL-M1D826
...
2
Bezel WPL-M6D247
...
3
Button WPL-33020P01
...
4
Not Available WPL-M65D206
...
5
Lamp Access, Door WPL-M20D176
...
6
H.v. Leadno.34 WPL-M5D292
...
7
Wire Harness WPL-M5D186
...
8
Bulb WPL-M9D91
...
9
Teflon Sleeve (1) WPL-M1D834
...
10
Blade, Fan WPL-M35D25
...
11
Insert, Stirrer WPL-M2D332
...
12
Air Baffle, Stirrer Kit WPL-M65D203
...
13
Stir-Supt-Bar Kit WPL-M20D149
...
14
Screw (25) WPL-M1D847
...
15
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
16
Not Available WPL-M77D91
...
17
Gasket WPL-M25D59
...
18
Choke Filler WPL-M55D15
...
19
Rack Support C-Type Wht WPL-3010010002
...
20
Poly Button (10) WPL-M1D844
...
21
3/8 Int Tooth Lockwasher WPL-M1D598
...
22
Support Rack WPL-B8371001
...
23
Adhesive WPL-W10841140
...
24
Rack Kit WPL-M67D27
...
25
Starwasher (25) WPL-M1D856
...
26
Screw (25) WPL-M1D827
...
27
Screw (25) WPL-M1D827
...
28
Capacitor-.69 WPL-59001160
...
29
Screw (25) WPL-M1D827
...
30
No.8 Spring Lockwasher (25) WPL-M1D57
...
31
Bush, Strain Relf (10) WPL-M1D600
...
32
Gasket-Rf WPL-M2D296
...
33
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
34
Screw Thrm WPL-M1D666
...
35
Duct, Exh Lwr WPL-M65D208
...
36
Gasket WPL-A3030302
...
37
Duct, Side WPL-M65D209
...
38
M2d479 Bearing WPL-M2D479
...
39
Nut (25) WPL-M1D310
...
40
Ia Screw No.10-32 WPL-M1D370
...
41
No.8 Hi-Lo X 1/2`` Screw (25) WPL-M1D483
...
42
Switch, Monitor WPL-35370P01
...
43
Ia Screw No.10-32 WPL-M1D370
...
44
Screw (25) WPL-M1D827
...
45
Screw (25) WPL-M1D827
...
46
Molded Foot(4per Pkg.) WPL-M2D426
...
47
Fuse 20 A WPL-WPM0805101
...
48
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
49
Base Right WPL-M79D74
...
50
Screw WPL-WPW10068250
...
51
Transformer WPL-M60D79
...
52
Ia Probete WPL-34005P01
...
53
Screw WPL-WPW10001160
...
54
Edge Guard A WPL-M2D374
...
55
Screw (25) WPL-M1D827
...
56
Squirrel Cage Kit WPL-M35D24
...
57
Blower Housing WPL-M65D199
...
58
Back Plate WPL-M20D151
...
59
Timer 45 Min WPL-M30D68
...
60
Control,vp WPL-M22D34
...
61
End Cap, Left WPL-M7D455
...
62
Top Cap WPL-M7D403
...
63
Screw WPL-WP90767
...
64
Screw WPL-WPW10001160
...
65
Spacer WPL-M2D440
...
66
Dec Panel WPL-M7D406
...
67
Knob, Timer WPL-3010017001
...
68
M6d244 Control Knob WPL-M6D244
...
69
Dial M6d246 WPL-M6D246
...
70
Dial, Vari-Cook WPL-M6D268
...
71
Not Available WPL-M25D58
...
72
Tinnerman Clip (1) WPL-M1D833
