product name

Amana 1010.000

Model: 1010.000

Save Part Not Listed?
product name

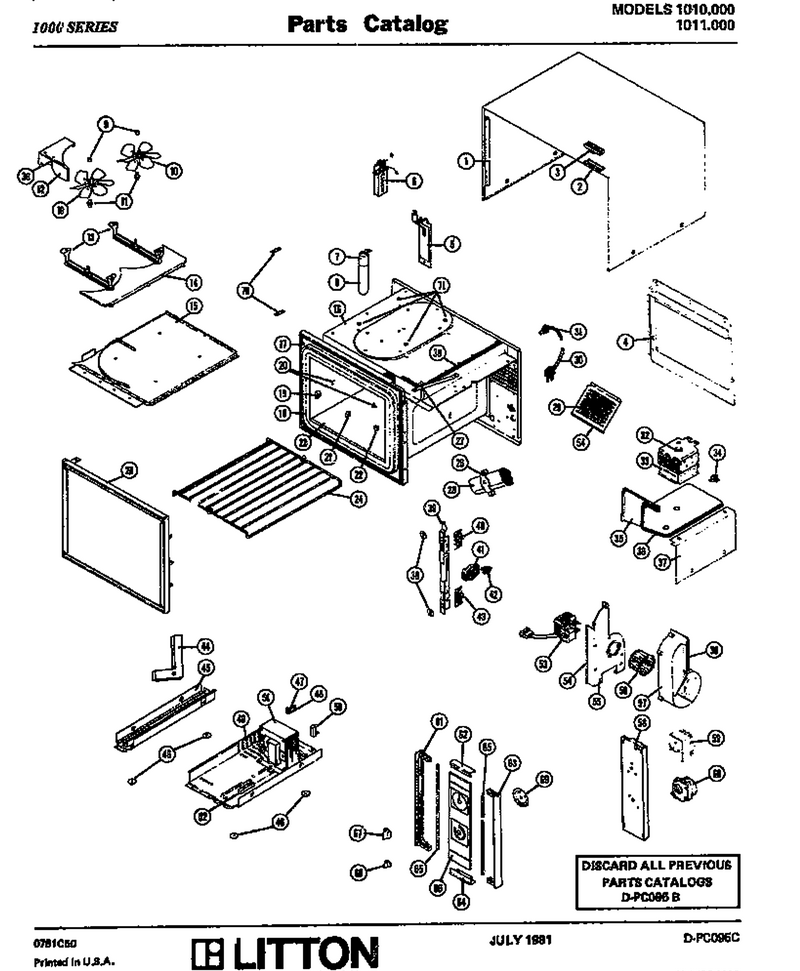

01 - Page 1

...
...
1
Screw (25) WPL-M1D826
...
2
Bezel WPL-M6D247
...
3
Button WPL-33020P01
...
4
Screw (25) WPL-M1D827
...
5
Screw (25) WPL-M1D827
...
6
Wire Package WPL-M27D249
...
7
Wire Harness WPL-M5D186
...
8
Bulb WPL-M9D91
...
9
Teflon Sleeve (1) WPL-M1D834
...
10
Blade, Fan WPL-M35D25
...
11
Insert, Stirrer WPL-M2D332
...
12
Air Baffle, Stirrer Kit WPL-M65D203
...
13
Stir-Supt-Bar Kit WPL-M20D149
...
14
Screw (25) WPL-M1D847
...
15
.187 Dia Push Rivet/bag-25pcs WPL-M1D612
...
16
Not Available WPL-M77D91
...
17
Gasket WPL-M25D59
...
18
Choke Filler WPL-M55D15
...
19
Rack Support C-Type Wht WPL-3010010002
...
20
Poly Button (10) WPL-M1D844
...
21
Cavity Plug (10) WPL-M1D755
...
22
Support Rack WPL-B8371001
...
23
Adhesive WPL-W10841140
...
24
Rack Kit WPL-M67D27
...
25
Starwasher (25) WPL-M1D856
...
26
Bracket WPL-10825501
...
27
Screw (25) WPL-M1D827
...
28
Capacitor-.69 WPL-59001160
...
29
Screw (25) WPL-M1D827
...
30
Power Cord WPL-1731300202
...
31
Bush, Strain Relf (10) WPL-M1D600
...
32
Gasket-Rf WPL-M2D296
...
33
No.10-24 Flange Whiz-Lk Nut WPL-M1D113
...
34
Cutout-Thermal-Control WPL-31866P01
...
35
Screw (25) WPL-M1D827
...
36
Gasket WPL-A3030302
...
37
Screw (25) WPL-M1D827
...
38
M2d479 Bearing WPL-M2D479
...
39
Latch Slide Bracket WPL-M20D159
...
40
Switch Assy M14d230 WPL-M14D229
...
41
Guide-Sw WPL-M2D441
...
42
Switch, Monitor WPL-35370P01
...
43
Ia Screw No.10-32 WPL-M1D370
...
44
Duct, Tranx WPL-M65D205
...
45
Screw (25) WPL-M1D827
...
46
Molded Foot(4per Pkg.) WPL-M2D426
...
47
Fuse 20 A WPL-WPM0805101
...
48
Ia Screw WPL-M1D329
...
49
Base Right WPL-M79D74
...
50
Lock Washer WPL-M0272803
...
51
Transformer WPL-M60D79
...
52
Screw WPL-WPW10068250
...
53
Nut WPL-WP488130
...
54
Edge Guard A WPL-M2D374
...
55
Screw (25) WPL-M1D827
...
56
E-Ring .219 Shaft WPL-M1D853
...
57
Blower Housing WPL-M65D199
...
58
Screw (25) WPL-M1D827
...
59
Timer WPL-M30D60
...
60
Screw (25) WPL-M1D523
...
61
Screw WPL-WP90767
...
62
Top Cap WPL-M7D403
...
63
Screw WPL-WP90767
...
64
Bottom Cap WPL-M7D401
...
65
Spacer WPL-M2D440
...
66
Dec Panel WPL-M7D407
...
67
Knob, Timer WPL-29977P01
...
68
Knob Cont M6d249 WPL-M6D249
...
69
Dial, Timer WPL-M6D245
...
70
Not Available WPL-M25D58
...
71
Tinnerman Clip (1) WPL-M1D833
