Amana 100LCS-2N (BOM: 100LCS02N)

Model: 100LCS-2N (BOM: 100LCS02N)

Save Part Not Listed?
product name

Popular Parts

Popular Parts

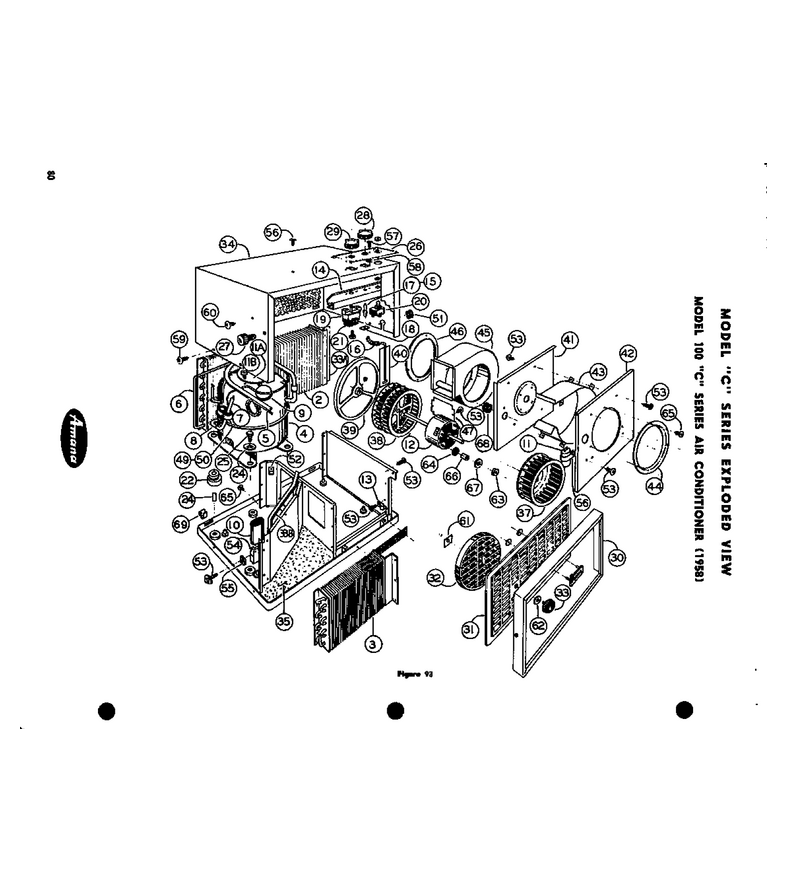

01 - Page 4

...
...
NI
Gasket (per Foot) WPL-10839706
...
1
De-Super Heater Coil WPL-D4349301
...
2
Condenser Coil WPL-D4349201
...
3
Evaporator Assembly WPL-D4349501
...
4
Compressor, Bm WPL-D4346901
...
5
Heat Exchanger4 WPL-C4243501
...
6
Discharge Line WPL-C4243601
...
7
Process Tube WPL-A4028701
...
8
Connecting Tube WPL-B4151001
...
9
Overload Protector Spencer WPL-A4072201
...
10
Wiring Harness, Fan Motor WPL-C4244101
...
12
Bracket, Wiring Harness Mtg. WPL-A4080601
...
13
Clamp WPL-M0102101
...
14
Bracket, Weldment, Control WPL-C4246701
...
15
Control Rod, Fresh Air Damper WPL-A4078101
...
16
Spring, F.a. Damper WPL-B4148201
...
17
Roll Pin, F.a. Damper WPL-A4049501
...
18
Tinnerman, Push-On Control Rod WPL-A0336301
...
19
Switch WPL-B4148501
...
20
Switch WPL-B4148801
...
21
Cover, Terminals, Switch-Therm WPL-B4149501
...
22
Grommet WPL-A4002701
...
23
Grommet Sleeve K WPL-A4002901
...
24
Washer, Steel-Compressor Mtg. WPL-A0253601
...
25
Sems Fastener, Compressor Mtg. WPL-A0362201
...
26
Escutcheon, Controls WPL-D4351701
...
27
Thumb Screw, Front Mtg. WPL-A4072501
...
28
Knob, Damper WPL-C4245401
...
29
Spring, Control Knobs WPL-A4019401
...
30
Front Frame WPL-D4348101
...
31
Cabinet Front, Plastic WPL-B4148601
...
32
Deflector Wheel WPL-D4346501
...
33
Gasket, Bottom 27-1/2`` Long WPL-A4003803
...
34
Outer Case Weldment WPL-D4350001
...
35
Insulation - Evaporator Duct WPL-C4246401
...
37
Blower Wheel - Evaporator WPL-C4247101
...
38
Blower Wheel WPL-C4247001
...
39
Slinger Ring WPL-C4247901
...
40
Damper Door Weldment WPL-B4147901
...
41
Blower Partition Weldment WPL-C4245801
...
42
End Plate - Evaporator Scroll WPL-C4244501
...
43
Evaporator, Scroll Weldment WPL-C4245901
...
44
Orifice Ring, Evaporator WPL-B4152601
...
45
Blower Housing Assembly WPL-D4350701
...
46
Inlet Ring - Condenser Blower WPL-C4244301
...
47
Compressor Terminal Enclosure WPL-B4135401
...
49
Spacer WPL-A0372901
...
50
Clamp, Tube Spacer WPL-A0372501
...
51
Grommet WPL-A0368902
...
52
Clamp WPL-M0102314
...
53
See Note Screw, Control Bracket Mtg. WPL-Y00000000
...
54
Capacitor Strap WPL-B4147301
...
55
Speednut, Tie Strip Mtg. WPL-A0284901
...
56
Coupling, Solenoid Valve WPL-A0308501
...
57
Screw, Control Escutcheon Moun WPL-A0341601
...
58
Speed Nut, Control Escutcheon WPL-A0349301
...
59
Screw WPL-WPW10068250
...
60
Screw, Lower Door Spring Mtg. WPL-A0238701
...
61
Speednut, Knob To Deflector Mt WPL-A0370601
...
62
Spring Washer - Deflector Knob WPL-A0370501
...
63
Nut WPL-WP488130
...
64
Grommet WPL-A0374201
...
65
Screw WPL-M0211530
...
66
Washer WPL-M0270519
...
67
Sleeve WPL-A4078601
...
68
Grommet WPL-A0368901
...
69
Screw WPL-WP90767

02 - Page 5

...
...
NI

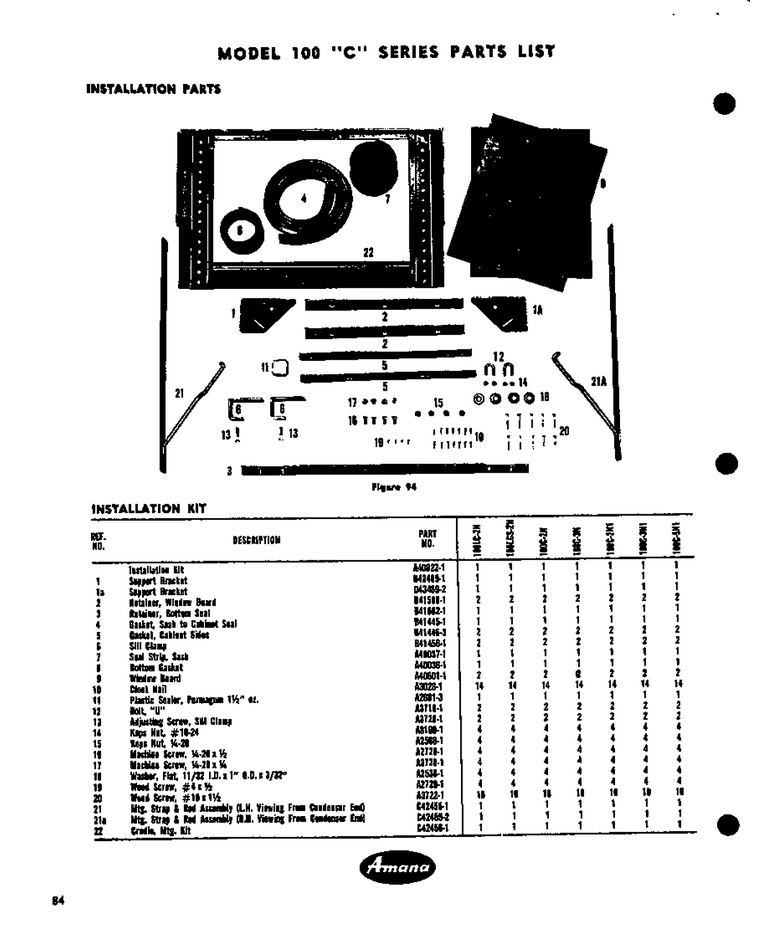

Mounting Kit-Iam-3 WPL-C5265204
...
1
Support Bracket WPL-D4348902
...
2
Retainer, Window Board WPL-B4150801
...
3
Retainer, Bottom Seal WPL-B4106201
...
4
Gasket, Sash To Cabinet Seal WPL-B4144501
...
5
Gasket, Cabinet Sides WPL-B4144603
...
6
Sill Clamp WPL-B4145801
...
7
Seal Strip, Sash WPL-A4003701
...
8
Gasket, Bottom WPL-A4003801
...
9
Window Board WPL-A4080101
...
10
Clout Nail WPL-A0302801
...
11
Plastic Sealer, Permagum, 1 1/ WPL-A0288103
...
12
Bolt, ``u`` WPL-A0371801
...
13
Screw WPL-M0200001
...
14
Hex Nut 10-24 Nickel WPL-A0319001
...
15
Nut WPL-WP487939
...
16
Screw WPL-A0272801
...
17
Screw WPL-A0372601
...
18
Washer, Steel-Compressor Mtg. WPL-A0253601
...
19
Screw WPL-M0236004
...
20
Screw WPL-A0372201
...
21
Mtg. Strap & Rod Assembly WPL-C4245501
...
22
Cradle, Mtg. Kit WPL-C4245601
