product name

Amana 1009.000

Model: 1009.000

Save Part Not Listed?
product name

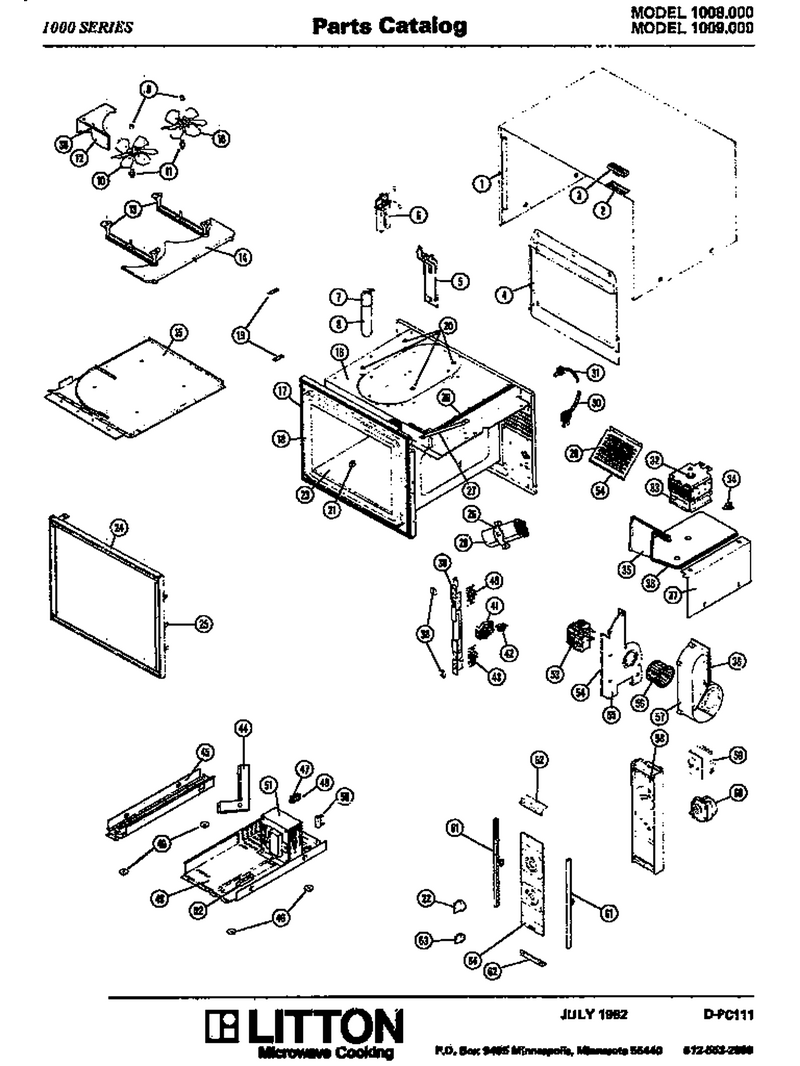

01 - Page 1

...
...
1
Screw (25) WPL-M1D827
...
2
Bezel WPL-M6D247
...
3
Button WPL-33020P01
...
4
Screw (25) WPL-M1D827
...
5
Screw (25) WPL-M1D827
...
6
Wire Harness Pkg. WPL-M27D295
...
7
Wire Harness WPL-M5D186
...
8
Bulb WPL-M9D91
...
9
Teflon Sleeve (1) WPL-M1D834
...
10
Blade, Fan WPL-M35D25
...
11
Insert, Stirrer WPL-M2D332
...
12
Air Baffle, Stirrer Kit WPL-M65D203
...
13
Stir-Supt-Bar Kit WPL-M20D149
...
14
Wave Director WPL-M65D204
...
15
Stirrer Cover WPL-M45D20
...
16
Not Available WPL-M77D91
...
17
Gasket WPL-M25D59
...
18
Choke Filler WPL-M55D15
...
19
Not Available WPL-M25D58
...
20
Tinnerman Clip (1) WPL-M1D833
...
21
Cavity Plug (10) WPL-M1D755
...
22
Knob, Timer WPL-29977P01
...
23
Not Available WPL-M31D2
...
24
Screw (25) WPL-M1D571
...
25
Door Hook Kit WPL-M8D238
...
26
Screw (25) WPL-M1D827
...
27
Support-Bkt WPL-M8D188
...
28
Capacitor-.69 WPL-59001160
...
29
Screw (25) WPL-M1D827
...
30
Power Cord WPL-1731300202
...
31
Bush, Strain Relf (10) WPL-M1D600
...
32
Gasket-Rf WPL-M2D296
...
33
No.10 Hex Wshr Hd Mach Scr WPL-M1D114
...
34
Cutout-Thermal-Control WPL-31866P01
...
35
Screw (25) WPL-M1D827
...
36
Gasket WPL-A3030302
...
37
Screw (25) WPL-M1D827
...
38
M2d479 Bearing WPL-M2D479
...
39
Latch Slide Bracket WPL-M20D159
...
40
Ia Screw No.10-32 WPL-M1D370
...
41
Guide-Sw WPL-M2D441
...
42
Switch, Monitor WPL-35370P01
...
43
Ia Screw No.10-32 WPL-M1D370
...
44
Screw (25) WPL-M1D827
...
45
Screw (25) WPL-M1D827
...
46
Screw (25) WPL-M1D793
...
47
Fuse 20 A WPL-WPM0805101
...
48
Ia Screw WPL-M1D329
...
49
Screw (25) WPL-M1D827
...
50
H.v. Diode Lead WPL-M5D293
...
51
Transformer WPL-M60D79
...
52
Screw WPL-WPW10068250
...
53
Blower Motor Kit WPL-M12D78
...
54
Edge Guard A WPL-M2D374
...
55
Not Available WPL-M20D160
...
56
Squirrel Cage Kit WPL-M35D24
...
57
Blower Housing WPL-M65D199
...
58
Control Pnl Hsg WPL-M7D533
...
59
Screw Thrm WPL-M1D666
...
60
Timerx WPL-M22D20
...
61
Not Available WPL-M7D522
...
62
Trim Top/bottom WPL-M7D524
...
63
Knob Cont M6d249 WPL-M6D249
...
64
Use & Care Manual WPL-38515P01
