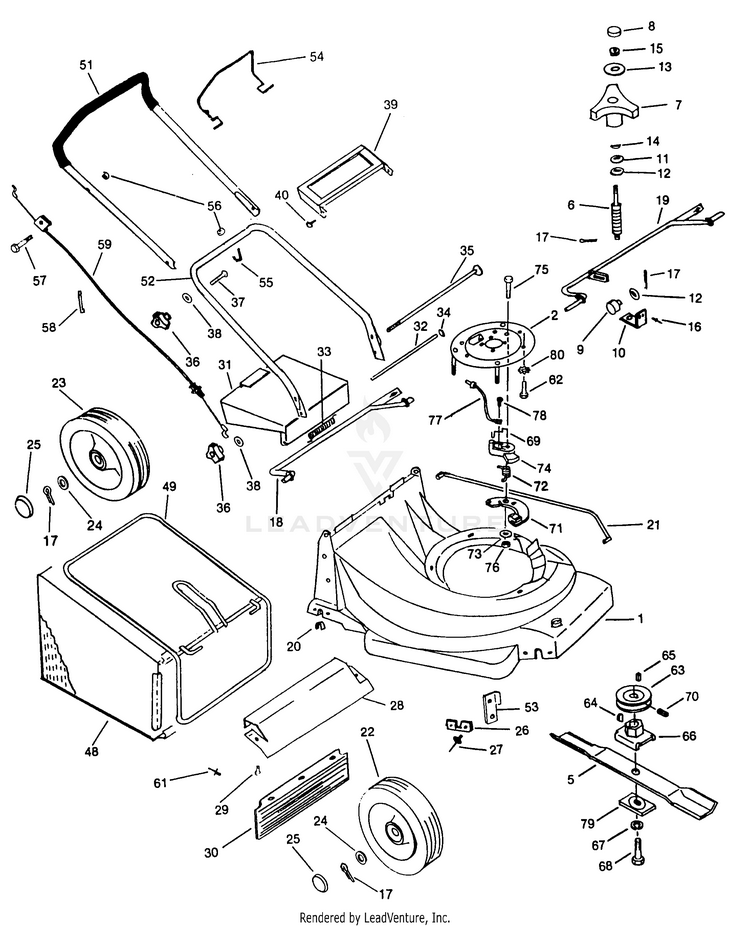

Agway by MTD Mdl 110-127R019/820-602 Push Walk-Behind Mower

Model: Agway Mdl 110-127R019/820-602

Save Part Not Listed?
product name

Parts

...
...
1
DECK-16" MOLDED MTD-706-13761-01-60
...
2
Plate Assembly-Engine Mtg. MTD-706-13859-02-90
...
5
BLADE-16" MTD-706-13813-00-08
...
6
ADJUSTER SCREW MTD-706-13768
...
7
Knob-Height Adjust MTD-706-13764-00-90
...
8
PLUG-HEIGHT ADJUST KNOB MTD-706-13854
...
9
Trunnion-Height Adjust MTD-706-13767
...
10
Bracket-Screw Brace MTD-706-13860
...
11
FLAT WASHER.812ID (Special) MTD-706-13876
...
12
FLAT WASHER (Special) MTD-736-0275
...
13
WASHER (Special) MTD-706-13878
...
14
UNKNOWN MTD-NA
...
15
NUT-METRIC (Special) MTD-706-13845
...
16
POP RIVET MTD-928-0180
...
17
Cotter Pin 3/32 x 314" MTD-714-0507
...
18
Rear Axle Assembly MTD-706-13810-05-90
...
19
FRONT AXLE ASSEMBLY MTD-706-13810-06-90
...
20
Bushing- Axle MTD-706-13875-01
...
21
Link Rod MTD-706-13842-00-90
...
22
Wheel-6" MTD-734-1658
...
23
WHEEL-7" MARLEX WAF TRD(3/B MTD-734-1659
...
24
Fl-Wash. 3/8" MTD-736-0185
...
25
HUB CAP MTD-706-10740
...
26
RETAINER-FRONT AXLE MTD-706-13858
...
27
Blind Rivet 5/32" MTD-706-13821
...
28
Support-Deck & Trail Shield MTD-706-13766-01-90
...
29
SCREW-METRIC (Special) MTD-706-13822
...
30
TRAIL SHIELD MTD-706-13872
...
31
REAR DOOR ASSEMBLY MTD-706-14388-00-90
...
32
HINGE PIN MTD-706-13849
...
33
Spring-Rear Door MTD-706-14389
...
34
RETAINER-PUSH NUT (Special) MTD-706-13843
...
35
Pin-Handle MTD-706-13848-01
...
36
Star Knob MTD-720-04072A
...
37
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
38
SADDLE WASHER MTD-706-10057-01
...
39
Trimplate MTD-706-10320-01-90
...
40
SCREW #10-16 x .750 MTD-710-1128
...
48
GRASSBAG MTD-706-13826-01
...
49
FRAME ASSEMBLY-GRASSBAG MTD-706-13769-02
...
51
Upper Handle w/Foam Grip MTD-706-13820-01
...
52
LOWER HANDLE MTD-706-13830-02-91
...
53
Brace-Front Axle MTD-706-13971-00-90
...
54
Lever-Engine Control MTD-706-13840-00-90
...
55
ROPE GUIDE (J-Bolt) MTD-706-10616
...
56
FLANGE LOCK NUT 1/4-20 MTD-706-11909
...
57
Hex Bolt 1/4-20 x 1-1/4" MTD-710-0106
...
58
Plastic Tie MTD-706-10065
...
59
CABLE-ENGINE CONTROL MTD-706-13816
...
61
BLIND RIVET MTD-706-13218
...
62
Engine Mtg. Bolt MTD-710-0258
...
63
PULLEY-BRAKE MTD-706-13856
...
64
KEY-SQUARE 5/32 x 1/2" MTD-706-13988
...
65
WOODRUFF KEY #6-5/32X5/8 DIA MTD-714-0138
...
66
ADAPTER BLADE MTG. MTD-706-13807-01-05
...
67
L-Wash. 3/8" I.D. MTD-736-0217
...
68
Hex Bolt 3/8-24 x 1" Lg. (Special) MTD-710-1039
...
69
CONTACT-BRAKE ARM MTD-706-13863-01
...
70
Set Screw 5/16-18 x 3/8" MTD-706-16118
...
71
Brake Arm & Pad Assembly MTD-706-13806-02
...
72
SPRING-BRAKE ARM MTD-706-13865-02
...
73
Fl-Wash. .375" I.D. x 1.00" O.D. x .030" MTD-936-0101
...
74
HOUSING-BRAKE SPRING MTD-706-13815-01
...
75
Hex Bolt 3/8-16 x 1-3/4" MTD-710-0347
...
76
Hex Ctr. L-Nut 3/8-16 Thd. MTD-712-3000
...
77
Wire Assembly-Eng. Control MTD-706-13915
...
78
Screw #6-20 x 3/8 Tapping MTD-706-11785-06
...
79
PLATE-BLADE RETAINER MTD-706-10110-00-05
...
80
Int. L-Wash. 5/16" I.D. MTD-736-0498
