Admiral UFF181 (BOM: V5ZU30)

Model: UFF181 (BOM: V5ZU30)

Save Part Not Listed?
product name

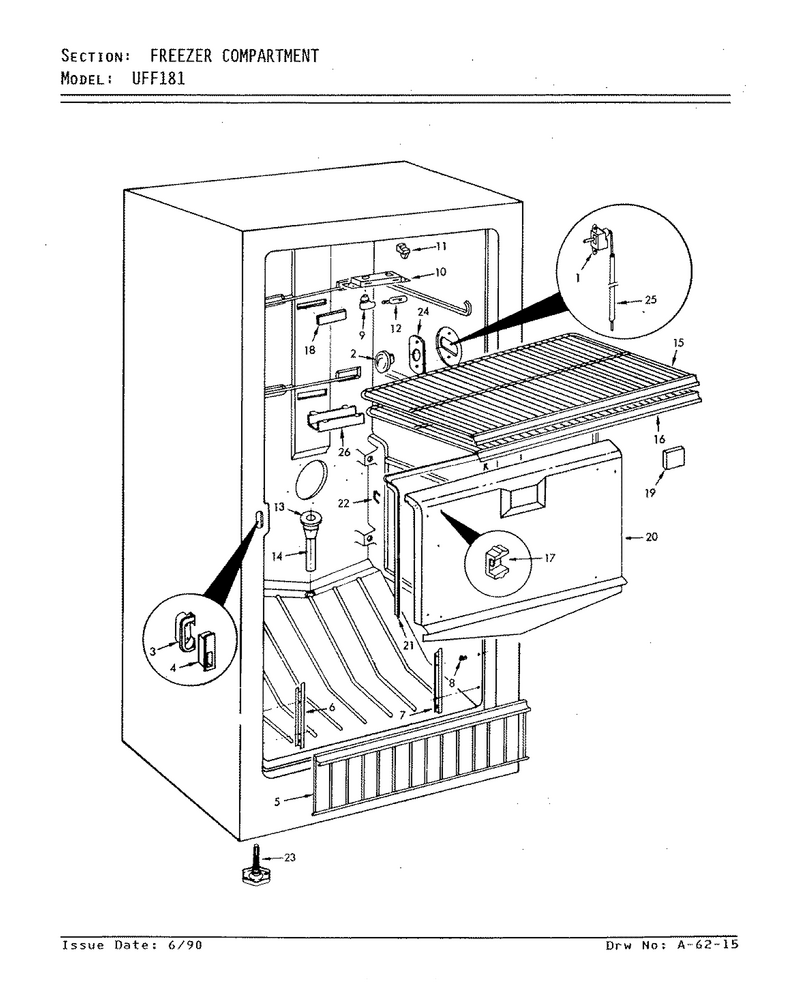

01 - Freezer Compartment

...
...
1
Screw WPL-WPW10068250
...
2
Knob, Thermostat WPL-4-81294-004
...
3
Retainer WPL-042951-02
...
4
Strike WPL-049386-02
...
5
Gate (Silver) WPL-Y04944602
...
6
Support, Bracket WPL-65587-2
...
7
Support Fence Rh WPL-4357293
...
8
Nylon Nut WPL-047587-01
...
9
Lamp Socket WPL-4356874
...
10
U Nut WPL-046841-01
...
11
Switch WPL-W11384469
...
12
Bulb-Light WPL-W10873798
...
13
Drain Grommet WPL-045570-01
...
14
Sleeve WPL-045879-01
...
15
Wire Shelf WPL-Y04944701
...
16
Wire Shelf WPL-049447-02
...
17
Screw WPL-046375-01
...
18
Vent-Plug WPL-WP3-80414-103
...
19
Seal, Air Block WPL-045580-01
...
20
Evap Cover WPL-045576-01
...
21
Gasket, Cover Evaporator WPL-4356927
...
22
Clip WPL-53814-1
...
23
Leveler WPL-W11117769
...
24
Plate Control WPL-046673-01
...
25
Wiring Diagram WPL-68001101
...
26
Shield, Light WPL-4357285

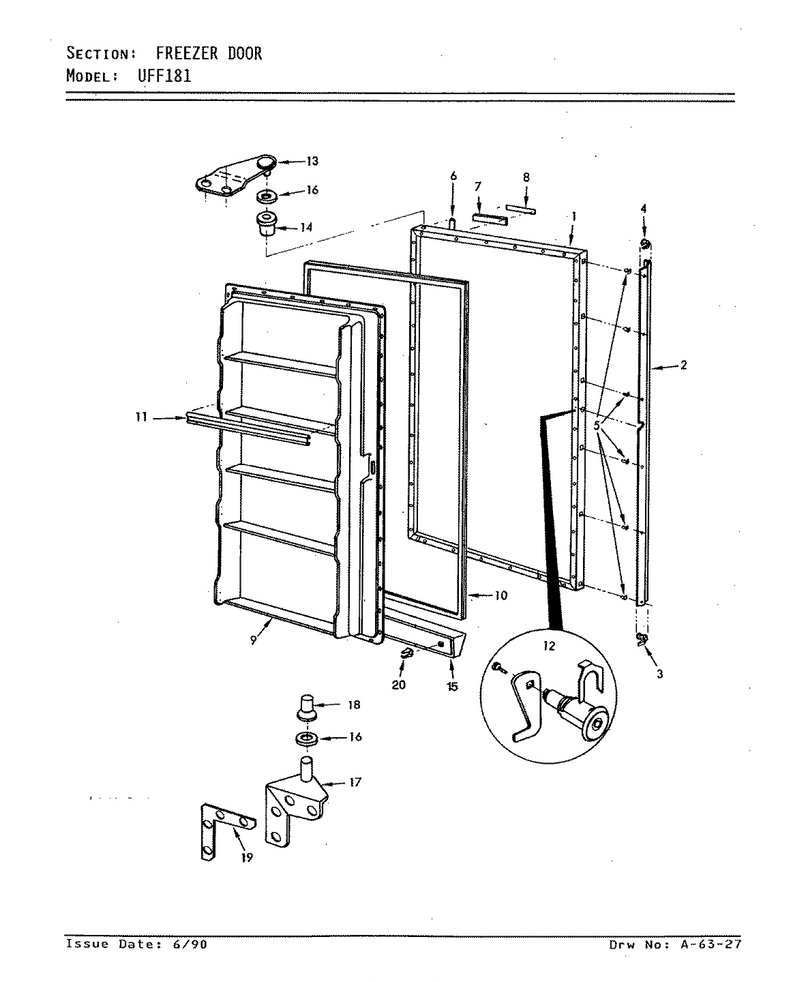

02 - Freezer Door

...
...
1
Crossbar WPL-048402-01
...
2
Screw WPL-048305-01
...
3
End Cap Handle WPL-047143-01
...
4
End Cap Handle WPL-047144-01
...
5
Grommet WPL-Y04664301
...
6
Door Trim WPL-046913-02
...
7
Bezel Nameplate WPL-09100119
...
8
Insert, Bezel Nameplate WPL-7719P065-60
...
9
Screw WPL-61005388
...
10
Door Gasket WPL-045283-01
...
11
Trim Door Shelf WPL-046862-04
...
12
Screw WPL-WP4159193
...
13
Top Hinge WPL-047716-03
...
14
Spacer, Top Hinge WPL-045309-01
...
15
Grille WPL-WP4-60461-005
...
16
Washer WPL-WP52185-1
...
17
Bottom Hinge WPL-047717-04
...
18
Upper Bushing WPL-66036-3
...
19
Shim WPL-Y04529702
...
20
Screw WPL-WP90767

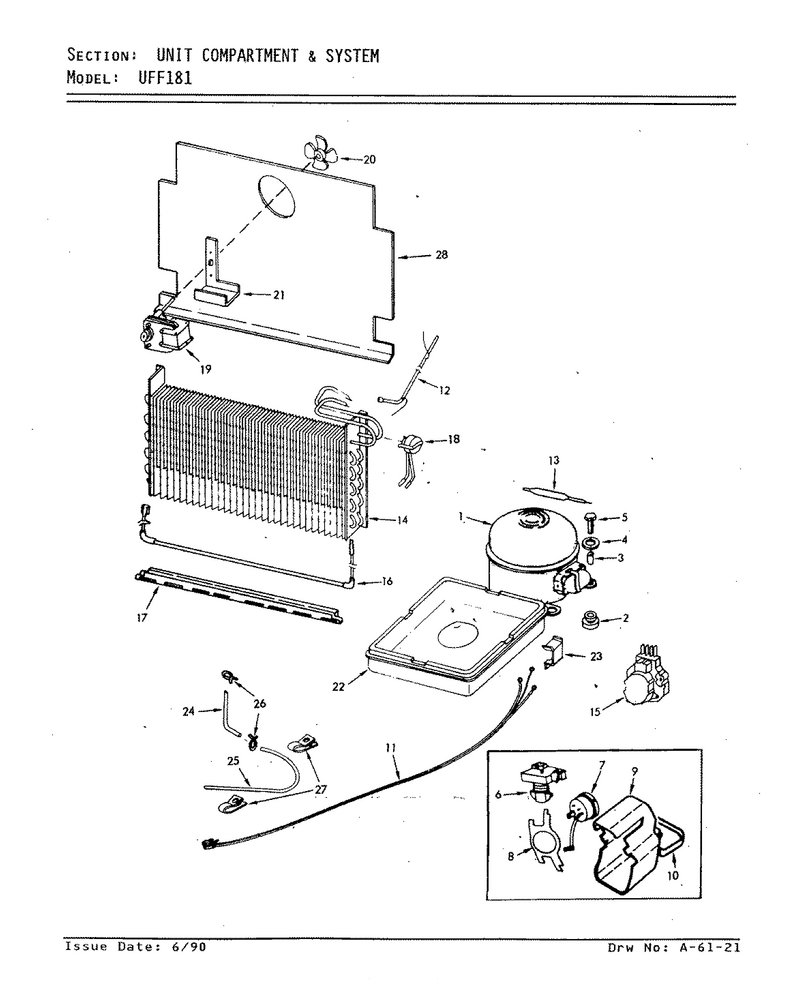

03 - Unit Compartment & System

...
...
1
Compressor WPL-W10439652
...
2
Grommet WPL-004691-02
...
3
Sleeve WPL-004694-01
...
4
Washer WPL-005417-03
...
5
Screw, Compressor Mounting WPL-4356852
...
6
Relay WPL-Y09100112
...
7
Overload WPL-Y09100113
...
8
Clip, Overload WPL-Y09100114
...
9
Cover, Terminal WPL-Y09100115
...
10
Clip, Term Cover WPL-Y09100116
...
11
Line Cord WPL-Y00075403
...
12
Exchanger WPL-WP4357245
...
13
Drier-Uv WPL-WPW10143759
...
14
Tube, Oil Cooler WPL-048325-01
...
15
Timer-Def WPL-WP4391974
...
16
Heater WPL-W11175809
...
17
Shield-Ht WPL-4357284
...
18
Thermostat WPL-045568-01
...
19
Screw WPL-046377-04
...
20
Fan Blade WPL-Y04556401
...
21
Bracket WPL-045565-01
...
22
Kit, Drain WPL-R9800592
...
23
Bracket WPL-045559-01
...
24
Drain Tube WPL-Y04576601
...
25
Drain Hose WPL-045573-01
...
26
Clamp WPL-043840-04
...
27
Clamp WPL-045539-01
...
28
Kickplate WPL-045532-03
