Admiral UF210 (BOM: V5ZU30)

Model: UF210 (BOM: V5ZU30)

Save Part Not Listed?
product name

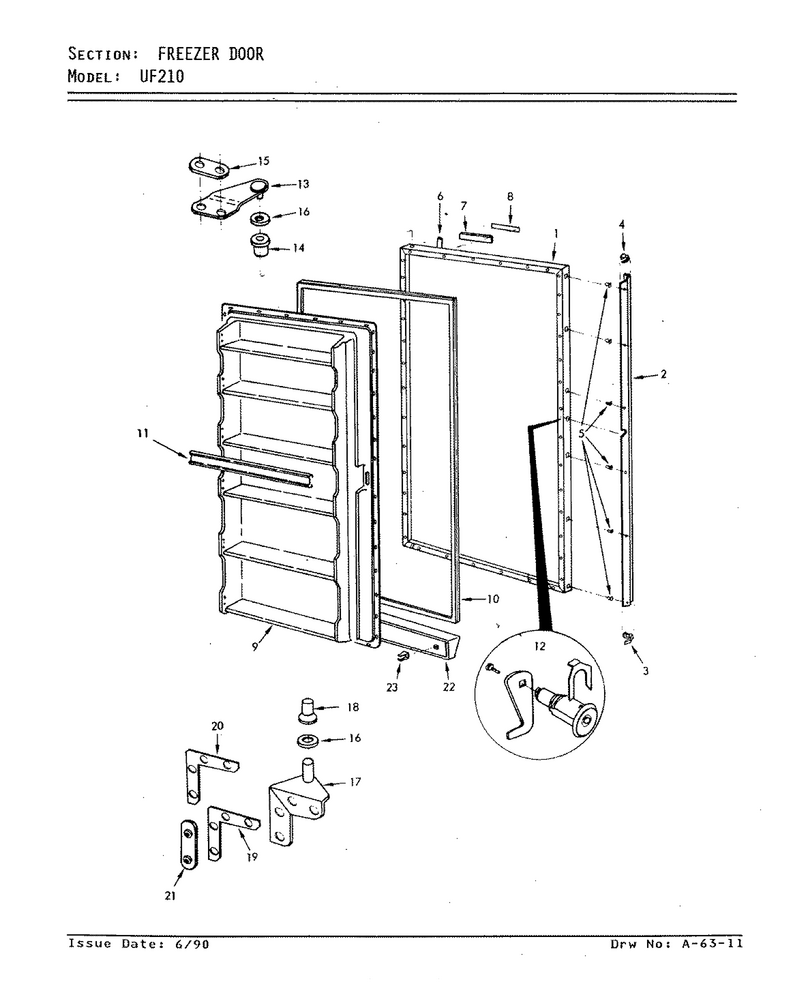

02 - Freezer Door

...
...
1
Cross Bar, Door Support WPL-048402-03
...
2
Handle Cms WPL-047142-05
...
3
End Cap Handle WPL-047143-01
...
4
End Cap Handle WPL-047144-01
...
5
Clip,inner Panl WPL-047536-01
...
6
Door Trim WPL-046913-02
...
7
Bezel Nameplate WPL-09100119
...
8
Insert, Bezel Nameplate WPL-7719P065-60
...
9
Screw WPL-61005388
...
10
Gasket-Dor WPL-WP4-81049-001
...
11
Trim Door Shelf WPL-046862-05
...
12
Screw WPL-WP4159193
...
13
Screw WPL-WP3-24838-048
...
14
Upper Bushing WPL-66036-3
...
15
Tapping Plate WPL-049381-01
...
16
Washer WPL-WP52185-1
...
17
Bolt WPL-WP8204624
...
18
Upper Bushing WPL-66036-3
...
19
Shim WPL-Y04529701
...
20
Shim WPL-Y04529702
...
21
Nut WPL-045434-01
...
22
Kickplate WPL-045532-03
...
23
Clip WPL-1-80247-101

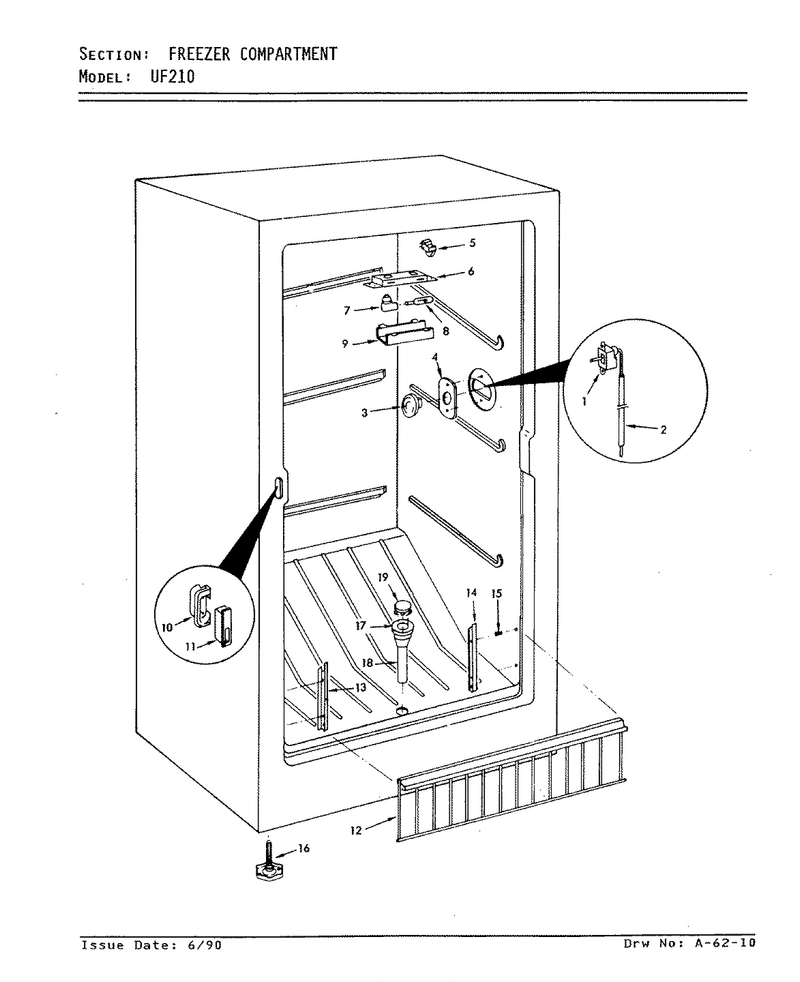

01 - Freezer Compartment

...
...
1
Screw WPL-WPW10068250
...
2
Plastic Tubing WPL-4008-1
...
3
Knob, Thermostat WPL-4-81294-004
...
4
Plate Control WPL-046673-01
...
5
Switch WPL-W11384469
...
6
Bracket WPL-4357089
...
7
Lamp Socket WPL-045337-01
...
8
Lamp WPL-20174-05
...
9
Shield, Light WPL-4357285
...
10
Retainer WPL-042951-02
...
11
Strike WPL-049386-02
...
12
Gate WPL-048408-03
...
13
Support, Bracket WPL-65587-2
...
14
Support Fence Rh WPL-4357293
...
15
Sub 800782 WPL-40037-1
...
16
Leveler WPL-W11117769
...
17
Drain Grommet WPL-045570-01
...
18
Sleeve WPL-045879-01
...
19
Wire Harness WPL-048990-01

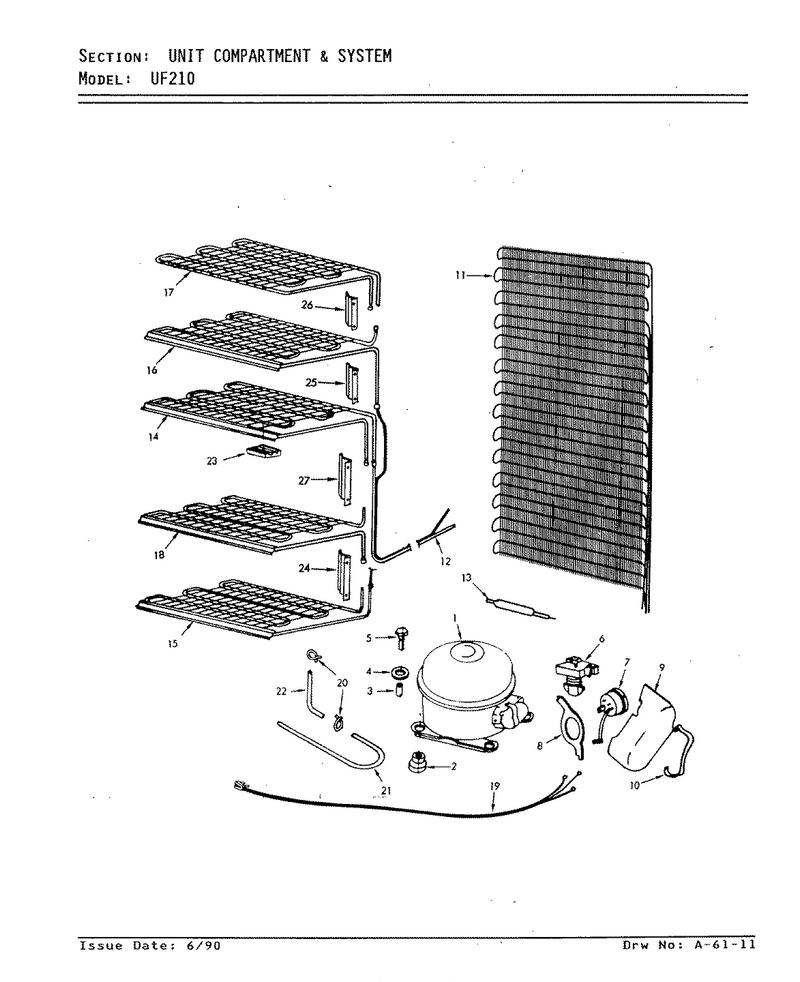

03 - Unit Compartment & System

...
...
1
Compressor WPL-W10439652
...
2
Grommet WPL-004691-02
...
3
Sleeve WPL-004694-01
...
4
Washer WPL-005417-03
...
5
Screw, Compressor Mounting WPL-4356852
...
6
Relay WPL-Y09100112
...
7
Overload WPL-Y09100113
...
8
Clip, Overload WPL-Y09100114
...
9
Cover, Terminal WPL-Y09100115
...
10
Clip, Term Cover WPL-Y09100116
...
11
Condenser Kit WPL-RA43880-11
...
12
Heat Exchanger WPL-048465-03
...
13
Drier-Uv WPL-WPW10143759
...
14
Evap Shelf WPL-Y04813303
...
15
Evap Shelf WPL-048134-02
...
16
Evap Shelf WPL-048135-11
...
17
Evap Shelf Top WPL-048136-02
...
18
Washer WPL-005417-33
...
19
Clamp WPL-043171-01
...
20
Clamp WPL-043840-04
...
21
Drain Hose WPL-045573-02
...
22
Drain Tube WPL-Y04576601
...
23
Clamp WPL-1-80308-101
...
24
Cover WPL-048086-06
...
25
Tube Cover WPL-048087-14
...
26
Cover WPL-048087-15
...
27
Ret Tunnel WPL-047015-01
