Admiral UF180 (BOM: V5ZU30)

Model: UF180 (BOM: V5ZU30)

Save Part Not Listed?
product name

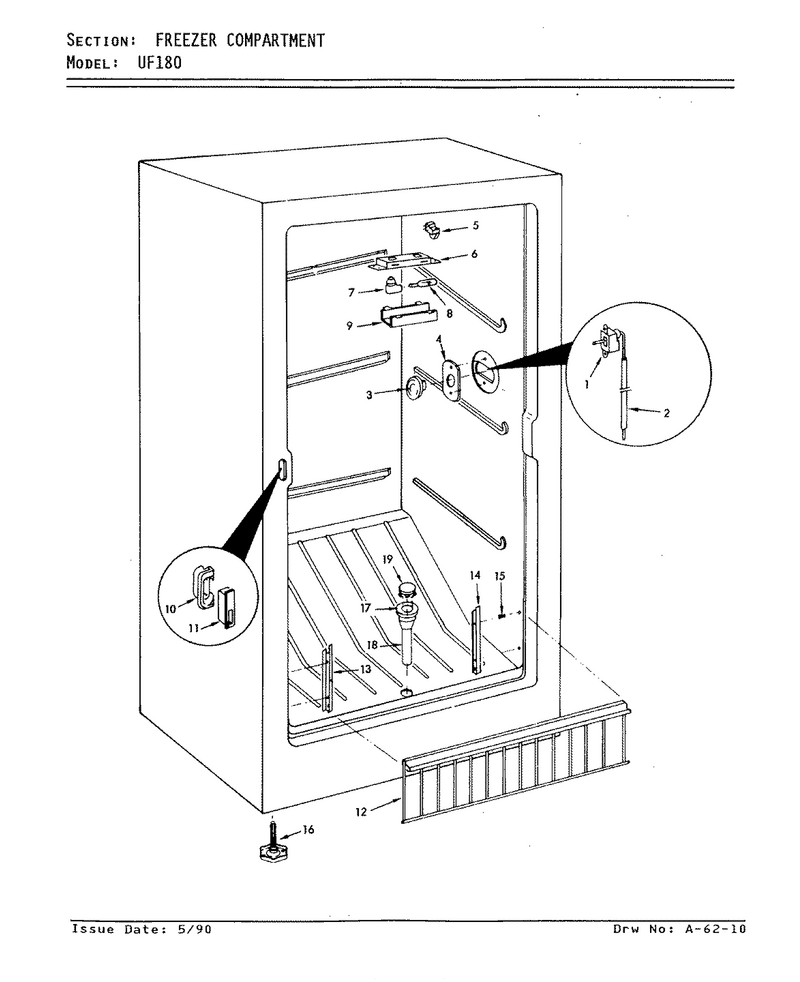

01 - Freezer Compartment

...
...
1
Clip WPL-045855-01
...
2
Plastic Tubing WPL-4008-1
...
3
Knob, Thermostat WPL-4-81294-004
...
4
Plate Control WPL-046673-01
...
5
Switch WPL-W11384469
...
6
Screw (3) WPL-67006425
...
7
Lamp Socket WPL-4356874
...
8
Bulb-Light WPL-W10873798
...
9
Shield, Light WPL-4357285
...
10
Retainer WPL-042951-02
...
11
Strike WPL-049386-02
...
12
Gate (Silver) WPL-Y04944602
...
13
Support, Bracket WPL-65587-2
...
14
Support Fence Rh WPL-4357293
...
15
Screw, Grommet WPL-61854-1
...
16
Leveler WPL-W11117769
...
17
Grommet Drain WPL-45570-01
...
18
Sleeve WPL-045879-01
...
19
Drain Plug WPL-046412-01

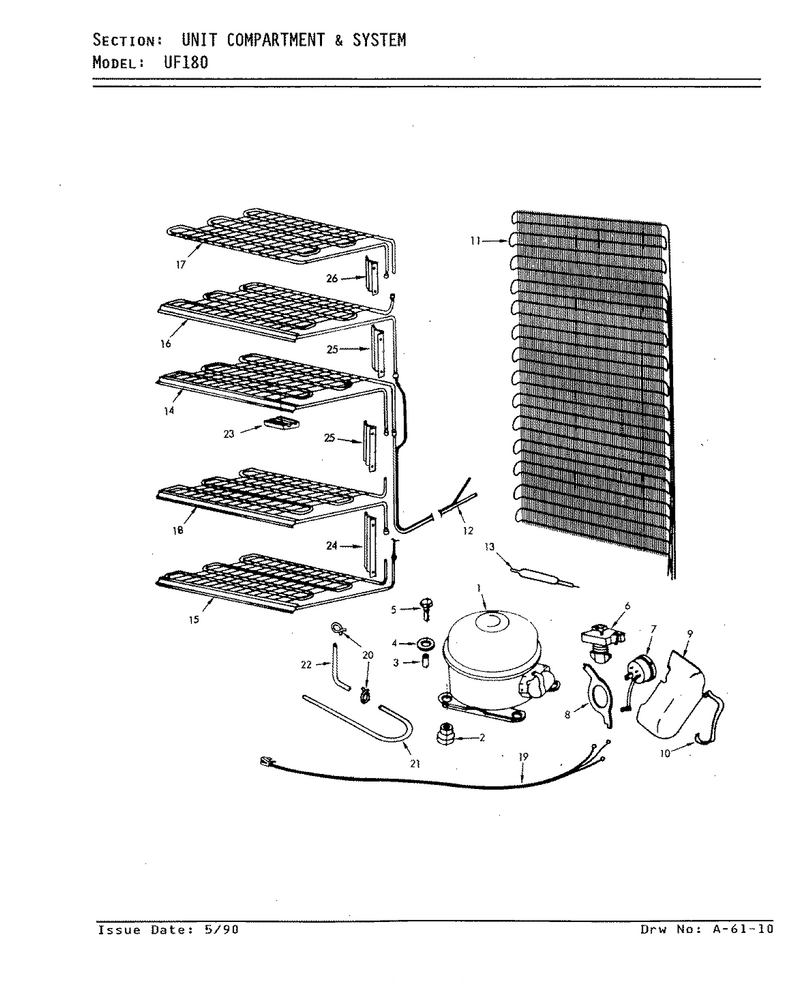

03 - Unit Compartment & System

...
...
NI
Manual, Use & Care WPL-Y04933101
...
1
Compressor WPL-W10439652
...
2
Grommet WPL-004691-02
...
3
Sleeve WPL-004694-01
...
4
Washer WPL-005417-03
...
5
Screw, Compressor Mounting WPL-4356852
...
6
Relay WPL-Y09100112
...
7
Overload WPL-Y09100113
...
8
Clip, Overload WPL-Y09100114
...
9
Cover, Terminal WPL-Y09100115
...
10
Clip, Term Cover WPL-Y09100116
...
11
Condenser Kit WPL-RA43880-10
...
12
Heat Exchanger WPL-048465-01
...
13
Drier-Uv WPL-WPW10143759
...
14
Evaporator Shelf WPL-049443-05
...
15
Evaporator Shelf WPL-049456-01
...
16
Evaporator Shelf WPL-049445-06
...
17
Evap Shelf Top WPL-048136-01
...
18
Evap Shelf WPL-048135-01
...
19
Ret Tunnel WPL-047015-01
...
20
Clamp WPL-043840-04
...
21
Drain Hose WPL-045573-02
...
22
Tube Def Valve WPL-048271-01
...
23
Clamp WPL-1-80308-101
...
24
Cover WPL-048086-05
...
25
Tube Cover WPL-048087-10
...
26
Grommet Tunnel WPL-048440-01

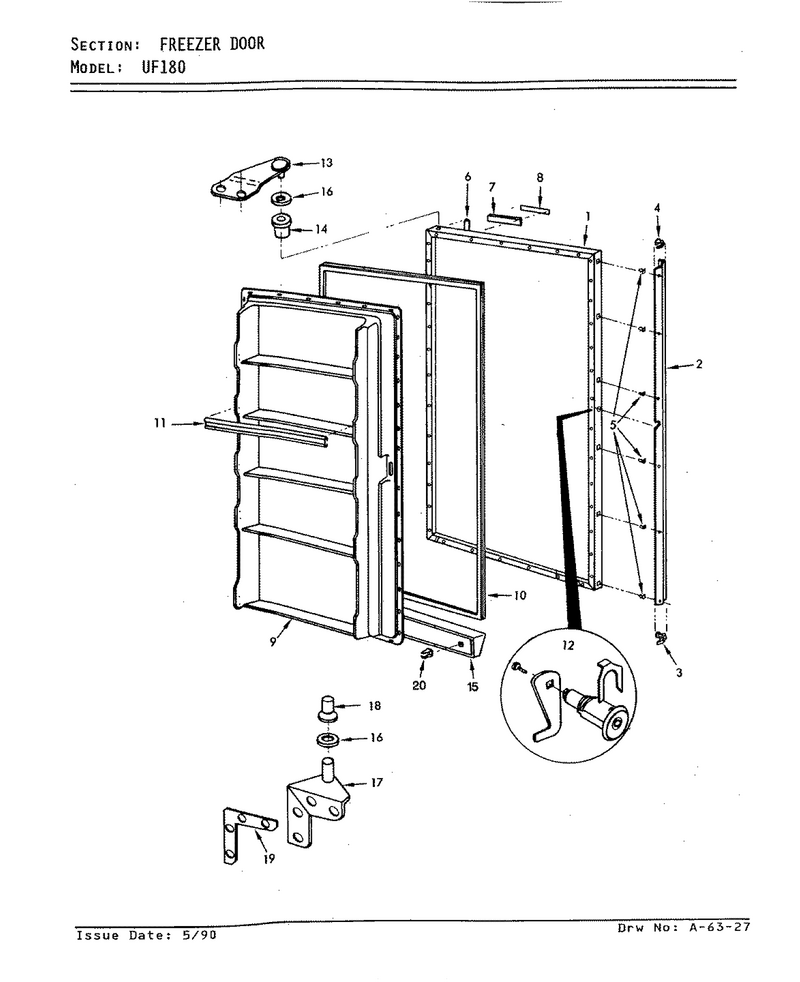

02 - Freezer Door

...
...
1
Pivot Rod WPL-046978-01
...
2
Handle Cms WPL-047142-05
...
3
End Cap Handle WPL-047143-01
...
4
End Cap Handle WPL-047144-01
...
5
Grommet WPL-Y04664301
...
6
Door Trim WPL-046913-02
...
7
Bezel Nameplate WPL-09100119
...
8
Insert, Bezel Nameplate WPL-7719P065-60
...
9
Screw WPL-61005388
...
10
Door Gasket WPL-045283-01
...
11
Trim Door Shelf WPL-046862-04
...
12
Washer, Lock WPL-048417-04
...
13
Top Hinge WPL-047716-03
...
14
Upper Bushing WPL-66036-3
...
15
Grille WPL-WP4-60461-005
...
16
Washer WPL-WP52185-1
...
17
Bottom Hinge WPL-047717-04
...
18
Upper Bushing WPL-66036-3
...
19
Shim WPL-Y04529702
...
20
Clip WPL-1-80247-101
