Admiral UF130 (BOM: V5ZUF0)

Model: UF130 (BOM: V5ZUF0)

Save Part Not Listed?
product name

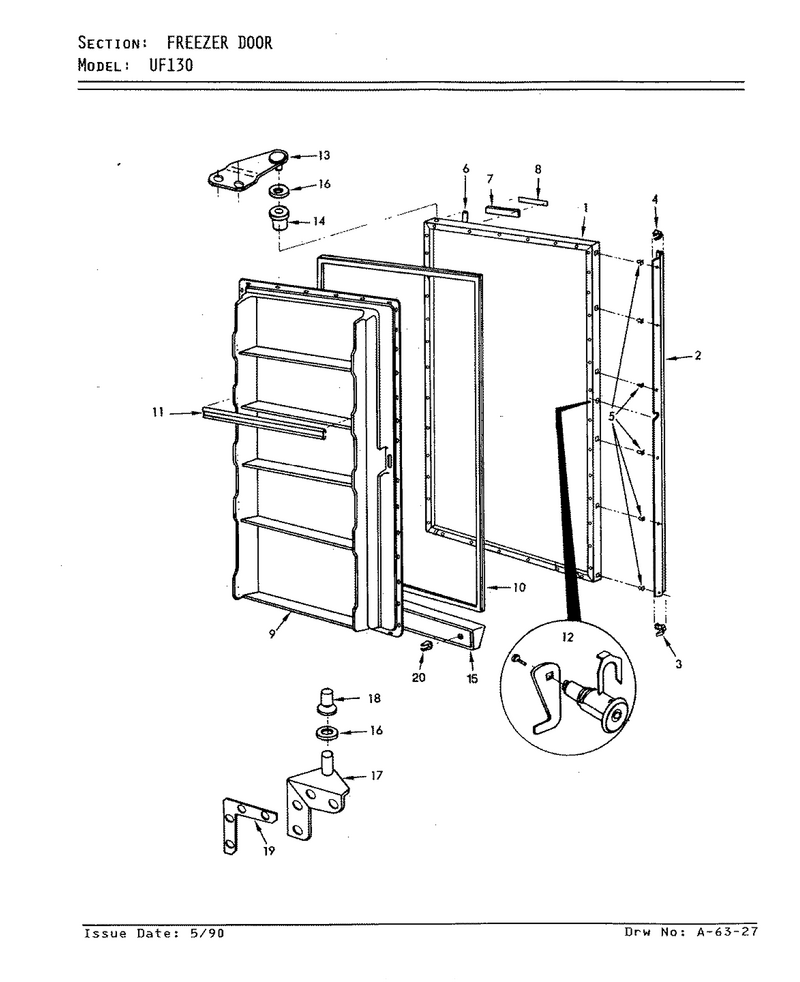

02 - Freezer Door

...
...
1
Foam Block WPL-046975-01
...
2
Screw WPL-048305-01
...
3
End Cap Handle WPL-047143-01
...
4
End Cap Handle WPL-047144-01
...
5
Grommet WPL-Y04664301
...
6
Door Trim WPL-046913-05
...
7
Bezel Nameplate WPL-09100119
...
8
Insert, Bezel Nameplate WPL-7719P065-60
...
9
Inner Panel WPL-048284-02
...
10
Door Gasket WPL-047774-01
...
11
Trim Door Shelf WPL-046862-08
...
12
Washer, Lock WPL-048417-04
...
13
Bolt WPL-WP8204624
...
14
Upper Bushing WPL-66036-3
...
15
Kickplate WPL-045532-01
...
16
Washer WPL-WP52185-1
...
17
Screw WPL-400015-12
...
18
Upper Bushing WPL-66036-3
...
19
Shim WPL-Y04529702
...
20
Screw WPL-WP90767

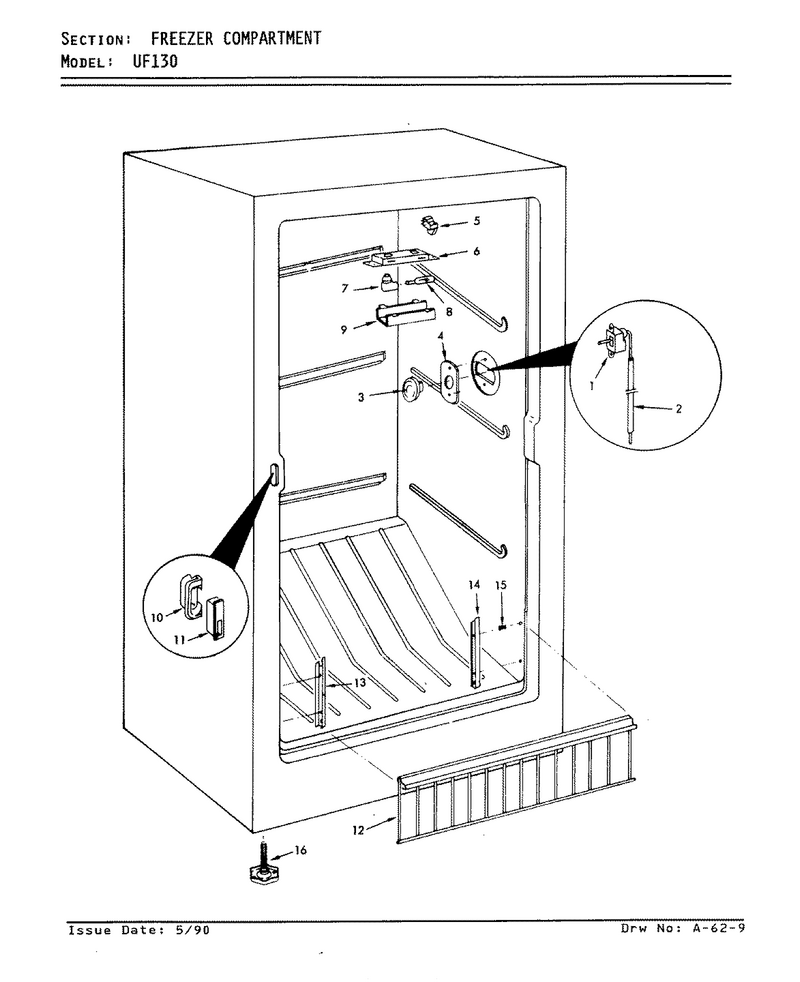

01 - Freezer Compartment

...
...
1
Clip WPL-045855-01
...
2
Plastic Tubing WPL-4008-1
...
3
Knob, Thermostat WPL-4-81294-004
...
4
Plate Control WPL-046673-01
...
5
Switch WPL-W11384469
...
6
Screw (3) WPL-67006425
...
7
Lamp Socket WPL-4356874
...
8
Bulb-Light WPL-W10873798
...
9
Shield, Light WPL-4357285
...
10
Retainer WPL-042951-02
...
11
Clip WPL-045290-01
...
12
Gate WPL-049446-01
...
13
Support, Bracket WPL-65587-2
...
14
Support Fence Rh WPL-4357293
...
15
Nylon Nut WPL-047587-01
...
16
Wiring Harness WPL-048987-01

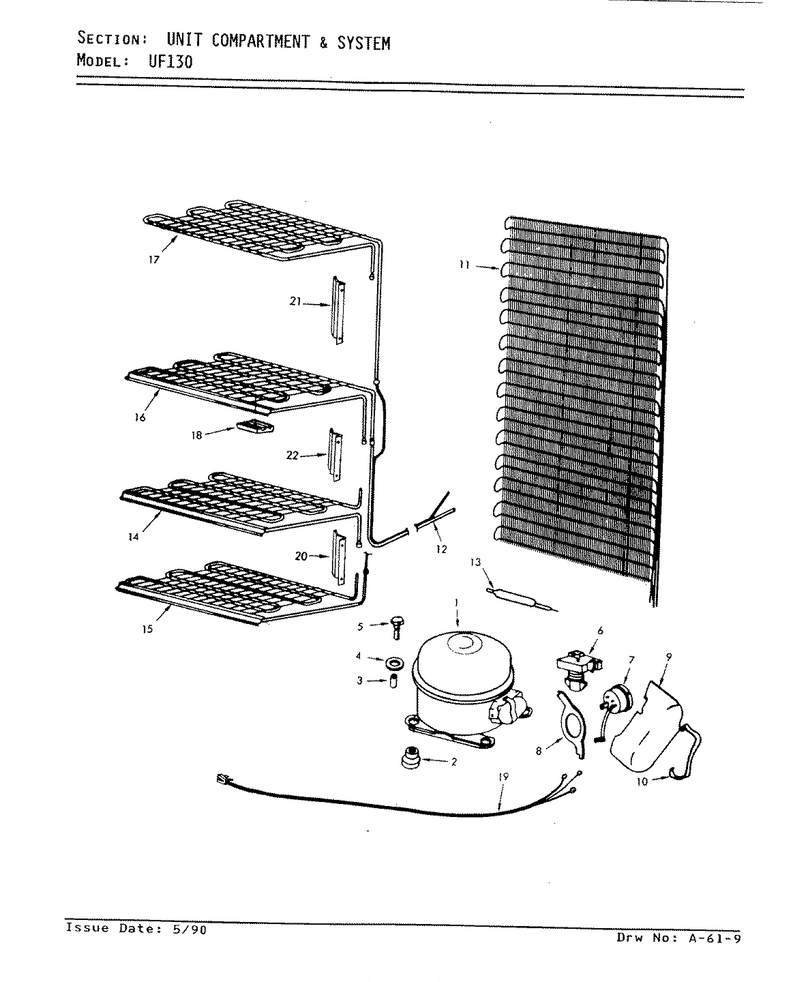

03 - Unit Compartment & System

...
...
1
Compressor WPL-W10439652
...
2
Grommet WPL-004691-02
...
3
Sleeve WPL-004694-01
...
4
Washer WPL-005417-03
...
5
Screw, Compressor Mounting WPL-4356852
...
6
Relay WPL-Y09100112
...
7
Overload WPL-10377005
...
8
Clip, Overload WPL-Y09100114
...
9
Cover, Terminal WPL-Y09100115
...
10
Clip, Term Cover WPL-Y09100116
...
11
Condenser Kit WPL-RA43880-1
...
12
Heat Exchanger WPL-048465-01
...
13
Drier-Uv WPL-WPW10143759
...
14
Evaporator Shelf WPL-Y04944303
...
15
Evaporator Shelf WPL-049456-03
...
16
Evaporator Shelf WPL-049445-03
...
17
Screw WPL-WP3-24004-109
...
18
Clamp WPL-1-80308-101
...
19
Clamp WPL-043171-01
...
20
Cover, Evaporator Tubes WPL-048086-04
...
21
Cover, Evaporator Tube WPL-048087-11
...
22
Freezer Book WPL-63292-2
