Admiral S1088J-TKZW

Model: S1088J-TKZW

Save Part Not Listed?
product name

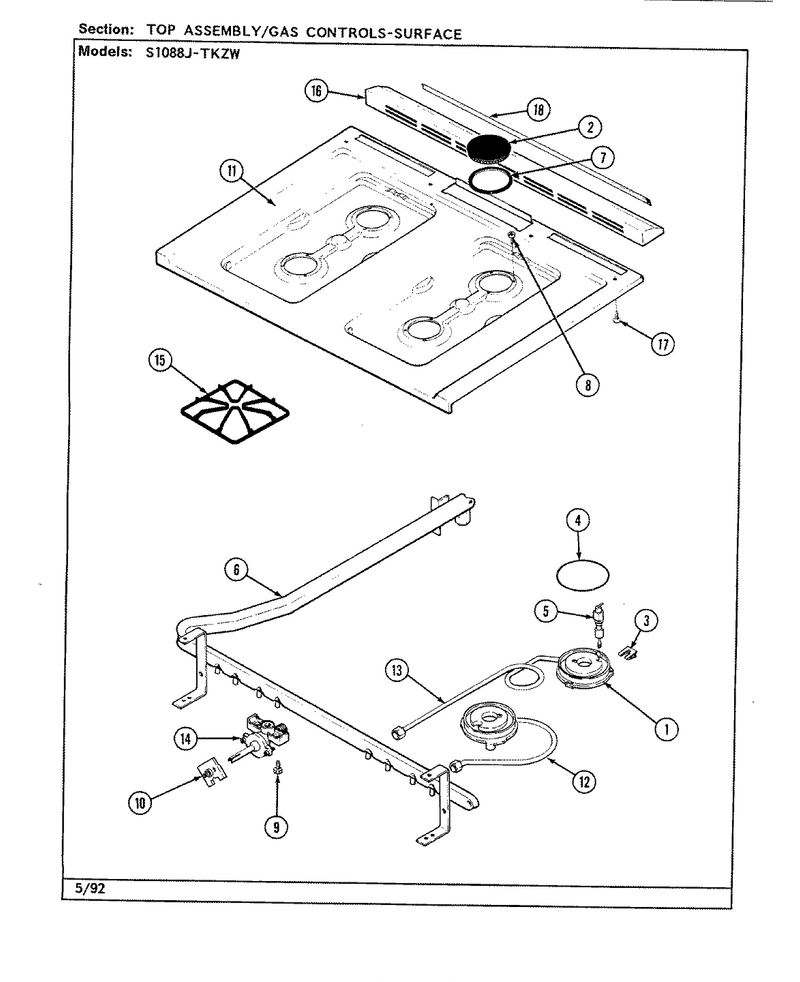

07 - Top Assy./control System (surface)

...
...
1
+ Nat. Gas Conversion Kit WPL-5415A015-60
...
2
Cap, Burner WPL-7504P005-60
...
3
Clip WPL-7112P072-60
...
4
Gasket, Burner WPL-7201P037-60
...
5
Igniter, Burner WPL-7432P053-60
...
6
Pipe, Manifold WPL-7513P092-60
...
7
Ring, Black WPL-2014F001-90
...
8
Screw WPL-7101P256-60
...
9
Screw, Control Valve WPL-7101P043-60
...
10
Switch WPL-7403P286-60
...
11
Top, Main (Stls) WPL-2001F103-30
...
12
Tube, Front Burner WPL-7506P104-60
...
13
Tube, Rear Burner WPL-7506P105-60
...
14
Valve, Burner H-M-L WPL-7502P131-60
...
15
Grate-Brnr WPL-W11400301
...
16
Cover, Vent Trim WPL-7724P055-60
...
17
Screw WPL-WP59002061
...
18
Gasket, Vent WPL-7201P040-60

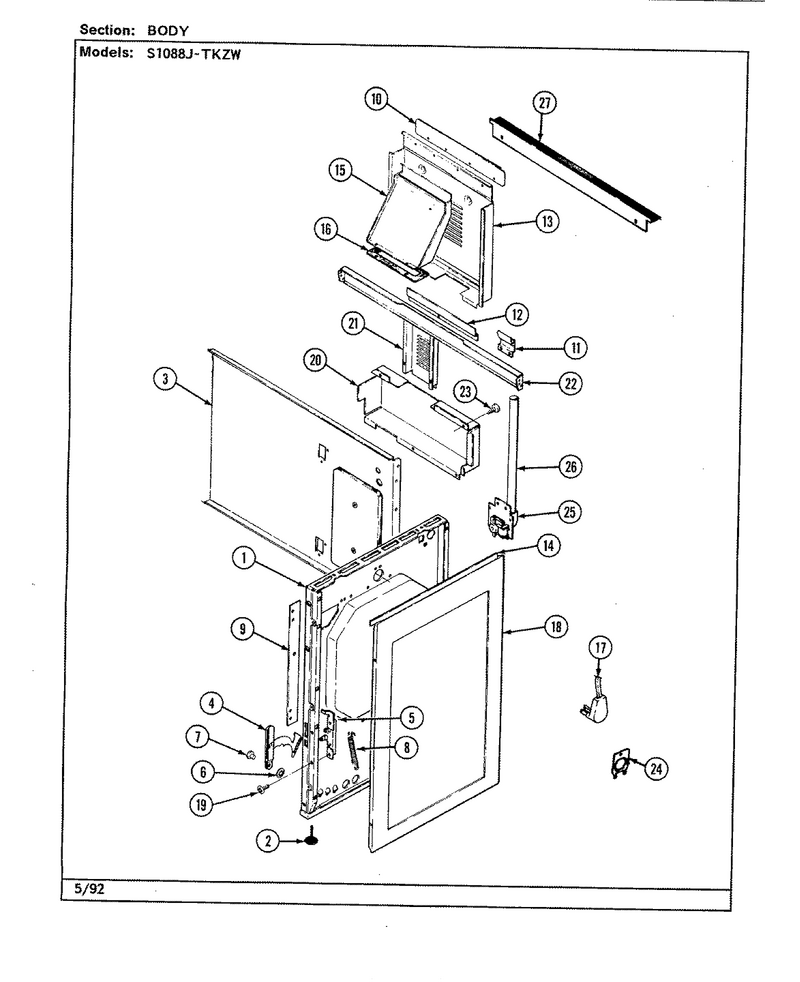

01 - Body

...
...
1
Lining, Inner Side WPL-4009W069-80
...
2
Leg, Leveling WPL-Y7101P25460
...
3
Back, Main WPL-4002F144-80
...
4
Stop, Oven Door WPL-3420A033-34
...
5
Hinge Assy. (Lt) WPL-3418A029-34
...
6
Clip, Hinge Pin WPL-7112P019-60
...
7
Pin, Hinge WPL-7113P002-60
...
8
Spring- Ov WPL-WP7803P058-60
...
9
Baffle, Side Panel WPL-3601F106-51
...
10
Baffle, Flue Box WPL-3601F067-51
...
11
Hinge, Main Top WPL-7706P170-60
...
12
Baffle, Flue Box WPL-3601F114-45
...
13
Baffle, Flue Box WPL-3601F112-51
...
14
Bracket, Spacer Lt WPL-3801F086-80
...
15
Box, Flue Assy WPL-4006W026-23
...
16
Gasket WPL-7201P013-60
...
17
Bushing, Snap WPL-8007P003-60
...
18
Panel, Side (Wht)----Na WPL-2618F073-71
...
19
Screw WPL-WP4159193
...
20
Cover,module WPL-4005F297-80
...
21
Channel - Air Duct WPL-3818F032-80
...
22
Brace, Main Top WPL-3802F071-80
...
23
Screw WPL-WP7101P126-60
...
24
Bracket WPL-3801F021-45
...
25
Fan Assembly WPL-7427P002-60
...
26
Tube, Air Duct WPL-7506P102-60
...
27
Filler, Strip WPL-7706P009-60

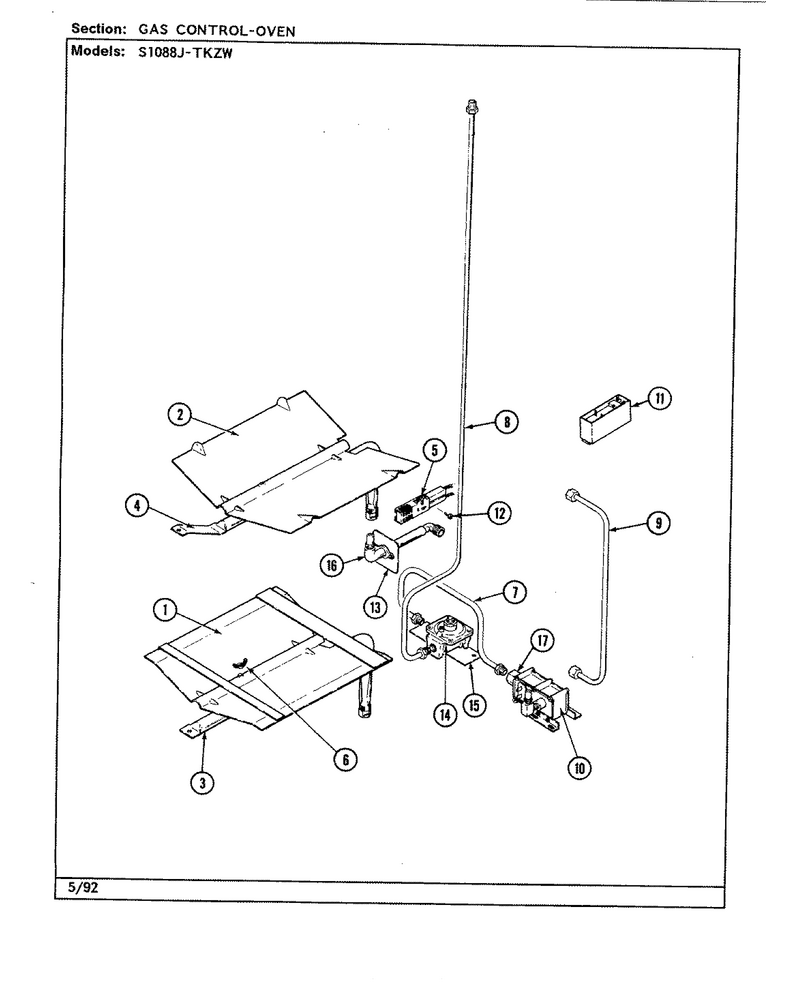

03 - Control System (oven)

...
...
1
Baffle WPL-3601W184-15
...
2
Baffle, Oven Burner WPL-3601F181-45
...
3
Burner WPL-7505P101-60
...
4
Burner, Broil WPL-3403D028-45
...
5
Igniter Kit WPL-12400035
...
6
Nut, Wing WPL-7103P030-60
...
7
Tube, Regulator----Na WPL-7506P075-60
...
8
Tube, Manifold Feed----Na WPL-7506P101-60
...
9
Tubing, 3/8 X 20-3/4 WPL-3414F057-44
...
10
Valve, Broil & Bake WPL-7501P034-60
...
11
Bracket, Spark Module WPL-3801F226-45
...
12
Screw WPL-WP4159193
...
13
Plate, Fitting WPL-3605F019-45
...
14
Regulator, Pressure WPL-7510P048-60
...
15
Bracket, Regulator Mtg WPL-3801F191-45
...
16
Fitting, Broil Burner WPL-7507P028-60
...
17
Nut, Loxit (3/8``) WPL-1555-251

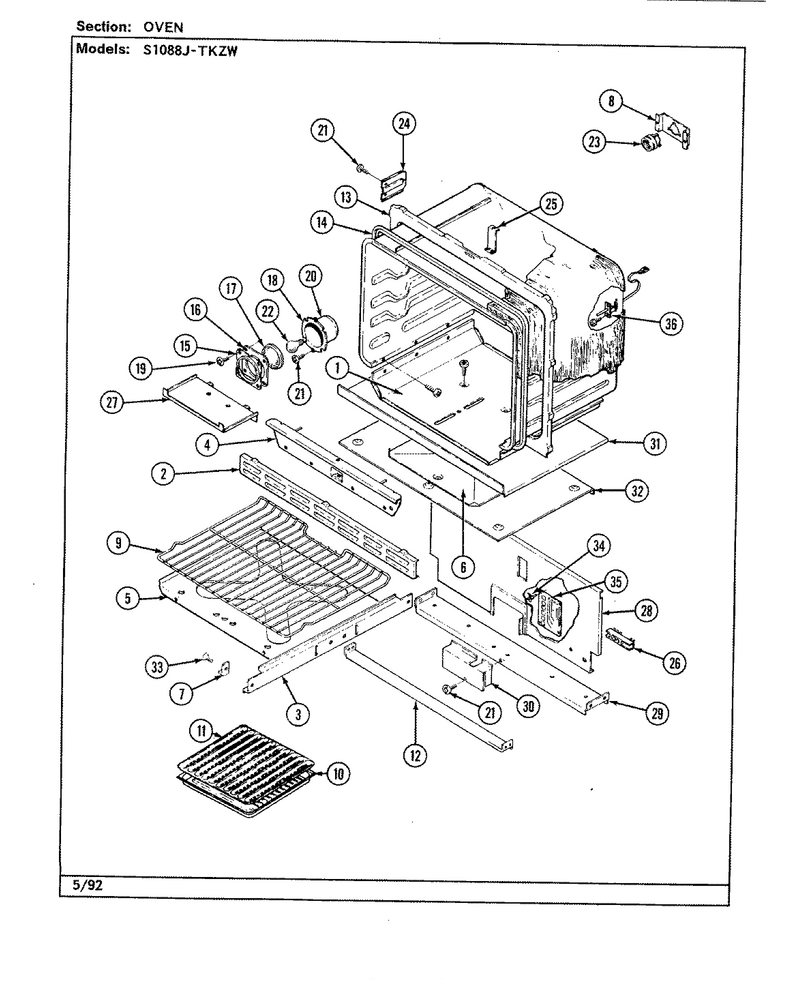

06 - Oven

...
...
1
Housing, Bake Burner WPL-4001F060-45
...
2
Screw WPL-WP7101P126-60
...
3
Screw WPL-WP7101P126-60
...
4
Baffle, Ovn Front WPL-3601W125-15
...
5
Bottom, Oven WPL-2205F020-15
...
6
Baffle WPL-3601F116-45
...
7
Glide, Front WPL-8016P005-60
...
8
Bracket WPL-3801F024-51
...
9
Rack, Oven WPL-7801P031-60
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Insert, Broil Pan WPL-3413F002-23
...
12
Brace, Inner Side WPL-3802F076-51
...
13
Not Required Part Or See Note Front,oven (Not Replaceable) WPL-W10124350
...
14
Gasket, Oven WPL-7201P036-60
...
15
Retainer, Lamp Guard WPL-3804F012-45
...
16
Gasket, Lamp Retainer WPL-7201P015-60
...
17
Glass, Lamp Guard WPL-7902P057-60
...
18
Gasket, Housing WPL-7201P014-60
...
19
Screw WPL-WP7101P126-60
...
20
Housing, Lamp WPL-4001F020-23
...
21
Screw WPL-WP7101P126-60
...
22
Light Bulb WPL-8009
...
23
Receptacle, Lamp WPL-7408P002-60
...
24
Support, Oven Rear WPL-3807F205-45
...
25
Bracket, Burner Box WPL-3801F093-45
...
26
Block, Terminal WPL-7401P015-60
...
27
Baffle, Bake & Broil WPL-3601W130-45
...
28
Back, Broil Section WPL-4002F145-45
...
29
Support, Valve WPL-3807F329-45
...
30
Cover, Oven Valve WPL-4005F258-51
...
31
Support, Oven Bottom WPL-3807F388-45
...
32
Shield, Service Drawer WPL-3604F162-45
...
33
Screw, Special WPL-7101P013-60
...
34
Support, Relay Board WPL-8004P020-60
...
35
Relay, Board Assy. WPL-7428P008-60
...
36
Sensor WPL-12001655

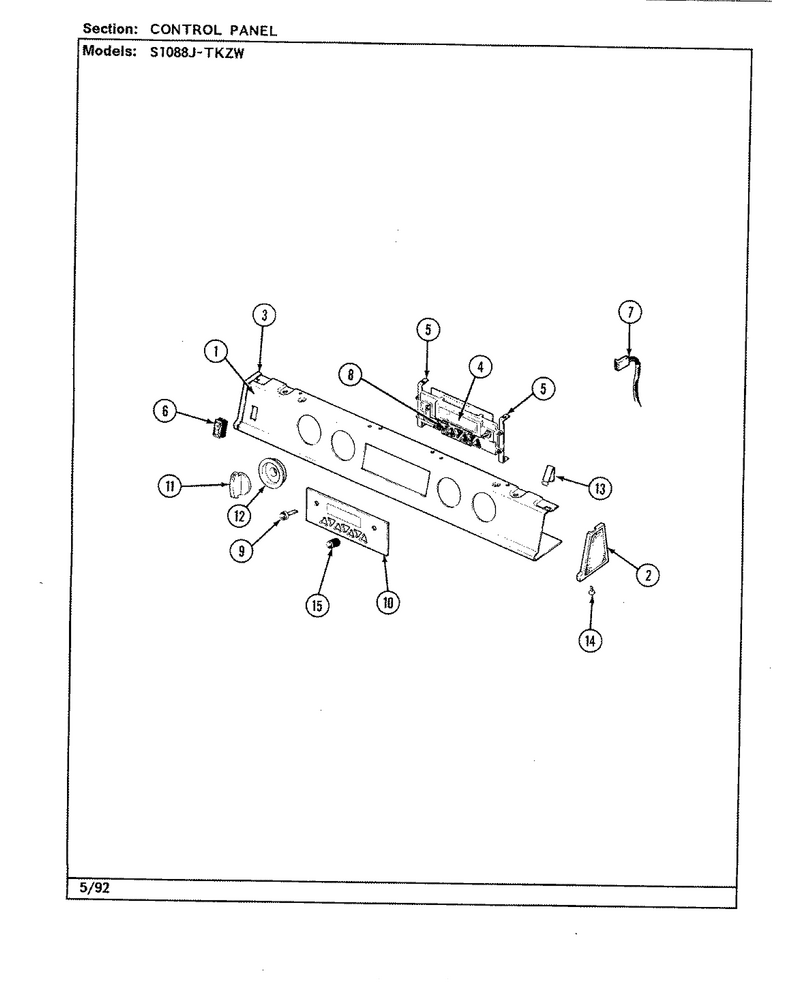

02 - Control Panel

...
...
1
Plate, Name WPL-7719P008-60
...
2
Insert, Trim-Manifold End-Righ WPL-7728P065-60
...
3
Insert, Trim (Lt) WPL-7728P066-60
...
4
Pad, Foam Gasket WPL-7201P052-60
...
5
Bracket, Clock Mtg WPL-3801F199-45
...
6
Switch, Rocker (Blk) WPL-7403P067-60
...
7
Harness, Relay WPL-5170P095-60
...
8
Button, Control Set WPL-7711P445-60
...
9
Button, Clock Set WPL-7711P433-60
...
10
Bezel, Clock-Black WPL-7720P129-60
...
11
Knob, Valve (Blk) WPL-7733P032-60
...
12
Bezel, Valve Knob-Black WPL-7740P008-60
...
13
Clip- Cabi WPL-WP25-7220
...
14
Screw WPL-7101P065-60
...
15
Knob- Cloc WPL-WP7711P492-60

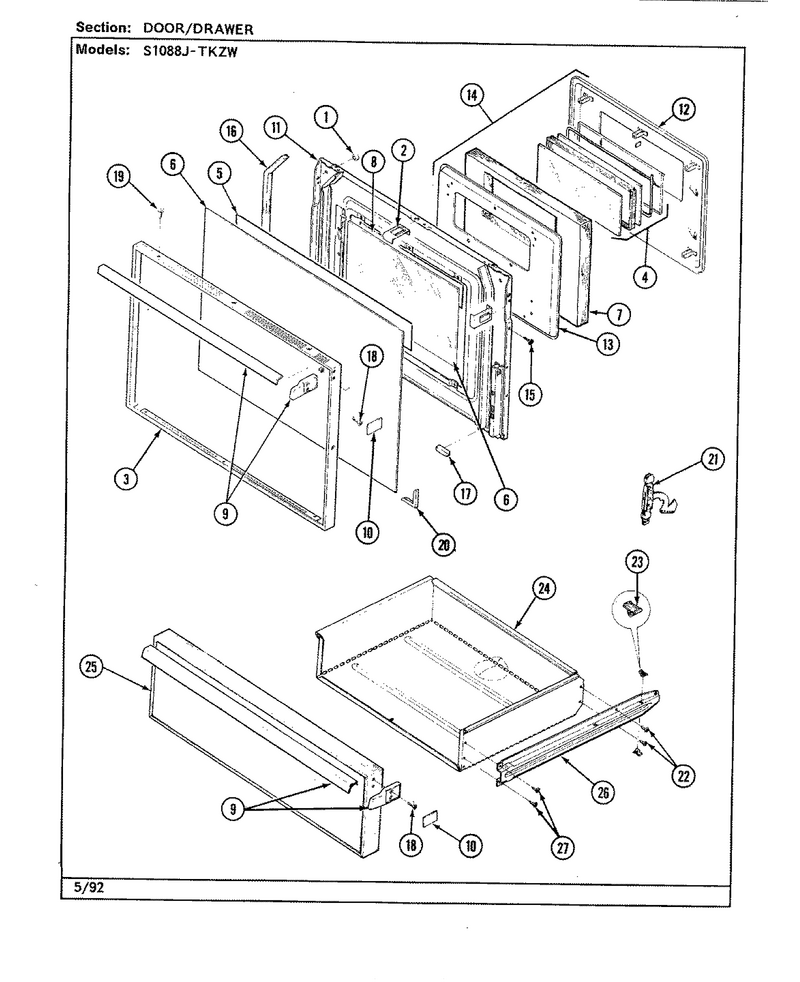

04 - Door/drawer

...
...
1
Bumper, Door (Square) WPL-8003P009-60
...
2
Clip, Door WPL-7112P034-60
...
3
Frame, Door WPL-7706P243-60
...
4
Window Pak Assy. WPL-5700A091-60
...
5
Tape, Foil 3`` X 60 Yrds WPL-8270P033-60
...
6
Glass, Door WPL-7902P276-60
...
7
Insulation, Door Pad WPL-7002P117-60
...
8
Tape, 2`` X 60 Yd Roll WPL-8270P071-60
...
9
Handle, Door White WPL-7701P031-60
...
10
Insert, Handle (Chrome) WPL-7728P068-60
...
11
Nut- Snap WPL-WP7103P114-60
...
12
Pad, Door WPL-2410W041-15
...
13
Pad, Inner WPL-2410F016-51
...
14
Pad, Assy. WPL-2410A041-19
...
15
Rivet WPL-7107P017-60
...
16
Seal WPL-7208P002-60
...
17
Seal-Strip WPL-WP854334
...
18
Screw WPL-7101P123-60
...
19
Screw WPL-WP7101P126-60
...
20
Spacer, Glass Corner WPL-8010P045-60
...
21
Stop, Oven Door WPL-3420A033-34
...
22
Screw WPL-WP7101P126-60
...
23
Glide, Drawer WPL-8016P009-60
...
24
Drawer, Service WPL-3405F008-80
...
25
Drawer, Service WPL-5425A021-71
...
26
Runner, Inner WPL-3406F026-80
...
27
Screw, Metal Grounding WPL-7101P287-60
...
28
Retainer, Glass WPL-3804F051-80
...
29
Glass, Inner WPL-7902P097-60

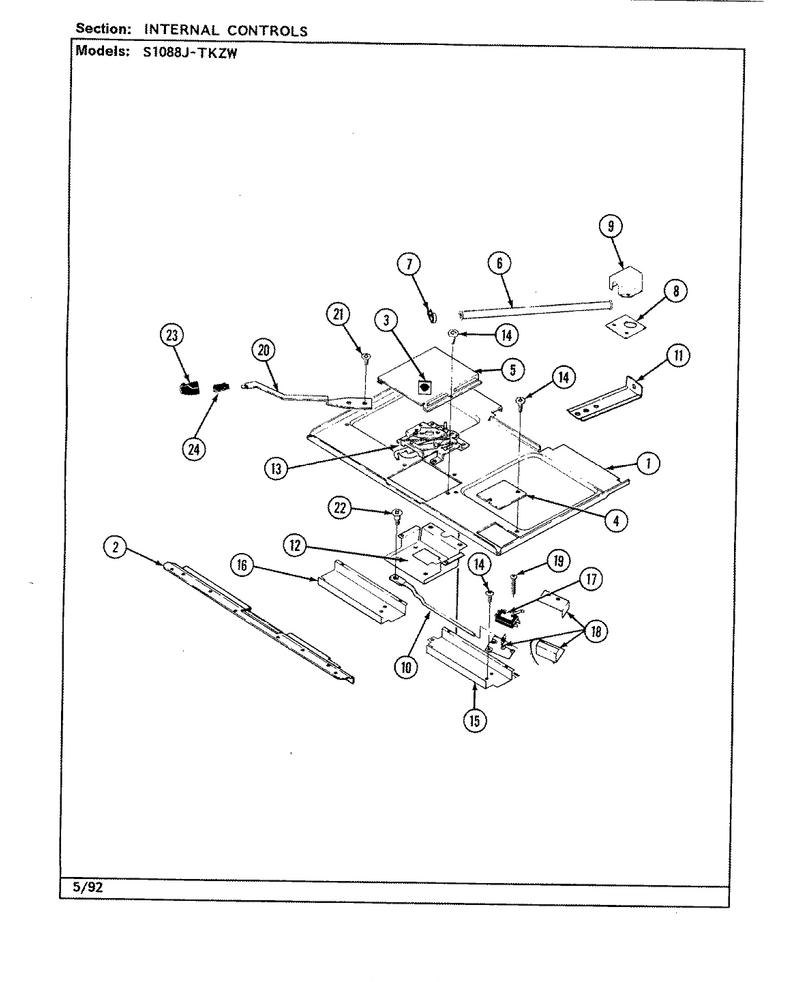

05 - Internal Controls

...
...
1
Bottom Burner Box WPL-4011F200-80
...
2
Front, Burn Box Bott WPL-4012F020-80
...
3
Switch WPL-7403P188-60
...
4
Cover, Switch WPL-4005F139-51
...
5
Cover, Catch Assy. WPL-4005F137-80
...
6
Tube, Wireway 1`` WPL-7506P022-60
...
7
Clamp WPL-7111P001-60
...
8
Bottom, Air Box Tube WPL-4011F156-51
...
9
Box, Air Tube WPL-4006F084-51
...
10
Link, Switch WPL-7807P004-60
...
11
Bracket, Tie-Down WPL-3801F198-51
...
12
Support, Catch Assy. WPL-3807F195-45
...
13
Shield Insulation, Catch WPL-3604F159-45
...
14
Screw WPL-WP7101P126-60
...
15
Channel, Switch WPL-3818F027-45
...
16
Channel, Air WPL-3818F025-45
...
17
Switch, Ovn Lock Asy----Na WPL-7403P099-60
...
18
Support, Lock Switch WPL-3807F193-45
...
19
Screw WPL-7101P031-60
...
20
Lever, Door Lock WPL-8009P019-60
...
21
Screw WPL-WP4159193
...
22
Bolt WPL-7116P003-60
...
23
Handle, Latch (Wht) WPL-7701P089-60
...
24
Clip, Latch Handle WPL-7112P003-60
