Admiral S1088H-CKZW

Model: S1088H-CKZW

Save Part Not Listed?
product name

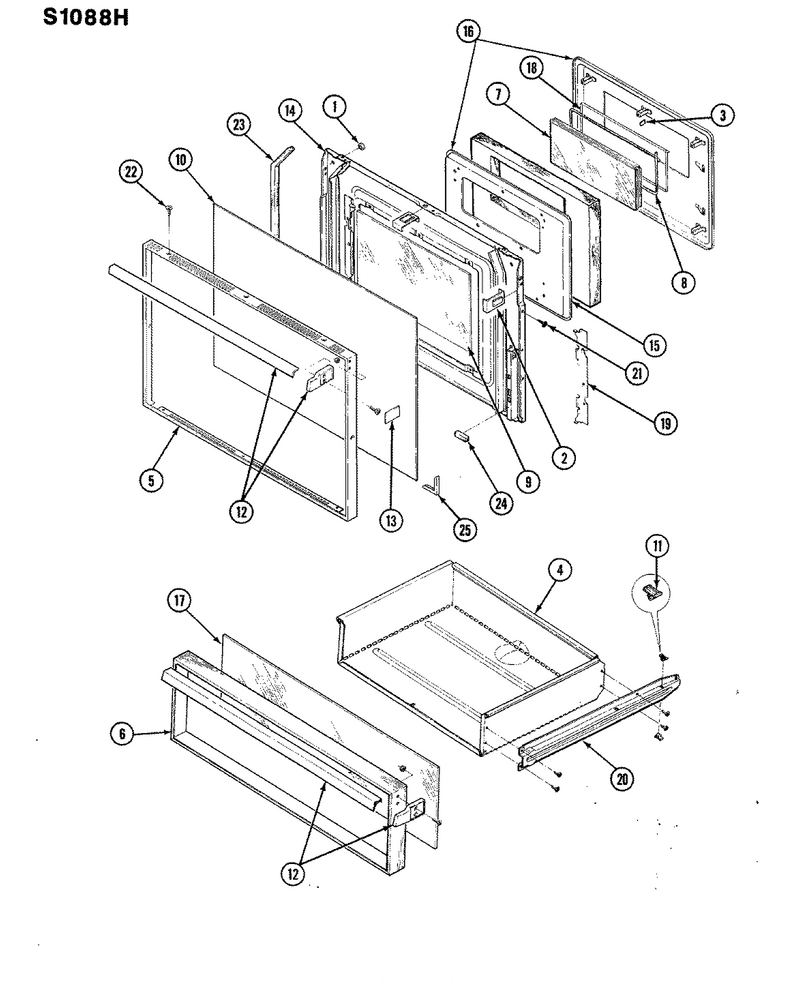

03 - Door

...
...
1
Bumper Door (Round) WPL-8003P002-60
...
2
Clip, Door WPL-7112P034-60
...
3
Clip, Retainer WPL-7112P051-60
...
4
Drawer Assy. WPL-3405F008-20
...
5
Frame, Door WPL-7706P243-60
...
6
Frame WPL-7706P180-60
...
7
Frame, Window WPL-7706P177-60
...
8
Gasket, Window WPL-7201P018-60
...
9
Glass, Inner WPL-7902P097-60
...
10
Glass, Window Outer WPL-7902P101-60
...
11
Glide, Drawer WPL-8016P004-60
...
12
Handle, Door WPL-7701P047-60
...
13
Insert, Oven Door Handle WPL-7728P012-60
...
14
Lining Assy, Ov Dr WPL-2402W125-12
...
15
Pad, Inner WPL-2410F016-51
...
16
Pad Assy, Ov. Dr. WPL-2410W029-12
...
17
Panel, Storage Door Blk WPL-2416F027-70
...
18
Retainer WPL-3804F022-45
...
19
Retainer, Glass WPL-3804F051-80
...
20
Runner, Inner WPL-3406F020-80
...
21
Rivet WPL-7107P017-60
...
22
Screw, Special WPL-7101P013-60
...
23
Seal WPL-7208P002-60
...
24
Seal-Strip WPL-WP854334
...
25
Spacer, Glass Corner WPL-8010P045-60

02 - Control System

...
...
1
Baffle, Assy WPL-3601W129-13
...
2
Bracket, H.l. Swit WPL-3801F096-45
...
3
Burner WPL-7505P101-60
...
4
Burner, Bake & Broil WPL-7505P100-60
...
5
Uni-Burner Assy WPL-3412A004-23
...
6
Cover, Module WPL-4005F176-80
...
7
Fitting, Broil Burner WPL-7507P028-60
...
8
Igniter- T WPL-WP7432P015-60
...
9
Knob, Valve WPL-7733P038-60
...
10
Nut, Wing WPL-7103P030-60
...
11
Pipe, Manifold WPL-7513P044-60
...
12
Plate, Fitting WPL-3605F019-50
...
13
Regulator, Pressure WPL-7510P004-60
...
14
Screw, Control Valve WPL-7101P043-60
...
15
Support, Top Burner WPL-3807F221-80
...
16
Switch- Bu WPL-WP7403P190-60
...
17
Thermostat, Ov WPL-7515P020-60
...
18
Tube, Flash WPL-7506P006-60
...
19
Kit, Tubing W/loxit (3/8``) WPL-12001100
...
20
Kit, Tubing W/loxit (3/8``) WPL-12001100
...
21
Valve, Broil & Bake WPL-7501P034-60
...
22
Valve, Shut Off WPL-7502P002-60
...
23
Valve WPL-7502P031-60

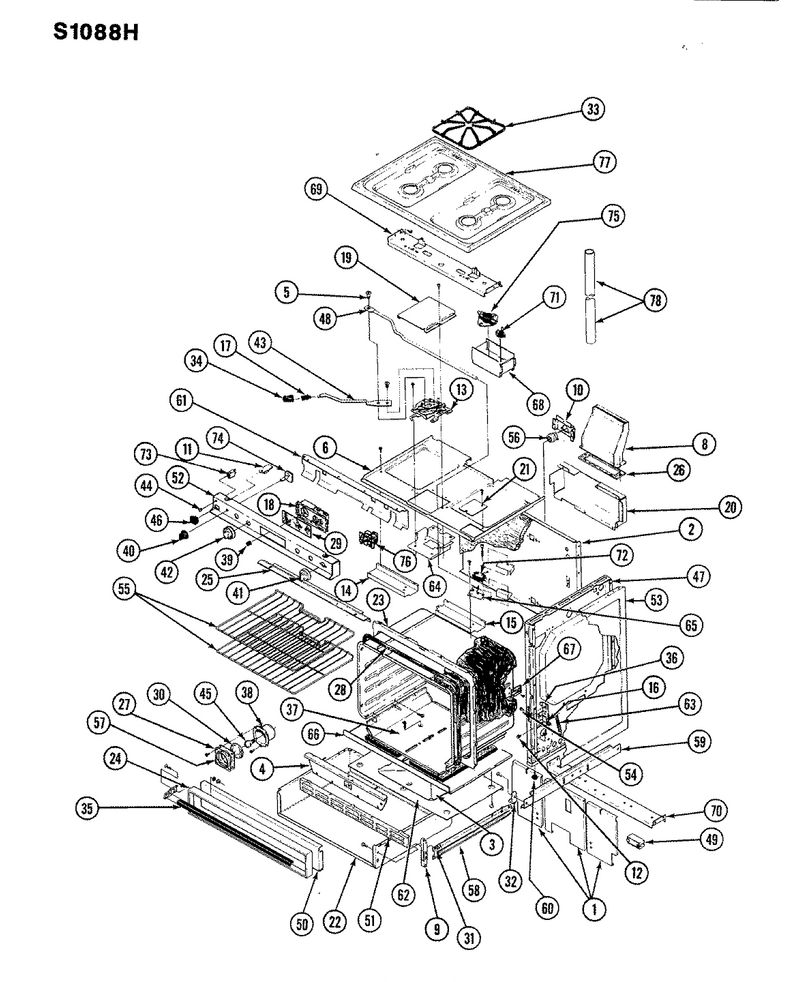

01 - Body

...
...
1
Back, Broiler Section WPL-4002F066-45
...
2
Baffle, Bake & Broil WPL-3601W130-45
...
3
Baffle WPL-3601F116-45
...
4
Baffle, Ovn Front WPL-3601W125-12
...
5
Bolt, Door Lock WPL-7116P002-60
...
6
Box, Burner WPL-4011F075-80
...
7
Bottom, Oven WPL-2205F012-13
...
8
Brace, Main Top WPL-3802F071-80
...
9
Bracket, Drawer WPL-3801F115-51
...
10
Bracket WPL-3801F024-51
...
11
Bracket,control Panel (L) WPL-3801F049-34
...
12
Bumper WPL-1784202
...
13
Catch, Dr Lk WPL-8002P015-60
...
14
Channel - Air Duct WPL-3818F032-80
...
15
Channel, Switch WPL-3818F027-45
...
16
Clip, Hinge Pin WPL-7112P019-60
...
17
Clip, Wire WPL-7112P045-60
...
18
Clock WPL-7601P063-60
...
19
Cover, Catch Assy. WPL-4005F137-80
...
20
Cover, Oven Valve WPL-4005F258-51
...
21
Cover, Switch WPL-4005F139-51
...
22
Drawer Assy. WPL-3405F008-20
...
23
Front, Oven Upper WPL-2201F061-23
...
24
Frame WPL-7706P180-60
...
25
Front, Burner Box WPL-4012F013-80
...
26
Gasket WPL-7201P013-60
...
27
Gasket, Lamp Retainer WPL-7201P015-60
...
28
Gasket, Vent WPL-7201P023-60
...
29
Glass, Clock WPL-7902P027-60
...
30
Glass, Lamp Guard WPL-7902P057-60
...
31
Glide, Front WPL-8016P005-60
...
32
Glide, Drawer WPL-8016P004-60
...
33
Grate-Brnr WPL-W11400301
...
34
Handle, Latch (Blk) WPL-7701P068-60
...
35
Handle, Door WPL-7701P047-60
...
36
Hinge Assy. (Lt) WPL-3418A029-34
...
37
Housing, Bake Burner WPL-4001F036-45
...
38
Housing, Lamp WPL-4001F020-23
...
39
Knob- Cloc WPL-WP7711P466-60
...
40
Knob, Selector WPL-7711P381-60
...
41
Knob, Therm WPL-7711P104-60
...
42
Knob, Valve WPL-7711P174-60
...
43
Lever, Door Lock WPL-8009P010-60
...
44
Lens, Signal Lamp WPL-7730P001-60
...
45
Light Bulb WPL-8009
...
46
Light, Signal WPL-7407P028-60
...
47
Lining Assy, Inner Side WPL-4009W034-80
...
48
Link, Switch WPL-7807P004-60
...
49
Procelain Broiler (Pan And Grid) WPL-4396923
...
50
Panel, Storage Door Blk WPL-2416F027-70
...
51
Panel, Lower Front WPL-2614F008-80
...
52
Trim Assy, Manifold WPL-7712A019-60
...
53
Panel, Side WPL-2618F050-71
...
54
Pin, Hinge WPL-7113P002-60
...
55
Rack, Oven WPL-7801P011-60
...
56
Receptacle, Lamp WPL-7408P002-60
...
57
Retainer, Lamp Guard WPL-3804F012-45
...
58
Runner, Inner WPL-3406F020-80
...
59
Runner, Outer WPL-3406F007-80
...
60
Screw, Leveling Leg WPL-7101P055-60
...
61
Shield, Manifold Cov WPL-3604F085-51
...
62
Shield, Svc Drawer WPL-3604F083-45
...
63
Spring- Ov WPL-WP7803P058-60
...
64
Support, Catch Assy. WPL-3807F195-45
...
65
Support, Lock Switch WPL-3807F193-45
...
66
Support, Ov Bot Bar Assy WPL-3807W207-45
...
67
Support, Oven Rear WPL-3807F205-45
...
68
Support, Therm Disc WPL-3807F219-51
...
69
Support, Top Burner WPL-3807F221-80
...
70
Support, Valve WPL-3807F216-45
...
71
Switch, Hi Limit WPL-7403P187-60
...
72
Switch----Na WPL-7403P077-60
...
73
Switch, Rocker (Blk) WPL-7403P067-60
...
74
Switch, Selector WPL-7403P092-60
...
75
Switch, Thermal WPL-7403P091-60
...
76
Thermostat, Ov WPL-7515P020-60
...
77
Trim, Vent Cover WPL-7724P013-60
...
78
Tube, Air WPL-8026P006-60
...
79
Manual, Use & Care WPL-8112P009-60
