Admiral S1078W-KLVW

Model: S1078W-KLVW

Save Part Not Listed?
product name

02 - Control System

...
...
1
Block WPL-1867271
...
2
Burner, Oven WPL-7505P064-60
...
3
Socket For Pilot Lamp WPL-300252
...
4
Cap, Burner WPL-1083219
...
5
Igniter Kit WPL-12400035
...
6
Ignitor WPL-1482222
...
7
Mixer, Air WPL-Y0607215
...
8
Nut, Loxit (3/8``) WPL-1555-251
...
9
3/8`` Nut & Ferrule WPL-1555258K
...
10
Pipe, Manifold WPL-7513E044
...
11
Screw WPL-WP74004005
...
12
Screw WPL-3400023
...
13
Switch- Bu WPL-WP7403P190-60
...
14
Support WPL-0862445
...
15
Support WPL-0862434
...
16
Support WPL-0862420
...
17
Support WPL-0862470
...
18
Thermostat,gas Range WPL-1888440
...
19
Tube, Flash WPL-1930368
...
20
Kit, Tubing W/loxit (3/8``) WPL-12001100
...
21
Valve WPL-WP7501P133-60
...
22
Valve, Shut Off WPL-1951367
...
23
Valve, Top Burner WPL-1951372

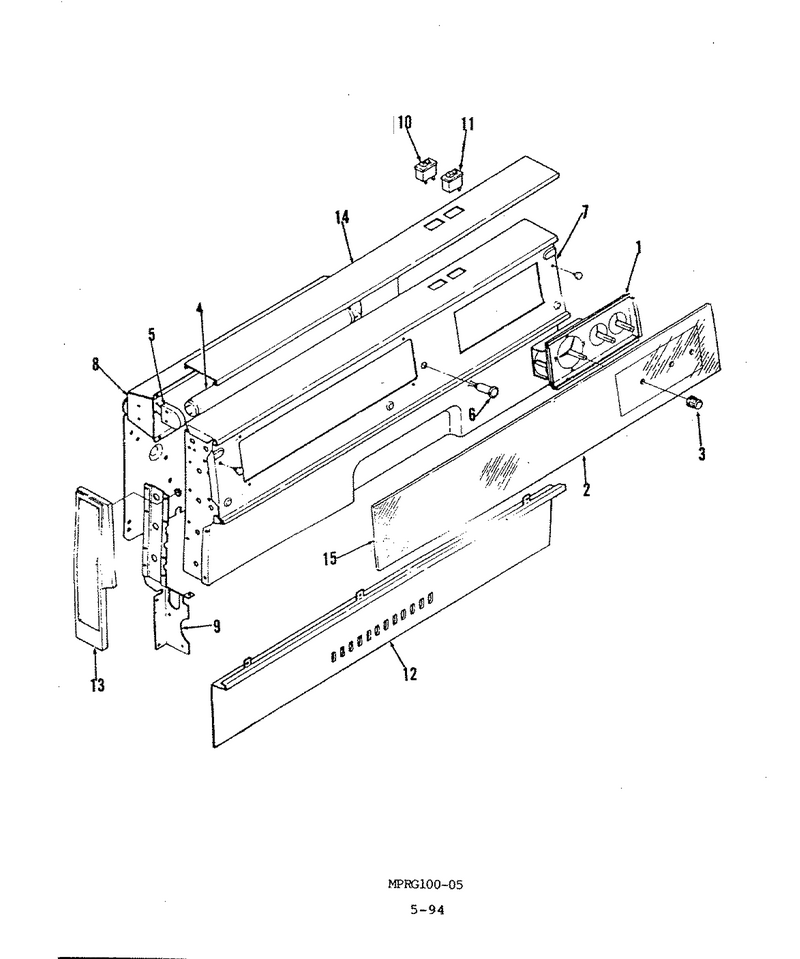

01 - Body

...
...
1
Back, Main WPL-4002F052-20
...
2
Baffle, Oven Front WPL-3601F100-16
...
3
Block WPL-1867271
...
4
Bottom, Misc WPL-0236238
...
5
Bottom, Burner Box WPL-0237100
...
6
Bottom Assy., Oven WPL-Y0234283
...
7
Box, Flue Assy WPL-4006W026-20
...
8
Clock WPL-7602P051-60
...
9
Frame WPL-1286251
...
10
Frame, Ovn Door WPL-7706E007
...
11
Gasket, Vent WPL-7201E023
...
12
Glass WPL-1327134
...
13
Grate-Brnr WPL-W11400301
...
14
Hinge WPL-1376234
...
15
+ Hinge WPL-Y0528262
...
16
Light Bulb WPL-8009
...
17
Lining, Misc. WPL-0606391
...
18
Pan, Broiler WPL-663202
...
19
Pin, Hinge WPL-7113P002-60
...
20
Rack, Oven WPL-1636254
...
21
Receptacle, Oven Light WPL-1657202
...
22
Screw WPL-1986288
...
23
Housing, Oven Light WPL-537241
...
24
Spring- Ov WPL-WP7803P058-60
...
25
Support WPL-0862446
...
26
Support WPL-0862470
...
27
Top, Main WPL-2001F033-81
...
28
Motor Support WPL-911213
...
29
Manual, Use & Care WPL-8112P033-60

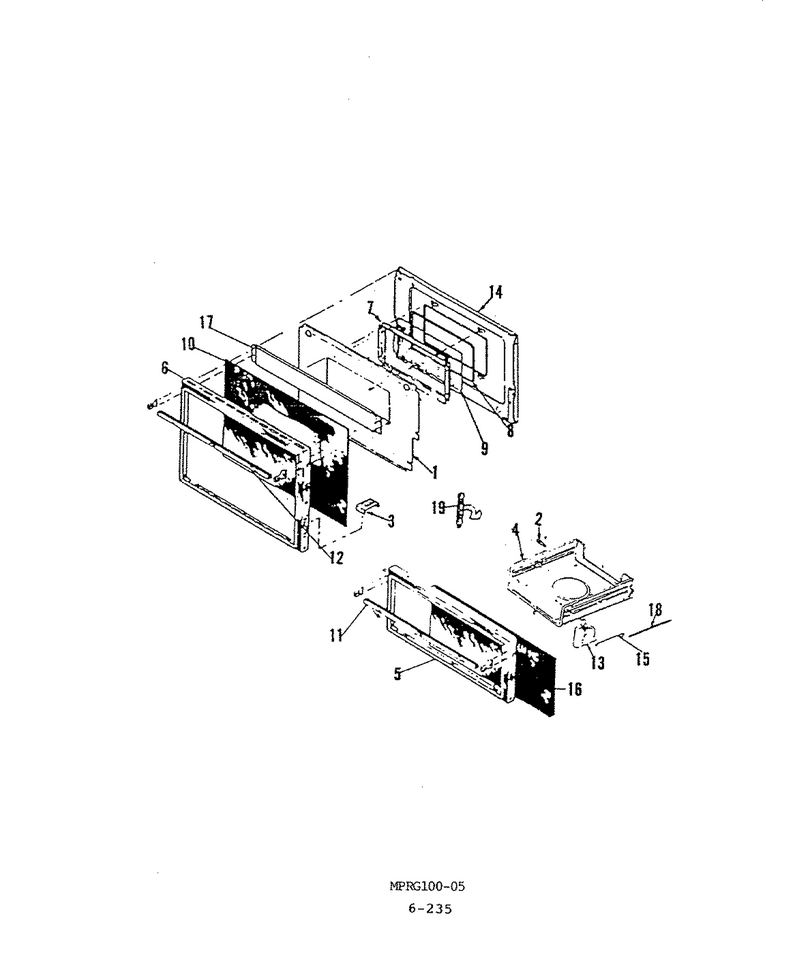

03 - Door

...
...
1
Baffle, Oven Door WPL-3601F094
...
2
Catch WPL-1135208
...
3
Clip, Door Glass WPL-7712E031
...
4
Drawer Assy. WPL-0384226
...
5
Frame WPL-1286251
...
6
Frame, Ovn Door WPL-7706E007
...
7
Frame, Window WPL-3603J013
...
8
Gasket WPL-1313263
...
9
Glass-Door WPL-WP7902P715-60
...
10
+ Glass, Door WPL-7902E064
...
11
Handle, Door WPL-7701E019
...
12
Handle, Door WPL-7701E019
...
13
Hinge WPL-0528233
...
14
Lining Assy, Ov Dr WPL-2402W091-16
...
15
Link WPL-1450200
...
16
Panel,broiler Door WPL-0684306X
...
17
Retainer, Glass WPL-3804F040
...
18
Spring, Broiler Drawer WPL-1790279
...
19
Stop, Door WPL-Y0112241
