Admiral S1078EH-KZ

Model: S1078EH-KZ

Save Part Not Listed?
product name

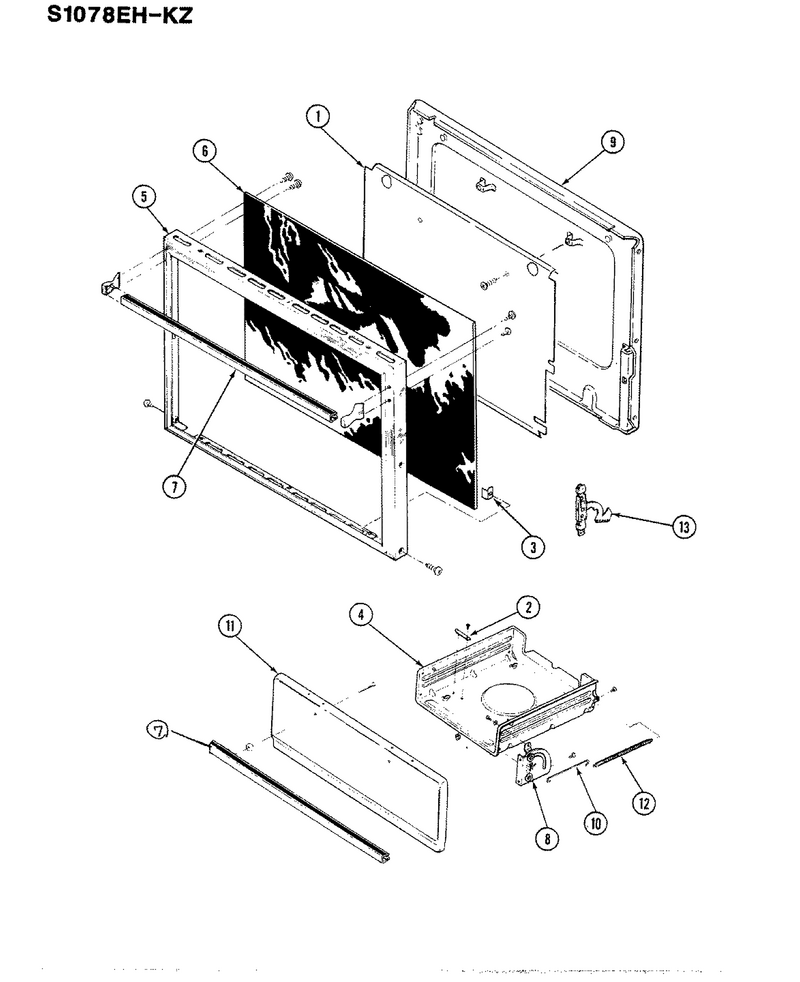

04 - Door

...
...
1
Baffle WPL-3601F026-51
...
2
Catch WPL-8002P001-60
...
3
Clip, Door WPL-7112P034-60
...
4
Drawer, Broiler WPL-3407W009-11
...
5
Frame, Door WPL-7706P178-60
...
6
Glass, Door Solid WPL-7902P063-60
...
7
Handle, Door WPL-7701P007-60
...
8
Insert, Oven Door Handle WPL-7728P012-60
...
10
Link, Broiler WPL-7807P001-60
...
11
Screw WPL-7101P123-60
...
12
Spring WPL-7803P014-60
...
13
Stop, Oven Door WPL-3420A033-34

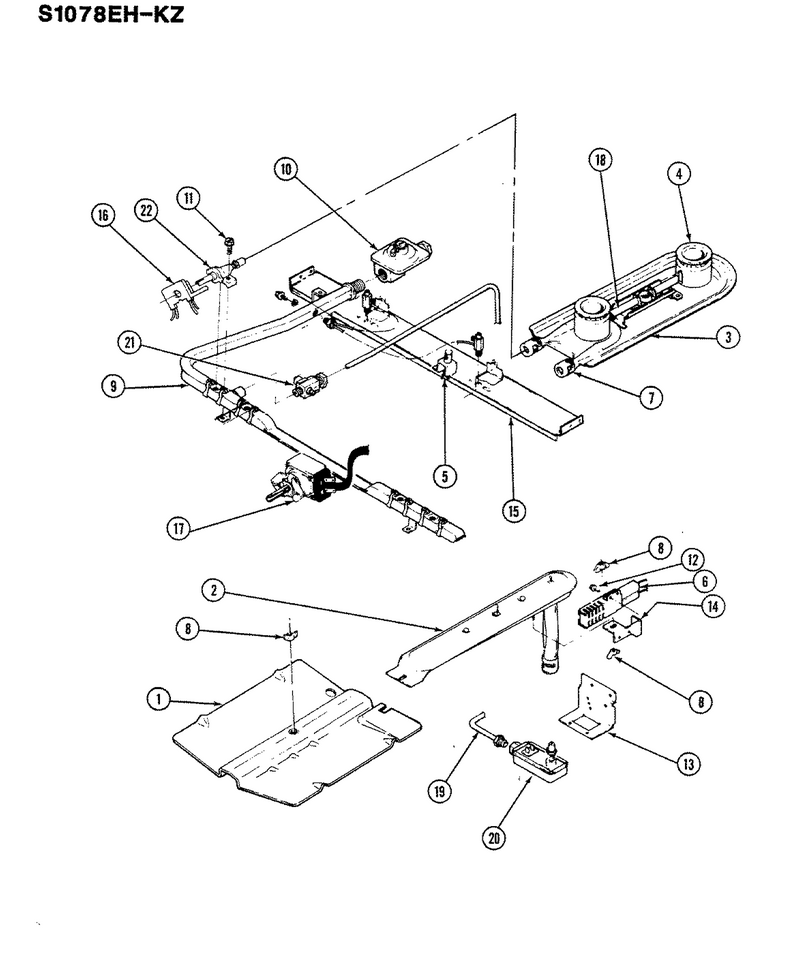

03 - Control System

...
...
1
Baffle, Broil WPL-3601F099-45
...
2
Burner WPL-7505P101-60
...
3
Uni-Burner Assy WPL-3412A004-23
...
4
Not Required Part Or See Note WPL-W10124350
...
5
Igniter- T WPL-WP7432P015-60
...
6
Igniter Kit WPL-12400035
...
7
Module, Spark WPL-7431P006-60
...
8
3/8`` Nut & Ferrule WPL-1555258K
...
9
Pipe, Manifold WPL-7513P044-60
...
10
Regulator, Pressure WPL-7510P002-60
...
11
Screw, Control Valve WPL-7101P043-60
...
12
Screw WPL-WP4159193
...
13
Support WPL-3807F120-34
...
14
Bracket, Oven Burner WPL-3801F007-45
...
15
Support, Top Burner WPL-3807F221-80
...
16
Switch- Bu WPL-WP7403P190-60
...
17
Thermostat WPL-7515P008-60
...
18
Tube, Flash WPL-7506P006-60
...
19
Kit, Tubing W/loxit (3/8``) WPL-12001100
...
20
Valve WPL-WP7501P133-60
...
21
Valve, Shut Off WPL-7502P002-60
...
22
Valve, Top Burner WPL-7502P109-60

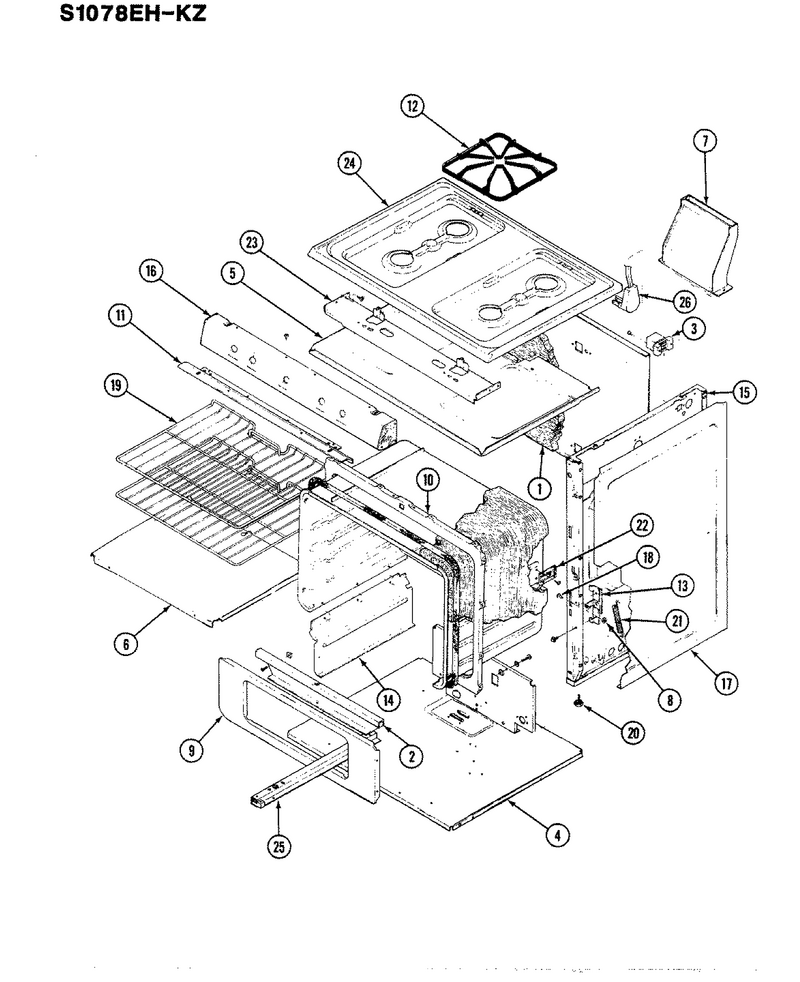

01 - Body

...
...
1
Back, Main WPL-4002F070-20
...
2
Baffle, Oven Frt WPL-3601W124-23
...
3
Block, Terminal WPL-7401P015-60
...
4
Bottom, Broiler WPL-4011F097-20
...
5
Bottom, Burner Box WPL-4011F095-80
...
6
Bottom, Oven WPL-2205F012-24
...
7
Bracket, Tie Down WPL-3801F101-80
...
8
Clip, Hinge Pin WPL-7112P019-60
...
9
Front, Frame Oven Lower WPL-2201F034-25
...
10
Front, Oven Upper WPL-2201F060-23
...
11
Front, Burner Box WPL-4012F019-20
...
12
Grate-Brnr WPL-W11400301
...
13
Knob WPL-WP7711P135-60
...
14
Lining, Broiler WPL-2404F021-23
...
15
Procelain Broiler (Pan And Grid) WPL-4396923
...
16
Panel, Manifold Blk WPL-2616F022-90
...
17
Panel, Side (Alm) WPL-2618F052-74
...
18
Pin, Hinge WPL-7113P002-60
...
19
Rack, Oven WPL-7801P030-60
...
20
Screw, Special WPL-7101P029-60
...
21
Spring- Ov WPL-WP7803P058-60
...
22
Support, Oven Rear WPL-3807F205-45
...
23
Support, Top Burner WPL-3807F221-80
...
24
Top, Main - C WPL-2001F036-30
...
25
Track, Broiler Dwr Right WPL-3404A013-51
...
26
Back, Broiler WPL-4002F078-45
...
27
Manual, Use & Care WPL-8112P033-60

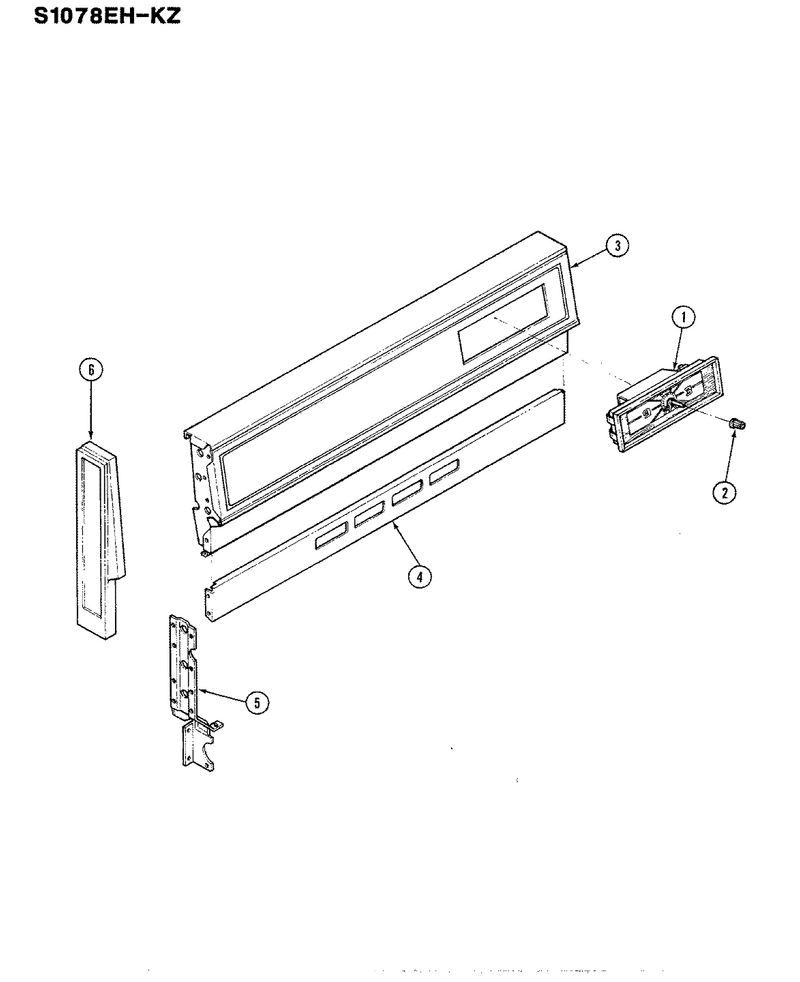

02 - Control Panel

...
...
1
Clock----Na WPL-7602P064-60
...
2
Nut, Push-On End Cap WPL-7103P053-60
...
3
Trim, Backguard WPL-7703P144-60
...
4
Panel, Bkgd Lwr Blk WPL-2620W017-00
...
5
Support WPL-3807F168-80
...
6
Trim WPL-7726P004-60
