Admiral S1068H-CZW

Model: S1068H-CZW

Save Part Not Listed?
product name

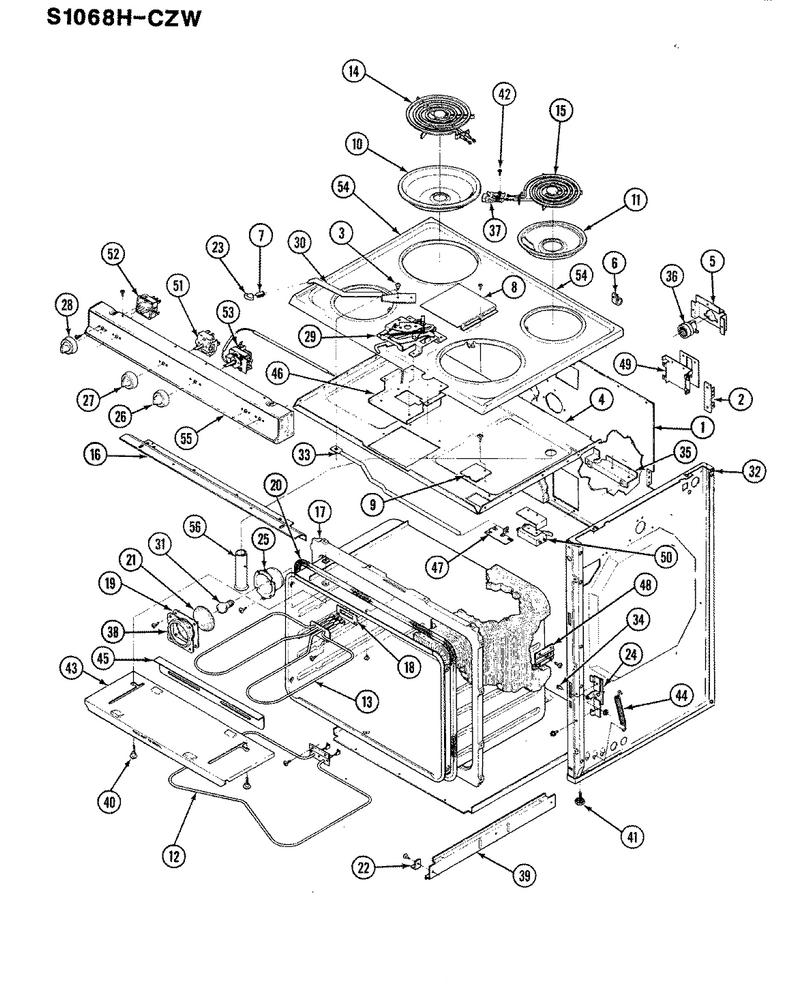

01 - Body

...
...
1
Back, Main WPL-4002F092-20
...
2
Block-Term WPL-WPW10245259
...
3
Bolt, Door Lock WPL-7116P002-60
...
4
Bracket, Clock Mtg WPL-3801F113-51
...
5
Bracket,control Panel (L) WPL-3801F049-34
...
6
Clamp, Wire 3/4 WPL-7111P002-60
...
7
Clip, Latch Handle WPL-7112P003-60
...
8
Cover, Catch Assy. WPL-4005F137-80
...
9
Cover, Switch WPL-4005F139-51
...
10
Bowl-Drip WPL-WPW10196405
...
11
Bowl-Drip WPL-WPW10196406
...
12
Element- B WPL-WPY04000041
...
13
Element- B WPL-WPY04000048
...
14
Elmnt-Surf WPL-WP660532
...
15
Hinge, Main Top WPL-7706P170-60
...
16
Front, Burner Box WPL-4012F013-80
...
17
Front, Oven WPL-2201F033-23
...
18
Gasket, Element WPL-7201P003-60
...
19
Gasket, Lamp Retainer WPL-7201P015-60
...
20
Gasket, Oven WPL-7201P036-60
...
21
Glass, Lamp Guard WPL-7902P057-60
...
22
Glide, Drawer WPL-8016P004-60
...
23
Hinge, Main Top WPL-7706P170-60
...
24
Hinge, Oven Door (Lt) WPL-3418F029-34
...
25
Knob- Cloc WPL-WP7711P466-60
...
26
Knob, Thermostat WPL-7711P193-60
...
27
Knob, Select WPL-7711P190-60
...
28
Knob, Clock (Blk) WPL-7711P192-60
...
29
Catch Assy. WPL-8002P020-60
...
30
Lamp, Signal WPL-7407P017-60
...
31
Light Bulb WPL-8009
...
32
Lining, Inner Side WPL-4009W028-20
...
33
Panel, Side Angle WPL-2618F045-80
...
34
Pin, Hinge WPL-7113P002-60
...
35
Plate, Conduit Reinforcement WPL-3605F146-51
...
36
Receptacle, Lamp WPL-7408P002-60
...
37
Block, Surface Unit WPL-7401P014-60
...
38
Retainer, Lamp Guard WPL-3804F012-45
...
39
Runner, Outer WPL-3406F007-80
...
40
Screw WPL-7101P005-60
...
41
Screw WPL-7101P030-60
...
42
Screw WPL-WP74004005
...
43
Shield, Broil WPL-3604F092-45
...
44
Spring- Ov WPL-WP7803P058-60
...
45
Support WPL-3807F176-13
...
46
Support, Latch WPL-3807F195
...
47
Support, Lock Switch WPL-3807F193-45
...
48
Support, Oven Rear WPL-3807F205-45
...
49
Support, Terminal Block WPL-3807F157-80
...
50
Switch, Rocker (Blk) WPL-7403P067-60
...
51
Switch, Selector WPL-7403P037-60
...
52
Switch-Inf WPL-W11122006
...
53
Thermostat WPL-7404P050-60
...
54
Top, Main WPL-2002F092-30
...
55
Trim, Upper Front WPL-7722P045-60
...
56
Tube WPL-8026P001-60
...
57
Manual, Use & Care WPL-8110P087-60

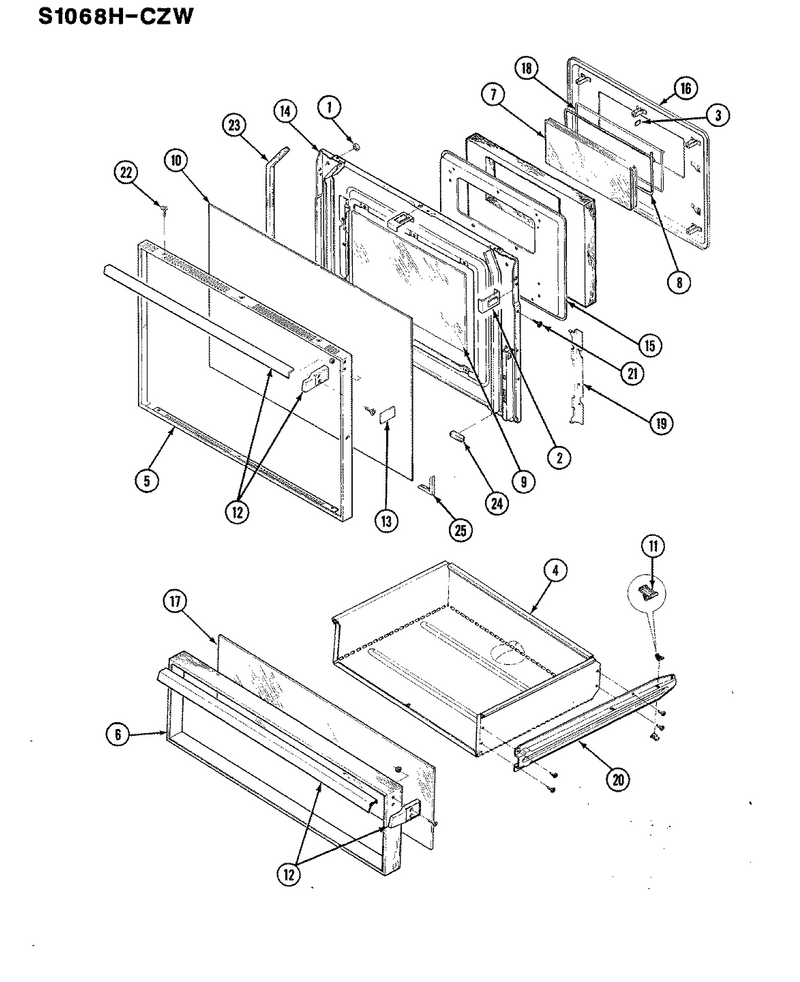

02 - Door

...
...
1
Bumper Door (Round) WPL-8003P002-60
...
2
Clip, Door WPL-7112P034-60
...
3
Clip, Retainer WPL-7112P051-60
...
4
Drawer Assy. WPL-3405F008-20
...
5
Frame, Oven Door WPL-7706P222-60
...
6
Frame WPL-7706P180-60
...
7
Frame, Window WPL-7706P177-60
...
8
Gasket, Window WPL-7201P018-60
...
9
Glass, Inner WPL-7902P097-60
...
10
Glass, Window WPL-7902P103-60
...
11
Glide, Drawer WPL-8016P004-60
...
12
Handle, Door WPL-7701P047-60
...
13
Insert, Oven Door Handle WPL-7728P012-60
...
14
Lining Assy, Ov Dr WPL-2402W125-12
...
15
Pad, Inner WPL-2410F016-51
...
16
Pad, Oven Door Assembly WPL-2416F029-12
...
17
Panel, Svr Drawer Black WPL-2416F019-70
...
18
Retainer WPL-3804F022-45
...
19
Retainer, Glass WPL-3804F051-80
...
20
Runner, Inner WPL-3406F020-80
...
21
Rivet WPL-7107P017-60
...
22
Screw WPL-WP7101P126-60
...
23
Seal WPL-7208P002-60
...
24
Seal-Strip WPL-WP854334
...
25
Spacer, Glass Corner WPL-8010P045-60
