Admiral RFCA220AAN

Model: RFCA220AAN

Save Part Not Listed?
product name

Popular Parts

Popular Parts

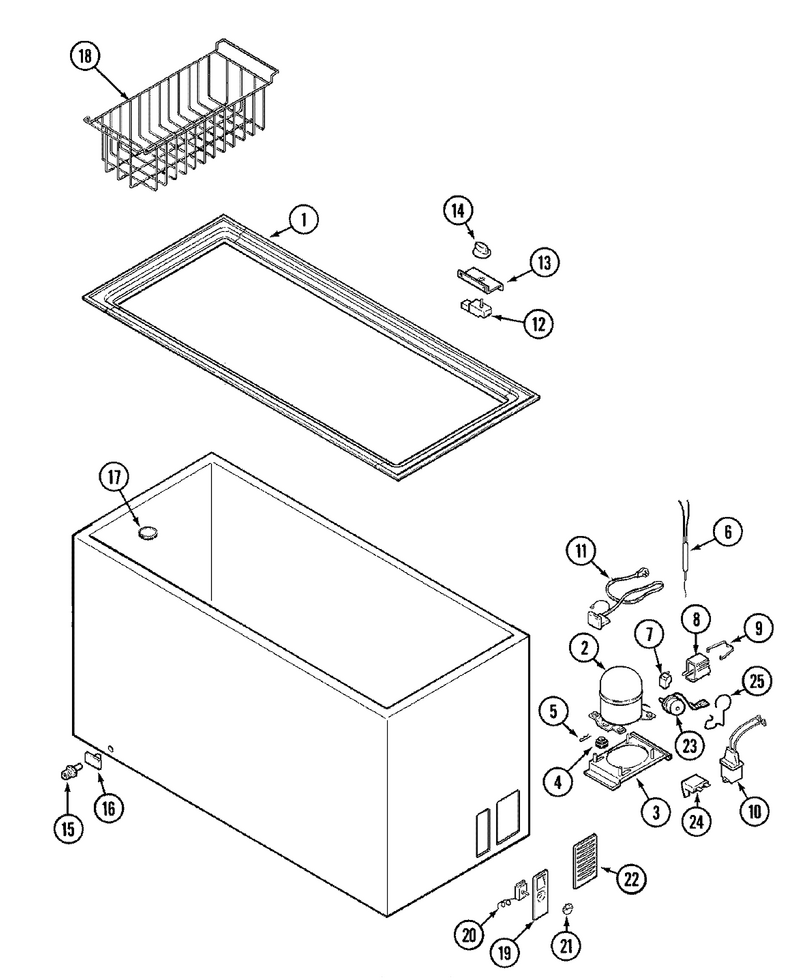

01 - Cabinet

...
...
NI
Divider (Optional) WPL-4356477
...
1
Breaker Strip (Frt.) WPL-68001274
...
2
Compressor WPL-W10309990
...
3
Brace WPL-3-81556-001
...
4
Grommet, Compressor WPL-Y09100025
...
5
Pin, Hitch WPL-4356336
...
6
Drier-Uv WPL-WPW10143759
...
7
Relay WPL-R0211529
...
8
Cover, Terminal WPL-Y09100115
...
9
Clip, Term Cover WPL-Y09100116
...
10
Capacitor WPL-WPW10662129
...
11
Screw WPL-09100107
...
12
Temperature - Control WPL-Y09100006
...
13
Screw WPL-4356491
...
14
Temp. Control Knob WPL-Y09100007
...
15
Adptr-Hose WPL-W11663505
...
16
Drain - Defrost Cap WPL-Y09100011
...
17
Cap, Drain WPL-68001312
...
18
Wire Basket WPL-4356322
...
19
Box, Control WPL-68001148
...
20
Thermostat WPL-WP4-35940-001
...
21
Knob, Temp. Control WPL-68001452
...
22
Access Panel WPL-4356622
...
23
Overload WPL-10377005
...
24
Overload WPL-68001296
...
25
Clip, Overload WPL-Y09100114
