Admiral MEA5HW-1

Model: MEA5HW-1

Save Part Not Listed?
product name

Popular Parts

Popular Parts

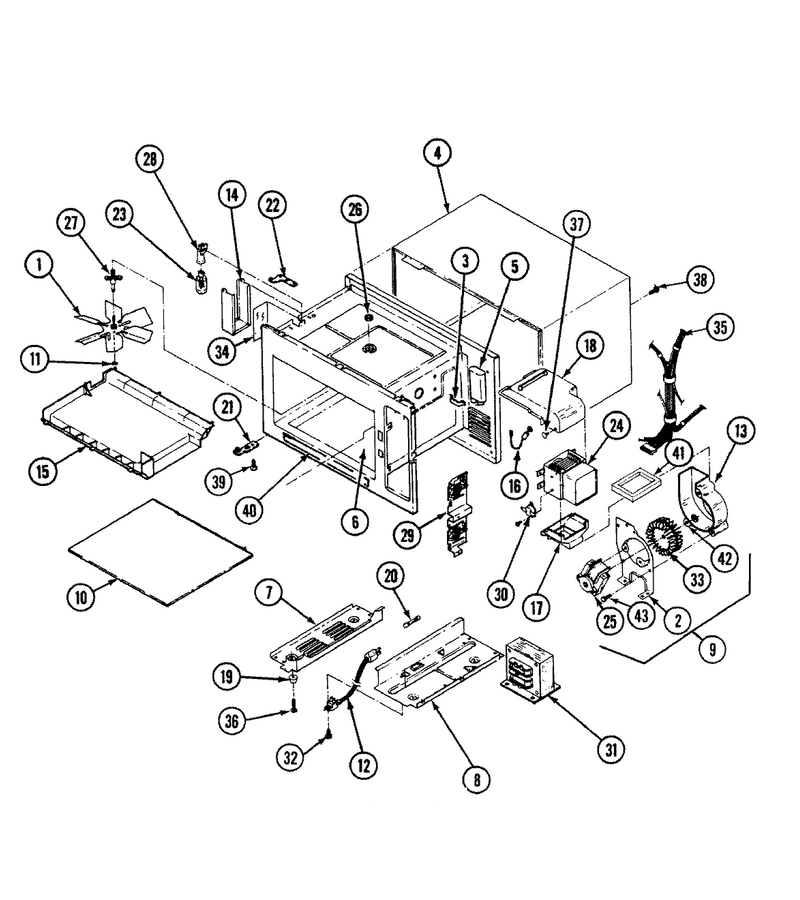

01 - Base & Cavity

...
...
1
Stirrer Blade Assy WPL-04021532
...
2
Bracket WPL-Y02030136
...
3
Bracket WPL-02030123
...
4
Cabinet (Wht) WPL-02140095
...
5
Capacitor- WPL-WP59001168
...
6
Cavity WPL-04021555
...
7
Channel Base, Left WPL-02090010
...
8
Channel Base, Right WPL-02090011
...
9
Blower Assy WPL-04021438
...
10
Plate, Popcorn WPL-02040094
...
11
Clip, Stirrer WPL-03110066
...
12
Cord, Power WPL-51001002
...
13
Cover WPL-Y02300032
...
14
Cover, Lamp WPL-Y02300049
...
15
Cover, Stirrer WPL-Y02300029
...
16
Rectifier WPL-B8383101
...
17
Duct WPL-02170123
...
18
Duct Stirrer Air WPL-02170133
...
19
Foot, Base WPL-Y02230008
...
20
Block-Fuse WPL-W10206728
...
21
Hinge Assy, Lower WPL-04021343
...
22
Bracket, Hinge (Upper) WPL-04021344
...
23
Light, Oven WPL-01060029
...
24
Magnetron WPL-01040005
...
25
Motor, Blower WPL-01110035
...
26
Nut, Shaft Stirrer WPL-03050007
...
27
Shaft, Stirrer WPL-02360058
...
28
Receptacle, Bulb WPL-51001095
...
29
Bracket, Interlock WPL-02030152
...
30
Switch, Temp Limit WPL-01180010
...
31
Transformer, Hv WPL-01130036
...
32
Screw WPL-03020030
...
33
Wheel, Blower WPL-Y01110017
...
34
Window WPL-02220084
...
35
Wire, Lead Hv WPL-04060539
...
36
Screw WPL-03020077
...
37
Clip, Canoe WPL-03110061
...
38
Screw WPL-03020077
...
39
Screw WPL-03020098
...
40
Not Required Part Or See Note Label, Cooking Guide WPL-W10124350
...
41
Gasket WPL-02310157
...
42
Nut WPL-03050003
...
43
Screw WPL-WP59002061

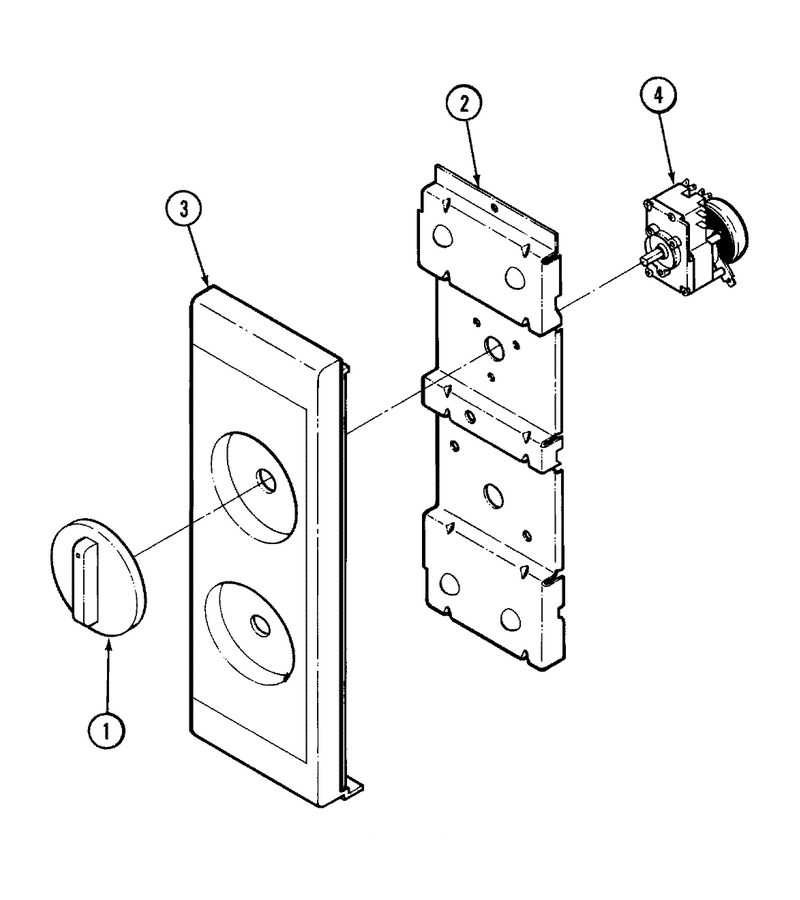

02 - Control

...
...
1
Knob, Timer WPL-51001003
...
2
Mounting Plate WPL-02040080
...
3
Trim, Control Panel WPL-51001004
...
4
Timer WPL-01070050
...
5
Manual, Use & Care WPL-51001001

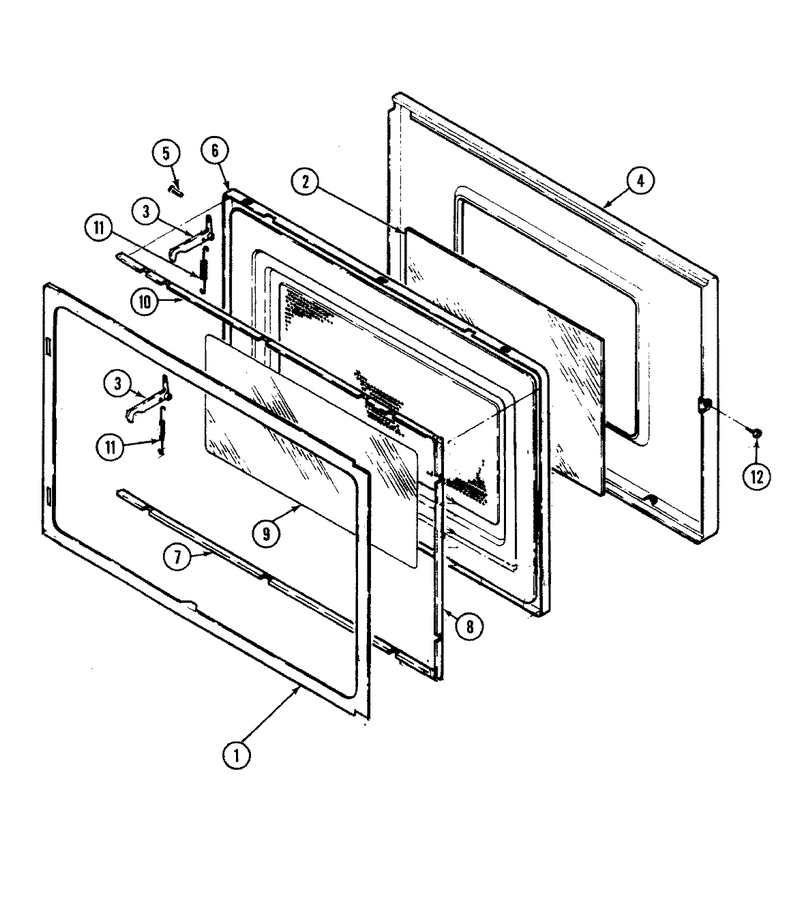

03 - Door

...
...
1
Choke, Filler WPL-02100141
...
2
Clip, Glass WPL-03110068
...
3
Latch, Pawl WPL-02190062
...
4
Panel, Door (Outer-Wht) WPL-51001005
...
5
Pin, Latch Pawl WPL-Y03070040
...
6
Plate, Door Ckoke Assy WPL-04021348
...
7
Seal, Bottom WPL-Y02120162
...
8
Seal Hinge WPL-Y02120160
...
9
Window, Polyester WPL-02220103
...
10
Seal, Top WPL-Y02120161
...
11
Spring WPL-03180032
...
12
Spacer, Door WPL-03120070
