Admiral MEA15F-9P-P4

Model: MEA15F-9P-P4

Save Part Not Listed?
product name

Popular Parts

Popular Parts

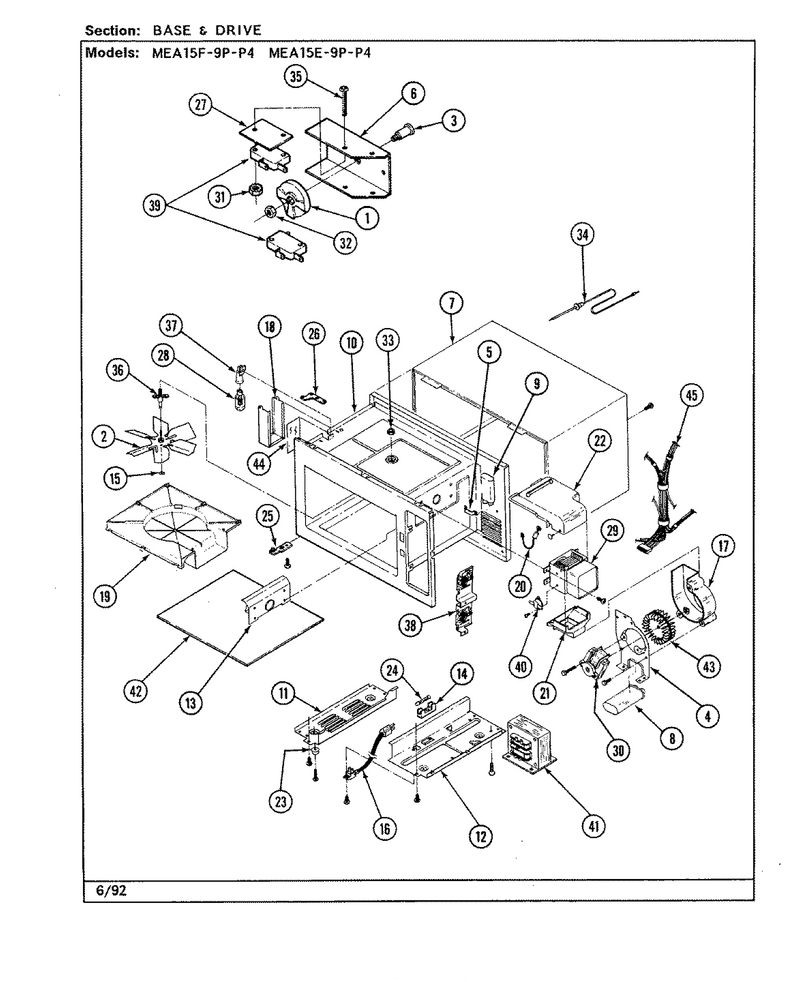

01 - Base & Drive

...
...
1
Bearing WPL-02440002
...
2
Blower Assy WPL-04021422
...
3
Bolt, Shoulder WPL-03010154
...
4
Bracket WPL-Y02030136
...
5
Bracket, Capacitor WPL-02030154
...
6
Backet, Hi Swithc WPL-02030153
...
7
Cabinet WPL-02140072
...
8
Not Required Part Or See Note WPL-W10124350
...
9
Capacitor WPL-01020025
...
10
Cavity WPL-04021535
...
11
Channel Base, Left WPL-02090010
...
12
Channel Base, Right WPL-02090011
...
13
Not Required Part Or See Note WPL-W10124350
...
14
Fuse Block.250 Term, Rt Angle WPL-30929P01
...
15
Clip, Stirrer WPL-03110066
...
16
Cord WPL-01080053
...
17
Cover WPL-Y02300032
...
18
Cover, Magnetron WPL-02300034
...
19
Cover, Stirrer WPL-Y02300029
...
20
Diode WPL-Y04010206
...
21
Duct WPL-02170123
...
22
Duct Stirrer Air WPL-02170133
...
23
Screw WPL-03020077
...
24
Gasket WPL-02310157
...
25
Hinge Assy, Lower WPL-04021343
...
26
Bracket, Hinge (Upper) WPL-04021344
...
27
Jack, Probe WPL-01170008
...
28
Bulb-Light WPL-WPA3167501
...
29
Magnetron, Magic Chef WPL-01040006
...
30
Motor, Blower WPL-01110031
...
31
Nut WPL-Y03050001
...
32
Nut WPL-WP486255
...
33
Nut, Shaft Stirrer WPL-03050007
...
34
Probe, Temp. WPL-01220006
...
35
Screw WPL-03010158
...
36
Shaft, Stirrer WPL-02360058
...
37
Receptacle, Bulb WPL-51001095
...
38
Interlock Switch Assy, Upper WPL-01140063
...
39
Switch, Sec. Interlock WPL-01140065
...
40
Switch, Voltage Selector WPL-01140080
...
41
Step Down Transformer WPL-Y01130042
...
42
Tray, Microwave WPL-Y02280039
...
43
Wheel, Blower WPL-Y01110017
...
44
Window WPL-02220084
...
45
Manual, Use & Care WPL-Y06010323

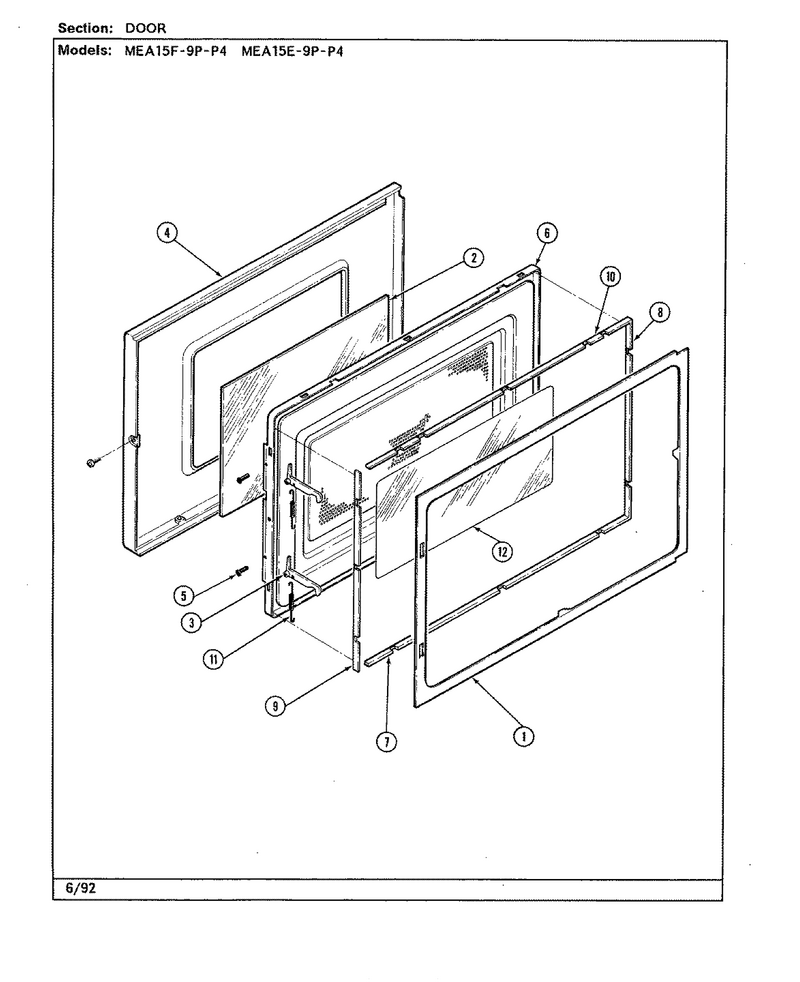

03 - Door

...
...
1
Choke, Filler WPL-02100141
...
2
Glass, Door WPL-Y02220099
...
3
Latch, Pawl WPL-02190062
...
4
Panel Outer Door WPL-02100255
...
5
Pin, Latch Pawl WPL-Y03070040
...
6
Plate, Door Choke Assy WPL-04021263
...
7
Seal, Bottom WPL-Y02120162
...
8
Seal Hinge WPL-Y02120160
...
9
Seal, Latch WPL-Y02120159
...
10
Seal, Top WPL-Y02120161
...
11
Spring WPL-03180032
...
12
Window, Polyester WPL-02220103

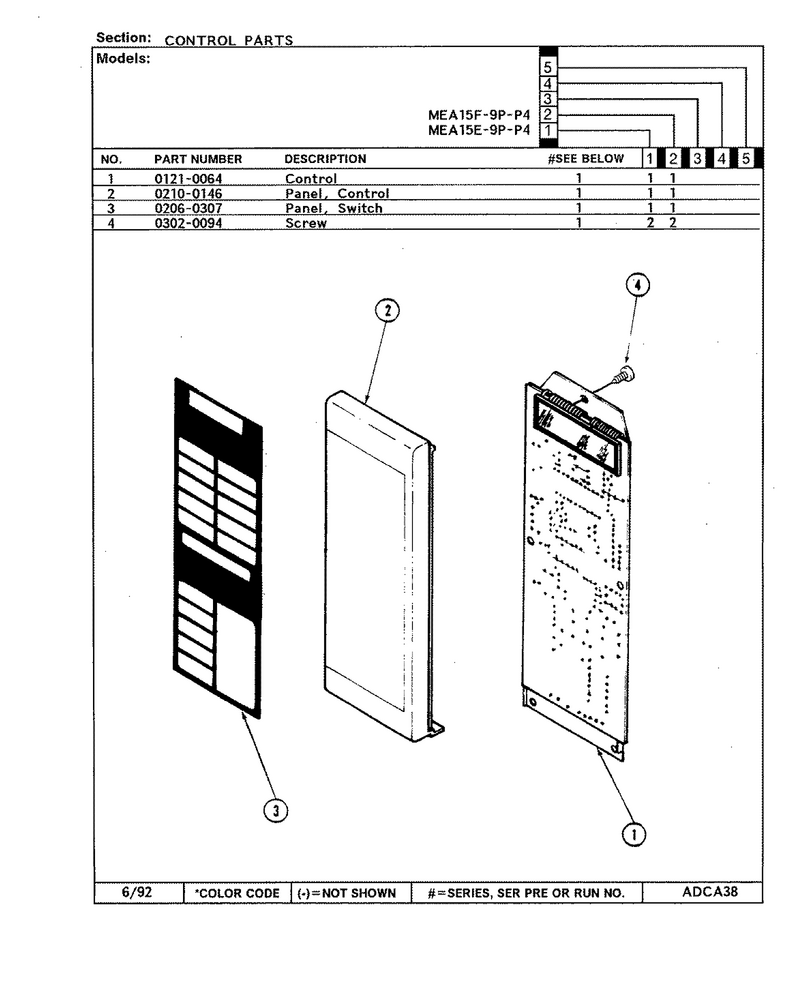

02 - Control System

...
...
1
Board, Control WPL-Y01210064
...
2
Panel, Control WPL-02100146
...
3
Switch, Panel WPL-02060307
...
4
Screw WPL-WP90767
