Admiral MA46G-14T

Model: MA46G-14T

Save Part Not Listed?
product name

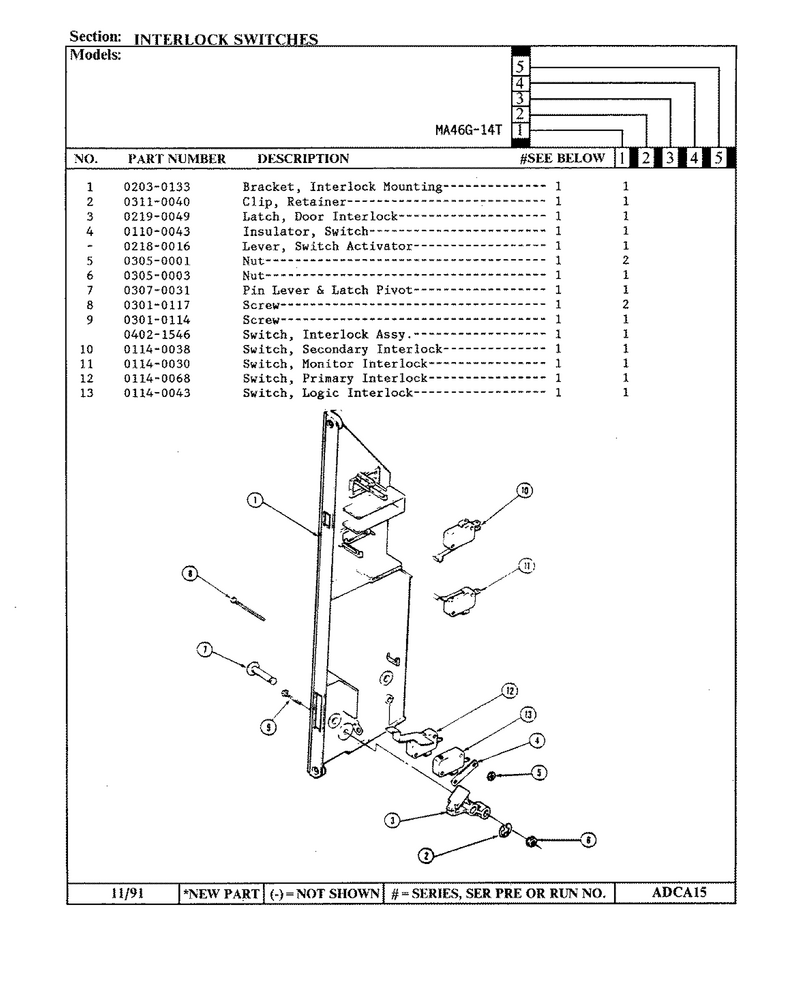

04 - Interlock Switches

...
...
1
Bracket, Interlock WPL-Y02030133
...
2
Clip, Retainer WPL-03110040
...
3
Latch, Door Interlock WPL-02190049
...
4
Insulator, Switch WPL-Y01100043
...
5
Nut WPL-Y03050001
...
6
Nut WPL-03050003
...
7
Pin, Lever & Pivot Latch WPL-Y03070031
...
8
Screw WPL-03010117
...
9
Switch, Interlock Assy. WPL-04021546
...
10
Switch, Tertiary (Logic) WPL-Y01140086
...
11
Switch, Monitor WPL-Y01140084
...
12
Switch, Primary Interlock WPL-01140068
...
13
Switch, Logic Interlock WPL-Y01140043

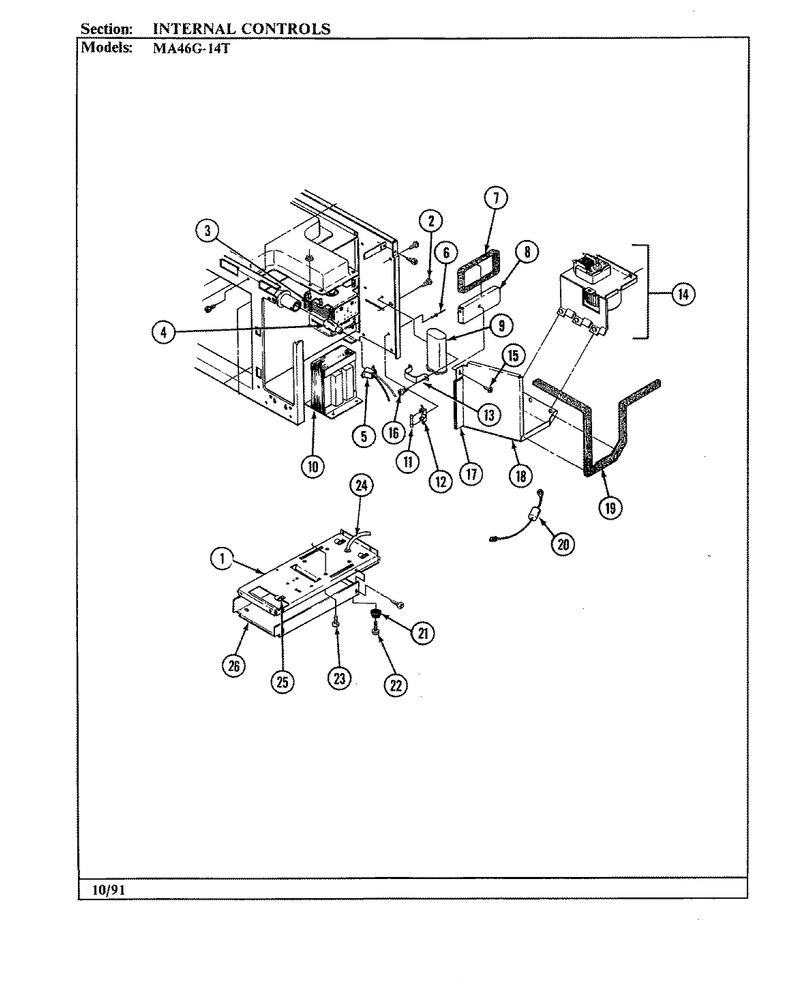

05 - Internal Controls

...
...
1
Plate, Component Mounting WPL-Y02040101
...
2
Screw WPL-WP8281227
...
3
Magnetron WPL-01040004
...
4
Bulb-Light WPL-WPA3167501
...
5
Receptacle, Light WPL-01100045
...
6
Rivet WPL-WP210720
...
7
Tape, Foam WPL-02310109
...
8
Support, Duct Magnetron WPL-Y02170111
...
9
Capacitor-.69 WPL-59001160
...
10
Transformer, H.v. WPL-01130028
...
11
Fuse 15a 2 WPL-WPY01050009
...
12
Block-Fuse WPL-W10206728
...
13
Bracket WPL-02030123
...
14
Housing Blower Mtr WPL-02170120
...
15
Screw WPL-03010098
...
16
Screw WPL-Y03020076
...
17
Tape, Foam WPL-02310071
...
18
Duct Assembly, Magnetron WPL-Y04020842
...
19
Tape, Foam WPL-02310070
...
20
Diode WPL-Y04010206
...
21
Foot, Base WPL-02230012
...
22
Screw WPL-Y03020104
...
23
Screw WPL-03010094
...
24
Cord, Power (Wht) WPL-01080055
...
25
Clip, Wire Harness WPL-03110022
...
26
Cover, Mtg Plate WPL-02300039

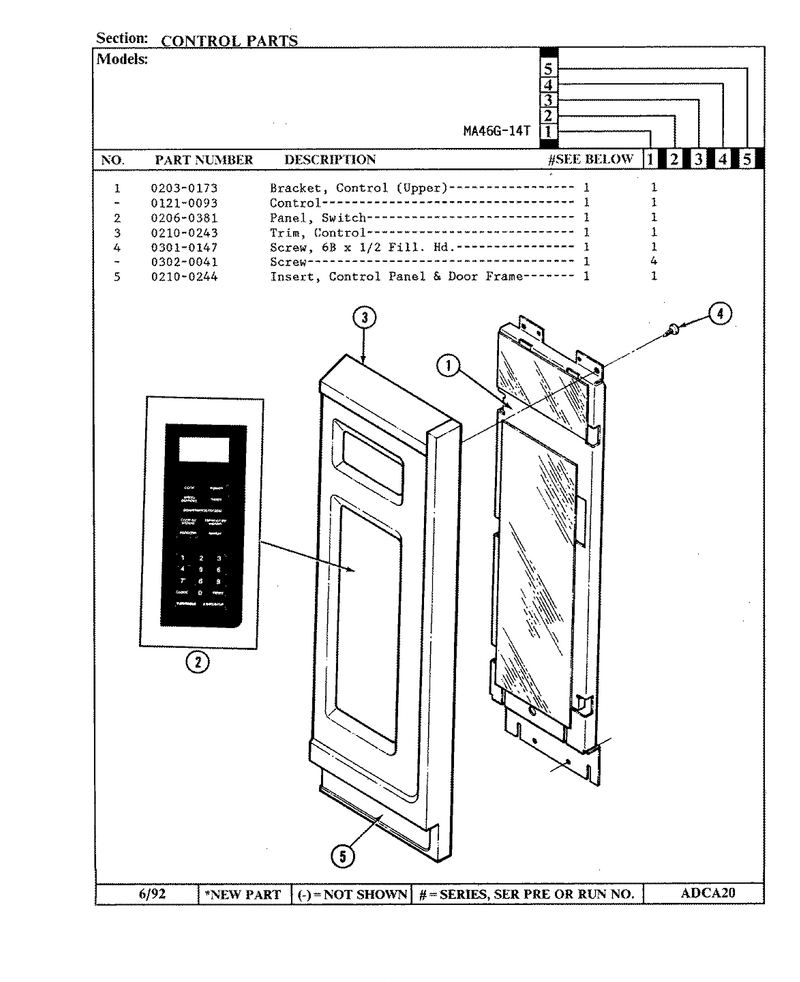

02 - Control System

...
...
1
Board, Control WPL-01210093
...
2
Switch Panel WPL-02060381
...
3
Frame, Control Panel WPL-02100243
...
4
Screw WPL-03020041
...
5
Insert, Control/door WPL-02100244

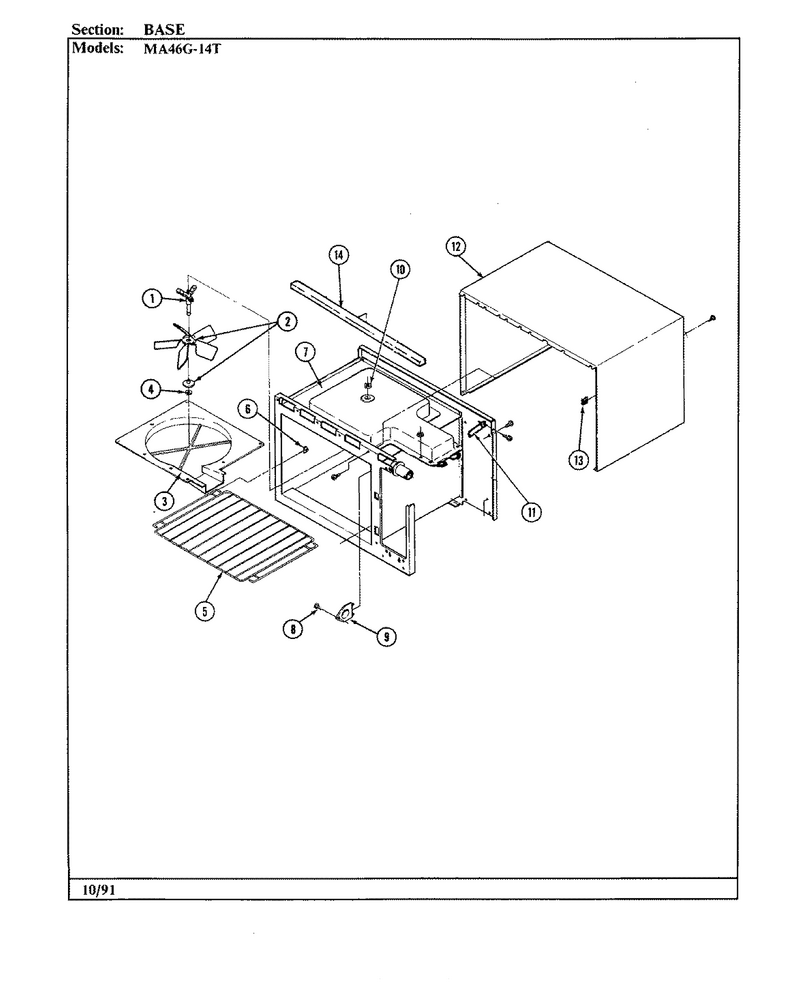

01 - Base

...
...
1
Shaft Stirrer WPL-02360054
...
2
Blade, Bushing Assembly WPL-04021190
...
3
Cover, Stirrer WPL-Y02300045
...
4
Clip, Stirrer WPL-03110066
...
5
Rack, Oven WPL-Y02410004
...
6
Support, Rack WPL-02010031
...
7
Cavity WPL-04021554
...
8
Screw WPL-03010098
...
9
Lens, Bulb WPL-Y02400007
...
10
Nut, Shaft Stirrer WPL-03050007
...
11
Brace, Upper Right Support WPL-02020020
...
12
Wrapper WPL-Y02140042
...
13
Clip, Cabinet (Lt) WPL-03110046
...
14
Manual, Use & Care WPL-Y06010311

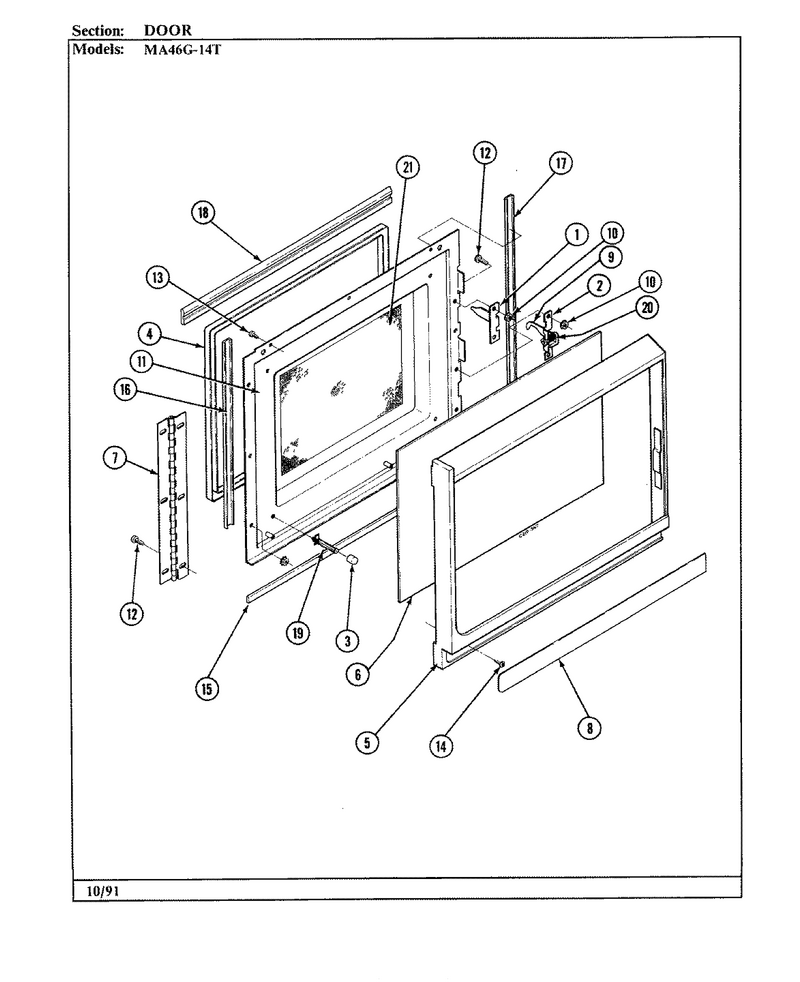

03 - Door

...
...
1
Activator, Monitor WPL-Y02030117
...
2
Bracket, Door Latch WPL-Y02030116
...
3
Bumper WPL-Y02100135
...
4
Choke, Filler (Blk) WPL-Y02100166
...
5
Door Trim Assembly WPL-04021543
...
6
Extrusion, Handle (Blk) WPL-02120151
...
7
Hinge, Door WPL-Y02200017
...
8
Insert, Control/door WPL-02100244
...
9
Latch, Door WPL-02190056
...
10
Nut K WPL-M0282005
...
11
Panel, Inner Door (Blk) WPL-04021377
...
12
Screw, Burner Mtg WPL-7101P286-60
...
13
Screw WPL-Y03010118
...
14
Screw WPL-WP74004005
...
15
Seal, Bottom WPL-02120114
...
16
Seal, Hinge Side WPL-Y02120121
...
17
Seal, Latch Side WPL-Y02120122
...
18
Shim WPL-Y03120064
...
19
Spacer, Door Window WPL-Y03120069
...
20
Spring, Door Latch WPL-Y03180023
...
21
Window, Polyester WPL-Y02220073

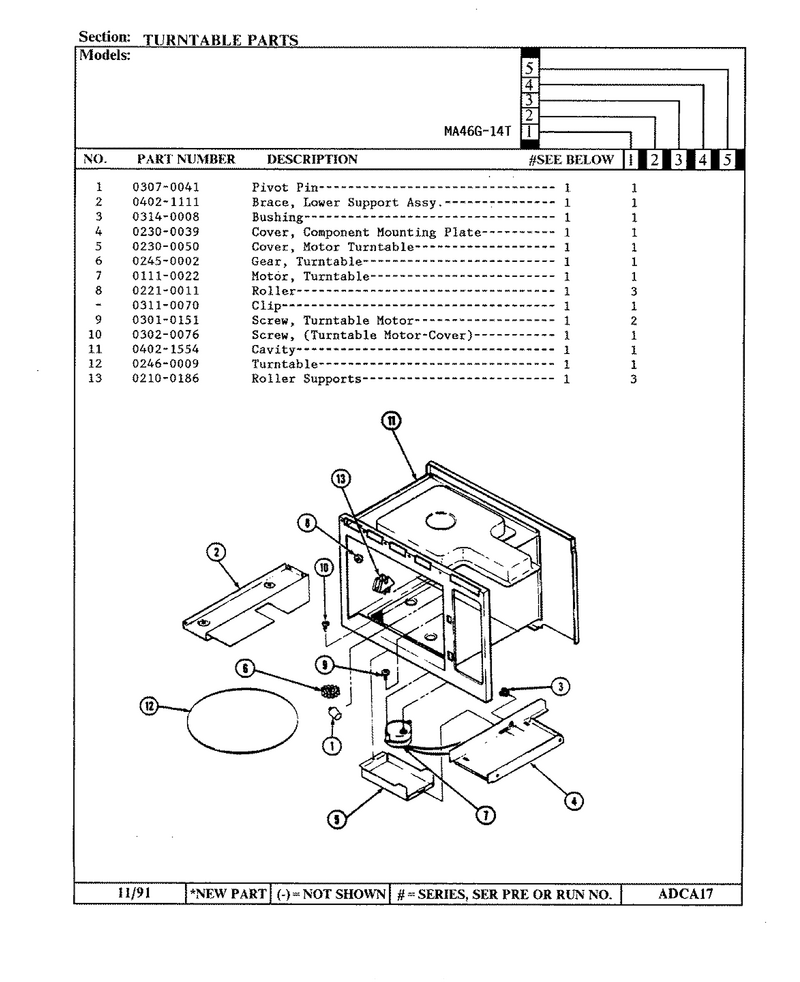

06 - Turntable

...
...
1
Pin, Pivot WPL-Y03070041
...
2
Brace WPL-04021111
...
3
Bushing WPL-Y03140008
...
4
Cover, Mtg Plate WPL-02300039
...
5
Cover, Motor Turntable WPL-Y02300050
...
6
Gear, Turntable WPL-Y02450002
...
7
Motor, Turntable WPL-01110022
...
8
Roller WPL-02210011
...
9
Screw WPL-03010151
...
10
Screw WPL-Y03020076
...
11
Cavity WPL-04021554
...
12
Turntable WPL-51001145
...
13
Support, Roller WPL-Y02100186
