Admiral MA41F-14T

Model: MA41F-14T

Save Part Not Listed?
product name

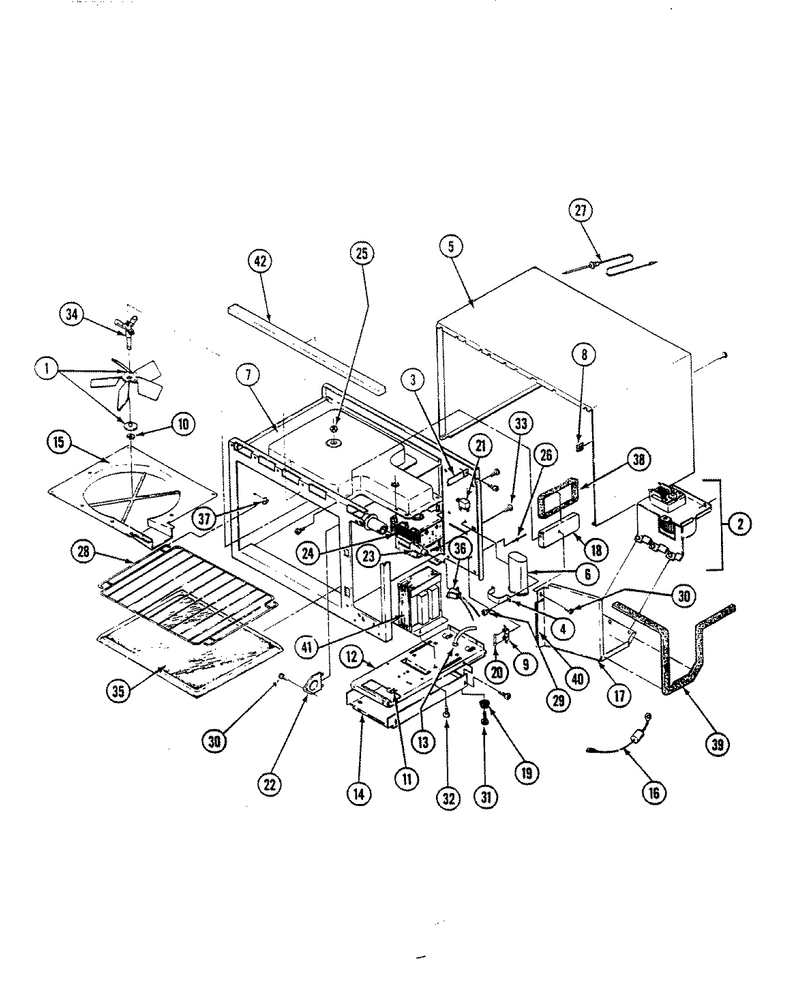

01 - Base & Cavity

...
...
1
Blade, Bushing Assembly WPL-04021190
...
2
Wheel, Blower WPL-Y01110016
...
3
Brace, Upper Right Support WPL-02020020
...
4
Bracket WPL-02030123
...
5
Wrapper WPL-Y02140042
...
6
Capacitor-.69 WPL-59001160
...
7
Cavity WPL-04021454
...
8
Clip, Cabinet (Rt) WPL-03110027
...
9
Clip WPL-Y03110050
...
10
Clip, Stirrer WPL-03110066
...
11
Clip WPL-Y03110059
...
12
Plate, Component Mounting WPL-Y02040101
...
13
Cord, Power (Wht) WPL-01080055
...
14
Cover, Mtg Plate WPL-02300039
...
15
Cover, Stirrer WPL-Y02300045
...
16
Diode WPL-Y04010206
...
17
Duct Assembly, Magnetron WPL-Y04020842
...
18
Support, Duct Magnetron WPL-Y02170111
...
19
Foot, Base WPL-02230012
...
20
Fuse 15a 2 WPL-WPY01050009
...
21
Label, Cook Guide WPL-02240747
...
22
Lens, Bulb WPL-Y02400007
...
23
Bulb-Light WPL-WPA3167501
...
24
Magnetron WPL-01040004
...
25
Nut, Shaft Stirrer WPL-03050007
...
26
Pop-Rivet WPL-Y03060024
...
27
Not Required Part Or See Note WPL-W10124350
...
28
Rack, Oven WPL-Y02410004
...
29
Screw WPL-Y03020076
...
30
Screw WPL-03010138
...
31
Screw WPL-W11233072
...
32
Screw WPL-03010094
...
33
Screw WPL-WP8281227
...
34
Shaft, Stirrer WPL-02360058
...
35
Not Required Part Or See Note WPL-W10124350
...
36
Probe Jack Locknut WPL-03030011
...
37
Support, Rack WPL-02010031
...
38
Tape, Foam WPL-02310109
...
39
Tape, Foam WPL-02310070
...
40
Tape, Foam WPL-02310071
...
41
Transformer, H.v. WPL-01130028
...
42
Trim WPL-02100157

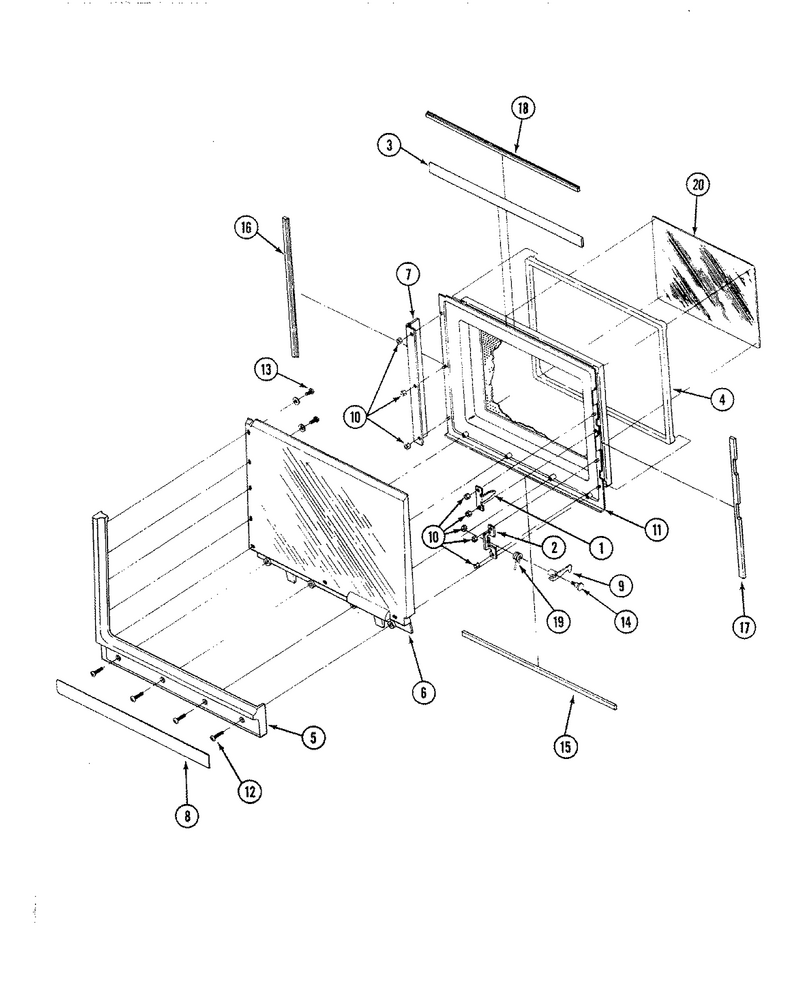

03 - Door

...
...
1
Activator, Monitor WPL-Y02030117
...
2
Bracket, Door Latch WPL-Y02030116
...
3
Tape, Buffer WPL-02310129
...
4
Choke, Filler (Blk) WPL-Y02100166
...
5
Trim, Door (Blk) WPL-02100153
...
6
Glass, Outer Door (Brown) WPL-02220110
...
7
Hinge, Door WPL-Y02200017
...
8
Insert, Control & Dr WPL-02100136
...
9
Latch, Door WPL-02190056
...
10
Nut K WPL-M0282005
...
12
Screw, Burner Mtg WPL-7101P286-60
...
13
Screw & Washer (Hi Lo) WPL-Y03020071
...
14
Screw WPL-Y03010113
...
15
Seal, Bottom WPL-02120114
...
16
Seal, Hinge Side WPL-Y02120121
...
17
Seal, Latch Side WPL-Y02120122
...
18
Seal, Top WPL-02120118
...
19
Spring, Door Latch WPL-Y03180023
...
20
Window, Polyester WPL-Y02220073
...
111
Panel, Inner Door (Blk) WPL-04021377

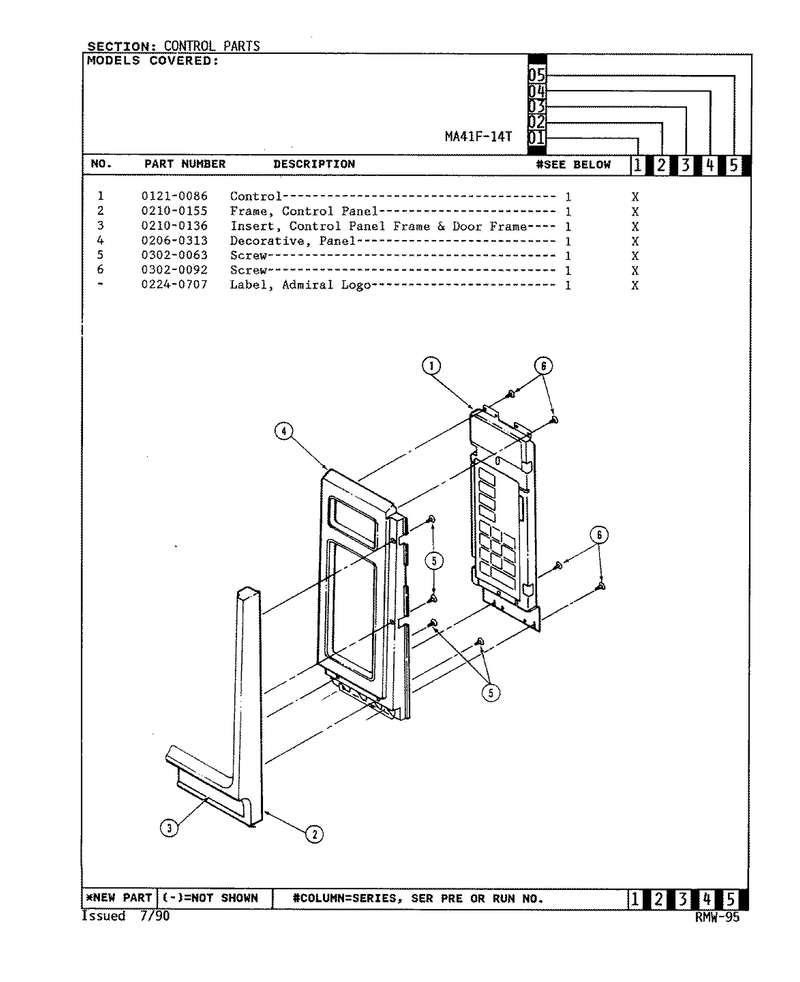

02 - Control System

...
...
1
Board, Control WPL-Y01210086
...
2
Trim, Ctrl Pnl Bez WPL-02100155
...
3
Insert, Control & Dr WPL-02100136
...
4
Control Panel WPL-02060313
...
5
Screw WPL-03020063
...
6
Label WPL-02240707

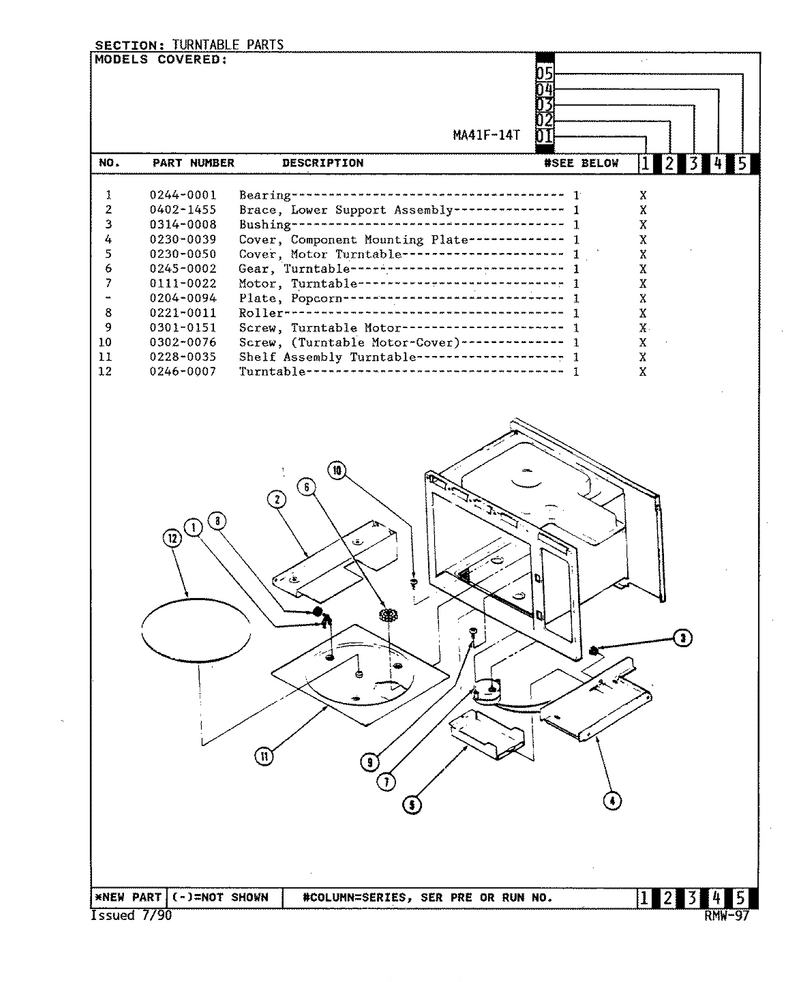

05 - Turntable

...
...
1
Bearing WPL-Y02440001
...
2
Brace, Lower Support WPL-04021455
...
3
Bushing WPL-Y03140008
...
4
Cover, Mtg Plate WPL-02300039
...
5
Cover, Motor Turntable WPL-Y02300050
...
6
Gear, Turntable WPL-Y02450002
...
7
Plate, Popcorn WPL-02040094
...
8
Roller WPL-02210011
...
9
Screw WPL-03010151
...
10
Screw WPL-Y03020076
...
11
Shelf, Turntable WPL-02280035
...
12
Turntable WPL-51001145

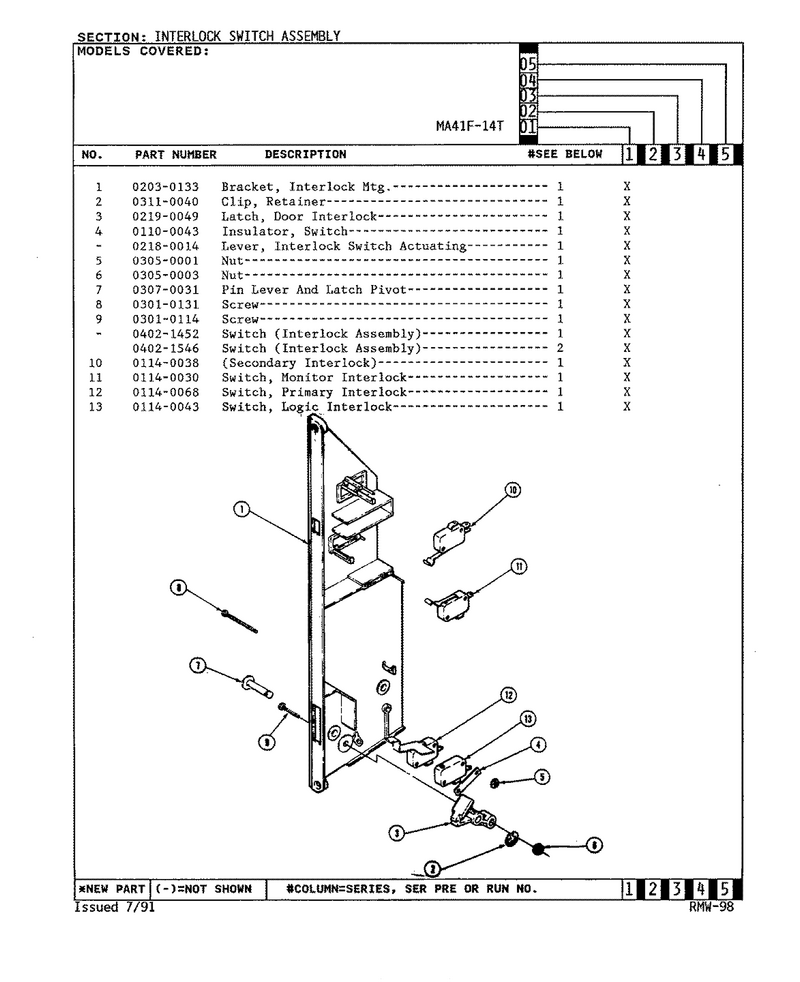

04 - Interlock Switch Assy.

...
...
1
Bracket, Interlock WPL-Y02030133
...
2
Clip, Retainer WPL-03110040
...
3
Latch, Door Interlock WPL-02190049
...
4
Lever, Interlock Switch WPL-02180014
...
5
Nut WPL-Y03050001
...
6
Nut WPL-03050003
...
7
Pin, Lever & Pivot Latch WPL-Y03070031
...
8
Screw WPL-03010131
...
9
Screw WPL-03010114
...
10
Switch, Tertiary (Logic) WPL-Y01140086
...
11
Switch, Monitor WPL-Y01140084
...
12
Switch, Primary Interlock WPL-01140068
...
13
Switch, Logic Interlock WPL-Y01140043
