product name

Admiral DNT18K9 (BOM: 9A73A)

Model: DNT18K9 (BOM: 9A73A)

Save Part Not Listed?
product name

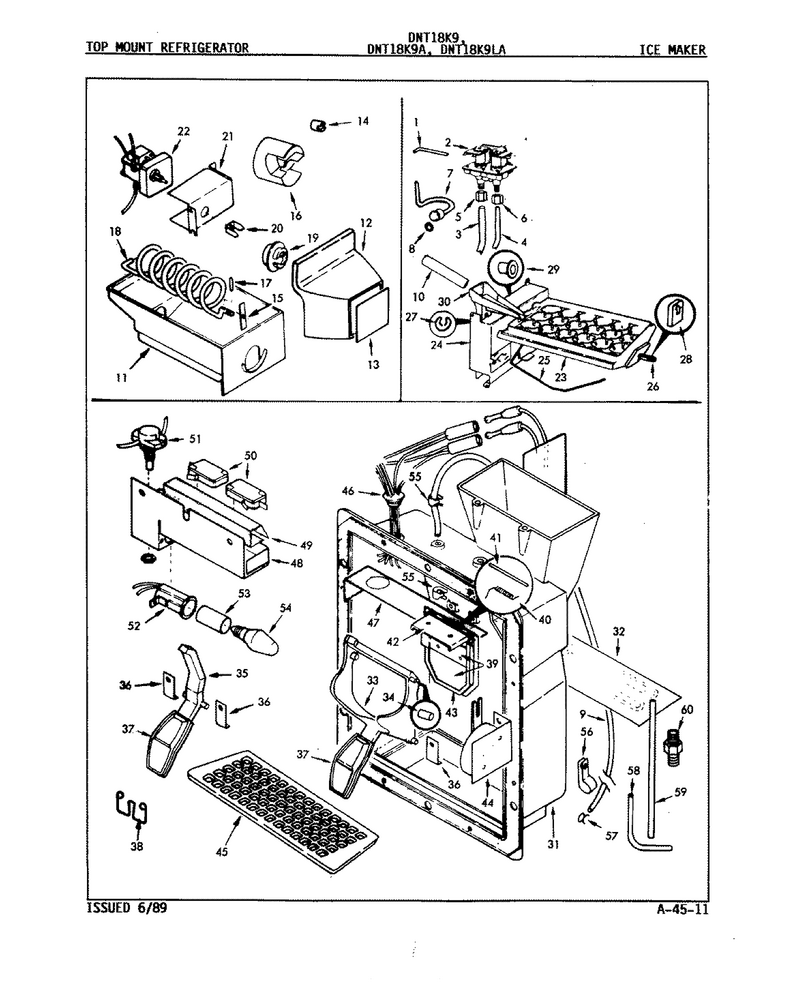

01 - Ice Maker

...
...
1
Screw WPL-WP489478
...
2
Screw WPL-401018-1
...
3
Tubing WPL-55603-8
...
5
Nut WPL-8201513
...
6
Nut WPL-WP627018
...
7
Inlet Tubing Assembly WPL-60219-1
...
8
Gasket- In WPL-WPY013783
...
9
Tube WPL-WPB5705307
...
10
Tube, Fill WPL-58461-3
...
11
Bin, Storage WPL-66446-1
...
12
Ice Disp Front WPL-66205-1
...
13
Insert, Id Front WPL-68131-17
...
14
Nut, Auger WPL-66098-1
...
15
Hub, Reinforcing WPL-63084-1
...
16
Impeller, Auger WPL-66448-1
...
17
Pin, Auger WPL-63071-1
...
18
Auger WPL-66436-1
...
19
Ring- Driv WPL-WP61003336
...
20
Impeller WPL-WP63052-2
...
21
Screw WPL-WP488234
...
22
Motor Mtg Shim WPL-65579-1
...
23
Tray WPL-WP59688-1A
...
24
Icemaker WPL-MHIK7989
...
25
Sensor Arm WPL-60467-1
...
26
Shaft, Drive WPL-65319-1
...
27
Ring, Retainer WPL-58706-1
...
28
Clip, Drive Shaft WPL-65318-1
...
29
Spacer WPL-65317-1
...
30
Spout, Fill WPL-53748-1
...
31
Dispenser, Water WPL-63000-3
...
32
Heater WPL-60508-1
...
33
Actuator Arm (Ice) WPL-66620-1
...
34
Tubing, Arm Pins WPL-55602-21
...
35
Actuator A WPL-WP66618-1
...
36
Clip WPL-63035-2
...
37
Screw WPL-W11380570
...
38
Spring WPL-63306-1
...
39
Door Assy., Ice WPL-RA43825-1
...
40
Spring, Ice Door WPL-63428-1
...
41
Pin, Ice Door WPL-63053-1
...
42
Bracket, Ice Door WPL-63014-1
...
43
Boot, Ice Door WPL-66007-1
...
44
Screw WPL-W11380570
...
45
Grille WPL-63025-3
...
46
Wire Harness WPL-60523-1
...
47
Foil, Barrier Front WPL-63036-1
...
48
Nut WPL-W10080180
...
49
Insulator, Switch WPL-65333-1
...
50
Switch, Ice & Water WPL-55440-2
...
51
Switch, Light WPL-63040-1
...
52
Socket, Light WPL-63039-1
...
53
Seal WPL-63056-1
...
54
Bulb-Light WPL-W10857122
...
55
Clamp, Spring WPL-60333-1
...
56
Clamp WPL-53516-9
...
57
Clamp, Tubing WPL-9602-9
...
58
Water Line WPL-63038-2
...
59
Instalation Kit WPL-63459-2
...
60
Connector WPL-WP2198677
