Admiral AUF45

Model: AUF45

Save Part Not Listed?
product name

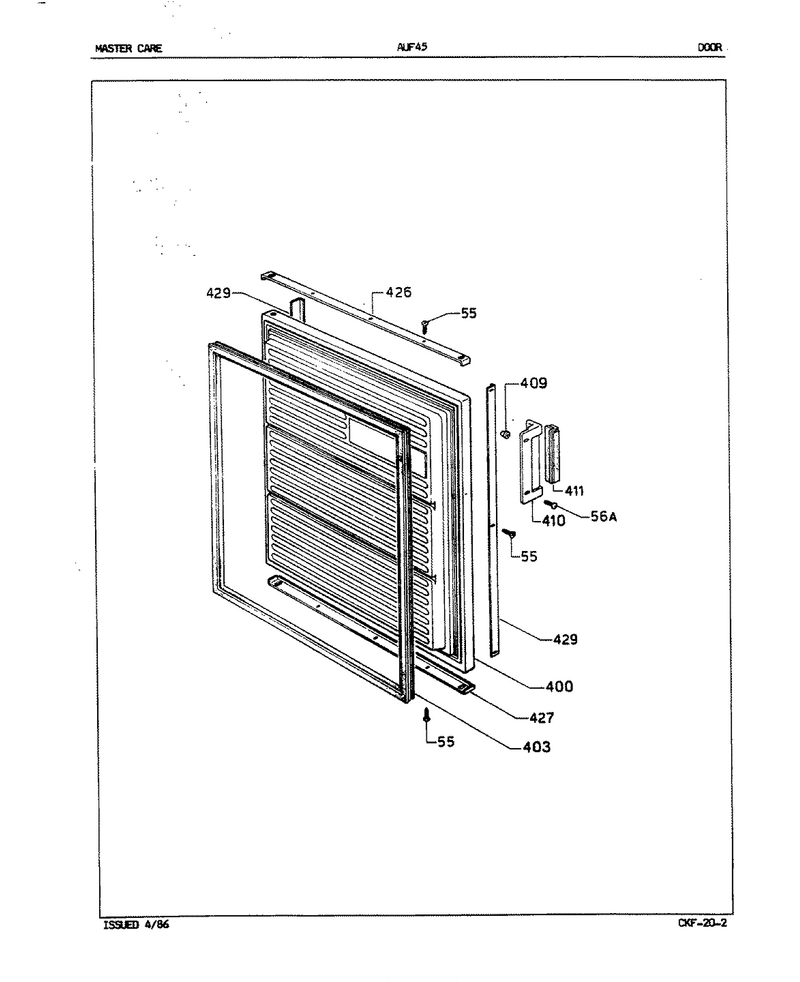

01 - Door

...
...
55
Screw WPL-043745
...
56
Screw WPL-113937
...
400
Door WPL-116479
...
403
Door Gasket WPL-113151
...
409
Insert WPL-112187
...
410
Door Handle WPL-111968
...
411
Handle Insert WPL-116244
...
426
Trim WPL-117173
...
427
Trim WPL-117173
...
429
Trim WPL-117231

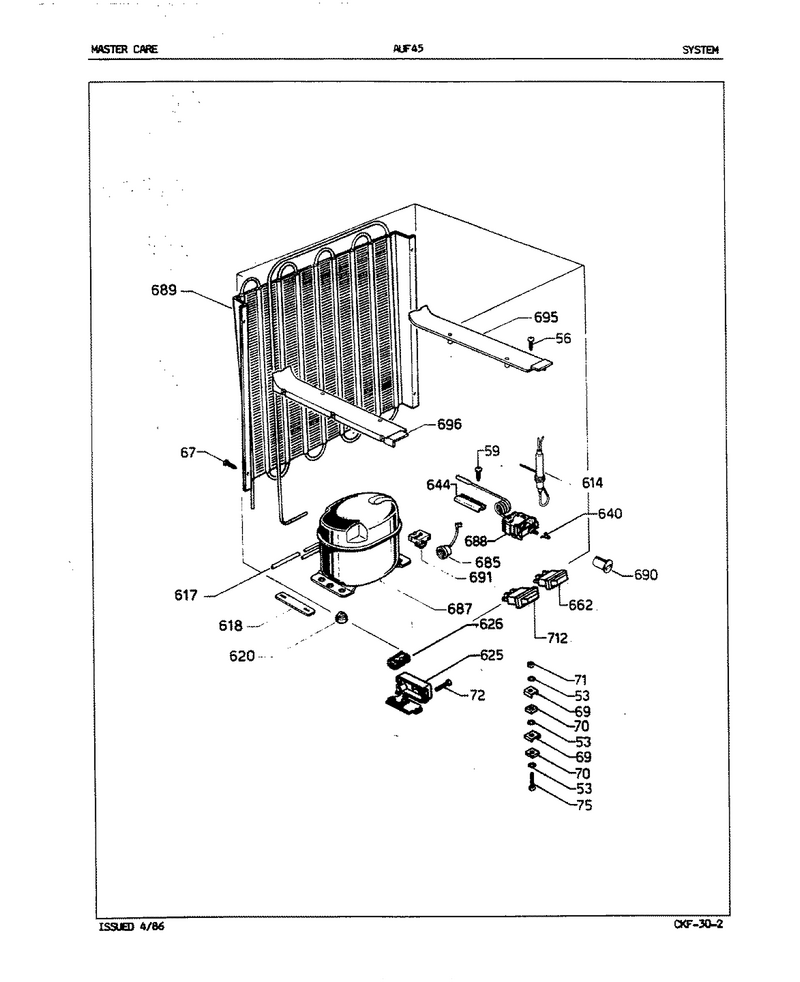

03 - Unit Compartment & System

...
...
53
Lockwasher WPL-042712
...
56
Screw WPL-WP59002061
...
59
Screw WPL-043783
...
67
Screw WPL-043817
...
69
Nut WPL-044199
...
70
Nut WPL-042235
...
71
Nut WPL-044020
...
72
Screw WPL-042241--
...
75
Screw WPL-044612
...
614
Drier WPL-Y083356
...
617
Fill Pipe WPL-082124
...
618
Compr Mtg Plate WPL-083854
...
620
Comp Mtg Grommt WPL-083543
...
625
Cover & Base WPL-087636
...
626
Junction Box WPL-084445
...
640
Knob Spring WPL-082792
...
644
Bulb Clamp WPL-110818
...
662
Ad115 Side WPL-WFR116306
...
685
Protector WPL-086155
...
687
Compressor WPL-059492
...
688
Temp Control WPL-110327
...
689
Condenser WPL-113153
...
690
Thermostat Knob WPL-116463
...
691
Relay WPL-059493
...
695
Bracket WPL-112597
...
696
Bracket WPL-112598
...
712
Ad115 Btm WPL-WFR116304

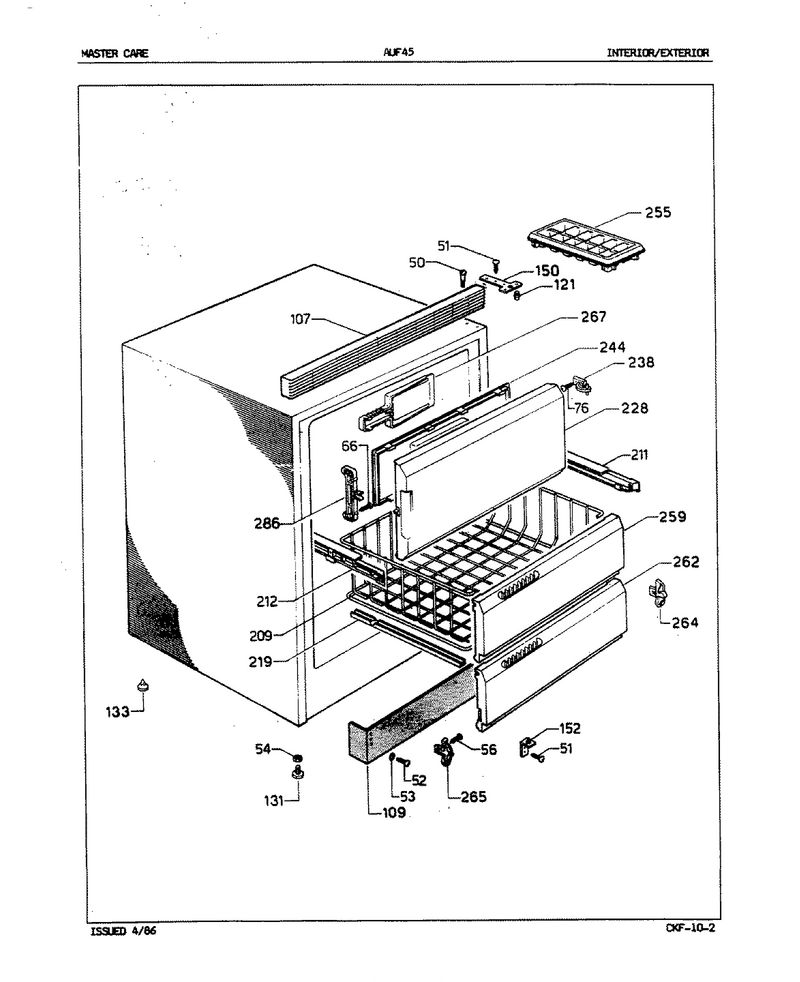

02 - Interior/exterior

...
...
50
Screw WPL-112701
...
51
Screw WPL-042397
...
52
Screw WPL-042827
...
53
Lockwasher WPL-042712
...
54
Nut WPL-044190
...
56
Screw WPL-WP59002061
...
66
Screw WPL-043691
...
76
Screw WPL-042812
...
107
Grille WPL-116227
...
109
Base Plate WPL-116462
...
121
Pin WPL-113523
...
131
Leveler WPL-113696
...
133
Fastener WPL-089176
...
150
Hinge WPL-112177
...
152
Hinge WPL-058652
...
209
Removabl Basket WPL-113791
...
211
Phase 8 Co WPL-WFR112587
...
212
Phase 8 Ma WPL-WFR112588
...
219
Basket Trim WPL-085712
...
228
Evap Door WPL-116247
...
238
Evap Door Hinge WPL-116481
...
244
Evap Door Liner WPL-115019
...
255
Tray WPL-WP841180A
...
259
Drawer Panel WPL-114642
...
262
Drawer Panel WPL-114642
...
264
Rh Door Hinge WPL-115858
...
265
Lh Door Hinge WPL-115856
...
267
Scraper WPL-112178
...
286
Door Hook WPL-059557
