Admiral ATW4516MW0

Model: ATW4516MW0

Save Part Not Listed?
product name

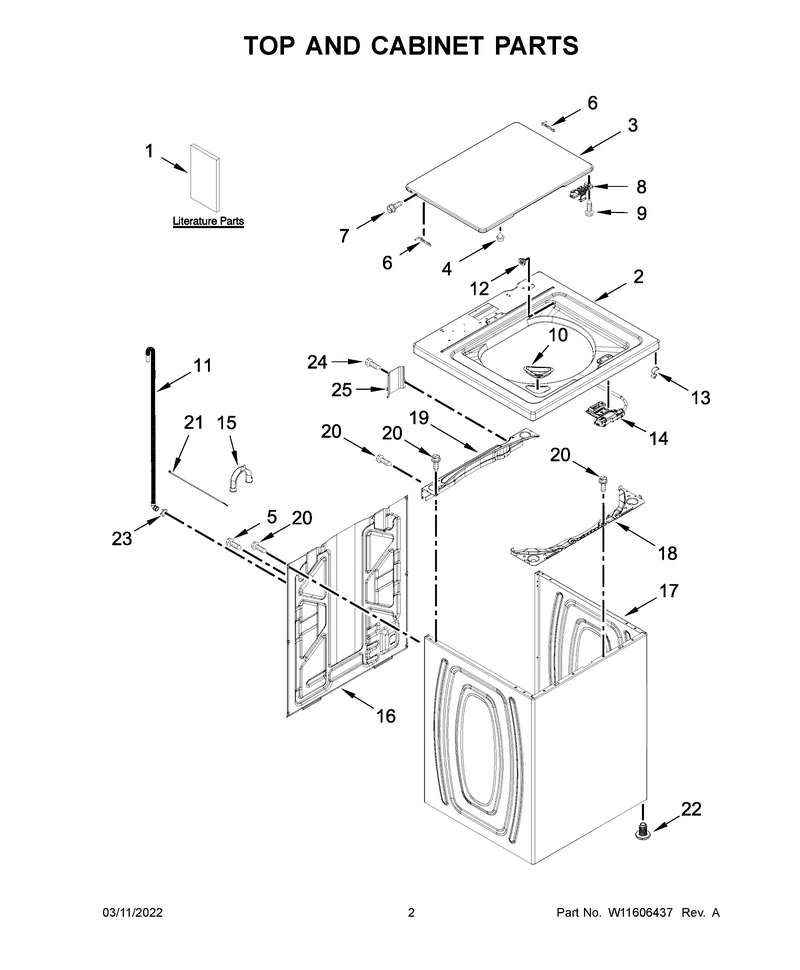

02 - Top And Cabinet Parts

...
...
1
Owners Manual WPL-W11577814
...
1C
Quick Start Guide WPL-W11577778
...
1A
Tech Sheet WPL-W11349356
...
1B
Energy Guide WPL-W11575200
...
2
Top WPL-W11026446
...
3
Lid WPL-WPW10338625
...
4
Bumper WPL-WP9724509
...
5
Screw WPL-WP9740848
...
6
Hinge WPL-WP91770
...
7
Screw WPL-WPW10119828
...
8
Strike WPL-W10837741
...
9
Screw WPL-WPW10273971
...
10
Dispenser WPL-WPW10192089
...
11
Hose WPL-W11244231
...
12
Bearing WPL-WP21258
...
13
Clip WPL-WP90016
...
14
Latch WPL-W11307244
...
15
Retainer WPL-WPW10280024
...
16
Panel-Rear WPL-W11486091
...
17
Cabinet WPL-W10596395
...
18
Brace WPL-W11661767
...
19
Brace WPL-W11712680
...
20
Screw WPL-W11685943
...
21
Tie-Wire WPL-WPW10339879
...
22
Feet-Lvlng WPL-WPW10687506
...
23
Clamp WPL-WP356138
...
24
Screw WPL-W10846509
...
25
Cover, Harness WPL-W10676061

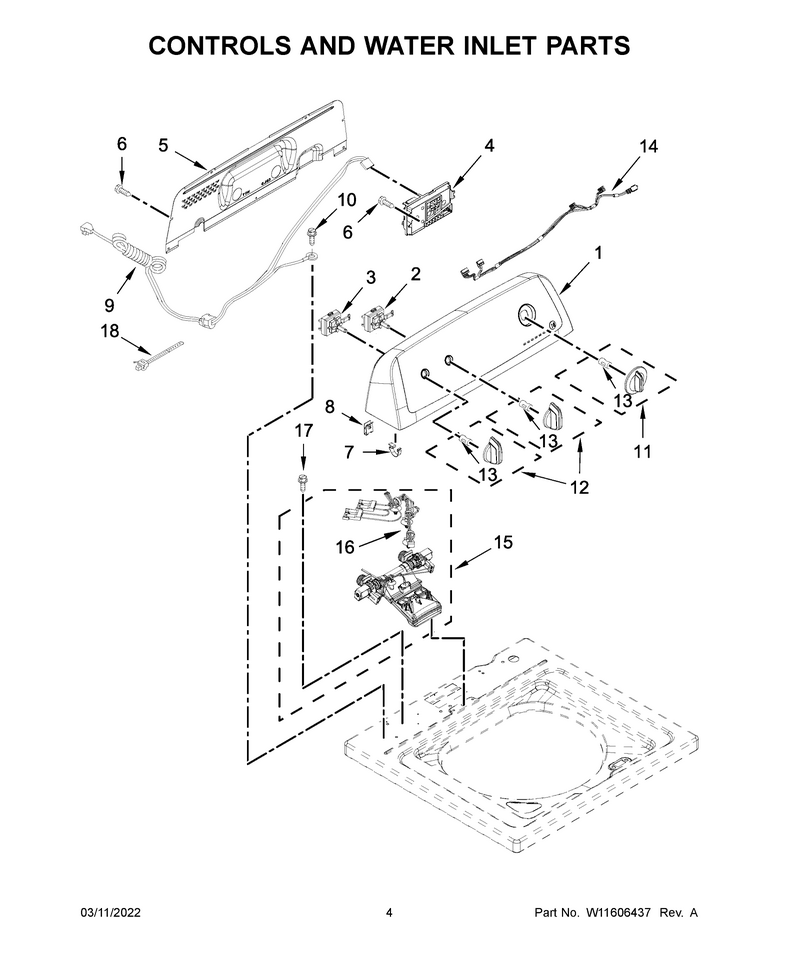

03 - Controls And Water Inlet Parts

...
...
1
Panel, Console WPL-W11307650
...
2
Switch-Cyc WPL-W10859568
...
3
Switch-Cyc WPL-WPW10414398
...
4
Cntrl-Elec WPL-W11603811
...
5
Panel, Console Rear Cover WPL-W10409320
...
6
Screw WPL-W11685943
...
7
Clip WPL-WP8312709
...
8
Nut WPL-W11213336
...
9
Cord-Power WPL-W10850133
...
10
Screw WPL-W10846509
...
11
Knob WPL-WPW10711289
...
12
Knob WPL-WPW10453947
...
13
Clip WPL-WP8536939
...
14
Harns-Wire WPL-W11256701
...
15
Valve WPL-W11210463
...
16
Harness, Valve WPL-W10701401
...
17
Screw WPL-WPW10213953
...
18
Cable Tie WPL-W10339680

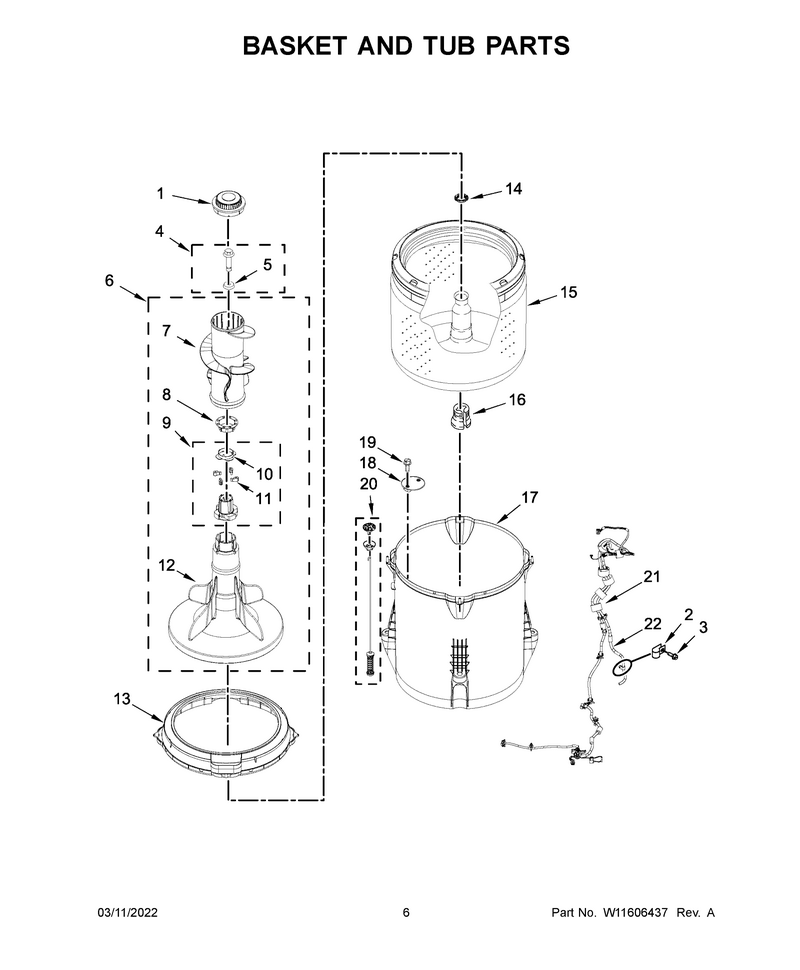

04 - Basket And Tub Parts

...
...
1
Cap WPL-WP3355758
...
2
Clamp, Cable WPL-W10005430
...
3
Screw WPL-WPW10109200
...
4
Screw WPL-W10772621
...
5
Washer WPL-WP3949550
...
6
Agitator WPL-285565
...
7
Mover-Agit WPL-WP3348752
...
8
Washer WPL-285587
...
9
Cam-Agit WPL-285811
...
10
Bearing WPL-WP3363661
...
11
Dog-Agit WPL-80040
...
12
Agitator WPL-WP3347288
...
13
Ring-Tub WPL-WPW10531289
...
14
Nut-Spaner WPL-WP21366
...
15
Basket Assembly WPL-W10554251
...
16
Block WPL-WP389140
...
17
Tub-Outer WPL-W10371566
...
18
Filter WPL-WPW10215093
...
19
Screw WPL-WP8533928
...
20
Suspension WPL-W10780045
...
21
Harns-Wire WPL-W11448788
...
22
Hose WPL-W10846364

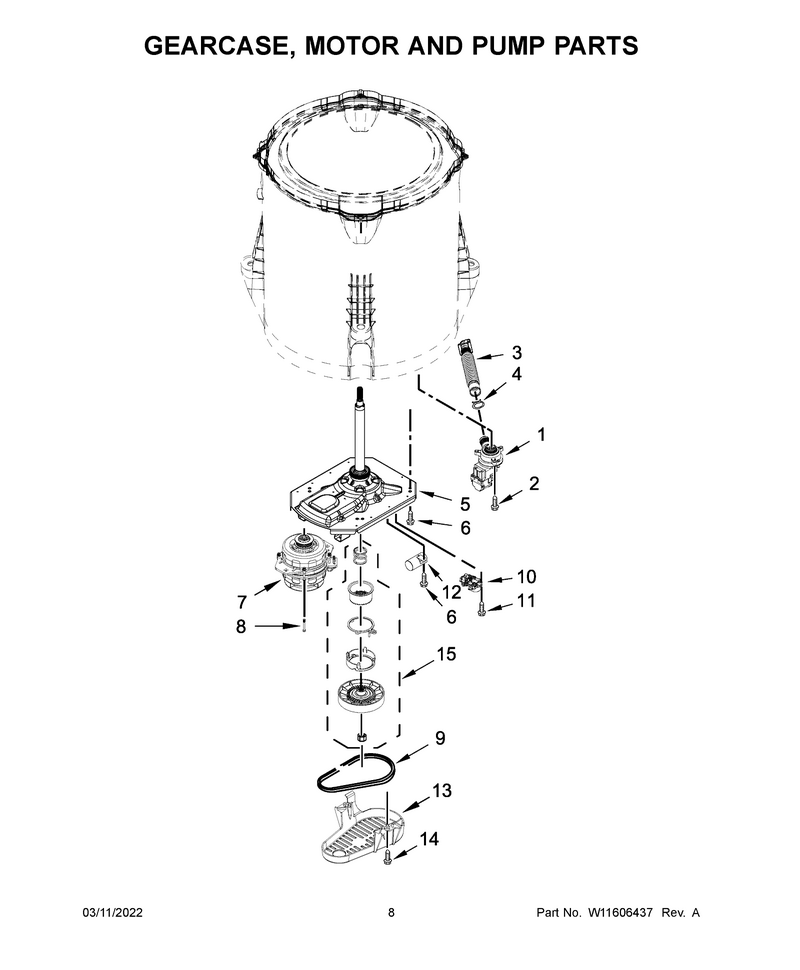

05 - Gearcase, Motor And Pump Parts

...
...
1
Pump-Water WPL-W10919003
...
2
Screw WPL-WPW10004910
...
3
Hose WPL-W10899966
...
4
Clamp WPL-WP285655
...
5
Gearcase WPL-W11454741
...
6
Screw WPL-WPW10249633
...
7
Motor-Drve WPL-W10890624
...
8
Screw WPL-W11685857
...
9
Belt WPL-W11239857
...
10
Actuator WPL-W11481722
...
11
Screw WPL-W11596033
...
12
Capacitor WPL-W11428524
...
13
Shield WPL-WPW10427633
...
14
Screw WPL-W11573574
...
15
Splutch Kit (60hz) WPL-W10721967

...
...
NI
Accessory Parts, Affresh Washer Cleaner WPL-W10135699
