Admiral AT21M8W (BOM: DA68A)

Model: AT21M8W (BOM: DA68A)

Save Part Not Listed?
product name

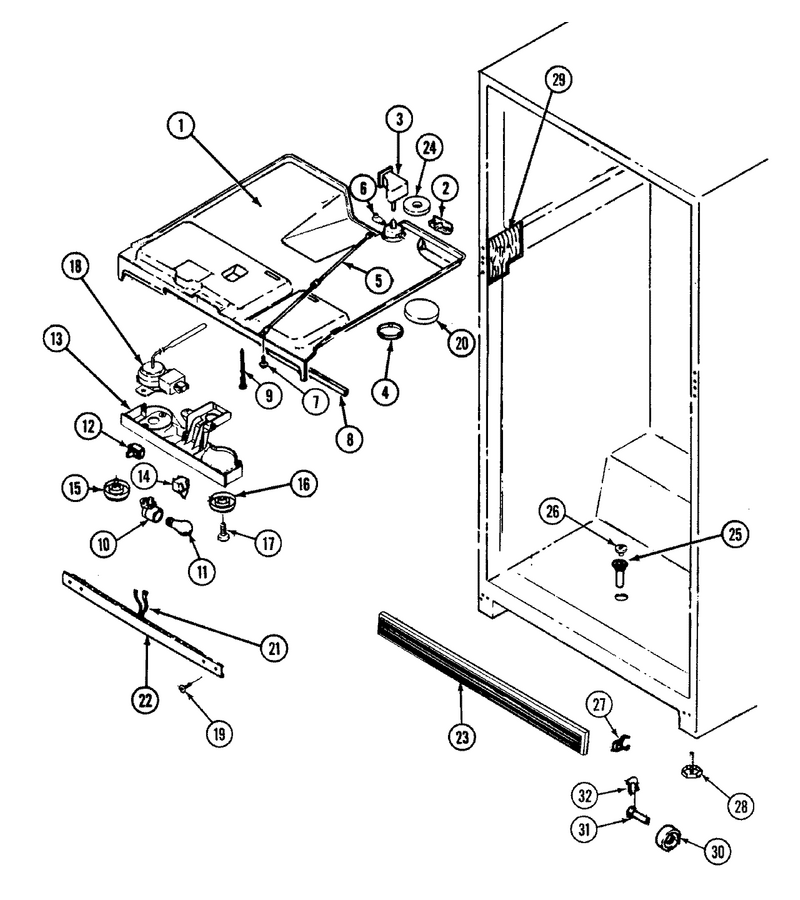

02 - Fresh Food Compartment

...
...
1
Top, F.f. Compartment WPL-69410-1
...
2
Deflector, Air WPL-69623-1
...
3
Orifice Assy., Damper WPL-69811-2
...
4
Cover, Crank WPL-67493-1
...
5
Rod, Frz. Control WPL-69418-4
...
6
Crank, Frz. Control WPL-67636-2
...
7
Washer, Control Rod WPL-420005-1
...
8
Magnet WPL-69413-2
...
9
Screw WPL-65275-78
...
10
Receptacle, Bulb WPL-68974-3
...
11
Bulb-Light WPL-W11679940
...
12
Switch, Heater WPL-69283-1
...
13
Screw WPL-WP4449746
...
14
Switch WPL-W11384469
...
15
Knob, Temperature Control WPL-69417-7
...
16
Knob- Cont WPL-WP61006073
...
17
Screw WPL-65275-38
...
18
Screw WPL-406013-1
...
19
Screw WPL-65275-67
...
20
Disc, Crank Cover WPL-69037-1
...
21
Heater, Divider Channel WPL-69617-2
...
22
Channel, Mullion Divider (Wht) WPL-69420-2-WW
...
24
Seal, Top Tower WPL-68989-1
...
25
Tube, Drain WPL-54531-7
...
26
Cap, Drain Tube WPL-65039-1
...
27
Clip, Kickplate WPL-69940-1
...
28
Leveler WPL-W11117769
...
29
Seal, Food Liner (Rt) WPL-69416-2
...
30
Wheel WPL-69812-1
...
31
Pin, Wheel WPL-29835-2
...
32
Clip WPL-60216-1

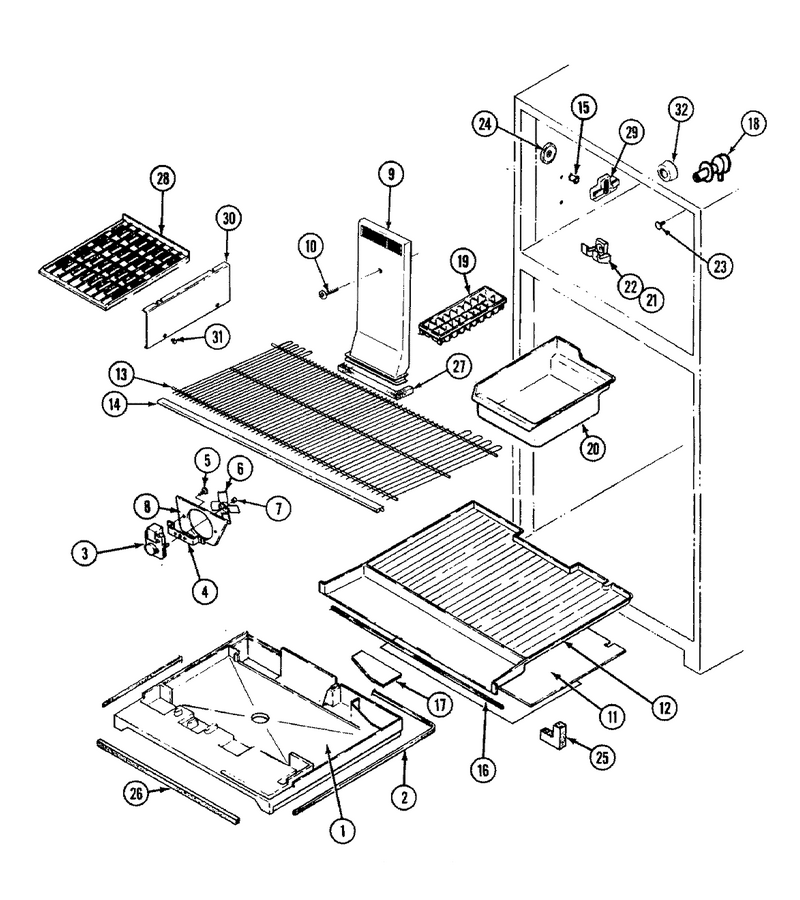

01 - Freezer Compartment

...
...
1
Tray, Styrofoam Mullion WPL-69404-1
...
2
Seal, Mullion Tray WPL-69414-3
...
3
Motor, Evaporator Fan WPL-69106-2
...
4
Bracket, Fan Motor WPL-64856-1
...
5
Screw WPL-400015-36
...
6
Blade, Evaporator Fan WPL-69107-1
...
7
Washer, Spring WPL-420092-900
...
8
Orifice, Fan Blade WPL-60608-2
...
9
Tunnel, Air WPL-70208-3
...
10
Screw WPL-W11233072
...
11
Cover, Evaporator WPL-66403-2
...
12
Bottom, Frz. WPL-69398-1
...
13
Shelf WPL-60438-33
...
14
Trim WPL-60414-62
...
15
Cup, Shelf WPL-60313-1
...
16
Magnet WPL-69413-2
...
17
Cover, Plenum WPL-66480-5
...
18
Tube-Inlet WPL-12001935
...
19
Tray WPL-WP841180A
...
20
Pan, Ice WPL-60653-1
...
21
Screw WPL-400019-1
...
22
Stud, Shelf WPL-66101-1
...
24
Cap, Connector WPL-68187-1
...
25
Seal, Frost Chest Bottom WPL-69563-1
...
26
Seal, Mullion Tray (Front) WPL-69562-2
...
27
Seal, Air Tunnel----Na WPL-66325-34
...
28
Shelf, Ice Tray WPL-67114-4
...
29
Screw WPL-WP400021-1
...
30
Divider, Ice Shelf WPL-67148-2
...
31
Screw WPL-65275-4
...
32
Cap, Grommet WPL-68387-1
