Admiral AT19M8W

Model: AT19M8W

Save Part Not Listed?
product name

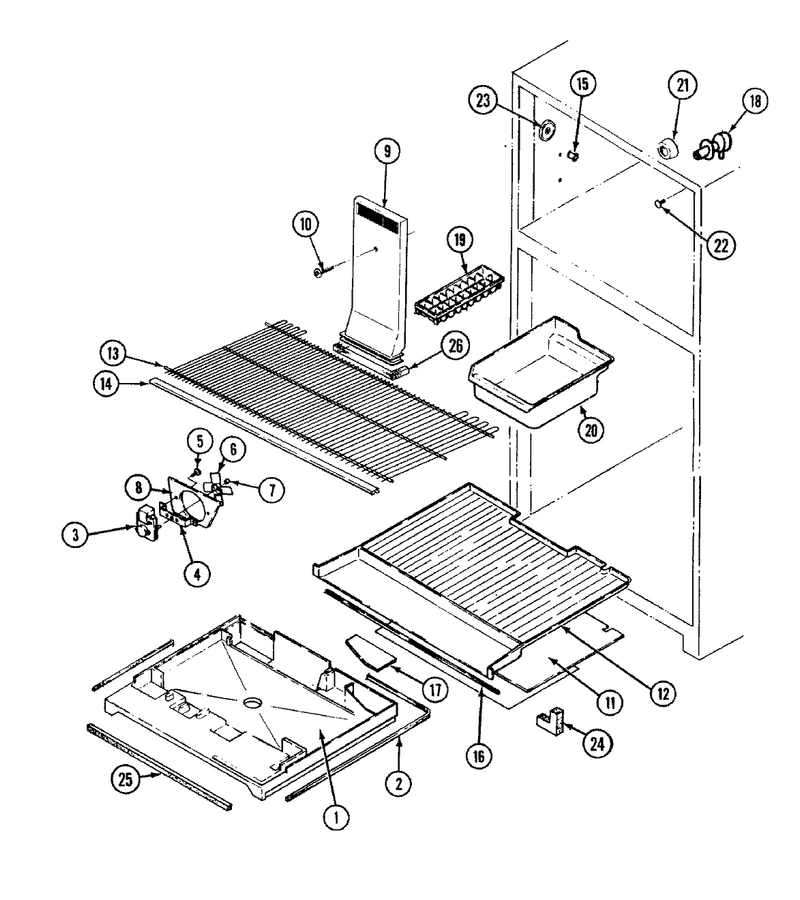

01 - Freezer Compartment

...
...
1
Tray, Styrofoam Mullion WPL-69403-1
...
2
Seal, Mullion Tray WPL-69414-1
...
3
Motor, Evaporator Fan WPL-69106-2
...
4
Bracket, Fan Motor WPL-64856-1
...
5
Screw WPL-400015-36
...
6
Blade, Evaporator Fan WPL-69107-1
...
7
Washer, Spring WPL-420092-900
...
8
Orifice, Fan Blade WPL-60608-2
...
9
Tunnel, Air WPL-68592-3
...
10
Screw WPL-W11233072
...
11
Cover, Evaporator WPL-66403-1
...
12
Bottom, Frz. WPL-69397-1
...
13
Shelf WPL-60438-32
...
14
Not Required Part Or See Note WPL-W10124350
...
15
Cup, Shelf WPL-60313-1
...
16
Magnet WPL-69413-1
...
17
Cover, Plenum WPL-66480-4
...
18
Tube-Inlet WPL-12001935
...
19
Tray WPL-WP841180A
...
20
Pan, Ice WPL-60653-1
...
21
Cap, Grommet WPL-68387-1
...
23
Cap, Connector WPL-68187-1
...
24
Seal, Frost Chest WPL-66325-10
...
25
Seal, Mullion Tray (Front) WPL-69562-1
...
26
Seal, Air Tunnel----Na WPL-66325-34
