Admiral AS22M8DA (BOM: DN33B)

Model: AS22M8DA (BOM: DN33B)

Save Part Not Listed?
product name

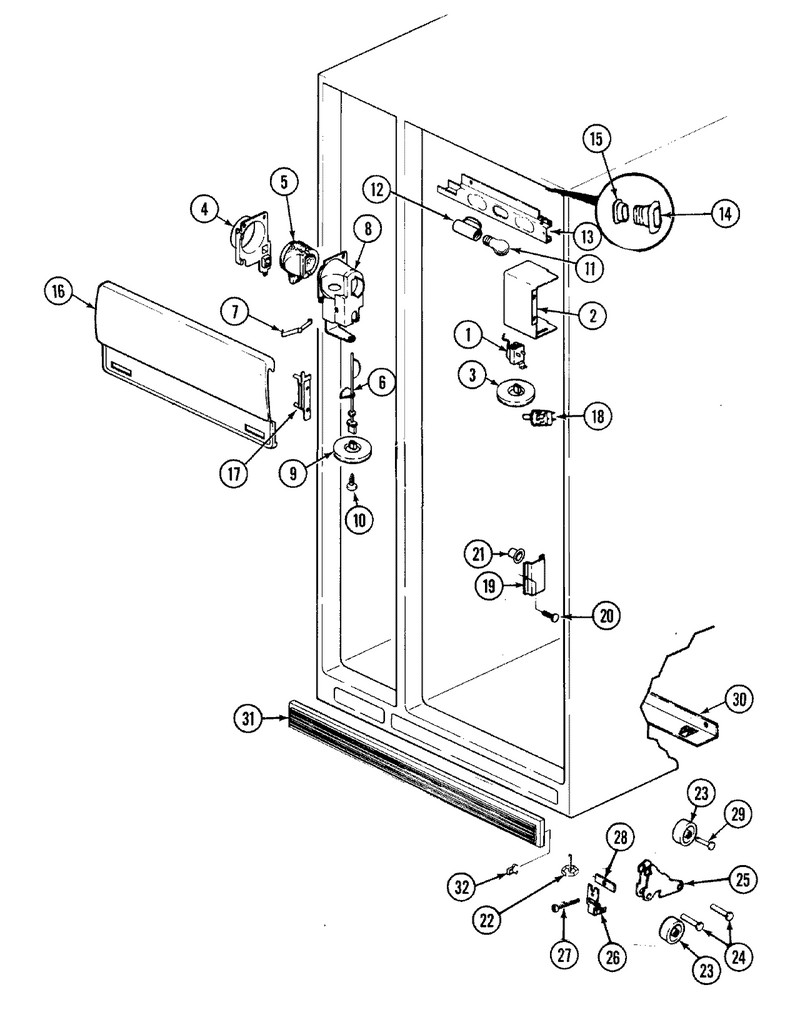

01 - Fresh Food Compartment

...
...
1
Control- T WPL-WP61001673
...
2
Screw WPL-WP489478
...
3
Knob, Temp. Control WPL-29893-7
...
4
Orifice, Freezer Control WPL-53835-2
...
5
Insulation, Housing WPL-58767-1
...
6
Baffle WPL-68613-1
...
7
Spring, Baffle WPL-52648-1
...
8
Housing, Frz. Control WPL-67354-1
...
9
Knob, Freezer Control WPL-67145-4
...
10
Screw WPL-400001-1
...
11
Bulb-Light WPL-W11679940
...
12
Receptacle, Bulb WPL-68974-3
...
13
Screw WPL-WP489478
...
14
Tunnel WPL-57410-1
...
15
Retainer WPL-57411-1
...
16
Shield, Light Ref WPL-69194-2
...
17
Insert, Light Shield WPL-69836-1
...
18
Switch WPL-W11384469
...
19
Air Deflector WPL-62128-1
...
20
Tub-Outer WPL-W10772617
...
21
Tunnel, Air Return WPL-67684-1
...
22
Leveler WPL-W11117769
...
23
Wheel WPL-29834-2
...
24
Pin, Wheel WPL-64965-1
...
25
Screw WPL-WP489478
...
26
Screw WPL-WP489478
...
28
Screw WPL-3400518
...
29
Pin, Wheel (Rear) WPL-64965-3

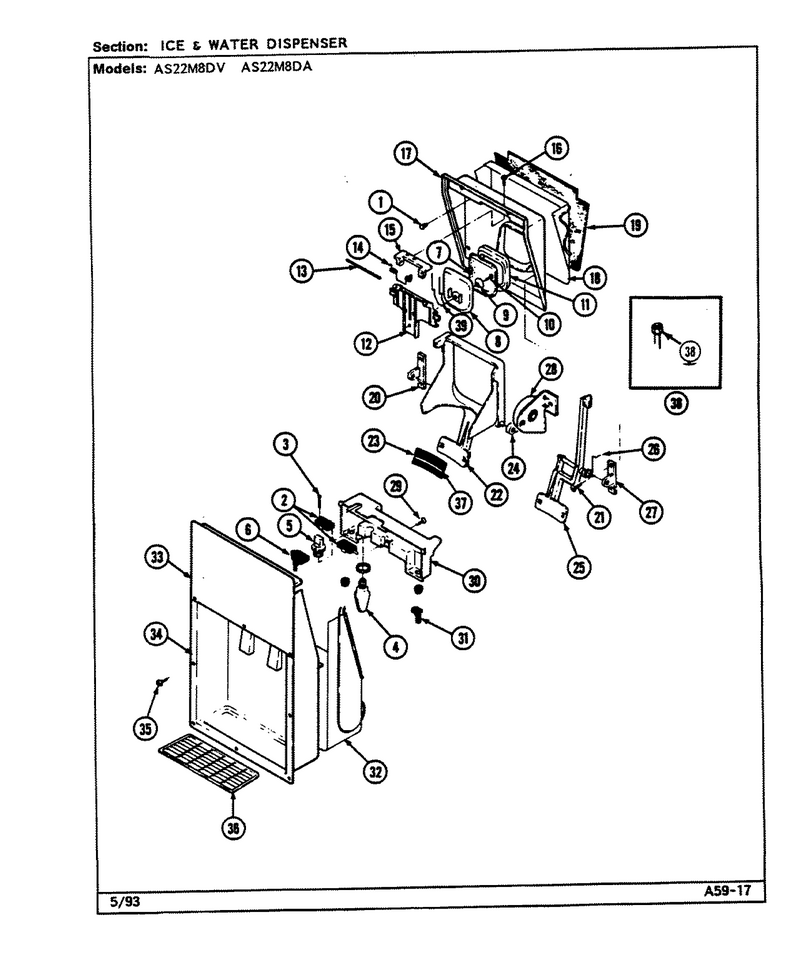

02 - Ice & Water Dispenser

...
...
1
Bumper, Door WPL-28272-6
...
2
Switch, Ice & Water WPL-55440-2
...
3
Screw WPL-405071-1
...
4
Bulb-Light WPL-W10857122
...
5
Socket, Light (W/nut) WPL-67293-1
...
6
Switch, Push WPL-67340-1
...
7
Insulation, Ice Door WPL-68557-1
...
8
Door, Ice WPL-68565-1
...
9
Retainer WPL-68566-1
...
10
Screw WPL-405116-103
...
11
Seal WPL-68560-2
...
12
Strike, Door WPL-68563-1
...
13
Shaft WPL-68564-1
...
14
Spring WPL-68765-1
...
15
Bracket WPL-68562-1
...
16
Screw WPL-405024-103
...
17
Screw WPL-WP1163283
...
18
Heater, Fountain WPL-68936-1
...
19
Insulation, Foil WPL-68714-1
...
20
Pivot, Actuator (Lt) WPL-68627-1
...
21
Screw WPL-405024-103
...
24
Pivot, Actuator (Center) WPL-68764-1
...
26
Spring, Paddle Return WPL-68767-1
...
27
Pivot, Actuator (Rt)---Na WPL-68628-1
...
28
Motor, Inertia WPL-68827-1
...
29
Screw WPL-WP1163283
...
30
Bracket WPL-68626-1
...
31
Plunger WPL-68568-1
...
32
Heater Fountain WPL-68820-1
...
33
Fountain Front WPL-68625-1
...
35
Screw WPL-WP1163283
...
36
Grill WPL-68631-1
...
37
Trim, Paddle Pad WPL-68763-1
...
39
Spring, Ice Door WPL-69868-1
