Admiral AF122

Model: AF122

Save Part Not Listed?
product name

Popular Parts

Popular Parts

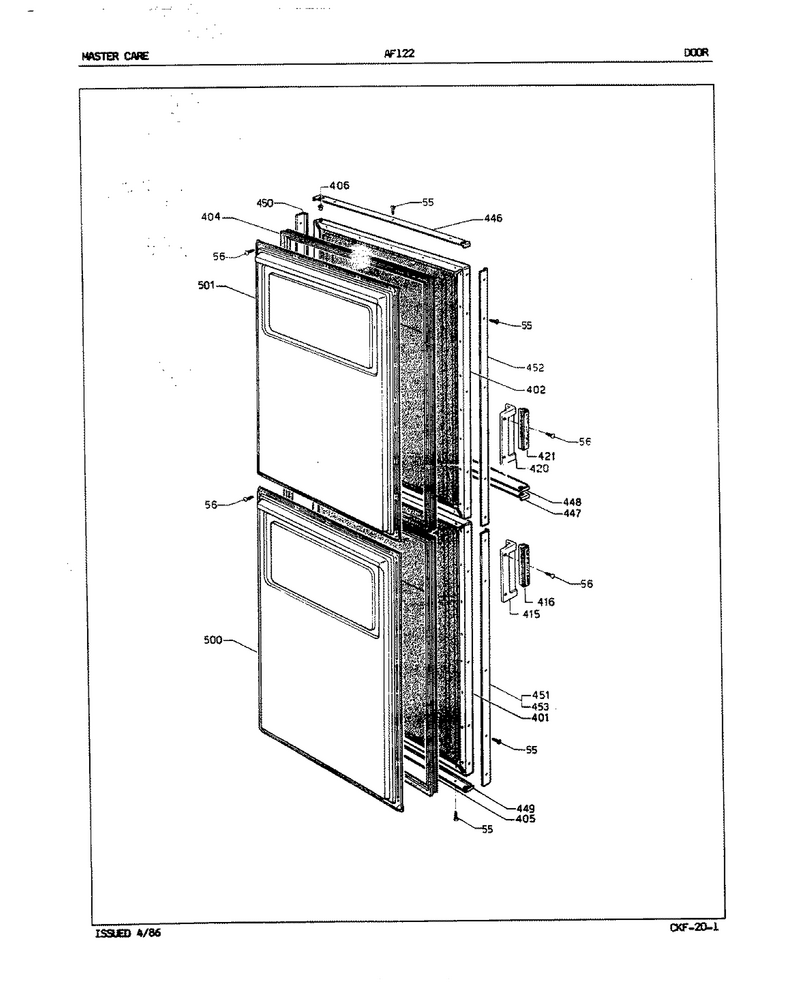

01 - Door

...
...
53
Screw WPL-043745
...
56
Screw WPL-WP59002061
...
401
Outer Panel WPL-059608
...
402
Outer Panel WPL-111767
...
404
Door Gasket WPL-059584
...
405
Door Gasket WPL-059584
...
406
Hinge Bushing WPL-083110
...
415
Door Handle WPL-111968
...
416
Handle Insert WPL-116244
...
420
Door Handle WPL-111968
...
421
Handle Insert WPL-116244
...
446
Trim WPL-117173
...
448
Trim WPL-117173
...
449
Trim WPL-117173
...
450
Trim WPL-117172
...
451
Trim WPL-117172
...
452
Trim WPL-117172
...
453
Trim WPL-117172
...
477
Trim WPL-117173
...
500
Inner Panel WPL-059756
...
501
Inner Panel WPL-111987

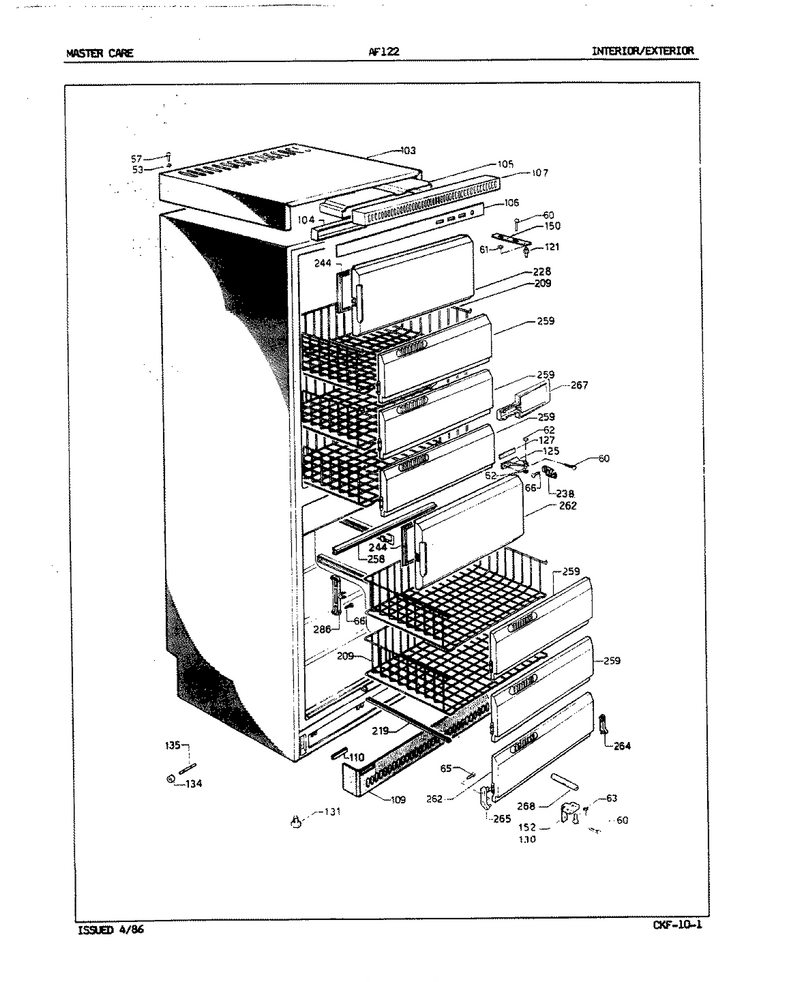

02 - Interior/exterior

...
...
53
Lockwasher WPL-042712
...
57
Screw WPL-042241--
...
60
Screw WPL-116979
...
61
Washer WPL-042713
...
62
Washer WPL-086454
...
63
Washer WPL-042393
...
65
Screw WPL-043689
...
66
Screw WPL-043691
...
103
Cabinet Top WPL-059599
...
104
25 X 1 1/4 WPL-WFR116336
...
105
Control Shield WPL-114302
...
106
36 1/2 X 3 WPL-WFR116283
...
107
Grille WPL-116296
...
109
Kickplate WPL-059776
...
110
Base Cap WPL-059554
...
121
Hinge Pin WPL-114277
...
125
Hinge WPL-112273
...
127
Hinge Gasket WPL-112710
...
130
Hinge Pin WPL-058304
...
131
Leveler WPL-067370
...
134
Cabinet Wheel WPL-059558
...
135
Wheel Pin WPL-059542
...
150
Rh Top Hinge WPL-116100
...
152
Hinge WPL-059536
...
209
Removabl Basket WPL-113791
...
219
Basket Trim WPL-085712
...
228
Evap Door WPL-116247
...
238
Evap Door Hinge WPL-115104
...
244
Evap Door Liner WPL-115019
...
258
Frzr Comp Trim WPL-111762
...
259
Drawer Panel WPL-114642
...
262
Ad-81 Lowe WPL-WFR116311
...
264
Rh Door Hinge WPL-115858
...
265
Lh Door Hinge WPL-115856
...
267
Scraper WPL-112178
...
268
Drain Hose WPL-086644
...
286
Door Catch WPL-115009

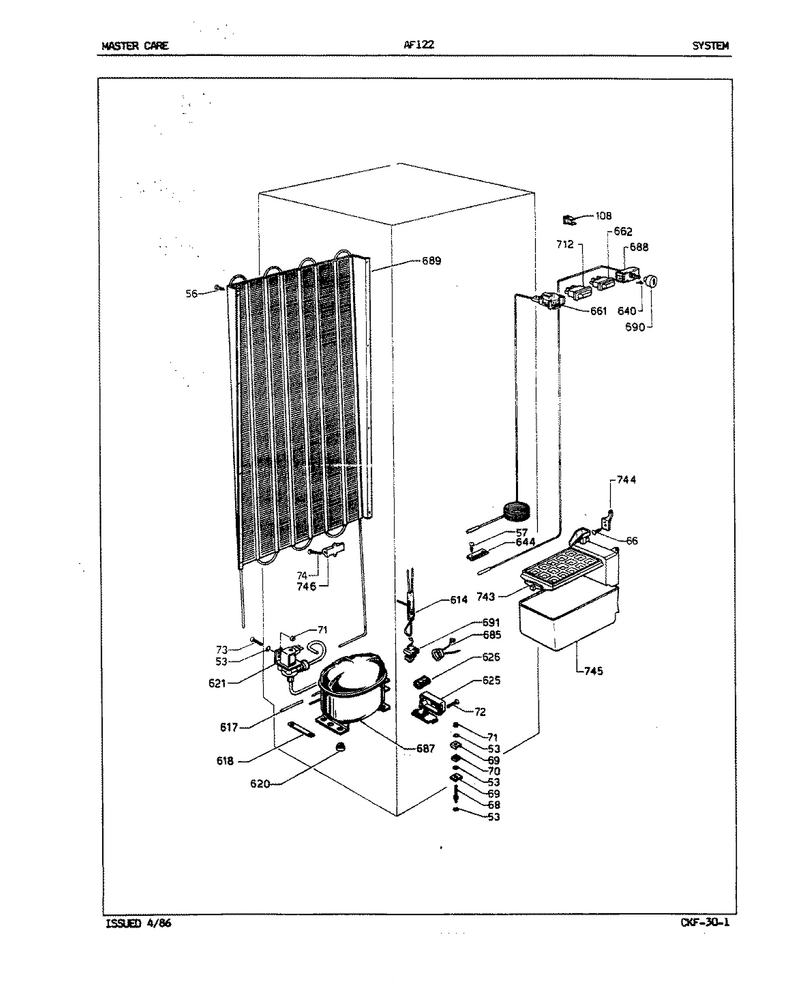

03 - Unit Compartment & System

...
...
53
Lockwasher WPL-042712
...
56
Screw WPL-WP59002061
...
57
Screw WPL-042241--
...
66
Screw WPL-043691
...
68
Screw WPL-042048
...
69
Nut WPL-044199
...
70
Nut WPL-042235
...
71
Nut WPL-044020
...
72
Screw WPL-042241--
...
73
Screw WPL-042402
...
74
Screw WPL-043652
...
108
Grille Catch WPL-111522
...
614
Drier WPL-Y083356
...
617
Fill Pipe WPL-082124
...
618
Compr Mtg Plate WPL-083854
...
620
Comp Mtg Grommt WPL-083543
...
621
Valve-Inlt WPL-4318047
...
625
Cover & Base WPL-087636
...
626
Junction Box WPL-084445
...
640
Knob Spring WPL-082792
...
644
Bulb Clamp WPL-110818
...
661
Thermometer WPL-116505
...
662
Ad115 Side WPL-WFR116306
...
685
Protector WPL-059462
...
687
Compressor WPL-059632
...
688
Temp Control WPL-059587
...
689
Condenser WPL-111763
...
690
Temp Control Knob WPL-114404
...
691
Relay WPL-059463
...
712
Ad115 Btm WPL-WFR116304
...
743
Sensor Arm WPL-52307-1
...
744
Spacer WPL-116288
...
745
Icemaker Bin WPL-116293
...
746
41 5/8 X 4 WPL-WFR116303
