Admiral AED4516MW0

Model: AED4516MW0

Save Part Not Listed?
product name

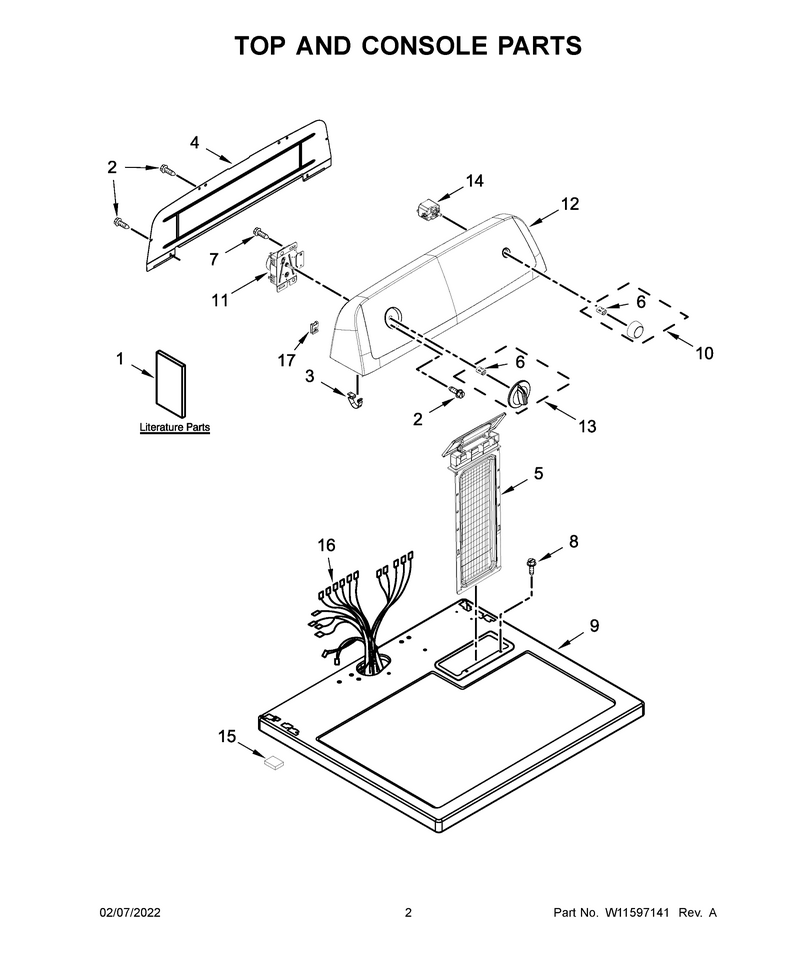

02 - Top And Console Parts

...
...
1
Use And Care Guide WPL-W11459717
...
1B
Wiring Diagram WPL-W10185989
...
1A
Installation Instructions WPL-W11566973
...
2
Screw WPL-WP693995
...
3
Clip WPL-WP8312709
...
4
Panel-Rear WPL-WPW10416486
...
5
Screen WPL-W11607443
...
6
Clip WPL-WP8536939
...
7
Screw WPL-WP90767
...
8
Screw WPL-W11693756
...
9
Top WPL-WP8563663
...
10
Knob WPL-WPW10453948
...
11
Timer WPL-W10857612
...
12
Console WPL-W11307653
...
13
Knob WPL-WPW10711289
...
14
Switch-Pts WPL-WPW10420741
...
15
Spacer, Toe Panel WPL-3389682
...
16
Harns-Wire WPL-WPW10450286
...
17
Nut WPL-W11213336

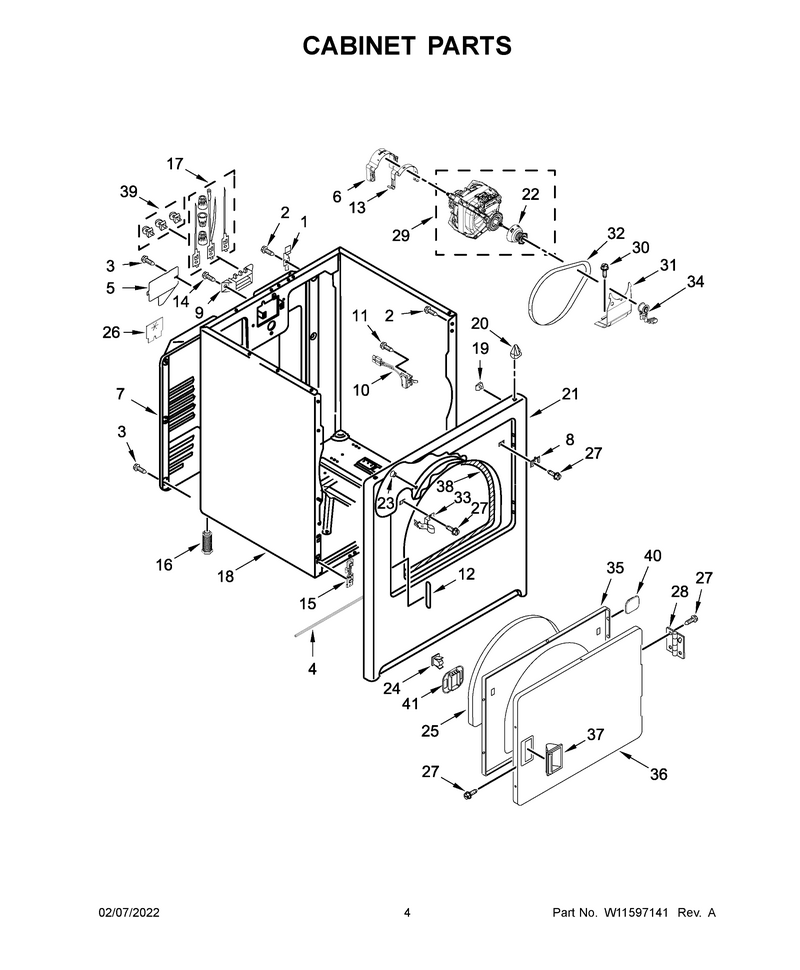

03 - Cabinet Parts

...
...
1
Hinge WPL-WP8066217
...
2
Screw WPL-WP681414
...
3
Screw WPL-WP693995
...
4
Seal WPL-W11596046
...
5
Cover WPL-W11298298
...
6
Clamp WPL-WP3404162
...
7
Panel-Rear WPL-280043
...
8
Plug WPL-W11684591
...
9
Block-Term WPL-WP3397659
...
10
Switch-Dor WPL-WPW10237959
...
11
Screw WPL-WP3395530
...
12
Plug WPL-W11481394
...
13
Clamp WPL-WPW10121316
...
14
Screw WPL-WP3390631
...
15
Clip WPL-W10854425
...
16
Feet-Lvlng WPL-49621
...
17
Terminal, Brass And Tinned (Includes Terminal Block Screw Kit) WPL-279318
...
18
Cabinet WPL-8533643
...
19
Nut WPL-WP98234
...
20
Lock WPL-WP8066092
...
21
Panel WPL-W10806345
...
22
Pulley-Mtr WPL-WP8066184
...
23
Clip WPL-279220
...
24
Catch WPL-W11429587
...
25
Seal-Door WPL-W10861521
...
26
Pad WPL-W11230156
...
27
Screw WPL-WP488627
...
28
Hinge WPL-WPW10362431
...
29
Motor-Drve WPL-279827
...
30
Bolt WPL-3400500
...
31
Base WPL-WP348780
...
32
Belt, Drive WPL-341241
...
33
Strike WPL-W11429589
...
34
Pulley-Idr WPL-WP691366
...
35
Door WPL-WPW10463967
...
36
Door WPL-W10861224
...
37
Handle WPL-W10861225
...
38
Brng&seal WPL-W11035878
...
39
Screw Kit, Terminal Block WPL-279393
...
40
Cover WPL-W11173656
...
41
Catch WPL-WPW10529197

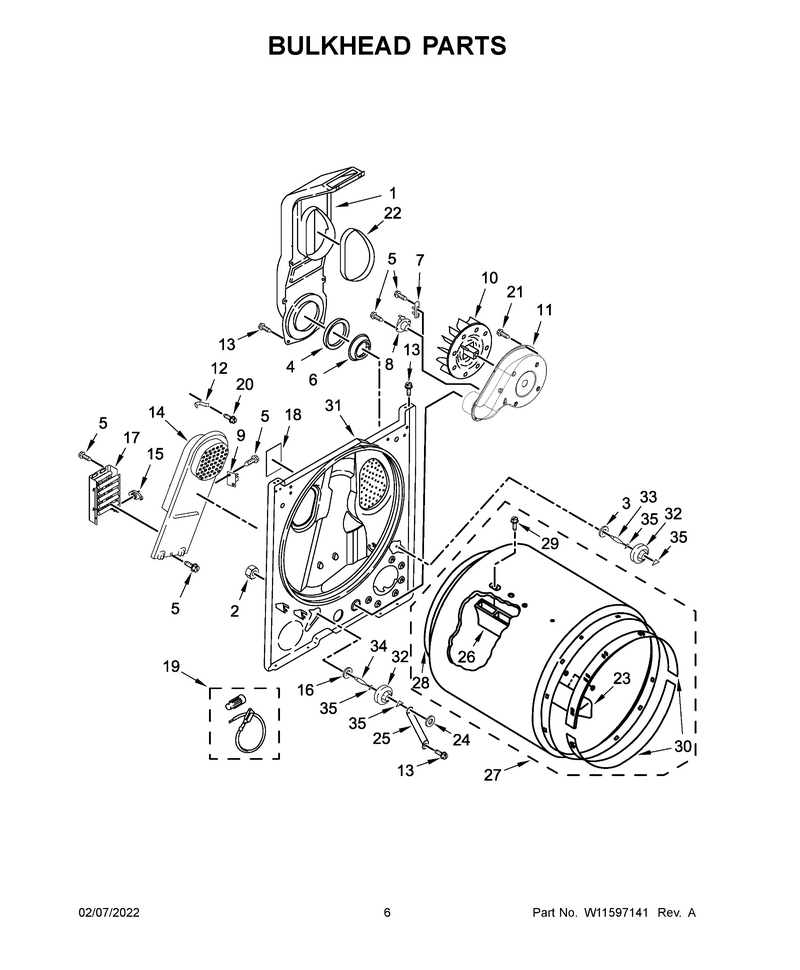

04 - Bulkhead Parts

...
...
1
Chute WPL-W11117429
...
2
Nut WPL-W11229607
...
3
Washer WPL-WP3388703
...
4
Seal WPL-W11415783
...
5
Screw WPL-WP90767
...
6
Shield WPL-W11233063
...
7
Fuse-Thrml WPL-WP3392519
...
8
Thrmst-Fix WPL-WP3387134
...
9
Kit, Thermal Cut-Off (Includes Thermostat) WPL-W10900067
...
10
Wheel WPL-WP694089
...
11
Housing WPL-WP8577230
...
12
Clip WPL-279771
...
13
Screw WPL-WP681414
...
14
Box WPL-W11676909
...
15
Thrmst-Fix WPL-WP3977767
...
16
Washer WPL-WP348197
...
17
Element WPL-279838
...
18
Pad WPL-W11409002
...
19
Terminal Wire Kit (For Heater Element Wiring Harness Repair) WPL-279457
...
20
Screw WPL-WP489463
...
21
Screw WPL-WP488729
...
22
Seal WPL-WP339956
...
23
Baffle-Drm WPL-WP3403636
...
24
Clip WPL-WP90296
...
25
Bracket WPL-W11684613
...
26
Baffle-Drm WPL-WP692490
...
27
Assembly, Drum (Complete) WPL-W10899578
...
28
Seal WPL-W10612022
...
29
Screw WPL-W10853898
...
30
Ring, Bearing WPL-279441
...
31
Bulkhead WPL-W11178667
...
32
Support WPL-349241T
...
33
Shaft WPL-WPW10359269
...
34
Shaft WPL-WPW10359270
...
35
Ring WPL-WPW10512946

...
...
NI
Accessory Parts, Kit, Front Load Dryer Vent Testing WPL-W11224254
