Admiral ADW80

Model: ADW80

Save Part Not Listed?
product name

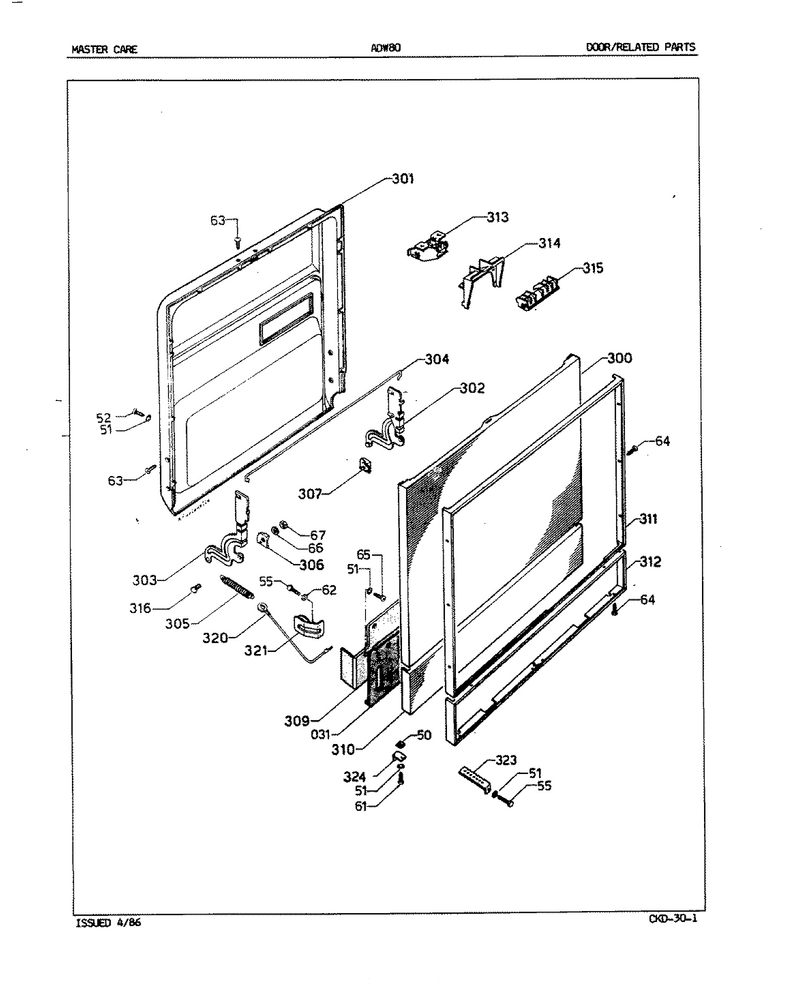

03 - Door

...
...
31
Plate WPL-658835
...
50
Nut WPL-063397
...
51
Washer WPL-044378
...
52
Screw WPL-WP59002061
...
55
Screw WPL-042803
...
61
Screw WPL-043636
...
62
Flat Washer WPL-042526
...
63
Screw WPL-043742
...
64
Screw WPL-043734
...
65
Screw WPL-042707
...
66
Flat Washer WPL-043818
...
67
Nut WPL-042804
...
300
Outer Dr Panel WPL-658854
...
301
Inner Panel WPL-658094
...
302
Rh Hinge WPL-658477
...
303
Lh Hinge WPL-658478
...
304
Tie Rod WPL-657585
...
305
Door Spring WPL-658200
...
306
Lh Pnl Sec Blk WPL-659063
...
307
Rh Pnl Sec Blk WPL-659064
...
309
Base Cover WPL-657712
...
310
Bottom Panel WPL-658284
...
311
Top Door Frame WPL-659062
...
312
Btm Panel Frame WPL-659230
...
313
Door Latch WPL-658006
...
314
Door Handle WPL-658007
...
315
Handle Cover WPL-658922
...
316
Hinge Pin WPL-657627
...
320
Spring Hook WPL-65769-9
...
321
Pulley Support WPL-65769-8
...
323
Adj Bracket WPL-65771-1
...
324
Panel Mtg Brkt WPL-657710

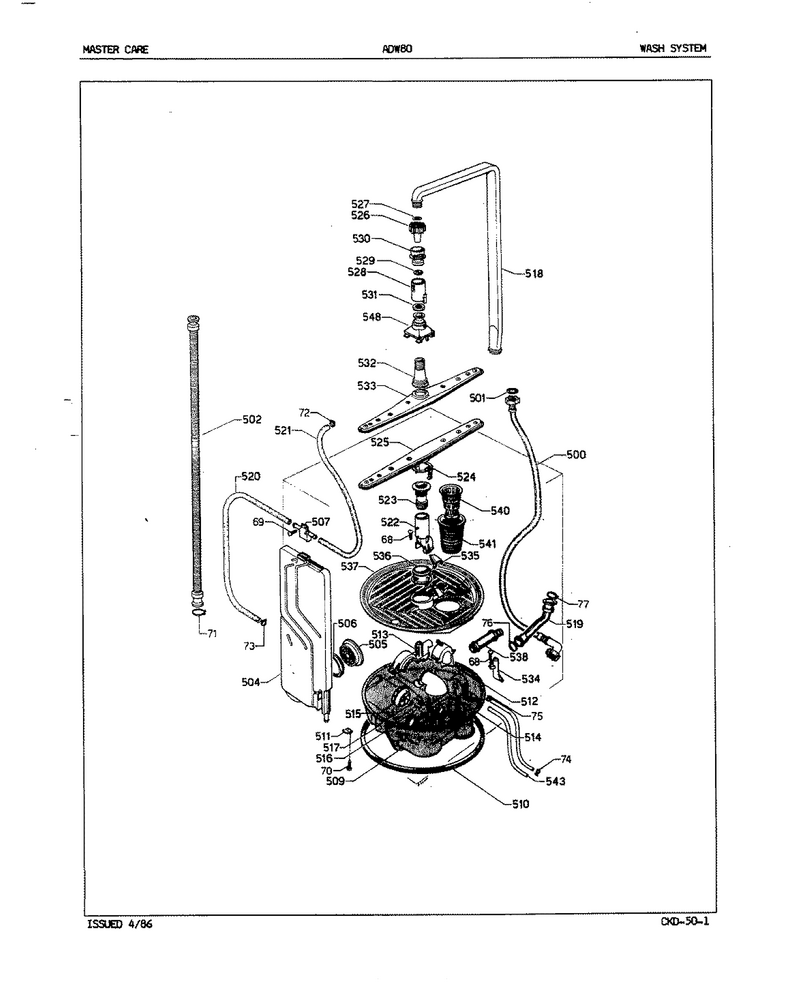

06 - Wash System

...
...
68
Screw WPL-043705
...
69
Screw WPL-043628
...
70
Screw WPL-043821
...
71
Hose Clamp WPL-044383
...
72
Hose Clamp WPL-044384
...
73
Hose Clamp WPL-062795
...
74
Clamp WPL-651715
...
75
Hose Clamp WPL-044385
...
76
Clamp WPL-062798
...
77
Hose Clamp WPL-044388
...
500
Supply Hose WPL-658921
...
501
Gasket Trim WPL-651839
...
502
Drain Hose WPL-658781
...
504
Disch Plenum WPL-658304
...
505
Air Disch Grill WPL-657854
...
506
Air Disch Gaskt WPL-657565
...
507
Air Break WPL-657915
...
509
Sump WPL-657517
...
510
Sump Gasket WPL-65753-6
...
511
Sump Mtg Brkt WPL-65753-7
...
512
Impeller WPL-658867
...
513
Wash Scroll WPL-657527
...
514
Wash Pump Inlet WPL-657526
...
515
Impeller Asm WPL-658474
...
516
Impeller Screw WPL-658313
...
517
Impeller Gasket WPL-657524
...
518
Manifold WPL-65755-8
...
519
Mnfld/sump Tube WPL-65755-9
...
520
Brk/softnr Tube WPL-657577
...
521
Valve/brk Tube WPL-657576
...
522
Bottom Column WPL-657847
...
523
Bottom Venturi WPL-657861
...
524
Locking Ring WPL-657860
...
525
Bttm Spray Arm WPL-659014
...
526
Nozzle WPL-657853
...
527
Nozzle Gasket WPL-657561
...
528
Adj Valve Body WPL-657864
...
529
Spray Adj Valve WPL-657046
...
530
Pipe Union WPL-657865
...
531
Top Venturi Nut WPL-657051
...
532
Top Venturi WPL-657892
...
533
Top Spray Arm WPL-659013
...
534
Pump Exhaust WPL-65753-5
...
535
Exhaust Cover WPL-657858
...
536
Filter Ringnut WPL-658322
...
537
Washpump Filter WPL-657855
...
538
Relay WPL-2154436
...
540
Drain Filter WPL-657879
...
541
Washpump Filter WPL-657878
...
543
Tube WPL-65893-8
...
548
Venturi Guide WPL-658066

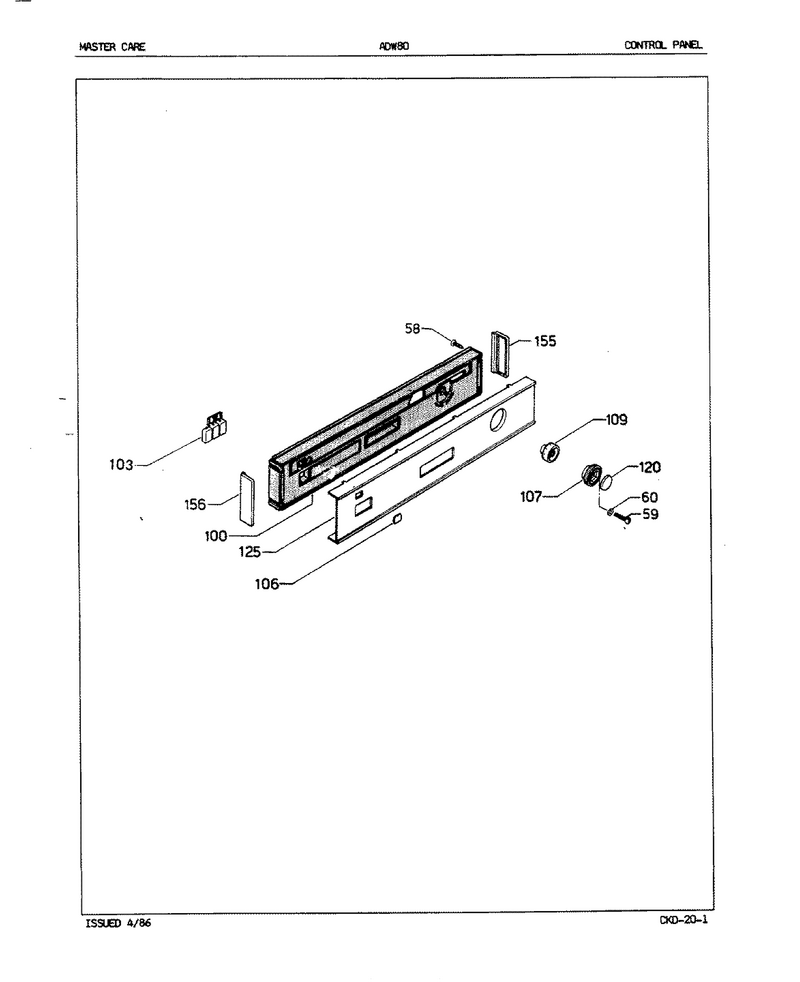

02 - Control Panel

...
...
58
Screw WPL-044263
...
59
Screw WPL-044381
...
60
Nut WPL-044382
...
100
Door Switch WPL-657926
...
103
Pushbutton WPL-658923
...
106
Pilot Lamp Lens WPL-098405
...
107
Timer Knob WPL-658924
...
109
Indicator WPL-65884-2
...
120
Insert, Knob WPL-658925
...
125
Escutcheon WPL-658839
...
155
End Cap WPL-658111
...
156
End Cap WPL-658111

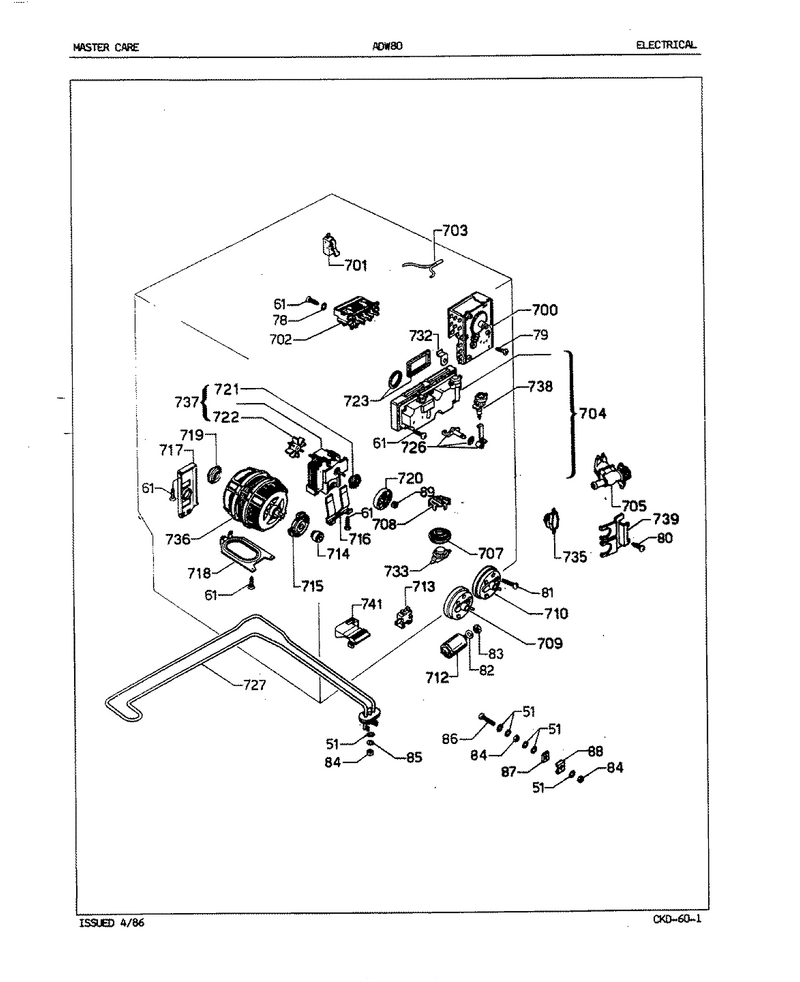

04 - Electrical

...
...
NI
Nut WPL-658119
...
51
Washer WPL-044378
...
61
Screw WPL-043636
...
78
Screw WPL-042720
...
80
Screw WPL-043598
...
81
Screw WPL-043737
...
82
Lockwasher WPL-042763
...
83
Nut WPL-044594
...
84
Nut WPL-042245
...
85
Washer WPL-042415
...
86
Screw WPL-044386
...
87
Nut WPL-044779--
...
88
Nut WPL-044387
...
700
Timer WPL-658909
...
701
Door Switch WPL-657926
...
702
Pb Board WPL-658166
...
703
Pilot Lamp WPL-658910
...
704
Soap Dispenser WPL-658918
...
705
Electric Valve WPL-658917
...
707
Tstat Gasket WPL-657539
...
708
Tstat Cover WPL-657540
...
709
Pressure Switch WPL-658915
...
710
Overflow Switch WPL-658916
...
712
Capacitor WPL-658911
...
713
Terminal Block WPL-025582
...
714
Sealing Ring WPL-656982
...
715
Washpump Gasket WPL-657520
...
716
Pump Retainer WPL-658486
...
717
Motor Tie Rod WPL-658833
...
718
Motor Tie Rod WPL-658833
...
719
Motor Bushing WPL-657519
...
720
Impeller WPL-658867
...
721
Impeller Gasket WPL-657755
...
722
Cooling Fan WPL-65775-4
...
723
Disp Gasket Kit WPL-658249
...
726
Disp Lever Kit WPL-658247
...
727
Heating Element WPL-658912
...
732
Disp Mtg Brkt WPL-658553
...
733
Safety Tstat WPL-658913
...
735
Lo Temp Tstat WPL-658914
...
736
Wash Motor WPL-658907
...
737
Drain Pump WPL-658906
...
738
Disp Htg Elemnt WPL-658248
...
739
Bracket WPL-658836
...
741
Term Blk Clamp WPL-658767

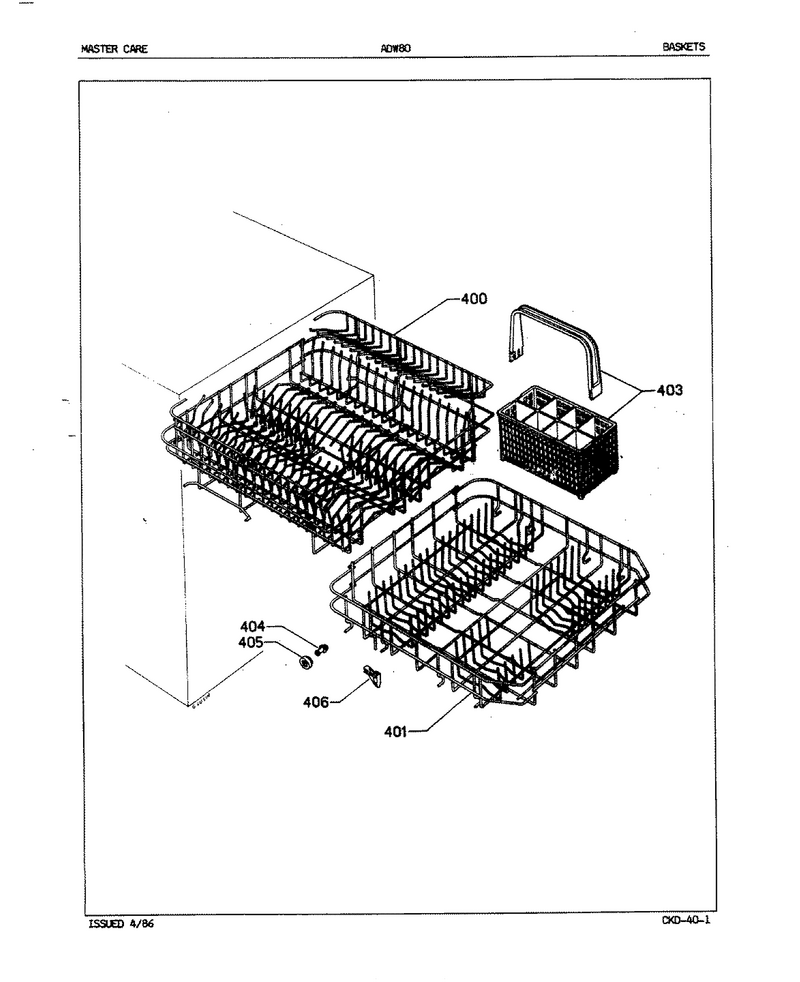

01 - Basket

...
...
400
Top Basket WPL-658002
...
401
Bottom Basket WPL-658853
...
403
Cutlery Basket WPL-658289
...
404
Roller Axle WPL-657497
...
405
Basket Roller WPL-657498
...
406
Stop Block WPL-65884-3

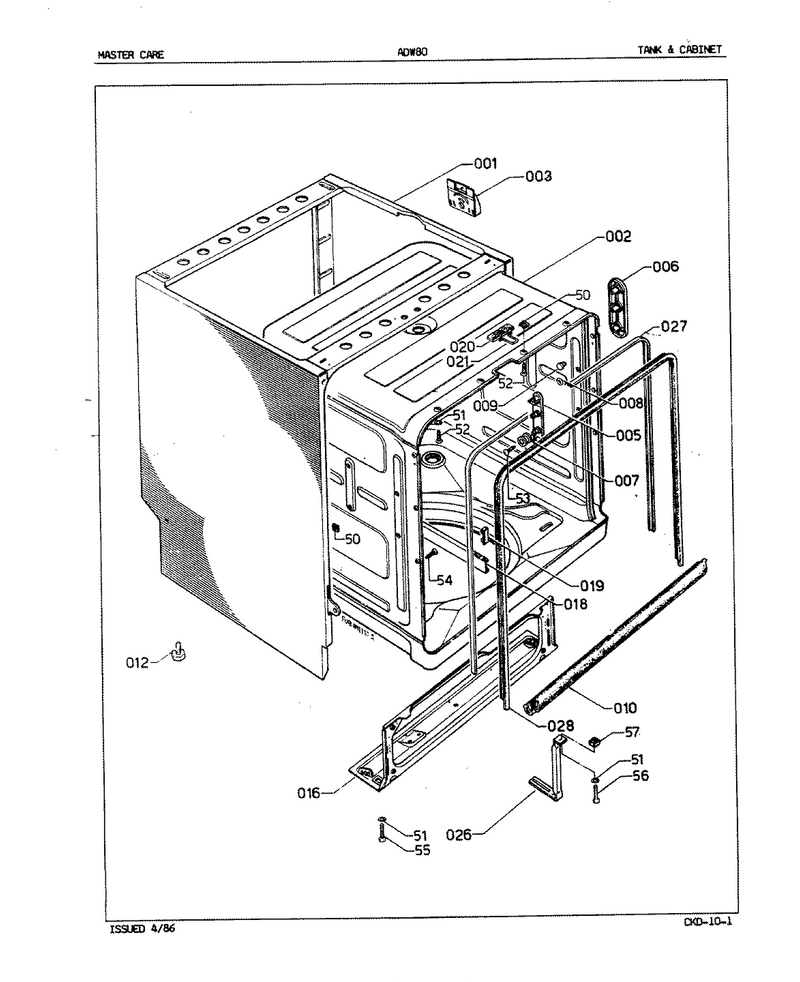

05 - Tank & Cabinet

...
...
1
Cabinet WPL-658975
...
2
Tub Assembly WPL-658838
...
3
Tube Support WPL-658940
...
5
Tub Roller Brkt WPL-657967
...
6
Rolr Brkt Reinf WPL-657965
...
7
Tub Roller WPL-657968
...
8
Roller Gasket WPL-65755-2
...
9
Spacer WPL-657846
...
10
Bttm Gasket WPL-657557
...
12
Leveler WPL-658586
...
16
Front Cross Bar WPL-65896-3
...
18
Top Baskt Guide WPL-658005
...
19
Basket Stop WPL-657852
...
20
Catch Support WPL-658012
...
21
Strike WPL-658118
...
26
Bttm Bracket WPL-657663
...
27
Butt Joint WPL-657514
...
28
Door Gasket WPL-657556
...
50
Nut WPL-063397
...
51
Washer WPL-044378
...
52
Screw WPL-WP59002061
...
53
Screw WPL-043692
...
54
Washer WPL-044379
...
55
Screw WPL-042803
...
56
Screw WPL-043236
...
57
Nut WPL-044380
