Admiral AAV1200AWW

Model: AAV1200AWW

Save Part Not Listed?
product name

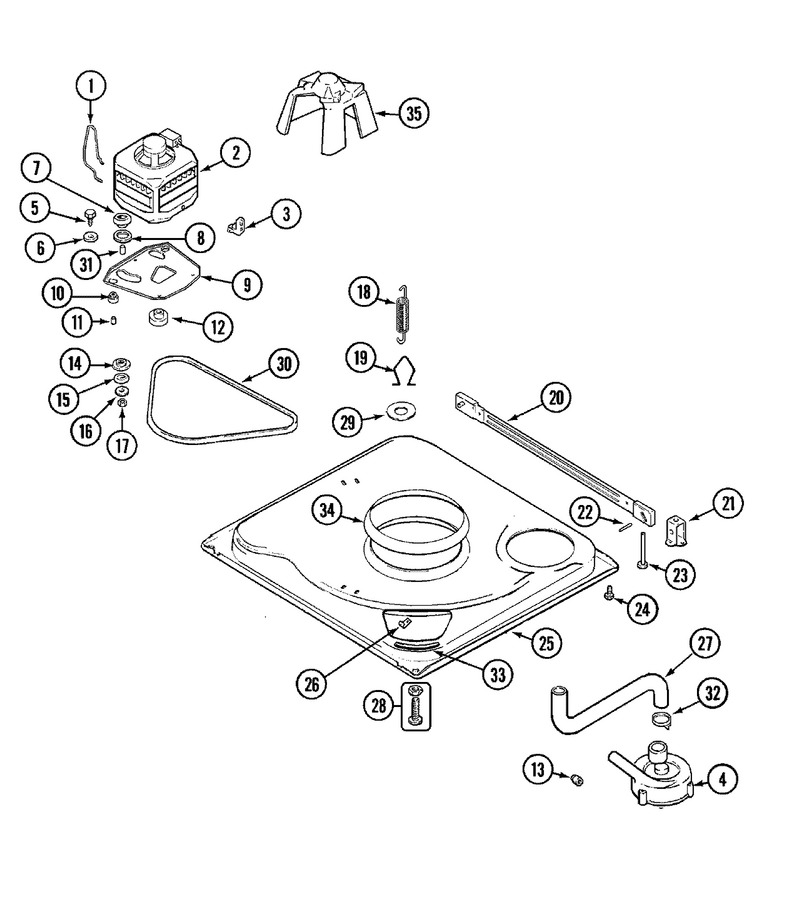

01 - Base

...
...
1
Spring- Mo WPL-WP22004376
...
2
Motor (120v 50/60hz) WPL-21001632
...
3
Slide, Foot WPL-21001109
...
4
Pump-Water WPL-WP35-6465
...
5
Screw WPL-25-7833
...
6
Washer WPL-25-7834
...
7
Isolator WPL-WP33-9946
...
8
Washer WPL-WP35-3570
...
9
Plate, Motor WPL-21001111
...
10
Isolator WPL-WP35-3646
...
11
Spacer WPL-25-7831
...
12
Set Screw WPL-25-7117
...
13
Restrictor, Flow WPL-35-2344
...
14
Slide, Motor Pivot WPL-35-3571
...
15
Washer WPL-WP33-9967
...
16
Washer, Flat WPL-25-7047
...
17
Locknut WPL-WPY707702
...
18
Spring WPL-WP21001598
...
19
Hook- Susp WPL-WP21001166
...
20
Bar, Stabilizer (With Guide) WPL-35-2049
...
21
Bracket, Stabilizer WPL-35-2046
...
22
Pin, Stabilizer WPL-35-2052
...
23
Leg Foot WPL-WP22004469
...
24
Screw WPL-WP308685
...
25
Base WPL-21001169
...
26
Speednut WPL-25-7845
...
27
Hose- Tub WPL-WP21001915
...
28
Foot Pad WPL-WP25001119
...
29
Washer, Suspension Hook WPL-Y25-7951
...
30
Belt WPL-WP21352320
...
31
Spacer WPL-WP25-7830
...
32
Clamp WPL-WP285655
...
33
Pad, Motor Plate WPL-35-2065
...
34
Snubber WPL-WP21002026
...
35
Shield, Motor WPL-22002721

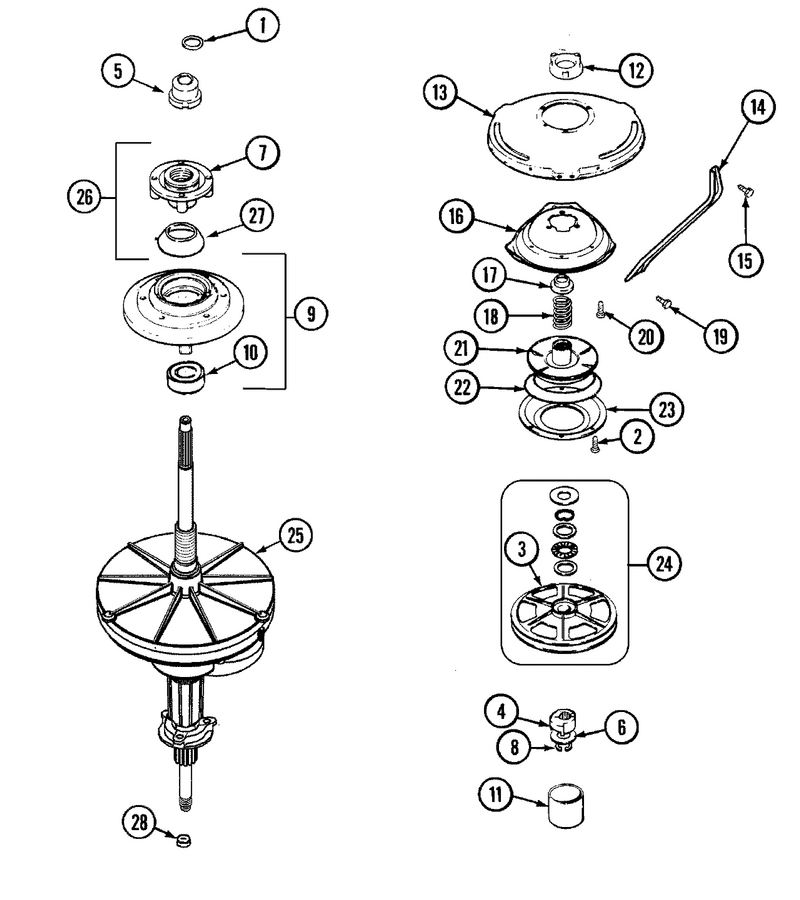

05 - Transmission

...
...
1
Ring-O WPL-WP25-7941
...
2
Screw WPL-WP21001065
...
3
Thrust Bearing Kit WPL-12002213
...
4
Thrust Bearing Kit WPL-12002213
...
5
Seal WPL-WP35-5655-1
...
6
Washer,1.25odx.530idx.062 WPL-35-2082
...
7
Basket Hub Assembly WPL-21001515
...
8
Clip WPL-WP25-7854
...
9
Bearing & Seal Housing Assy. WPL-12001561
...
10
Bearing, Spin WPL-35-2205
...
11
Cap, Dust WPL-35-2007
...
12
Bearing, Spin WPL-35-2205
...
13
Support, Tub WPL-21001518
...
14
Brace, Tub WPL-21001532
...
15
Screw WPL-W10856106
...
16
Housing- S WPL-WP21001163
...
17
Retainer- WPL-WP35-2017
...
18
Spring- Br WPL-WP21001910
...
19
Screw WPL-W10856106
...
20
Screw WPL-WP21001509
...
21
Brake Rotor & Lining Assy WPL-35-2948
...
22
Snubber WPL-WP21002026
...
23
Stator, Brake WPL-35-2018
...
24
Thrust Bearing Kit WPL-12002213
...
25
Ht Trans S WPL-35-6615
...
26
Seal-Tub WPL-W10219156

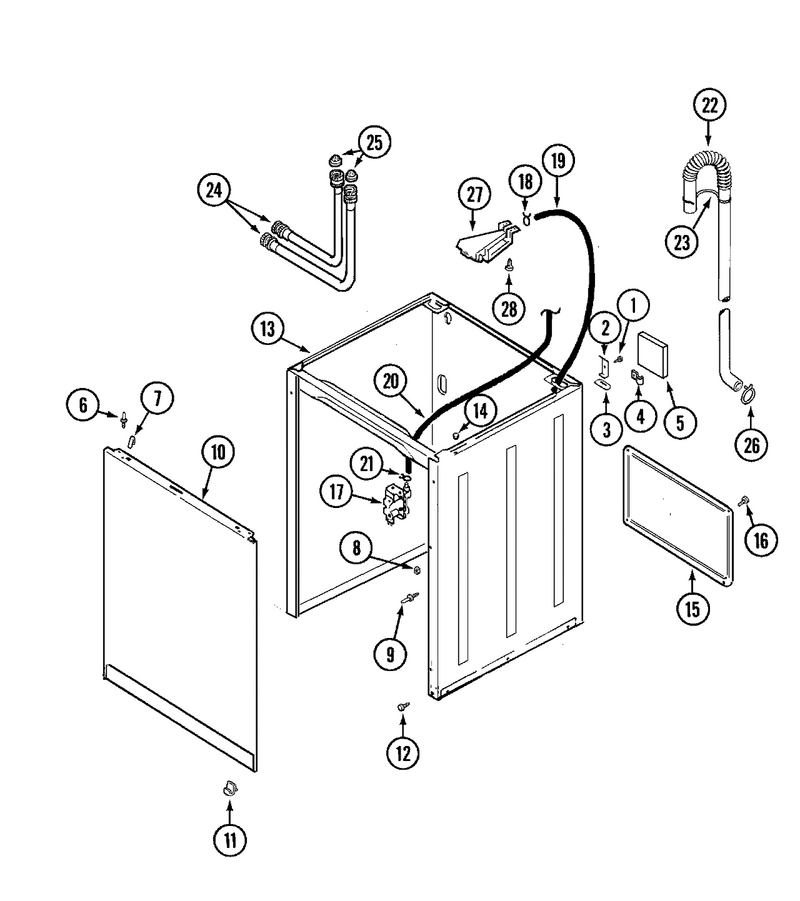

02 - Cabinet

...
...
NI
Coupling, Adaptor WPL-21001464
...
1
Screw WPL-WP25-7893
...
2
Hinge, Cabinet Top WPL-35-2846
...
3
Pad, Hinge WPL-35-4128
...
4
Clip, Harness WPL-16515
...
5
Timer WPL-357136
...
6
Pin, Locator WPL-53-0643
...
7
Clip- Cabi WPL-WP25-7220
...
8
Nut WPL-WP3400029
...
9
Pin, Locator WPL-53-0643
...
10
Panel, Front (Wht) WPL-35-2084
...
11
Clip- Fron WPL-WP53-0120
...
12
Bumper, Cabinet WPL-35-4129
...
13
Cabinet Assy. (Wht) WPL-35-2106
...
14
Bumper, Cabinet WPL-33-2653
...
15
Shield,rear(Nla,order Cab Kit) WPL-35-2108
...
16
Screw WPL-WP681414
...
17
Valve, Water WPL-35-2374N
...
18
Clamp WPL-WP596669
...
19
Hose, Flume Kit WPL-12002749
...
20
Hose- Pres WPL-WP21001748
...
21
Clamp WPL-WP596669
...
22
Hose WPL-WP21001872
...
23
Retainer WPL-33-9537
...
24
Hose-Fill WPL-WP89503
...
25
Strainer & Washer Kit WPL-33-4264N
...
26
Clamp WPL-WP285655
...
27
Flume Asm WPL-WP21001760
...
28
Screw WPL-WP90767

07 - Wiring Information

...
...
NI

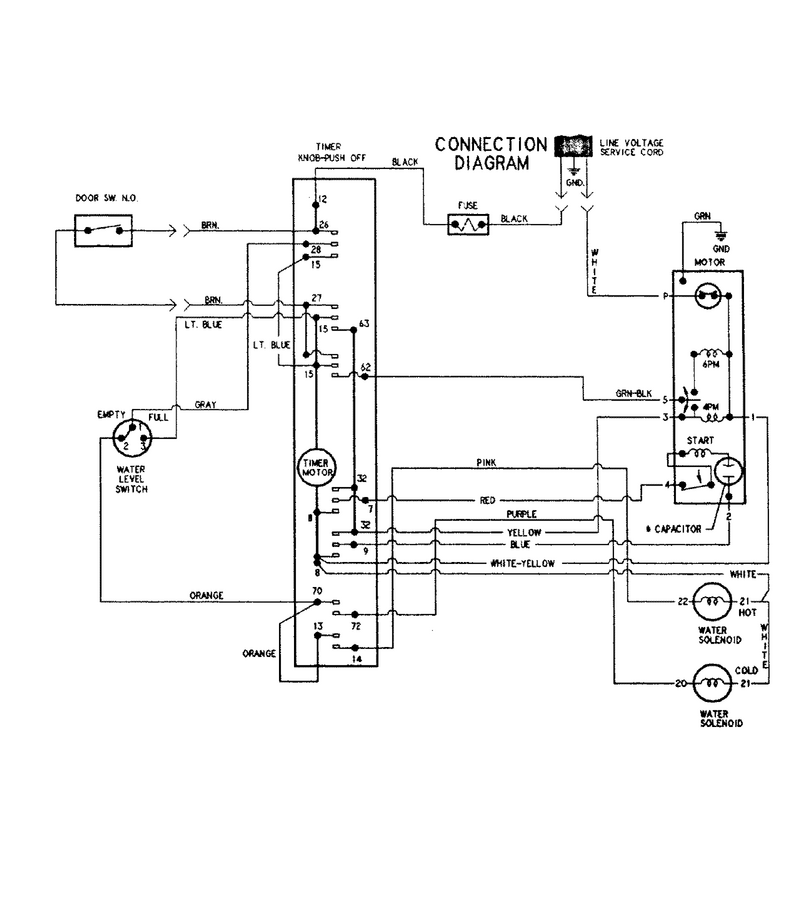

Wiring Information WPL-15002608

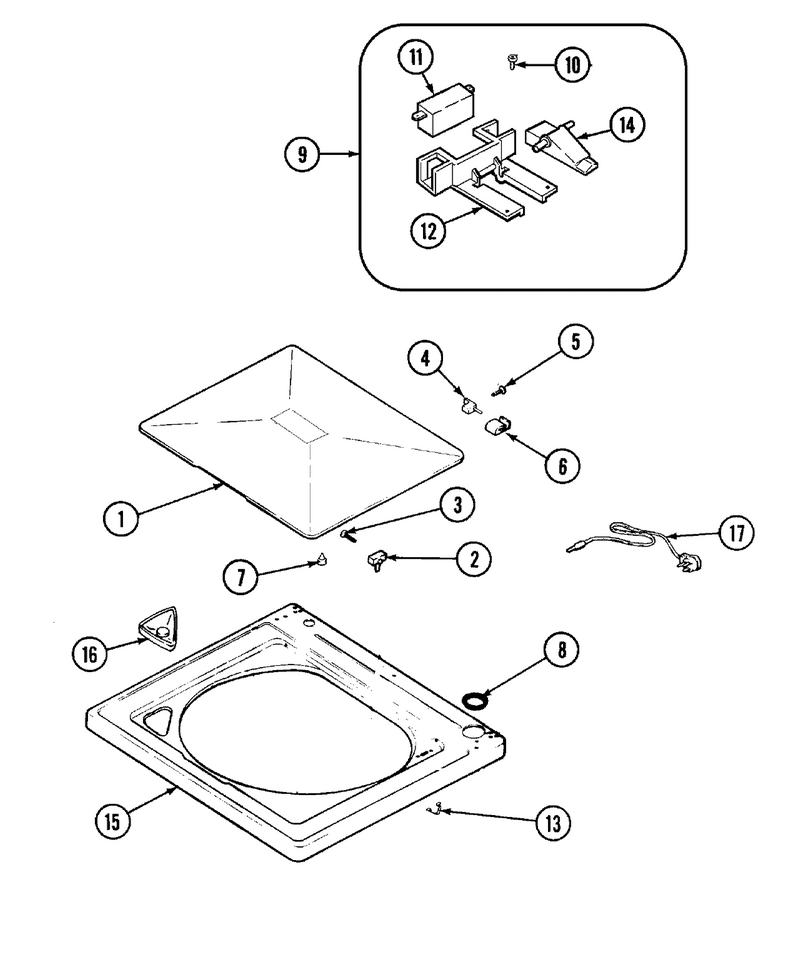

04 - Top

...
...
1
Lid (Wht) (Door) WPL-35-2026
...
2
Actuator- WPL-WP43-0057
...
3
Screw WPL-25-7438
...
4
Pin- Hinge WPL-WP35-2045
...
5
Screw WPL-WP25-7893
...
6
Hinge- Lid WPL-WP35-2044
...
7
Bumper, Door (Lid) WPL-35-0581
...
8
Bushing, Insulator WPL-35-2063
...
9
Kit, Lid Switch Assy. WPL-12001187
...
10
Screw WPL-WP3400872
...
11
Kit, Lid Switch Assy. WPL-12001187
...
12
Housing- L WPL-WP21001135
...
13
Clip WPL-25-7878
...
14
Lever, Lid Switch WPL-21001134
...
15
Top, Cabinet (Wht) WPL-21001602
...
16
Dispenser, Bleach WPL-21001597
...
17
Cord, Power WPL-21001592

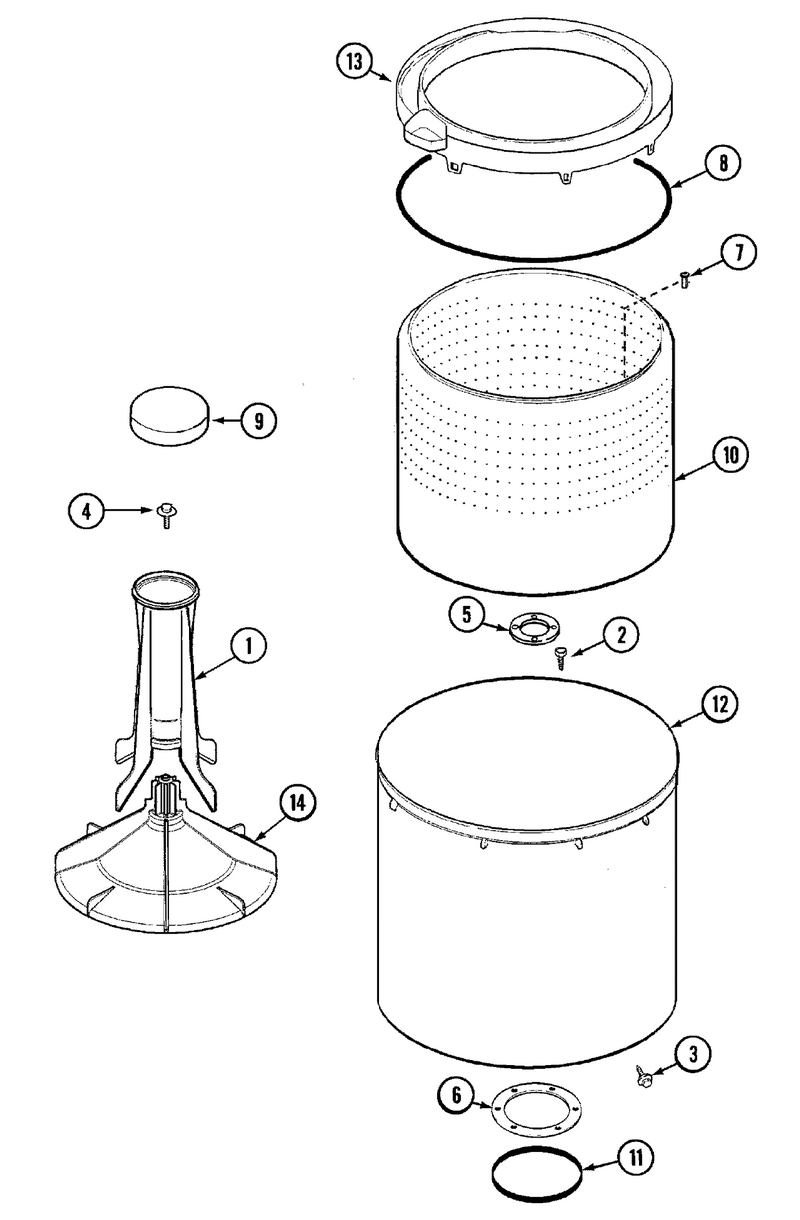

06 - Tub

...
...
1
Top, Agitator WPL-21001521
...
2
Screw WPL-WP22002947
...
3
Screw WPL-WP22002933
...
4
Screw WPL-WPW10309247
...
5
Gasket WPL-WP35-3685
...
6
Gasket, Tub To Housing WPL-35-3686
...
7
Screw WPL-WP3400504
...
8
Seal- Tub WPL-WP35-2328
...
9
Cap, Agitator WPL-21001528
...
10
Basket Assembly (Plastic) WPL-21001529
...
11
Seal- Tub WPL-WP35-2978
...
12
Tub Assembly (Plastic) WPL-35-3700
...
13
Top, Tub (Plastic) WPL-21001531
...
14
Base, Agitator WPL-21001530

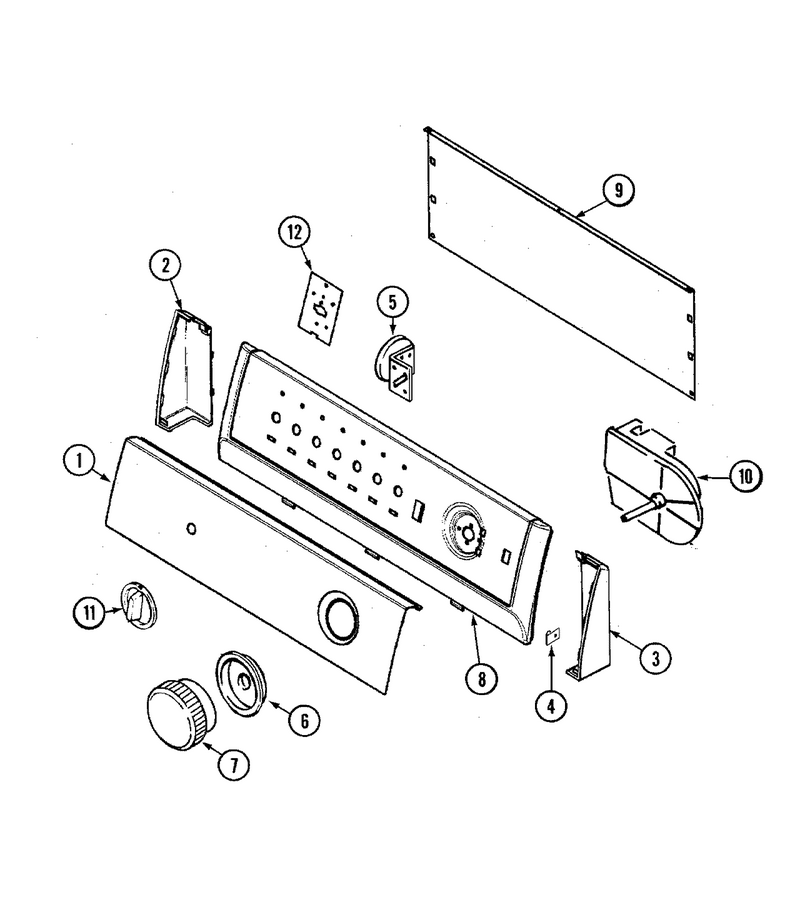

03 - Control Panel

...
...
NI
Guide, Quick Ref - Crosley WPL-16002080
...
1
Panel, Control (Wht) WPL-21001638
...
2
Screw WPL-WP90767
...
3
Screw WPL-WP90767
...
4
Speedclip, End Cap To Top WPL-25-7851
...
5
Switch, Water Level WPL-21001625
...
6
Skirt, Timer Knob (Wht) WPL-21001520
...
7
Knob, Timer (Wht) WPL-21001526
...
8
Frame (Wht) WPL-21001635
...
9
Screw WPL-WP90767
...
10
Screw WPL-WP90767
...
11
Knob, Selector (Wht) WPL-21001544
...
12
Shield, Control (1 Pos.) WPL-21001517
