Admiral A79E-5CXW

Model: A79E-5CXW

Save Part Not Listed?
product name

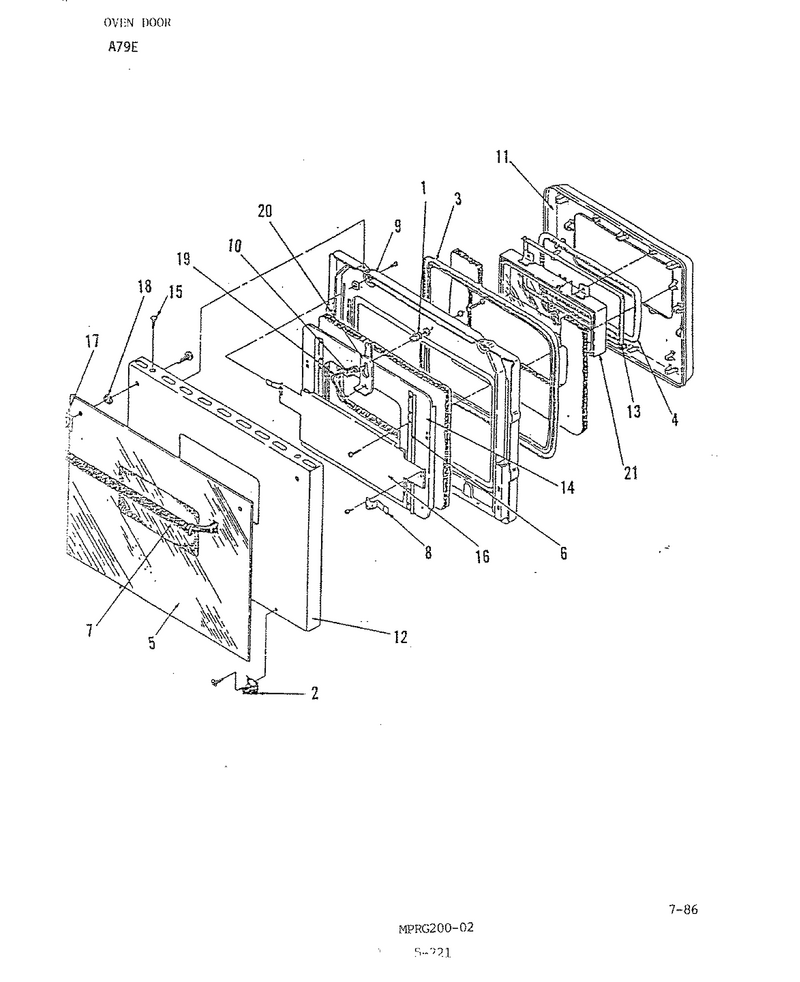

02 - Door

...
...
1
Bushing WPL-1089202
...
2
Clip, Glass Retainer WPL-7112P039-60
...
3
Gasket, Oven WPL-7201P036-60
...
4
Gasket WPL-1313270
...
5
Glass, Door WPL-7902E106
...
6
Retainer WPL-0749228
...
7
Handle, Door WPL-7701E024
...
8
Handle, Shield WPL-1359318
...
9
Lining Assy, Wd Ov Dr WPL-2402W083-12
...
10
Nut Self Locking WPL-1555248
...
11
Pad, Oven Door WPL-0661222
...
12
Panel, Oven Door WPL-2401F045-70
...
13
Retainer, Glass WPL-Y0749237
...
14
Retainer Insul WPL-3611F006-51
...
15
Screw WPL-WP98008545
...
16
Shield, Oven Door WPL-0787426
...
17
Spacer, Door Handle WPL-8010E015
...
18
Spacer, Door Glass (Blk) WPL-74003986
...
19
Spring WPL-1790297
...
20
Stop, Latch WPL-0112243
...
21
Window Assy. WPL-1966244

04 - Top Assembly

...
...
1
Block-Term WPL-790037
...
3
Clip- Ther WPL-WP7112P004-60
...
4
Cover, Box WPL-4005F148
...
5
Elmnt-Bake WPL-WPY04000066
...
6
Element- B WPL-WPY04000048
...
8
Gasket, Lampguard WPL-1313259
...
9
Glass, Lightguard WPL-1327784
...
10
Hinge WPL-0528258
...
11
Insert, Broil Pan WPL-0507243
...
12
Lever, Door Lock WPL-8009E005
...
13
Light Bulb WPL-8009
...
14
Procelain Broiler (Pan And Grid) WPL-4396923
...
15
Pin, Hinge WPL-7113P002-60
...
16
Rack WPL-1636246
...
17
Rack, Oven (Flat) WPL-71003346
...
18
Receptacle, Oven Light WPL-1657202
...
19
Retainer WPL-0749216
...
20
Spring, Broiler WPL-1790313
...
21
Stop, Door WPL-Y0112238
...
22
Extrusion WPL-7706E124
...
23
Extrusion WPL-7706E126

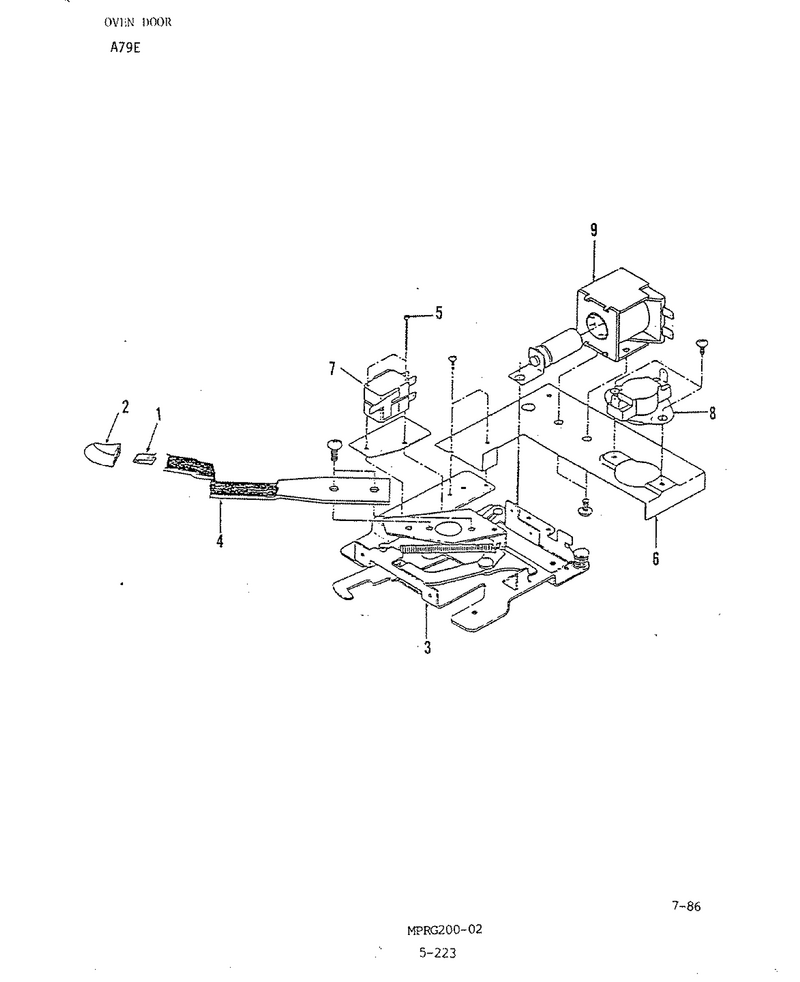

03 - Door

...
...
1
Bushing WPL-1089202
...
2
Handle, Door Latch (Blk) WPL-74001719
...
3
Catch, Oven Dr WPL-1135227
...
4
Link WPL-0603211
...
5
Stop, Latch WPL-0112243
...
6
Support, Mag.sw WPL-3807F107-80
...
7
Switch, Fan WPL-1832410
...
8
Switch, High Limit WPL-7403E063
...
9
Switch WPL-1832357

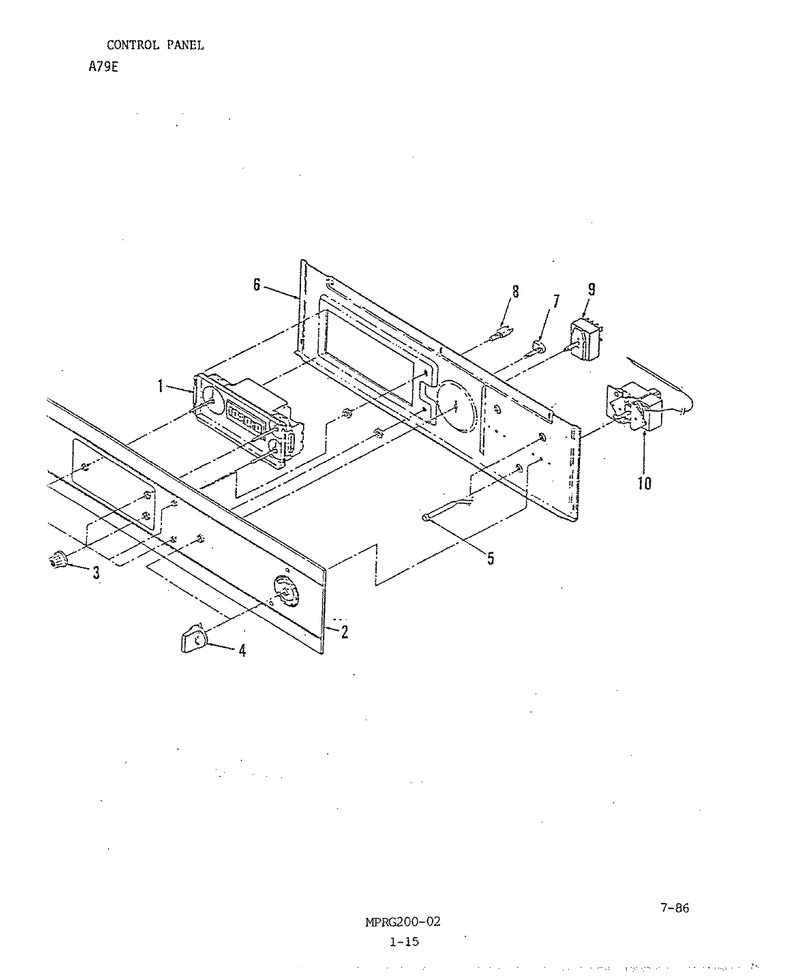

01 - Control Panel

...
...
1
Clock WPL-7601P050-60
...
2
Glass, Control Panel WPL-7902P094-60
...
3
Knob- Cloc WPL-WP7711P466-60
...
4
Knob, Selector WPL-1362231
...
5
Light, Indicator WPL-1406246
...
6
Screw WPL-WP74004005
...
7
+ Switch,light WPL-1832413
...
8
Switch, Pushbutton WPL-1832412
...
10
Thermostat, Oven WPL-1890319
