Admiral A59E-5EXW-R

Model: A59E-5EXW-R

Save Part Not Listed?
product name

Popular Parts

Popular Parts

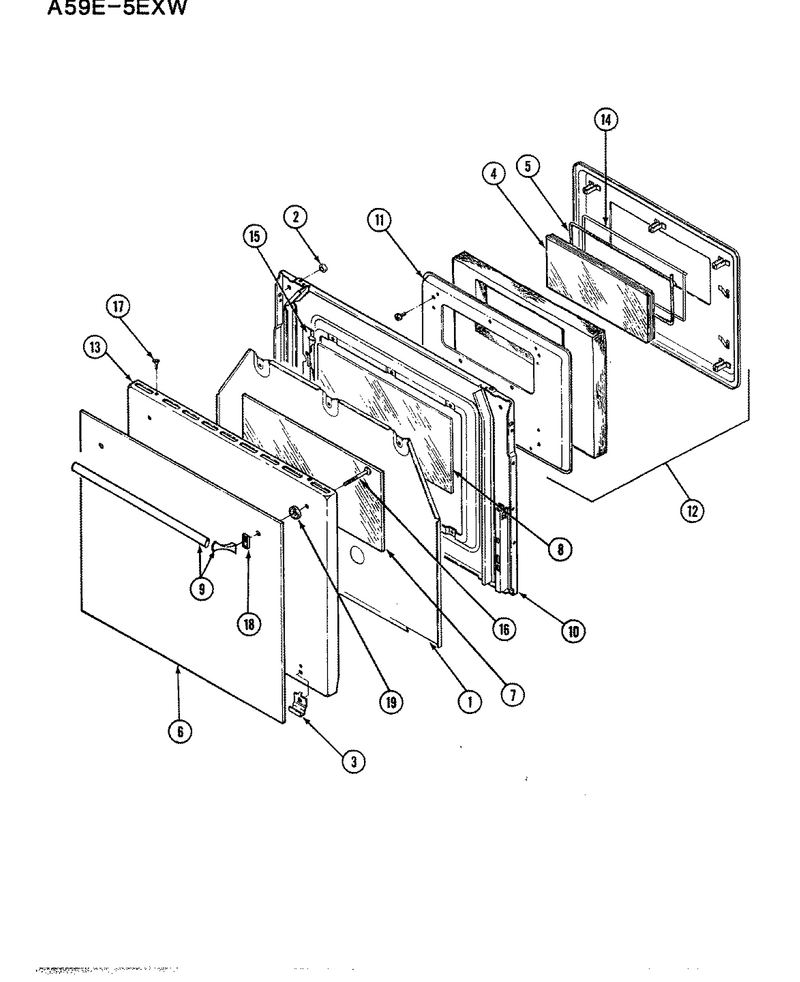

02 - Door

...
...
1
Baffle WPL-3601F093-51
...
2
Bumper Door (Round) WPL-8003P002-60
...
3
Clip, Retainer WPL-7112P051-60
...
4
Frame, Window WPL-7706P177-60
...
5
Gasket, Window WPL-7201P018-60
...
6
Glass, Outer (Black) WPL-7902P120-60
...
7
Glass, Inner WPL-7902P097-60
...
8
Glass, Window Outer WPL-7902P101-60
...
9
Handle, Oven Door WPL-7701P025-60
...
10
Nut- Snap WPL-WP7103P114-60
...
11
Pad, Inner WPL-2410F016-51
...
12
Pad, Assy. WPL-2410A029-15
...
13
Panel, (Black) WPL-2401W049-70
...
14
Retainer WPL-3804F022-45
...
15
Rivet WPL-7107P017-60
...
16
Screw WPL-W11164114
...
17
Screw WPL-WP98008545
...
18
Spacer, Handle (Blk) WPL-8010P015-60
...
19
Washer, Lock WPL-7109P012-60

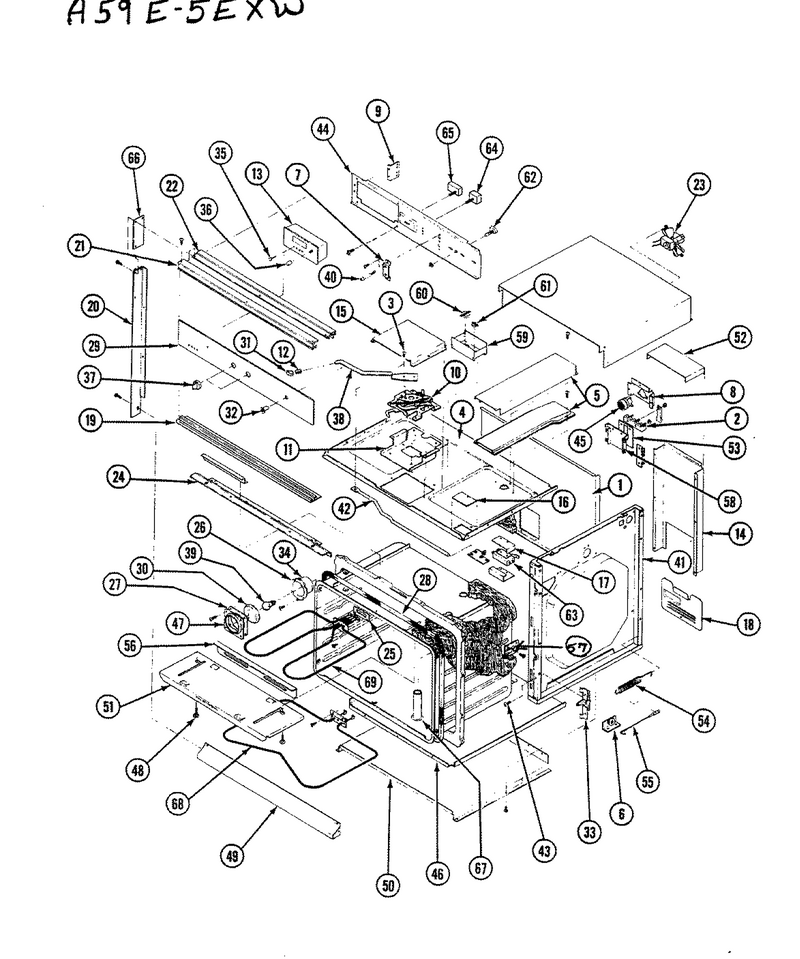

01 - Body

...
...
1
Baffle, Side Panel WPL-3601F106-51
...
2
Block, Terminal WPL-7401P016-60
...
3
Bolt, Door Lock WPL-7116P002-60
...
4
Bottom, Burner Box WPL-4011F133-80
...
5
Bracket WPL-3801F093-51
...
6
Bracket WPL-0284294
...
7
Bracket, Ind Lt WPL-3801F099-20
...
8
Bracket WPL-3801F024-51
...
9
Bracket, Switch Mtg WPL-3801F098-51
...
10
Catch WPL-8002P014-60
...
11
Channel, Switch Lock WPL-3818F027
...
12
Clip- Ther WPL-WP7112P004-60
...
13
Connector, Pin WPL-7417P002-60
...
14
Shield WPL-4005F013-80
...
15
Cover, Catch Assy. WPL-4005F137-80
...
16
Cover, Switch WPL-4005F163-51
...
17
Cover, Switch WPL-4005F139-51
...
18
Cover, Wire Housing WPL-4005F157-20
...
19
Extrusion, Ctrl Bot WPL-7706P146-60
...
20
Extrusion, Top WPL-7706P201-60
...
21
Trim Top Front WPL-7706P175-60
...
22
Trim, Filler Strip WPL-7706P167-60
...
23
+ Fan- As WPL-W10127321
...
24
Front,burner Box Bottom WPL-4012F018-80
...
25
Gasket, Element WPL-7201P003-60
...
26
Gasket, Housing WPL-7201P014-60
...
27
Gasket, Lamp Retainer WPL-7201P015-60
...
28
Gasket, Oven WPL-7201P036-60
...
29
Glass, Control WPL-7902P125-60
...
30
Glass, Lamp Guard WPL-7902P057-60
...
31
Handle, Latch (Blk) WPL-7701P068-60
...
32
Handle, Oven Door WPL-7701P025-60
...
33
Housing, Fan WPL-4001F037-51
...
34
Procelain Broiler (Pan And Grid) WPL-4396923
...
35
Knob WPL-W11238392
...
36
Knob, Selector WPL-7739P024-60
...
37
Knob WPL-7711P317-60
...
38
Lever, Door Lock WPL-8009P006-60
...
39
Light Bulb WPL-8009
...
40
Light, Indicator----Na WPL-7407P007-60
...
41
Lining, Inner Side WPL-4009W030-20
...
42
Link, Switch WPL-7807P004-60
...
43
Plate, Conduit WPL-3605F031-80
...
44
Plate, Switch Mtg WPL-3605F107-20
...
45
Receptacle, Lamp WPL-7408P002-60
...
46
Retainer, Insulation WPL-3804F093-20
...
47
Retainer, Lamp Guard WPL-3804F012-45
...
48
Screw WPL-WP7101P126-60
...
49
Shield, Lower Vent WPL-3604W002-00
...
50
Shield, Bottom WPL-3604F073-20
...
51
Shield, Broil WPL-3604F092-45
...
52
Shield WPL-3604F007-20
...
53
Sleeve, Switch WPL-7214P001-60
...
54
Spring, Door WPL-7803P031-60
...
55
Strap Cable WPL-8019P001-60
...
56
Support, Latch WPL-3807F195
...
57
Support, Oven Rear WPL-3807F205-45
...
58
Support, Terminal Block WPL-3807F157-80
...
59
Support, Therm Disc WPL-3807F219-51
...
60
Switch, High Limit WPL-7403P063-60
...
61
Switch, Hi Limit WPL-7403P089-60
...
62
Switch, Light WPL-7403P019-60
...
63
Switch, Door Lock WPL-7403P045-60
...
64
Switch, Selector WPL-7403P023-60
...
65
Thermostat WPL-7404P051-60
...
66
Trim, End Cap WPL-7726P023-60
...
67
Tube, Oven Vent WPL-8026A009-60
...
68
Element- B WPL-WPY04000041
...
69
Element- B WPL-WPY04000048
