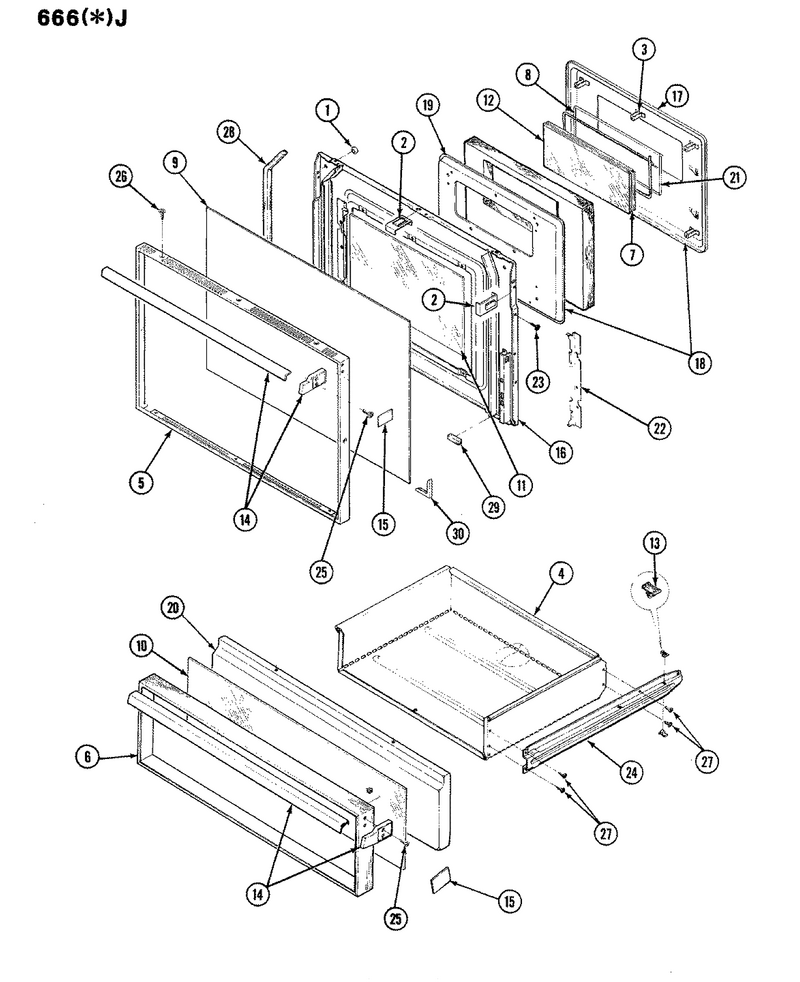

Admiral 666KJ-ESVW

Model: 666KJ-ESVW

Save Part Not Listed?
product name

01 - Door

...
...
1
Brace, Drawer WPL-3802F044-51
...
2
Clip, Door WPL-7112P034-60
...
3
Clip, Retainer WPL-7112P051-60
...
4
Drawer, Service WPL-3405F008-80
...
5
Frame, Door WPL-7706P243-60
...
6
Frame, Svc Door WPL-7706P181-60
...
7
Frame, Window WPL-7706P177-60
...
8
Gasket, Window WPL-7201P018-60
...
11
Glass, Inner WPL-7902P097-60
...
12
Glass, Window Inner WPL-7902P287-60
...
13
Glide, Drawer WPL-8016P004-60
...
14
Handle, Door WPL-7701P047-60
...
15
Insert, Oven Door Handle WPL-7728P012-60
...
16
Lining WPL-2402W128-15
...
17
Pad, Door WPL-2410W029-15
...
18
Pad, Assy. WPL-2410A029-15
...
19
Screw WPL-WP7101P126-60
...
21
Retainer WPL-3804F022-45
...
22
Retainer, Glass WPL-3804F051-80
...
23
Rivet WPL-7107P017-60
...
24
Runner, Inner WPL-3406F020-80
...
25
Screw WPL-7101P123-60
...
26
Screw WPL-WP7101P126-60
...
27
Screw WPL-WP7101P126-60
...
28
Seal WPL-7208P002-60
...
29
Seal-Strip WPL-WP854334
...
30
Spacer, Glass Corner WPL-8010P045-60
