Admiral 550HH

Model: 550HH

Save Part Not Listed?
product name

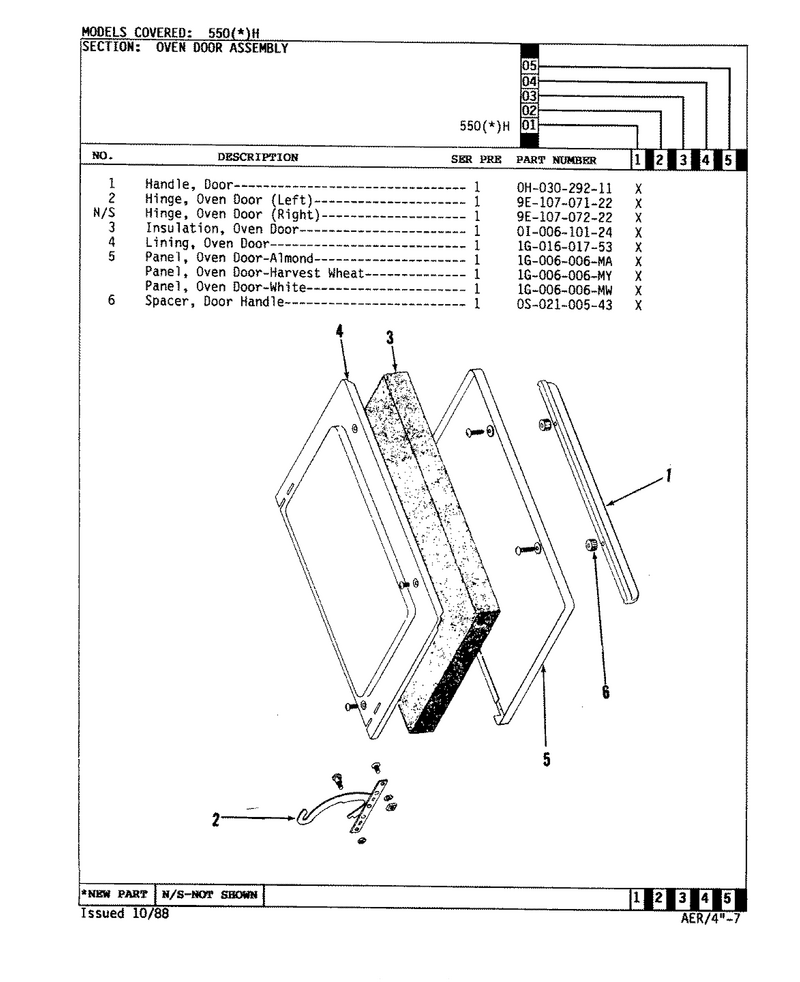

03 - Door

...
...
1
Handle WPL-0H03029211
...
2
Hinge, Left WPL-9E10707122
...
3
Insulation O Door WPL-0I00610124
...
4
Lining Oven Door WPL-1G01601753
...
5
Panel, Oven Door WPL-1G006006MY
...
6
Spacer- Do WPL-WP74005232

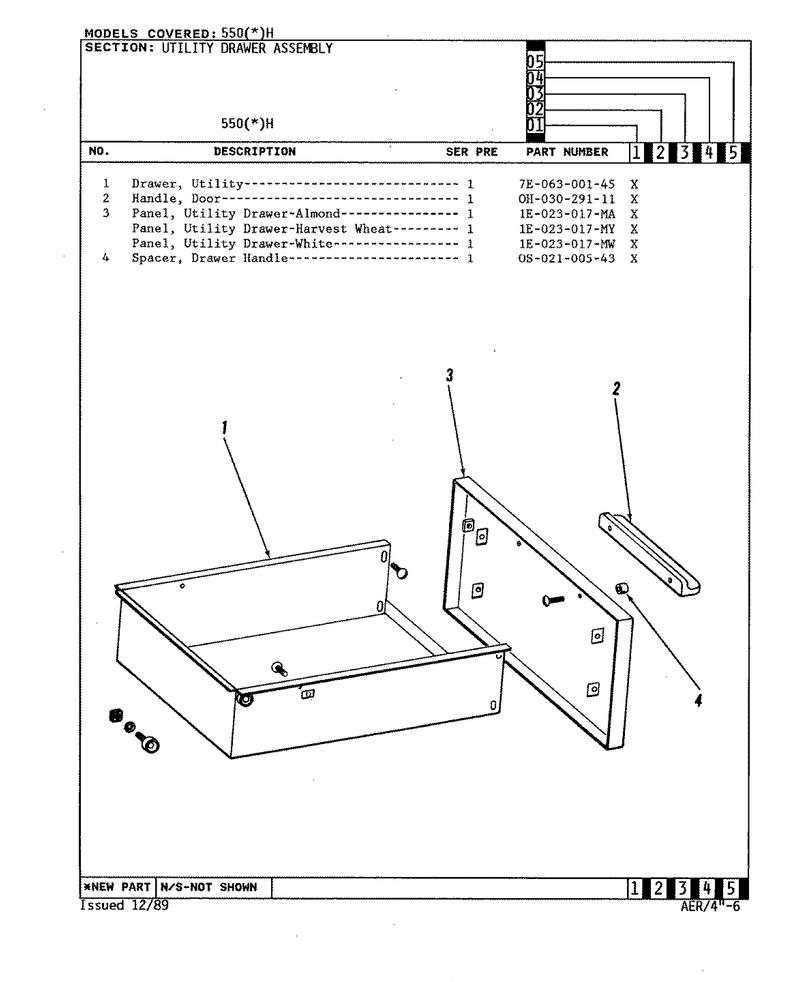

04 - Drawer

...
...
1
Drawer, Utility WPL-7E06300145
...
2
Handle WPL-Y0H03029111
...
3
Panel, Utility Drawe WPL-1E023017MY
...
4
Spacer- Do WPL-WP74005232

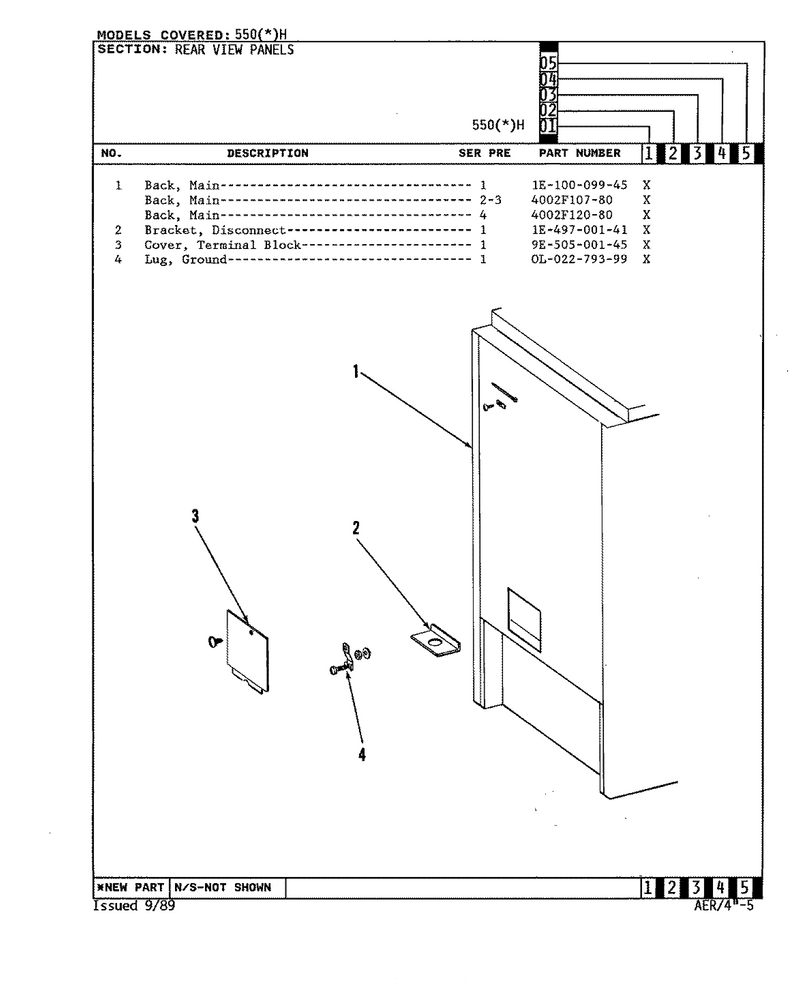

07 - Rear View

...
...
1
Back Main WPL-4002F120-80
...
2
Bracket, Disconnect WPL-1E49700141
...
3
Cover Term Block Ac WPL-9E50500145
...
4
Lug Ground WPL-0L02279399

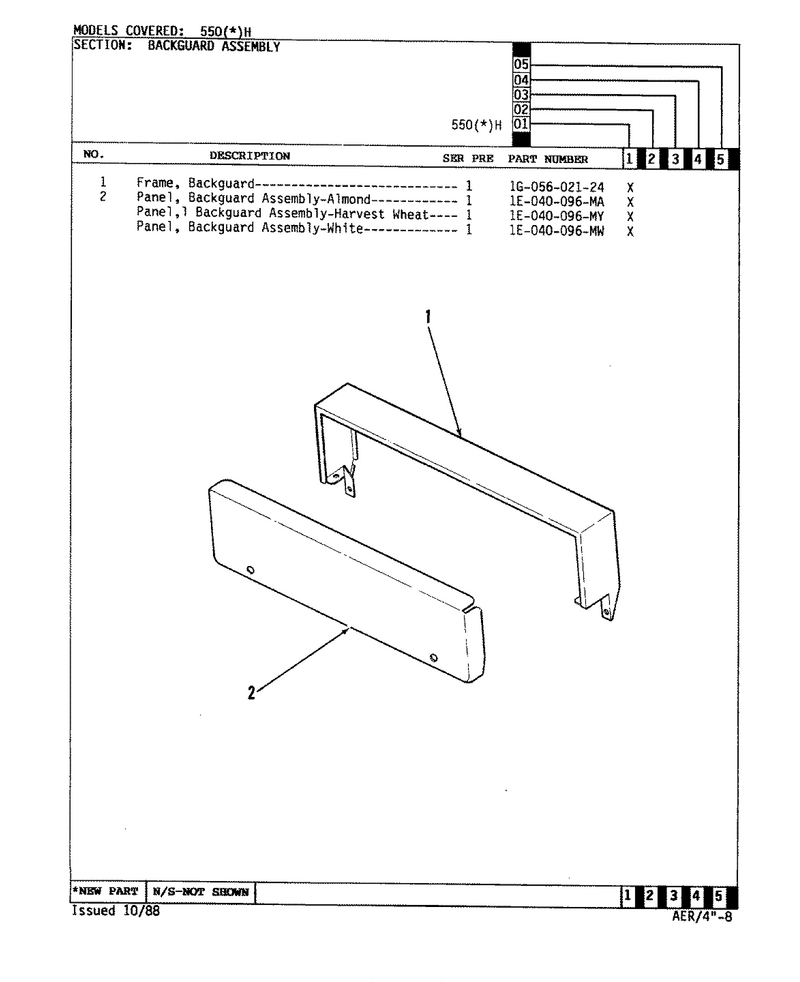

02 - Control Panel

...
...
1
Frame WPL-1G05602124
...
2
Panel, Backguard WPL-1E040096MY

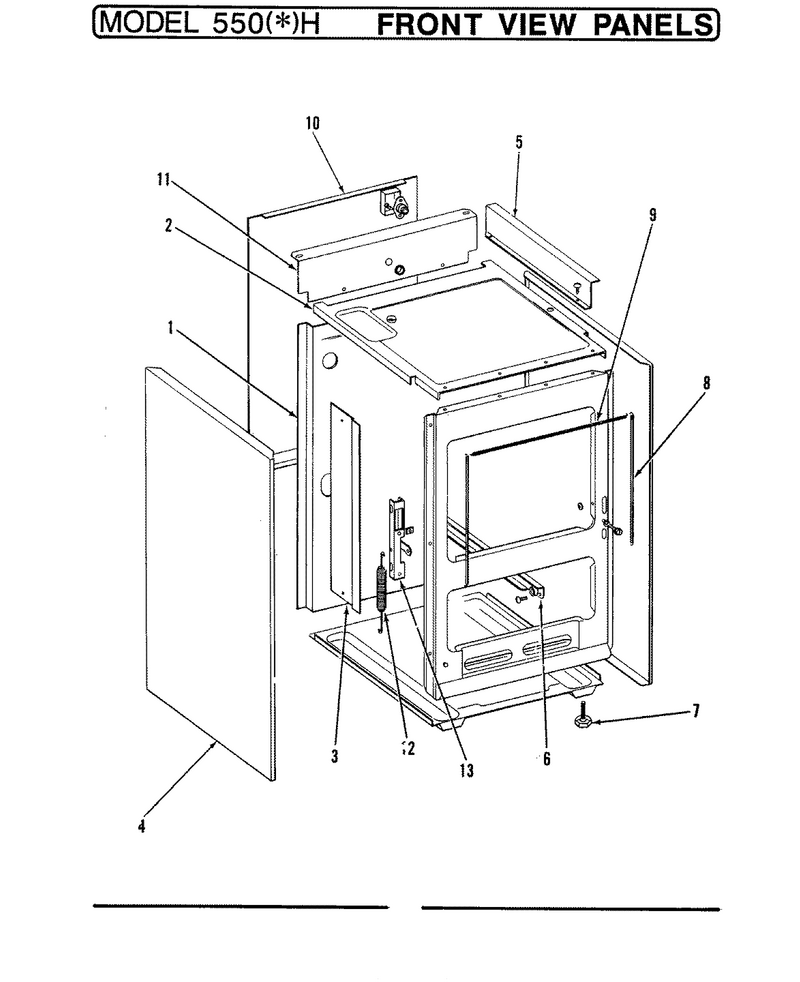

05 - Front View

...
...
1
Back, Main WPL-4002F107-80
...
2
Bottom, Burner Box WPL-1E10105153
...
3
Chute Air Side WPL-1E40900141
...
4
Panel, Side Hvt Wheat WPL-2618F070-76
...
5
Raceway Wire WPL-1E17700341
...
6
Runner, Util. Drawer WPL-9E55100345
...
7
Screw Leveling WPL-Y0S01500126
...
8
Seal- Door WPL-WP7212P015-60
...
9
Seal- Door WPL-WP7212P014-60
...
10
Shield, Back Wire WPL-1E17501145
...
11
Shield, Burner Box Wire WPL-1E17401341
...
12
Spring, Oven Door WPL-0S00104599
...
13
Support, Hinge (Rt) WPL-74003820

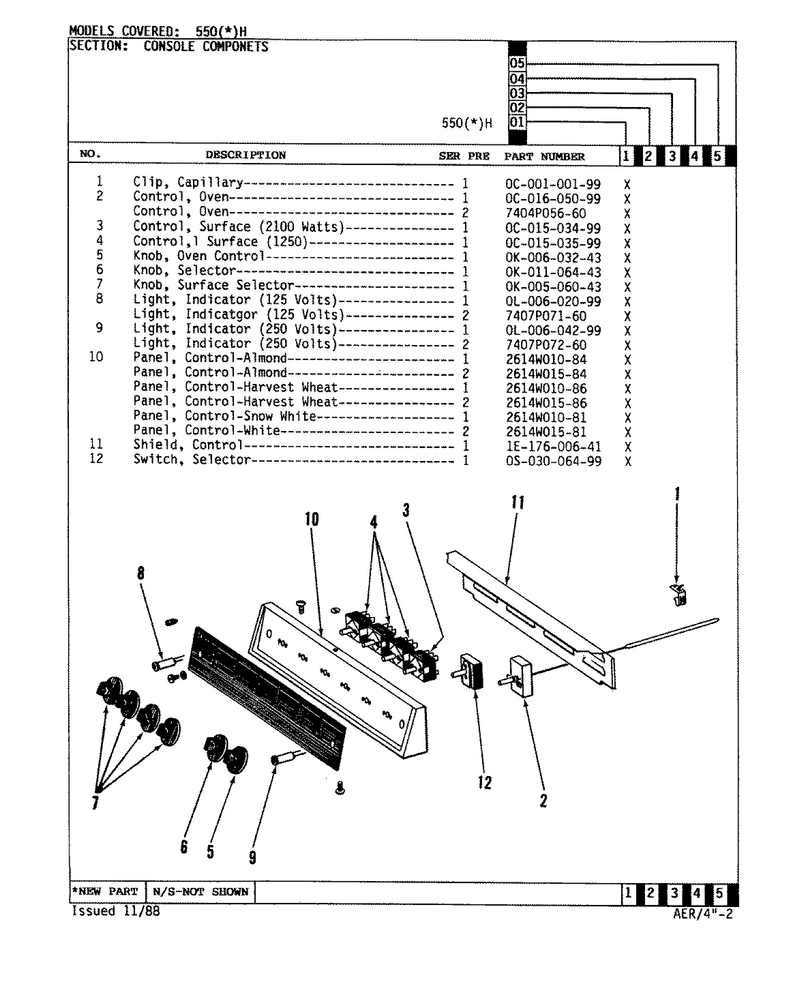

01 - Control Panel

...
...
1
Clip, O C Cap Set WPL-Y0C00100199
...
2
Thermostat WPL-7404P056-60
...
3
Control, Infinite-24 WPL-Y0C01503499
...
4
Control, Infinite-24 WPL-Y0C01503599
...
5
Knob, Oven Control WPL-0K00603243
...
6
Knob, Selector Switc WPL-0K01106443
...
7
Knob, Infininte Swit WPL-Y0K00506043
...
8
Light, Indicator WPL-7407P071-60
...
9
Light, Indicator WPL-0L00604299
...
10
Control Panel Assy, Hvt Wheat WPL-2614W010-86
...
11
Shield Control WPL-1E17600641
...
12
Switch, Selector,3 P WPL-Y0S03006499

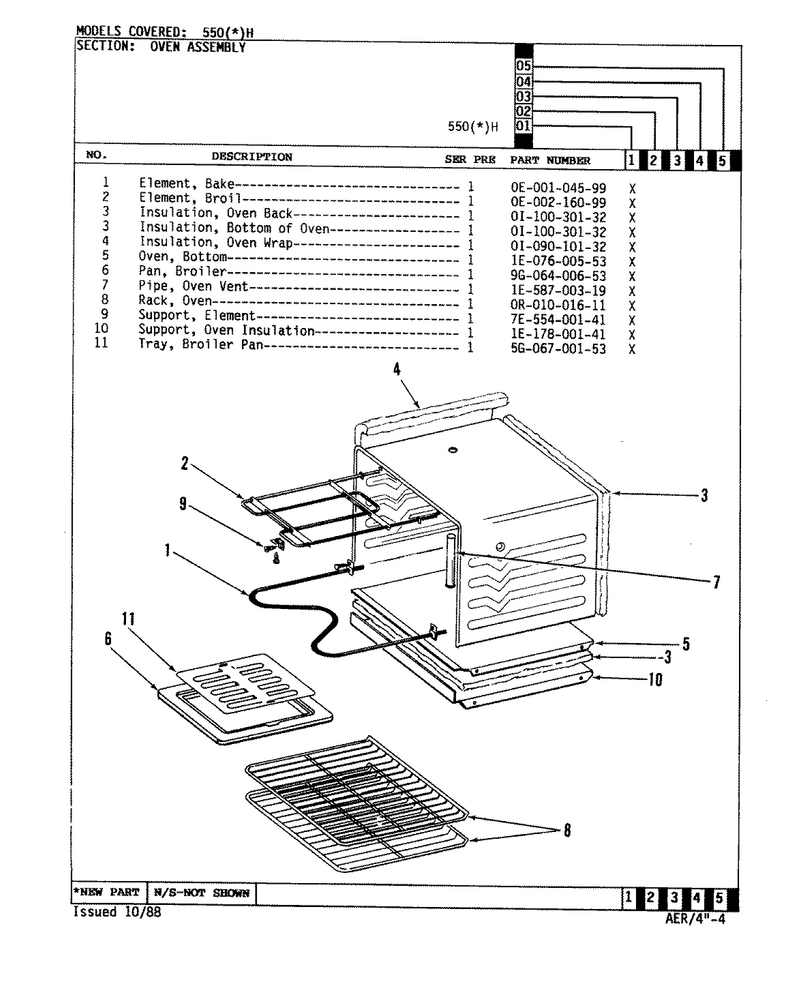

06 - Oven

...
...
1
Element- B WPL-WP74010761
...
2
Kit- Eleme WPL-12500110
...
3
Insulation Oven Back WPL-0I10030132
...
4
Insulation O Wrap A WPL-0I09010132
...
5
Bottom, Oven WPL-1E07600553
...
6
Procelain Broiler (Pan And Grid) WPL-4396923
...
7
Pipe, Oven Heat WPL-1E58700319
...
8
Rack Oven WPL-Y0R01001611
...
9
Support Broiler Unit WPL-7E55400141
...
10
Support Oven Insula WPL-1E17800141
...
11
Tray Broiler Pan WPL-5G06700153

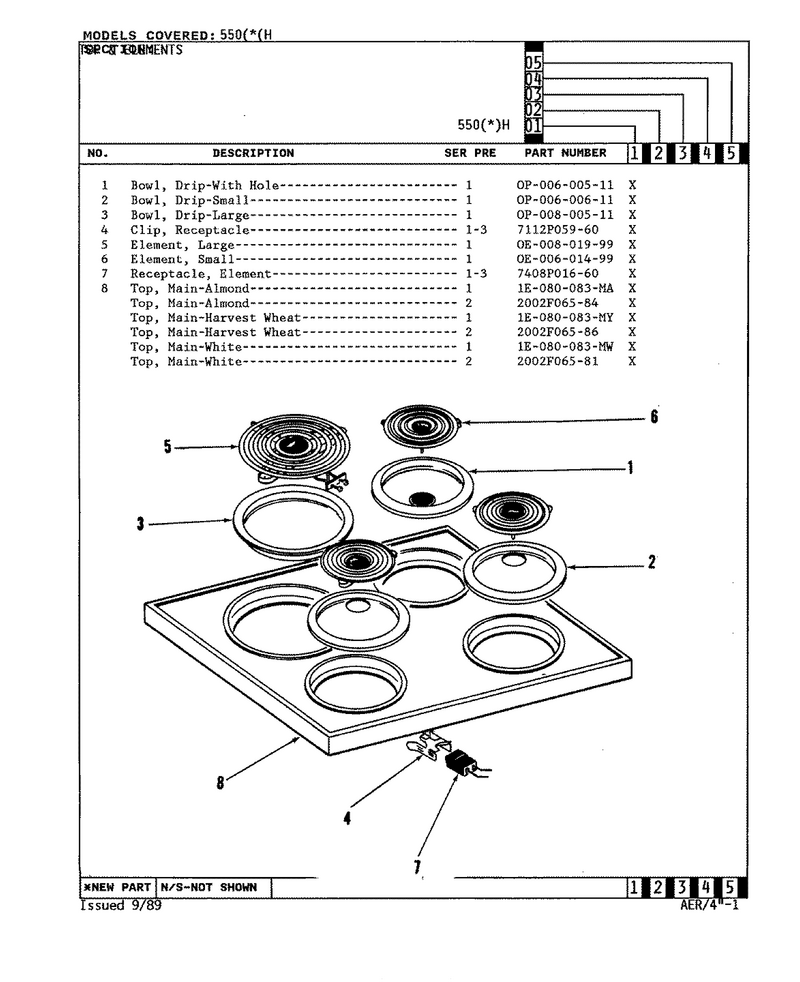

08 - Top Assy.

...
...
1
Bowl-Drip WPL-WPW10196406
...
2
Bowl-Drip WPL-W10196406RW
...
3
Bowl-Drip WPL-WPW10196405
...
4
Receptacle WPL-330031
...
5
Elmnt-Surf WPL-WPY04000035
...
6
Elmnt-Surf WPL-WPY04000036
...
7
Receptacle Assy. WPL-12001676
...
8
Top, Main (Hw) WPL-2002F065-86
