Admiral 1370H-KLZW

Model: 1370H-KLZW

Save Part Not Listed?
product name

Popular Parts

Popular Parts

...
...
1
Adapter, Vent WPL-7G41300342
...
2
Back, Main WPL-7G10009541
...
3
Base, Main Assembly WPL-7G10202841
...
4
Bottom Broiler Comp WPL-7G18600153
...
5
Box, Oven Light WPL-0B03500116
...
6
Box, Vent WPL-7G35801441
...
7
Bracket, Oven Door S WPL-7G03602541
...
8
Light Bulb WPL-8009
...
9
Burner, Oven WPL-7G27501819
...
10
Bushing, Snap WPL-Y0B01000543
...
11
Clip, Capillary WPL-7112P053-60
...
12
Clip, Oven Bottom Plate WPL-1430315
...
13
Cord, Extension WPL-0C03001499
...
14
Cover, Hinge WPL-7G15203041
...
15
Cover, Insulation WPL-7G52202441
...
16
Cover, Light Socket WPL-7G53700341
...
17
Cover Wire Top WPL-7G27200641
...
18
Extension, Vent Box WPL-7G65700745
...
19
Fitting, 1/2`` Npt X WPL-Y0F00300321
...
20
Hinge 703 WPL-9G10706522
...
21
Ignitor, Oven Burner WPL-Y0I00504199
...
22
Louver Vent Bottom WPL-0L00700416
...
23
Louver, Vent Center WPL-0L00700316
...
24
Support, Oven Brnr-F WPL-3807F295-51
...
25
Panel, End-Lt WPL-7G06003741
...
26
Plate, Oven Bottom (K) WPL-3605F122-17
...
27
Plug Male Receptacle WPL-0P01301043
...
28
Rack, Broiler Pan WPL-Y0R00900311
...
29
Runner, Broiler Rack WPL-7808P003-60
...
30
Regulator Pressure WPL-Y0R00301416
...
31
Seal- Door WPL-WP7212P015-60
...
32
Seal- Door WPL-WP7212P006-60
...
33
Shield, Insulation WPL-7G36700999
...
34
Side, Broiler-Rt WPL-7G65900453
...
35
Side, Broiler-Lt WPL-7G65900353
...
36
Sockt-Lite WPL-WP74003387
...
37
Spacer- Do WPL-WP74005232
...
38
Spring, Broiler Door WPL-Y0S01000399
...
39
Spring Oven Door WPL-0S00100399
...
40
Support, Bottom Plate WPL-3807F255-53
...
41
Support, Broiler Dr WPL-7G42700522
...
42
Support, Oven Brnr-F WPL-3807F295-51
...
43
Support, Oven Ignito WPL-9G55404619
...
44
Support, Hinge (Rt) WPL-3807A293-34
...
45
Procelain Broiler (Pan And Grid) WPL-4396923
...
46
Trim, Bottom WPL-0T09902416
...
47
Trim, Cont Panel Bot WPL-0T00500416
...
48
Trim, Side Rt WPL-0T09903416
...
49
Trim, Top WPL-0T09902316
...
50
Valve Cut Off WPL-Y0V03010721
...
51
Valve, Oven Safety WPL-Y0V03431099

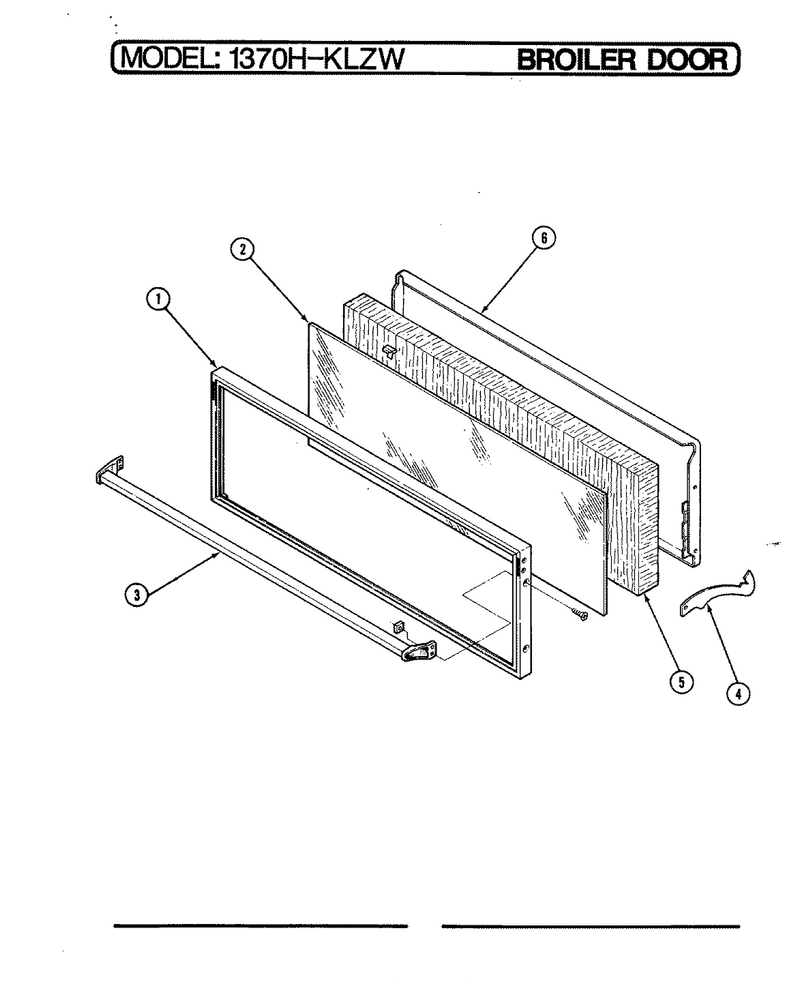

04 - Drawer

...
...
1
Frame, Door WPL-0F02003043
...
2
Glass, Broiler Door WPL-0G00110243
...
3
Handle, Door WPL-0H03029543
...
4
Hinge, Broiler Door WPL-7G11201222
...
5
Insulation Broiler D WPL-0I02010124
...
6
Lining Door Broiler WPL-2404W024-19

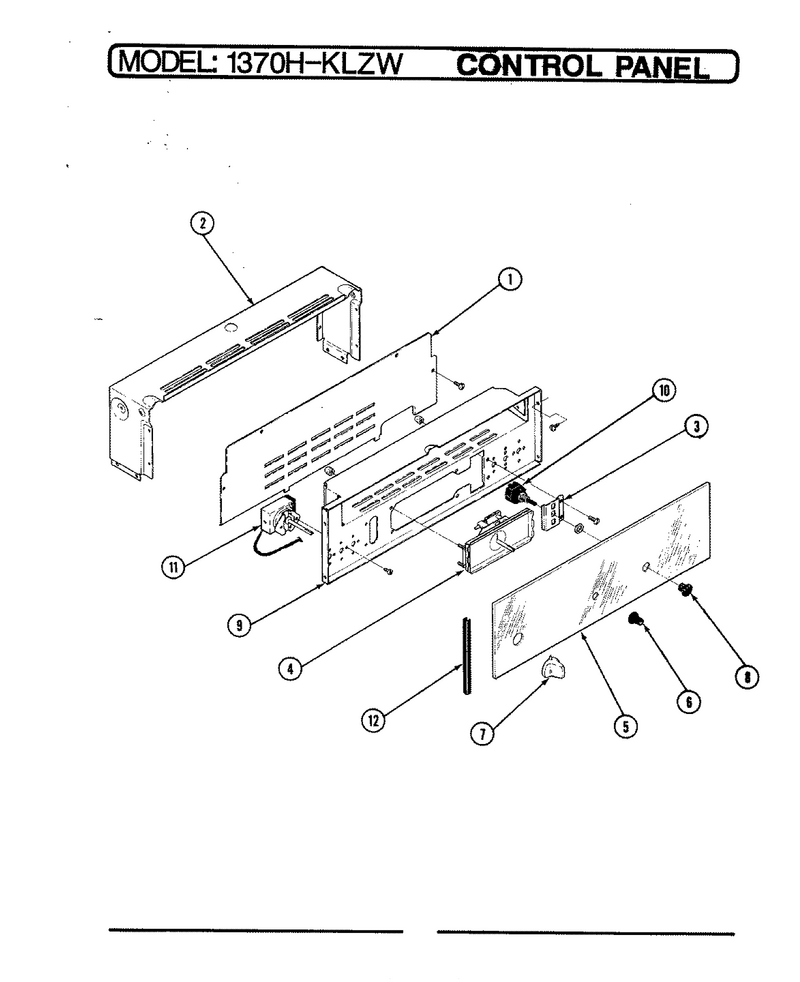

02 - Control Panel

...
...
1
Back Control Box WPL-7G09200341
...
2
Box Control WPL-7G55500241
...
3
Bracket, Switch Mtg WPL-7G64300945
...
4
Clock, Regulator WPL-0C01928043
...
5
Glass, Control WPL-7912P038-60
...
6
Knob- Cloc WPL-WP7711P466-60
...
7
Knob, Oven Control WPL-0K00604411
...
8
Nut, Switch WPL-Y0N03600386
...
9
Support, Clock WPL-7G05313141
...
10
Switch, Oven Light WPL-Y0S03008243
...
11
Control, Oven WPL-Y0C01015599
...
12
Trim, Bkgd. Glass WPL-7G49208043

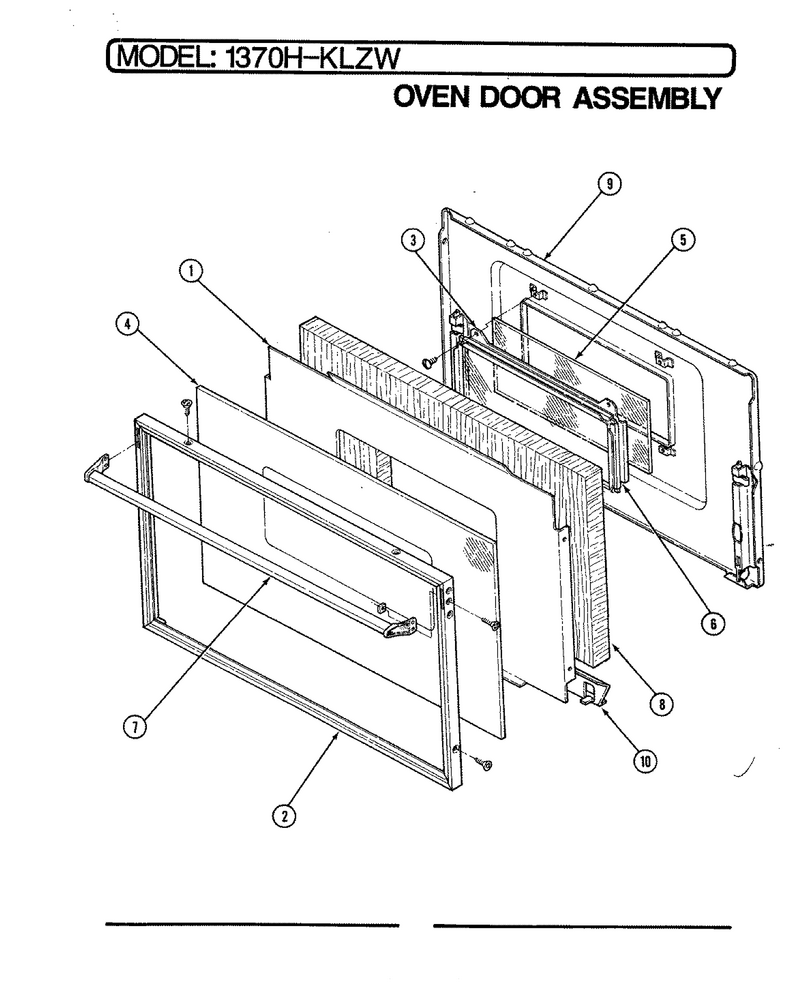

03 - Door

...
...
1
Baffle, Door WPL-3601F140-32
...
2
Frame, Door WPL-7706P189-60
...
3
Frame, Window WPL-7E50100442
...
4
Glass, Oven Door Out WPL-Y0G00108318
...
5
Glass, Oven Door Ins WPL-Y0G00109099
...
6
Glass, Oven Door Cen WPL-0G00109499
...
7
Handle, Door WPL-0H03029543
...
8
Insulation, Oven Doo WPL-0I00600399
...
9
Lining Oven Door WPL-7G01403557
...
10
Retainer, Insulation WPL-7G42400541
