Admiral 1365HW-EZW

Model: 1365HW-EZW

Save Part Not Listed?
product name

02 - Control Panel

...
...
1
Clock WPL-7601P123-60
...
2
Conduit, Flexible WPL-3414P037-44
...
3
Connector, Cable WPL-7417P017-60
...
4
Cover, Wire WPL-4005F150-51
...
5
Cover, Fan WPL-4005F262-51
...
6
Grommet WPL-8008P004-60
...
7
Felt, Disc WPL-8010P050-60
...
8
Light, Indicator WPL-5700A236-60
...
9
Knob, Clock (Button-Wht) WPL-7711P420-60
...
10
Knob, Clock (Wht) WPL-7711P419-60
...
11
Knob, Thermostat WPL-7731P038-60
...
12
Sleeve, Switch (Wht) WPL-7214P023-60
...
13
Plate, Reinforcement WPL-3605F131-51
...
14
Plate, Switch WPL-3605F170-80
...
15
Switch, Push (Wht) WPL-7403P204-60
...
16
Switch, Selector WPL-7403P023-60
...
17
Insulation Thermostat WPL-7003P033-60
...
18
Screw W/washer (Blk) WPL-7101P280-60
...
19
Plate, Conduit WPL-3605F164-51
...
20
Screw WPL-WP7101P126-60
...
21
Screw WPL-7101P079-60
...
22
Thermostat, Lower WPL-7404P042-60
...
23
Shaft, Clock WPL-8312P017-60

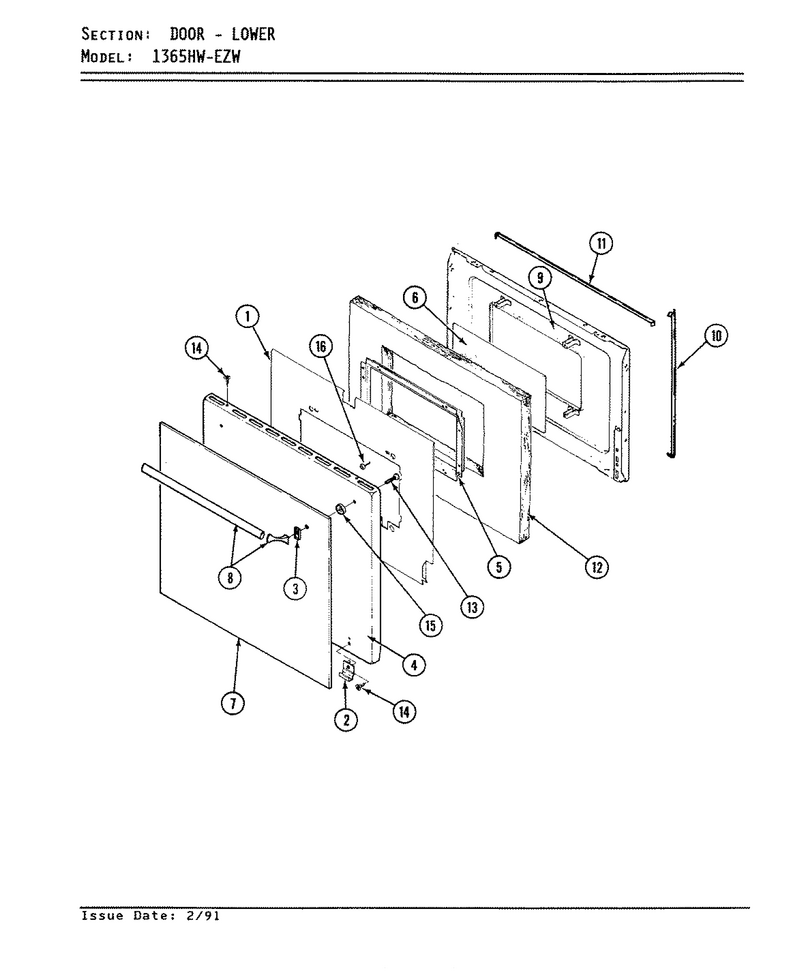

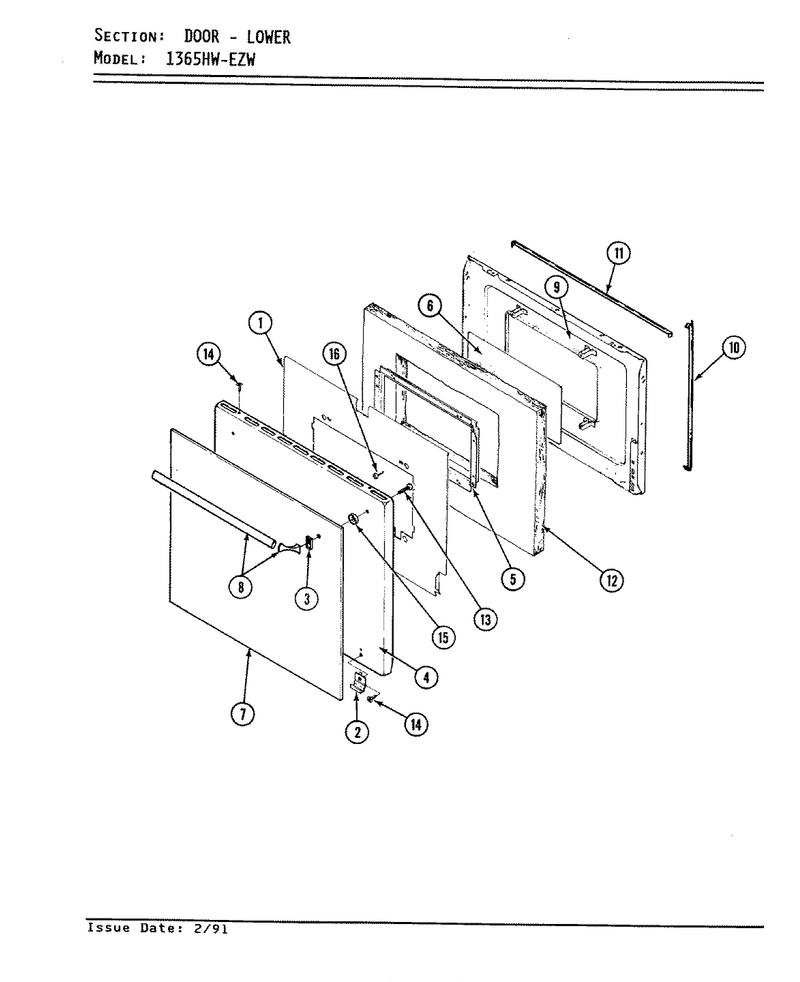

03 - Door (lower)

...
...
1
Baffle, Door WPL-3601F103-51
...
2
Clip,glass Retainer (Wht) WPL-3819F010-71
...
3
Spacer, Door Handle WPL-8010P054-60
...
4
Panel, Door (Wht) WPL-2401F104-71
...
5
Frame, Window----Na WPL-3603F013-80
...
6
Glass-Door WPL-WP7902P715-60
...
7
Seal, Glass WPL-7208P001-60
...
8
Handle, Door (Wht) WPL-7701P086-60
...
9
Lining, Door WPL-2402W132-19
...
10
Seal- Door WPL-WP7212P007-60
...
11
Seal- Door WPL-WP7212P006-60
...
12
Insulation, Door Lower WPL-7002P019-60
...
13
Screw WPL-WP4381696
...
14
Screw WPL-74009538
...
15
Spacer, Door Glass (Blk) WPL-74003986
...
16
Screw WPL-WP7101P126-60

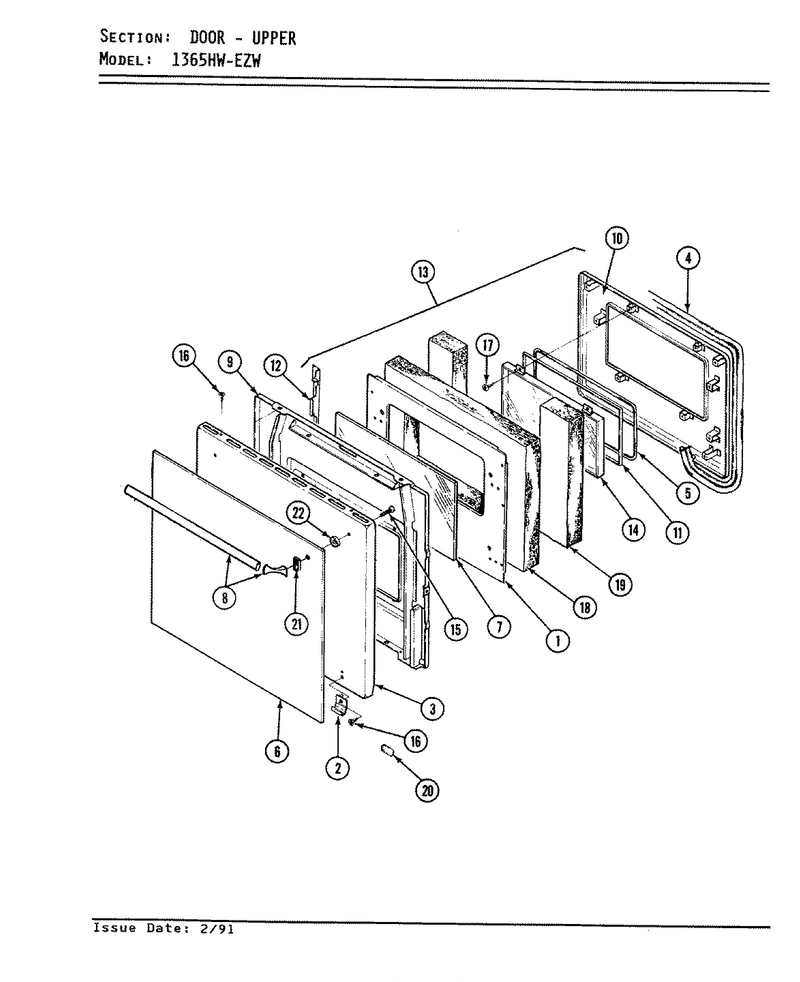

04 - Door (upper)

...
...
1
Baffle, Door Assembly WPL-3601W131-51
...
2
Clip,glass Retainer (Wht) WPL-3819F010-71
...
3
Panel, Door (Wht) WPL-2401F103-71
...
4
Gasket WPL-7201P004-60
...
5
Gasket WPL-7201P020-60
...
6
Glass, Outer (Wht) WPL-7902P334-60
...
7
Glass, Inner WPL-7902P097-60
...
8
Handle, Door (Wht) WPL-7701P086-60
...
9
Label (Cleaning Inst.) WPL-8114P274-60
...
10
Pad, Door WPL-2410W042-19
...
11
Retainer, Gasket WPL-3804F021-45
...
12
Retainer, Glass WPL-3804F051-80
...
13
Pad, Oven Door WPL-2410A042-15
...
14
Window Assy. WPL-5700A082-60
...
15
Screw WPL-7101P004-60
...
16
Screw WPL-74009538
...
17
Screw WPL-WP7101P126-60
...
18
Insulation, Door----Na WPL-7002P023-60
...
19
Insulation, Door WPL-7002P021-60
...
20
Seal-Strip WPL-WP854334
...
21
Spacer, Door Handle WPL-8010P054-60
...
22
Spacer, Door Glass (Blk) WPL-74003986

05 - Oven

...
...
1
Screw, Metal Grounding WPL-7101P287-60
...
2
Baffle, Base WPL-3601F005-80
...
3
Receptacle, Lamp WPL-7408P002-60
...
4
Base, Wall Oven WPL-4003F011-80
...
5
Bottom, Oven (Lower) WPL-2205F004-19
...
6
Bottom, Oven (Upper) WPL-2205F003-15
...
7
Bumper, Door (Square) WPL-8003P009-60
...
8
Gasket WPL-7201P016-60
...
9
Clip- Ther WPL-WP7112P004-60
...
10
Clip, Oven Front WPL-7112P020-60
...
11
Elmnt-Bake WPL-WPY04000066
...
12
Element- B WPL-WPY04000048
...
13
Gasket, Element WPL-7201P003-60
...
14
Bracket WPL-3801F024-51
...
15
Gasket, Lamp Retainer WPL-7201P015-60
...
16
Glass, Lamp Guard WPL-7902P057-60
...
17
Hinge, Upper WPL-7106A019-60
...
18
Procelain Broiler (Pan And Grid) WPL-4396923
...
19
Insulation, Lamp Housing WPL-7002P094-60
...
20
Procelain Broiler (Pan And Grid) WPL-4396923
...
21
Rack, Oven (Flat) WPL-71003346
...
22
Rack-Oven WPL-WPW10273818
...
23
Retainer, Bottom Insulation WPL-3804F104-51
...
24
Retainer, Insulation WPL-3804F054-51
...
25
Retainer WPL-3804F011-45
...
26
Support, Broil Element WPL-3807F176-15
...
27
Support WPL-3807F135-80
...
28
Gasket, Housing WPL-7201P014-60
...
29
Leg, Leveling WPL-Y7101P25460

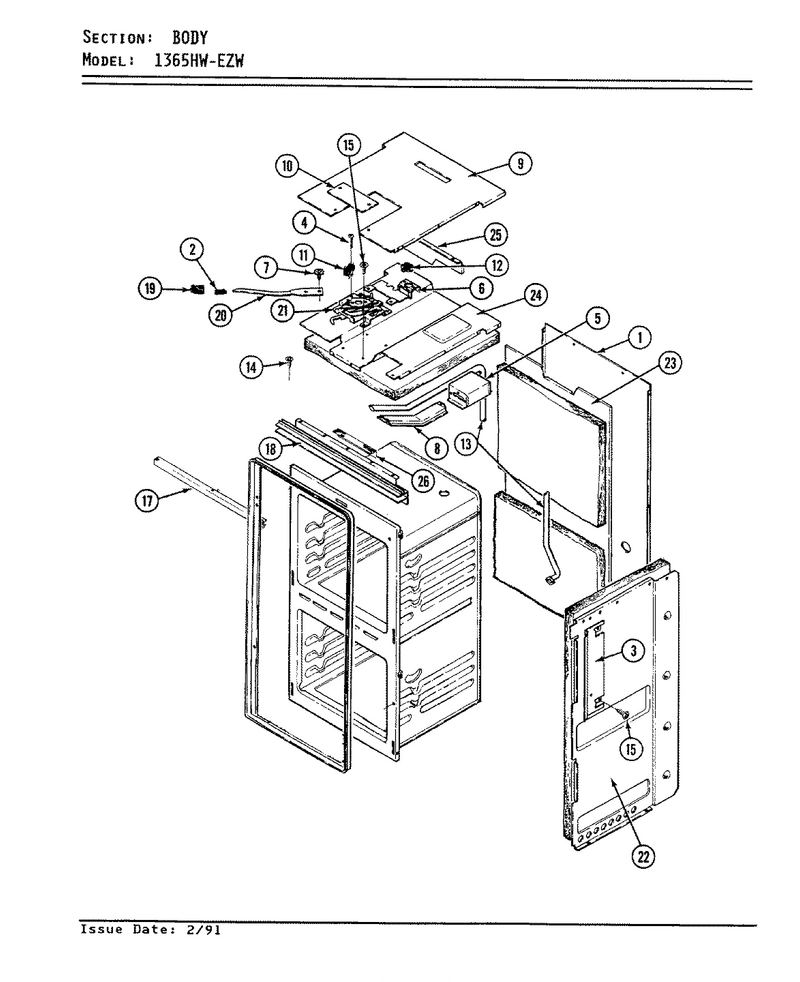

01 - Body

...
...
1
Back, Main WPL-4002F143-51
...
2
Clip, Latch Handle WPL-7112P003-60
...
3
Baffle, Side WPL-3601F130-51
...
4
Screw, Switch WPL-7101P035-60
...
5
Box, Vent WPL-4006W046-15
...
6
Bracket, Hi Limit WPL-3801F128-45
...
7
Screw WPL-WP4159193
...
8
Channel, Vent Assembly WPL-3818W002-15
...
9
Cover, Box WPL-4005F202-51
...
10
Cover, Lock WPL-4005F160-45
...
11
Switch, Door Lock WPL-7403P007-60
...
12
Switch, High Limit WPL-7403P063-60
...
13
Tube, Oven Vent WPL-8026P014-60
...
14
Nut, Snap WPL-7103P051-60
...
15
Screw WPL-WP7101P126-60
...
16
Extrusion, Front Frame WPL-7750P027-60
...
17
Extension Top Front WPL-7756P048-60
...
18
Extrusion, Vent WPL-7756P032-60
...
19
Handle, Latch (Wht) WPL-7701P089-60
...
20
Lever, Latch WPL-8009P011-60
...
21
Insulator WPL-7003P001-60
...
22
Panel, Side Right WPL-2618F055-51
...
23
Retainer, Rear WPL-3804F101-51
...
24
Retainer,top WPL-3804F053-51
...
25
Shield, Air WPL-3604F101-80
...
26
Shield, Terminal WPL-3604F048-80
