Admiral 1365H-EZW

Model: 1365H-EZW

Save Part Not Listed?
product name

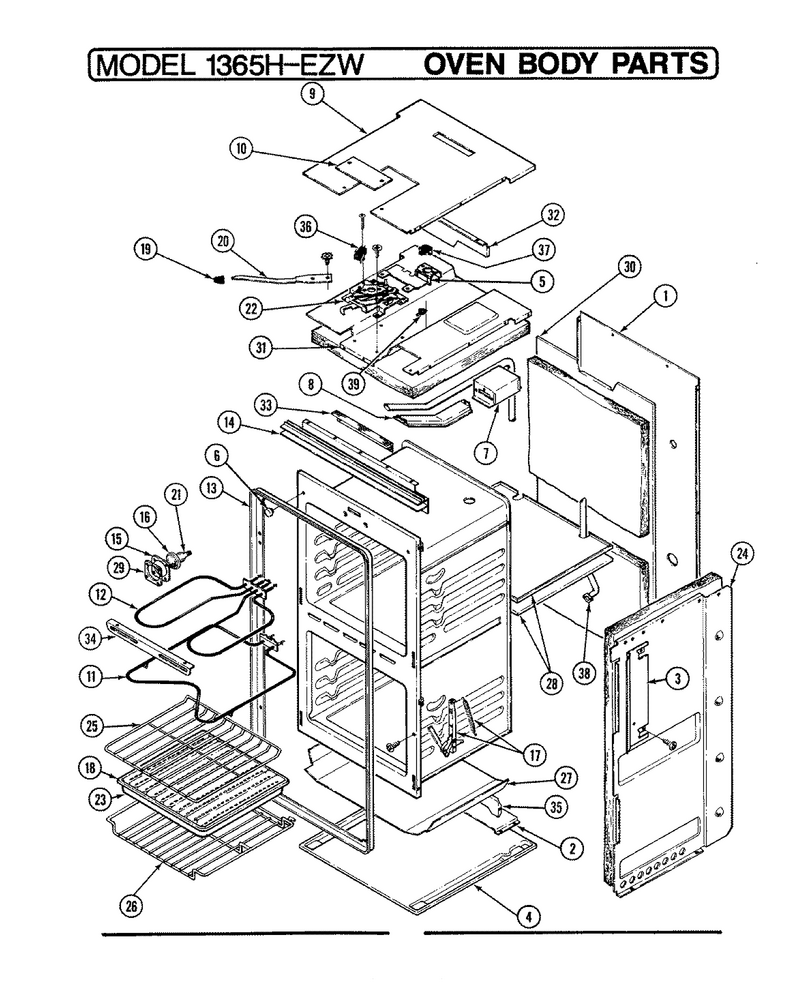

01 - Body

...
...
1
Back Main WPL-4002F079-51
...
2
Baffle, Base WPL-3601F005-80
...
3
Baffle, Side WPL-3601F130-51
...
4
Block, Terminal----Na WPL-7401P003-60
...
5
Bracket, Hi Limit WPL-3801F128-45
...
6
Bumper Door (Round) WPL-8003P002-60
...
7
Box, Vent WPL-4006W046-15
...
8
Channel, Vent Assembly WPL-3818W002-15
...
9
Cover, Box WPL-4005F202-51
...
10
Cover, Lock WPL-4005F160-45
...
11
Elmnt-Bake WPL-WPY04000066
...
12
Element- B WPL-WPY04000048
...
13
Extrusion, Frt Frame WPL-7706P157-60
...
14
Extrusion, Vent (Blk) WPL-7756P022-60
...
15
Gasket, Housing WPL-7201P014-60
...
16
Glass, Lamp Guard WPL-7902P057-60
...
17
Hinge, Upper Door WPL-7106A012-60
...
18
Insert, Broil Pan WPL-3413F002-23
...
19
Handle, Latch (Blk) WPL-7701P068-60
...
20
Lever, Latch WPL-8009P011-60
...
21
Light Bulb WPL-8009
...
22
Latch Assembly WPL-8002P072-60
...
23
Procelain Broiler (Pan And Grid) WPL-4396923
...
24
Panel, Side Right WPL-2618F055-51
...
25
Rack, Oven (Flat) WPL-71003346
...
26
Rack-Oven WPL-WPW10273818
...
27
Retainer, Bottom WPL-3804W034-51
...
28
Retainer, Insulation WPL-3804F054-51
...
29
Retainer WPL-3804F011-45
...
30
Ret Rear Insul WPL-3804F052-51
...
31
Retainer,top WPL-3804F053-51
...
32
Shield, Air WPL-3604F101-80
...
33
Shield, Terminal WPL-3604F048-80
...
34
Support, Broil Element WPL-3807F176-15
...
35
Support WPL-3807F135-80
...
36
Switch, Door Lock WPL-7403P007-60
...
37
Switch, High Limit WPL-7403P063-60
...
38
Tube, Oven Vent WPL-8026P014-60
...
39
Switch, Door Lock WPL-7403P007-60

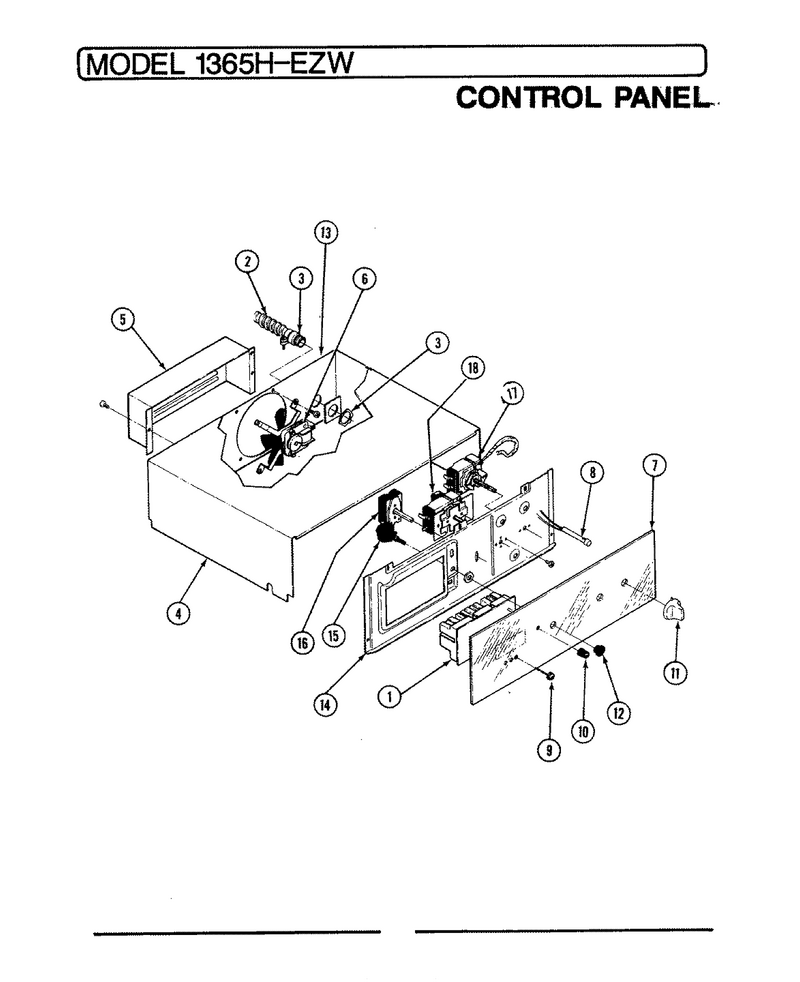

02 - Control Panel

...
...
1
+ Clock WPL-7601P047-60
...
2
Conduit, Flexible WPL-7434P006-60
...
3
Connector, Cable WPL-7417P003-60
...
4
Cover, Wire WPL-4005F150-51
...
5
Cover, Fan WPL-4005F177-51
...
6
Fan Assembly WPL-7427P006-60
...
7
Glass, Control WPL-7912P017-60
...
8
Light, Indicator----Na WPL-7407P007-60
...
9
Knob WPL-W11238392
...
10
Knob, Clock (Blk) WPL-7711P172-60
...
11
Knob (Chr) WPL-7711P291-60
...
12
Sleeve, Switch (Blk) WPL-7214P007-60
...
13
Plate, Reinforcement WPL-3605F131-51
...
14
Plate, Backing WPL-3605F113-80
...
15
Switch, Push (Blk) WPL-7403P109-60
...
16
Switch, Selector WPL-7403P023-60
...
17
Thermostat, Lower WPL-7404P042-60
...
18
Thermostat, Upper WPL-7404P039-60

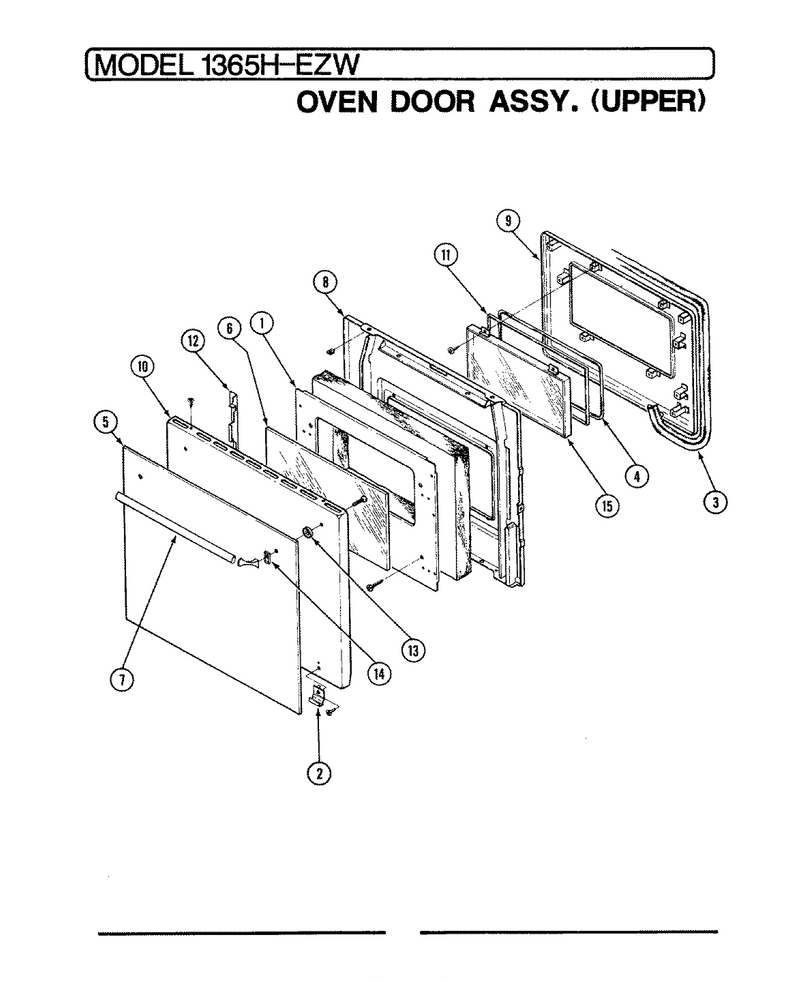

03 - Door (upper)

...
...
1
Baffle, Upper Door WPL-3601F102-51
...
2
Clip, Glass (Blk) WPL-7112P093-60
...
3
Gasket WPL-7201P004-60
...
4
Gasket WPL-7201P020-60
...
5
Dr Glass Black WPL-7902P106-60
...
6
Glass, Inner WPL-7902P097-60
...
7
Handle, Door (Blk) WPL-7701P024-60
...
8
Lining Assy, Oven Door WPL-2402W133-15
...
9
Pad, Door WPL-2410W034-15
...
10
Panel, Oven Door WPL-2401F045-70
...
11
Retainer, Gasket WPL-3804F021-45
...
12
Retainer, Glass WPL-3804F051-80
...
13
Spacer, Door Glass (Blk) WPL-74003986
...
14
Spacer, Door Handle WPL-8010P028-60
...
15
Window Assy. WPL-5700A082-60

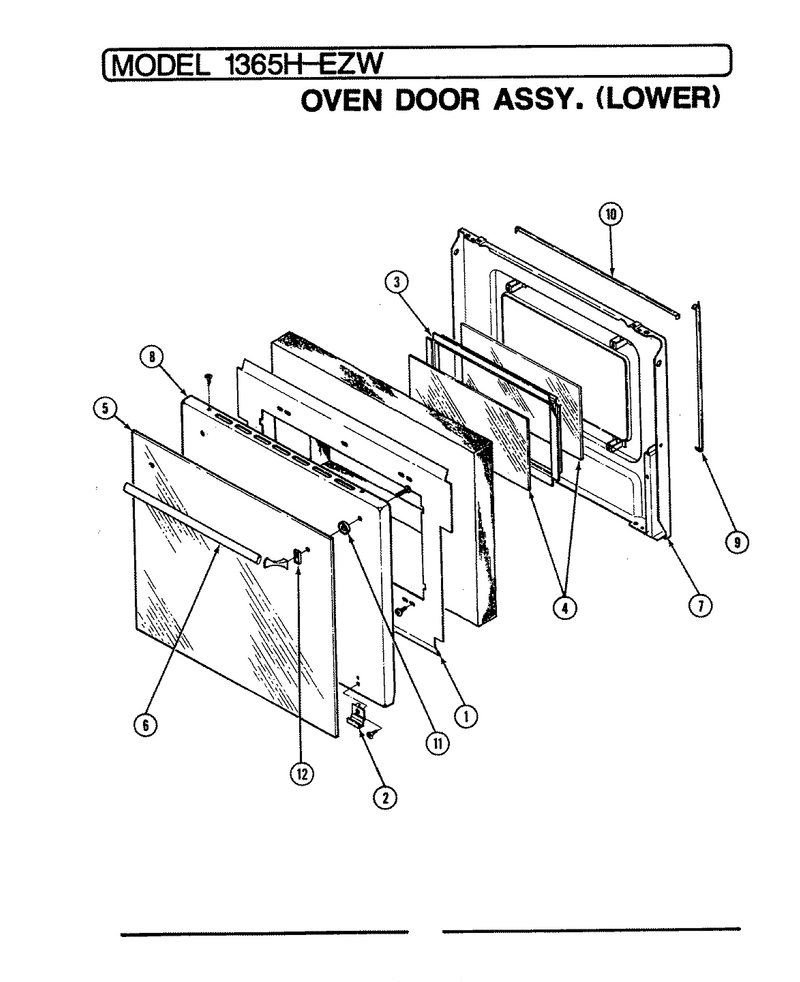

04 - Oven Door Assy. (lower)

...
...
1
Baffle, Door WPL-3601F103-51
...
2
Clip, Glass (Blk) WPL-7112P093-60
...
3
Frame, Window WPL-7706P128-60
...
4
Glass-Door WPL-WP7902P715-60
...
5
Glass, Door WPL-7902P129-60
...
6
Handle, Door (Blk) WPL-7701P024-60
...
7
Lining Assy, Oven Door WPL-2402W133-15
...
8
Panel, Oven Door WPL-2401F054-70
...
9
Seal- Door WPL-WP7212P007-60
...
10
Seal- Door WPL-WP7212P006-60
...
11
Spacer, Door Glass (Blk) WPL-74003986
...
12
Spacer, Door Handle WPL-8010P028-60
