Admiral 1255WF-CLZ

Model: 1255WF-CLZ

Save Part Not Listed?
product name

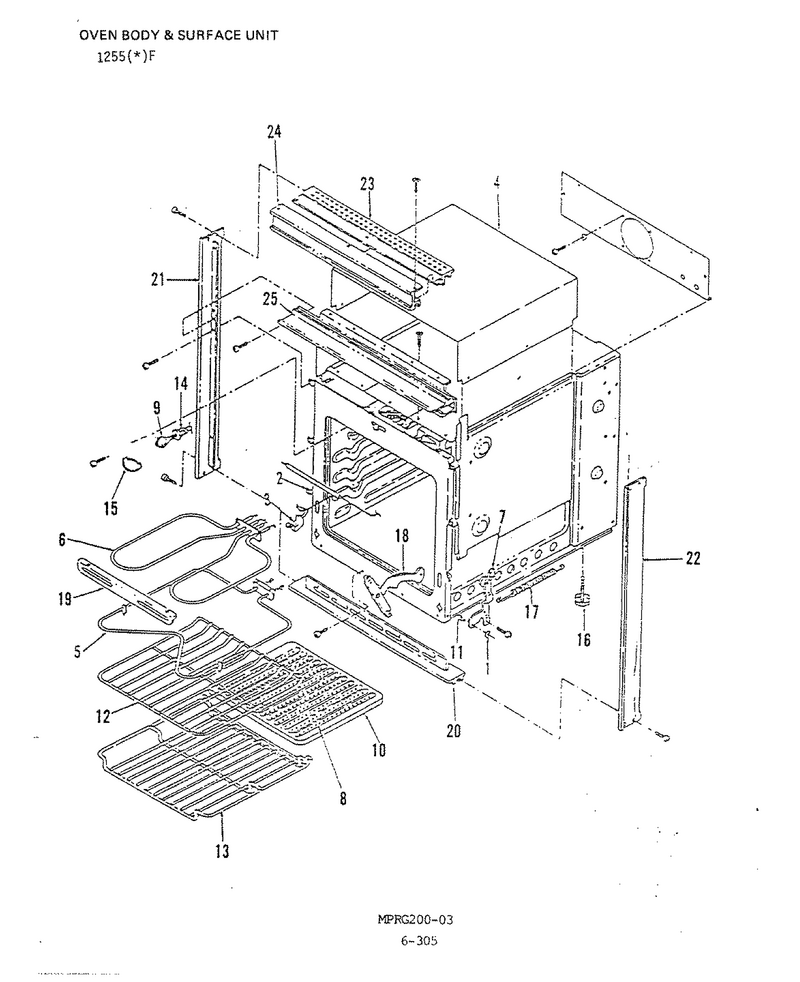

01 - Body

...
...
1
Ring, Snap WPL-1013214
...
2
Clip WPL-1141227
...
3
Clip- Ther WPL-WP7112P004-60
...
4
Cover, Wire WPL-4005F150
...
5
Elmnt-Bake WPL-WPY04000066
...
6
Element- B WPL-WPY04000048
...
7
Hinge, Oven Door (Rt) WPL-3418F025-34
...
8
Insert WPL-WP3413F018-19
...
9
Light Bulb WPL-8009
...
10
Procelain Broiler (Pan And Grid) WPL-4396923
...
11
Pin, Hinge WPL-7113P002-60
...
12
Rack WPL-1636242
...
13
Rack WPL-1636246
...
14
Receptacle, Oven Light WPL-1657202
...
15
Cover WPL-0329216
...
16
Screw WPL-WP98008545
...
17
Spring WPL-1790308
...
19
Support, Broil Element WPL-Y0862419
...
20
Extrusion, Bottom (Blk) WPL-7706P153-60
...
21
Extrusion, Side-L WPL-7706P117-60
...
22
Extrusion, Side-R WPL-7706P118-60
...
23
Extrusion, Top WPL-7706P114-60
...
24
Extrusion, Top Front WPL-7706P115-60
...
25
Trim, Vent WPL-7706P136-60

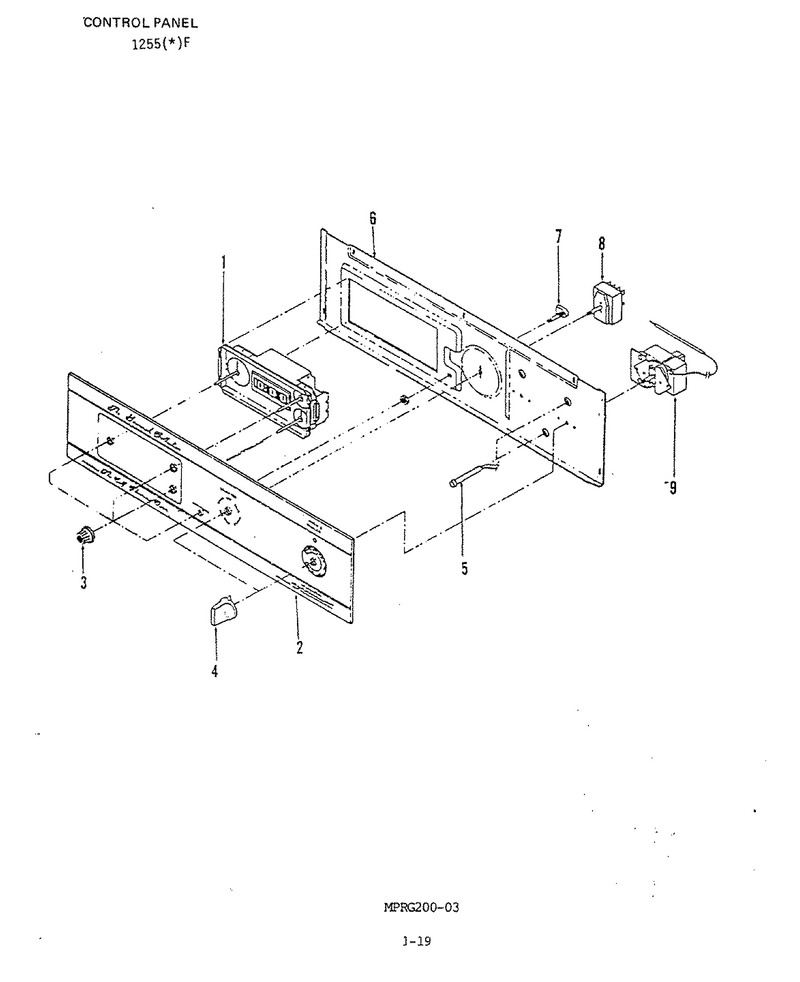

02 - Control Panel

...
...
1
Clock WPL-7601P049-60
...
2
Glass, Control WPL-7902P080-60
...
3
Knob- Cloc WPL-WP7711P466-60
...
4
Knob, Selector WPL-1362231
...
5
Bkgd Mtng Kit WPL-1430252
...
6
Plate, Backing WPL-0719286
...
8
Switch- Se WPL-WP7403P172-60
...
9
Thermostat WPL-7404P028-60

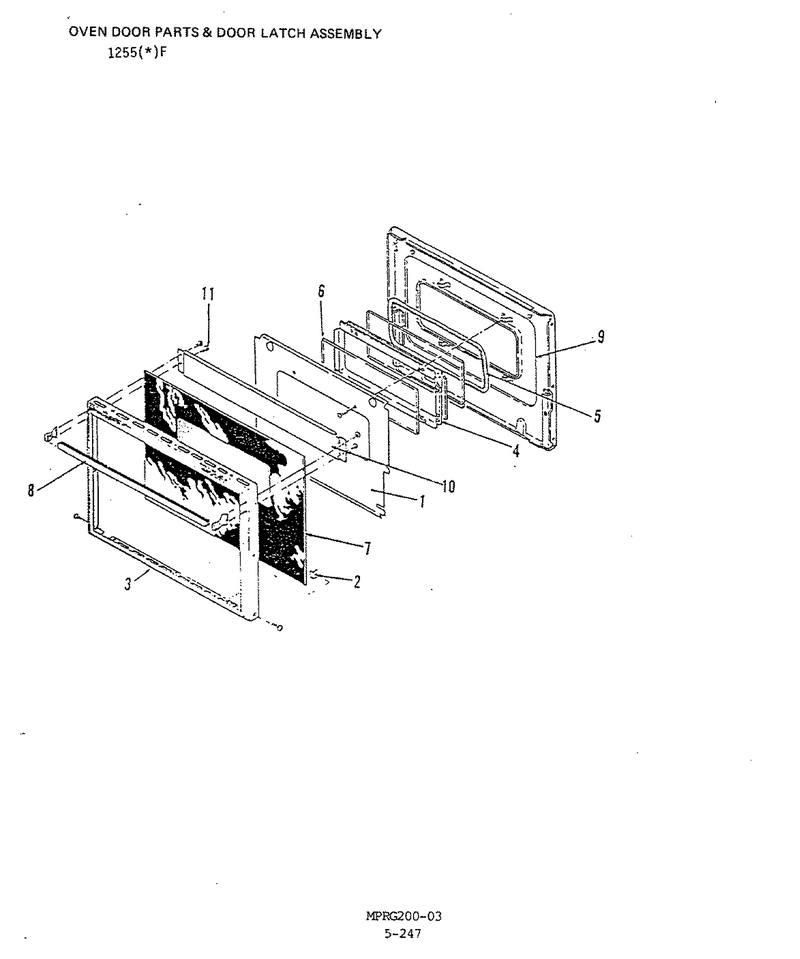

03 - Door & Latch Assy.

...
...
1
Baffle WPL-0153281
...
2
Clip WPL-0319202
...
4
Frame Assy. WPL-0462235
...
5
Gasket WPL-1313263
...
6
Glass WPL-1327177
...
7
Handle, Door WPL-1355254
...
9
Lining,window Ovn Dr WPL-0602342
...
10
Support, Glass WPL-3804J038
...
11
Spacer WPL-1783218
