product name

Admiral 1151WH-36G

Model: 1151WH-36G

Save Part Not Listed?
product name

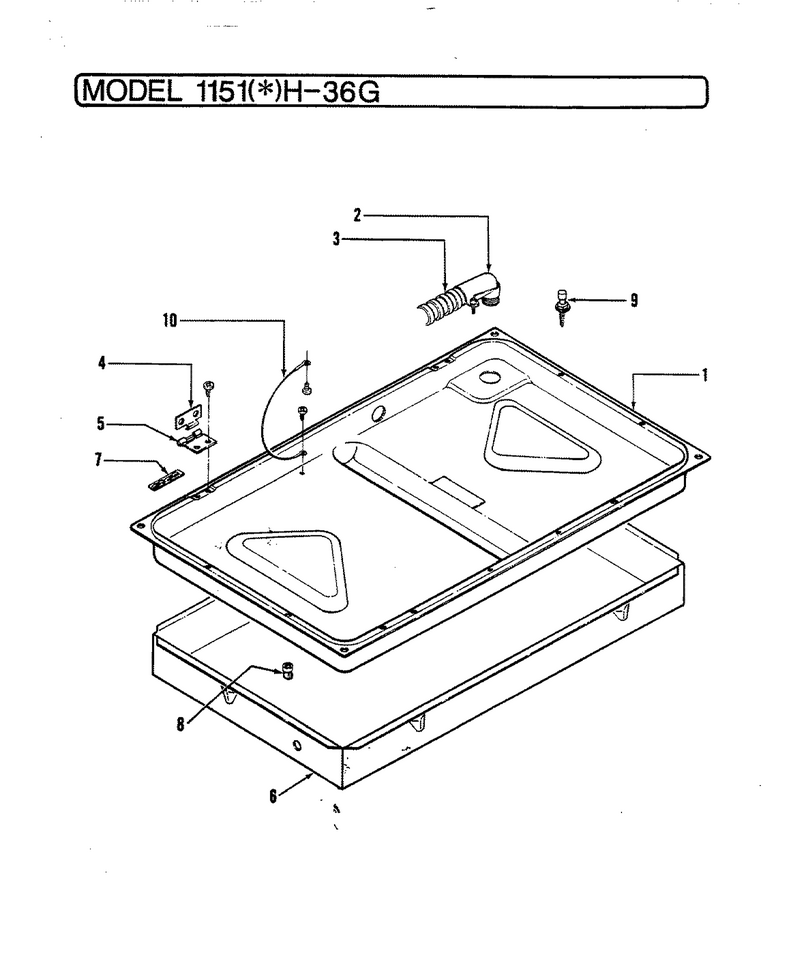

01 - Burner Box Assy.

...
...
1
Bottom, Burner Box WPL-4E10104245
...
2
Conduit, Connector WPL-0G02600341
...
3
Conduit, Flexible WPL-4G44400216
...
4
Hinge, Top WPL-Y0H01400311
...
5
Hinge, Top W/pin WPL-Y0H01400411
...
6
Housing, Unit WPL-4E23000341
...
7
Nut, Twin Speed WPL-0N10001499
...
8
Nut, Snap 1/4x1/4 WPL-0N10001199
...
9
Spacer, Top WPL-0S03501722
...
10
Strap, Cable WPL-0S05200199

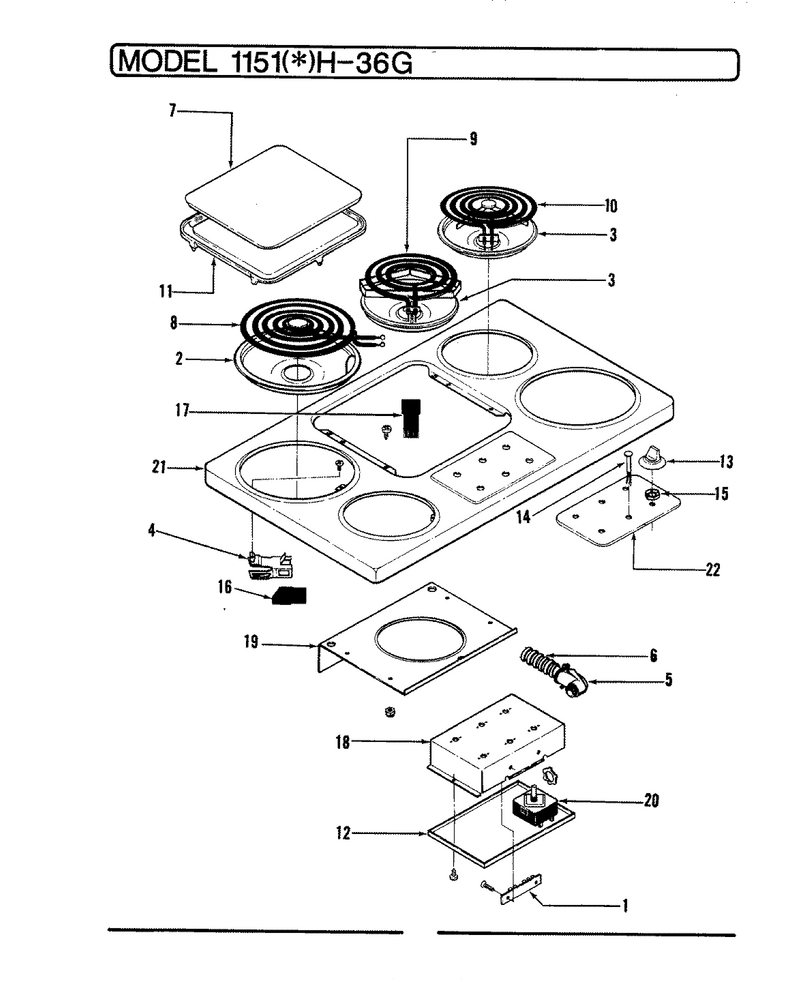

02 - Top Assembly

...
...
1
Block, Terminal WPL-0B00200699
...
2
Bowl-Drip WPL-WPW10196405
...
3
Bowl-Drip WPL-WPW10196406
...
4
Clip, Unit Block WPL-7112P026-60
...
5
Conduit, Connector WPL-0C20600341
...
6
Conduit, Flexible WPL-4E44400216
...
7
Cover, Griddle WPL-4G276025MB
...
8
Elmnt-Surf WPL-WP3191454
...
9
Element, Unit Griddl WPL-0E00601999
...
10
Elmnt-Surf WPL-WP660532
...
11
Griddle WPL-Y0G00501916
...
12
Housing, Switch WPL-4E23000145
...
13
Knob- Swit WPL-WP7737P026-60
...
14
Light, Signal WPL-Y0L00605499
...
15
Nut, Switch Mounting WPL-Y0N03600426
...
16
Receptacle, Surface WPL-0R01200299
...
17
Receptacle, Surface Element WPL-0R01200499
...
18
Housing, Switch WPL-4E23000145
...
19
Support, Griddle WPL-4E554056MB
...
20
Switch-Inf WPL-W10900107
...
21
Top, Main White WPL-4E080086MW
