Admiral 1151WH-30

Model: 1151WH-30

Save Part Not Listed?
product name

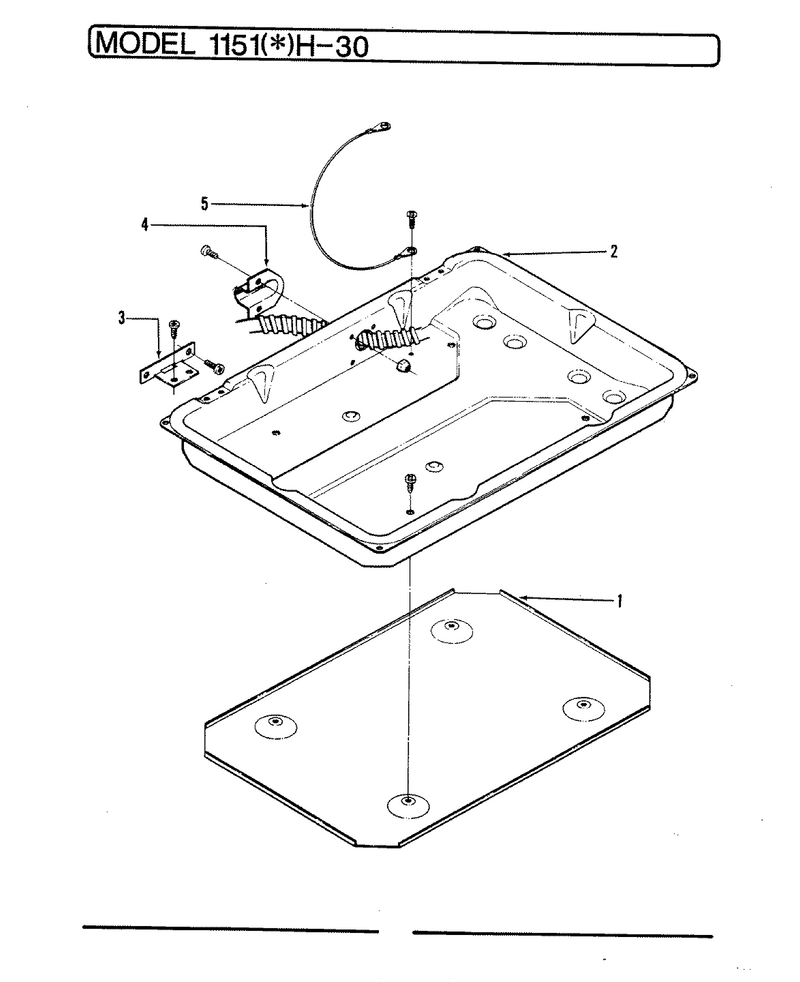

01 - Burner Box Assy.

...
...
1
Baffle, Bottom WPL-4E61701341
...
2
Bottom, Burner Box WPL-4E10104645
...
3
Hinge, Top WPL-0H01400511
...
4
Retainer, Flex Tubin WPL-4E42403126
...
5
Strap, Cable WPL-0S05200199

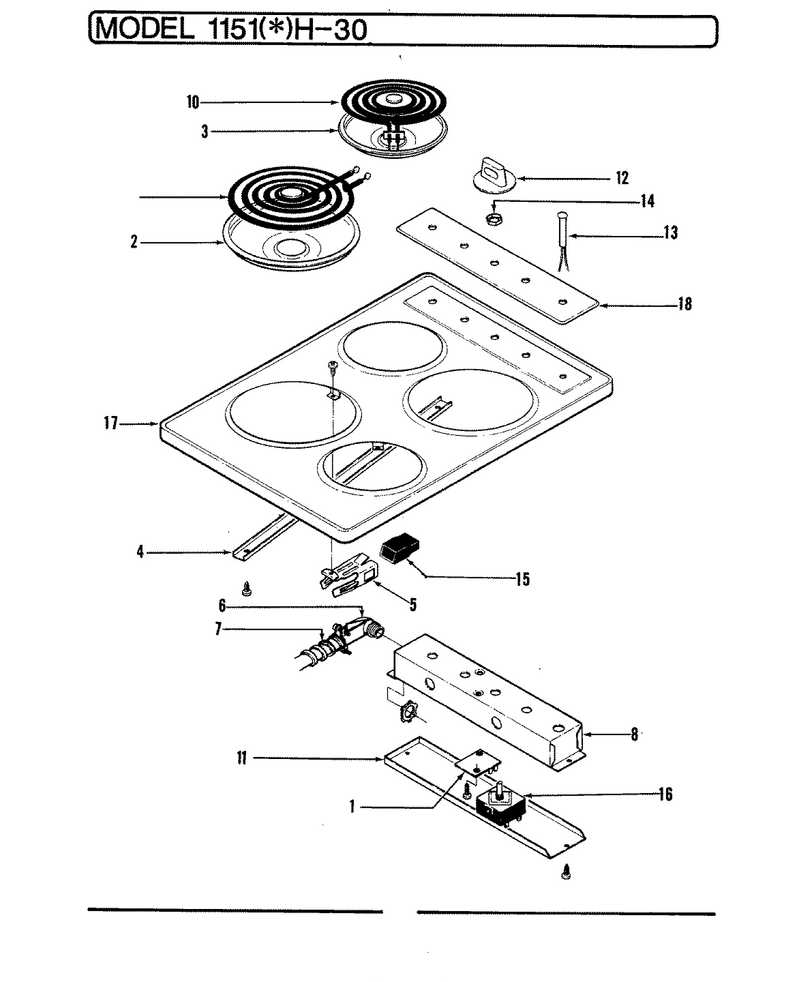

02 - Top Assy.

...
...
1
Block, Terminal WPL-Y0B00200799
...
2
Bowl-Drip WPL-WPW10196405
...
3
Bowl-Drip WPL-WPW10196406
...
4
Brace, Main Top WPL-4E65603147
...
5
Clip, Unit Block WPL-7112P026-60
...
6
Connector, Conduit WPL-Y0C02600341
...
7
Conduit, Flexible WPL-4E44400216
...
8
Cover, Switch Housin WPL-4E27202945
...
9
Elmnt-Surf WPL-WP3191454
...
10
Element Surface WPL-0E00801599
...
11
Housing, Switch WPL-4E23000545
...
12
Knob- Swit WPL-WP7737P026-60
...
13
Light, Signal WPL-Y0L00605499
...
14
Nut, Switch Mounting WPL-Y0N03600426
...
15
Receptacle Assy. WPL-12001676
...
16
Switch-Inf WPL-W10900107
...
17
Top, Main White WPL-4E080090MW
...
18
Trim, Control WPL-0T00500816
