Admiral 1151WD-30

Model: 1151WD-30

Save Part Not Listed?
product name

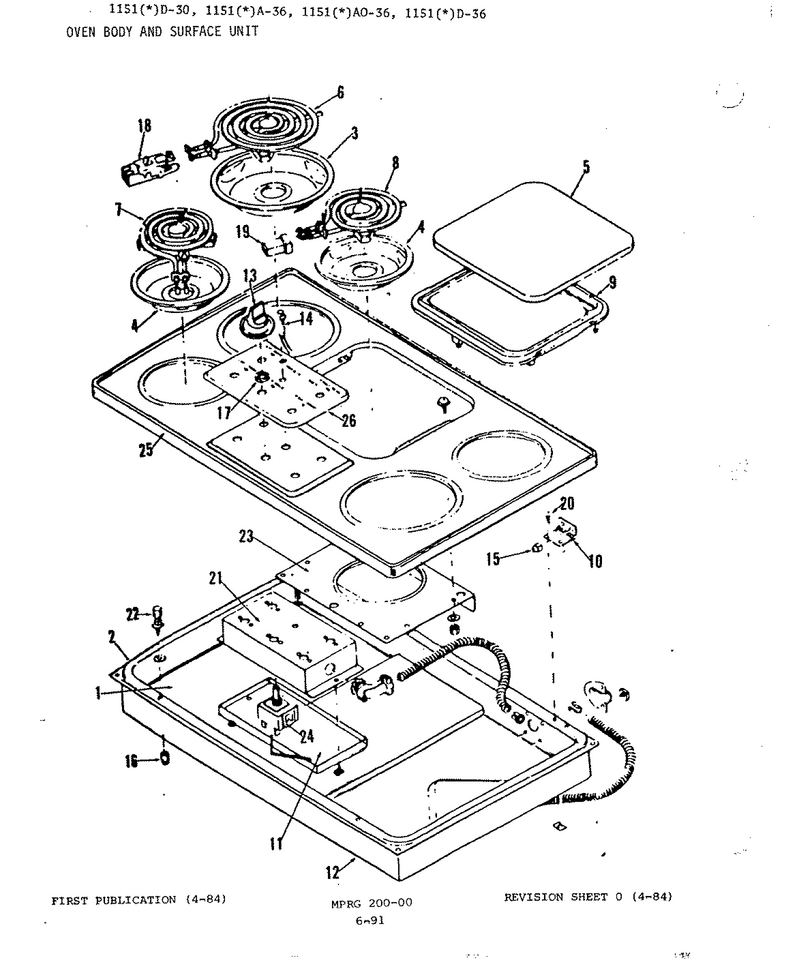

01 - Top Assembly

...
...
1
Block WPL-1867212
...
2
Bottom, Burner Box WPL-0237127
...
3
Bowl-Drip WPL-WPW10196405
...
4
Clamp WPL-1140201
...
5
Cover WPL-0329211S
...
6
Elmnt-Surf WPL-WP3191454
...
7
Elmnt-Surf WPL-WP660532
...
10
Hinge WPL-1376238
...
11
Housing WPL-0537248
...
12
Housing WPL-0537249
...
13
Knob- Surf WPL-WP7711P147-60
...
14
Light, Indicator WPL-1406214
...
15
Double Speed Clip WPL-1555252
...
16
Nylon Nut WPL-1555256
...
17
Nut WPL-1555246
...
18
Receptacle Assy. WPL-12001676
...
20
Screw WPL-WP74004005
...
21
Spacer WPL-1783232
...
23
Support WPL-0862379
...
25
Top Assy, Main WPL-2002W044-94
...
26
Trim WPL-1916195
