Admiral 1058WH-W

Model: 1058WH-W

Save Part Not Listed?
product name

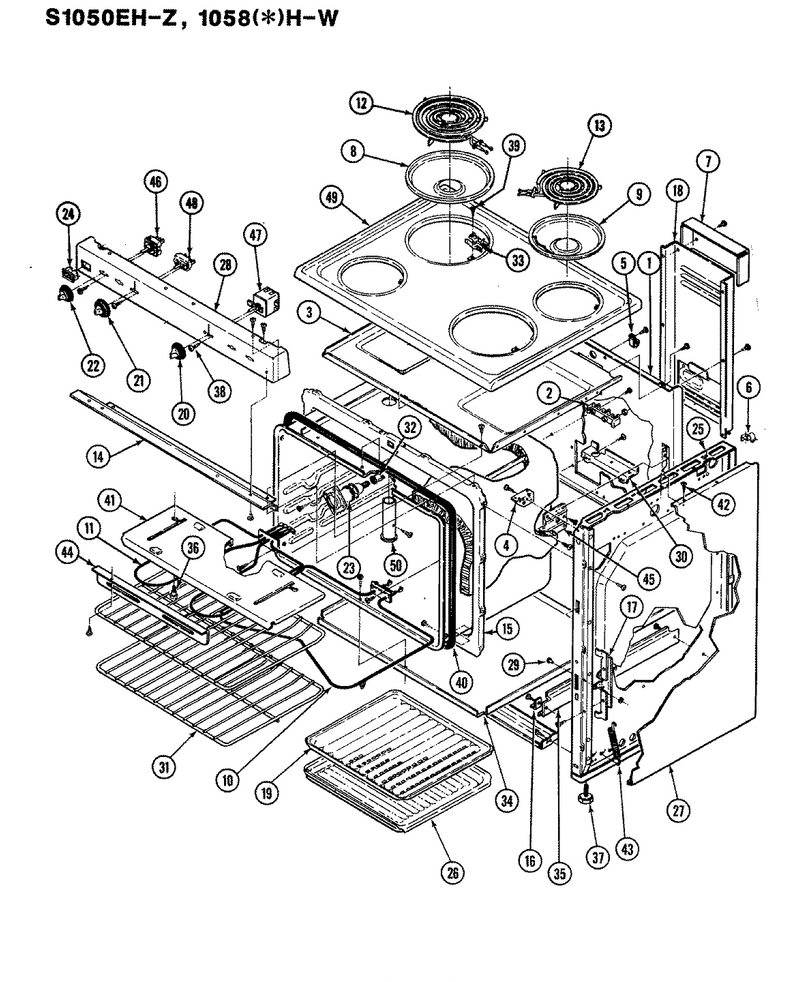

01 - Body

...
...
1
Back, Main WPL-4002F092-20
...
2
Block-Term WPL-WPW10245259
...
3
Brace WPL-3802F003-20
...
4
Bracket,control Panel (L) WPL-3801F049-34
...
5
Clamp, Wire 3/4 WPL-7111P002-60
...
6
Clip, Top Retainer WPL-7112P030-60
...
7
Cover, Housing WPL-4005F082-80
...
8
Bowl-Drip WPL-WPW10196405
...
9
Bowl-Drip WPL-WPW10196406
...
10
Element- B WPL-WPY04000041
...
11
Element- B WPL-WPY04000048
...
12
Elmnt-Surf WPL-WPY04000035
...
13
Elmnt-Surf WPL-WPY04000036
...
14
Front, Burner Box WPL-4012F013-80
...
15
Front, Frame Oven WPL-2201F032-23
...
16
Spacer- Hi WPL-WP8010P069-60
...
17
Housing WPL-4001F016-11
...
18
Housing, Main Wire WPL-4001F034-20
...
19
Procelain Broiler (Pan And Grid) WPL-4396923
...
20
Knob- Surf WPL-WP7711P219-60
...
21
Knob- Ther WPL-WP7711P159-60
...
22
Knob- Sele WPL-WP7711P220-60
...
23
Light Bulb WPL-8009
...
24
Block, Terminal WPL-7401P015-60
...
25
Lining Assy, Inner Side WPL-4009W028-80
...
26
Procelain Broiler (Pan And Grid) WPL-4396923
...
27
Panel, Side (Wht) WPL-2618F052-71
...
28
Panel, Upper Front WPL-2614F006-81
...
29
Pin, Hinge WPL-7113P002-60
...
30
Plate, Conduit WPL-3605F031-80
...
31
Rack, Oven WPL-7801P030-60
...
32
Receptacle, Lamp WPL-7408P002-60
...
33
Block, Surface Unit WPL-7401P014-60
...
34
Retainer, Bottom Ins. WPL-3804F093-80
...
35
Runner, Outer WPL-3406F007-80
...
36
Screw WPL-WP7101P126-60
...
37
Screw, Special WPL-7101P029-60
...
38
Screw, Thermostat WPL-7101P101-60
...
39
Screw WPL-WP74004005
...
40
Seal, Oven WPL-7212P002-60
...
41
Shield, Housing WPL-3604F056-20
...
42
Spacer, Main Top WPL-8010P048-60
...
43
Spring- Ov WPL-WP7803P058-60
...
44
Support WPL-3807F176-13
...
45
Support, Oven Rear WPL-3807F205-45
...
46
Switch, Selector WPL-7403P031-60
...
47
Switch-Inf WPL-W11122006
...
48
Thermostat WPL-7404P029-60
...
49
Top Assy, Main WPL-2002W031-01
...
50
Tube WPL-8026P001-60
...
51
Manual, Use & Care WPL-8110P087-60

02 - Control Panel

...
...
1
Spacer- Hi WPL-WP8010P069-60
...
2
Support WPL-3807F170-80
...
3
Trim, Backguard WPL-7703P144-60
...
4
Trim WPL-7726P015-60

03 - Door

...
...
1
Brace, Drawer WPL-3802F044-51
...
2
Drawer Assy. WPL-3405F008-20
...
3
Frame, Door WPL-7706P178-60
...
4
Frame, Window----Na WPL-3603F013-80
...
5
Gasket, Window WPL-7201P017-60
...
7
Glass-Door WPL-WP7902P715-60
...
8
Glide, Front WPL-8016P005-60
...
9
Handle, Drawer (Chr) WPL-7701P012-60
...
11
Lining Assy, Ov Dr WPL-2402W091-23
...
12
Panel, Svr Drawer Black WPL-2416F019-70
...
13
Retainer WPL-3804F050-80
...
14
Screw WPL-WP3387230
...
15
Seal-Strip WPL-WP854334
...
17
Support WPL-3807F176-13
