product name

Admiral 1058WF-CZ

Model: 1058WF-CZ

Save Part Not Listed?
product name

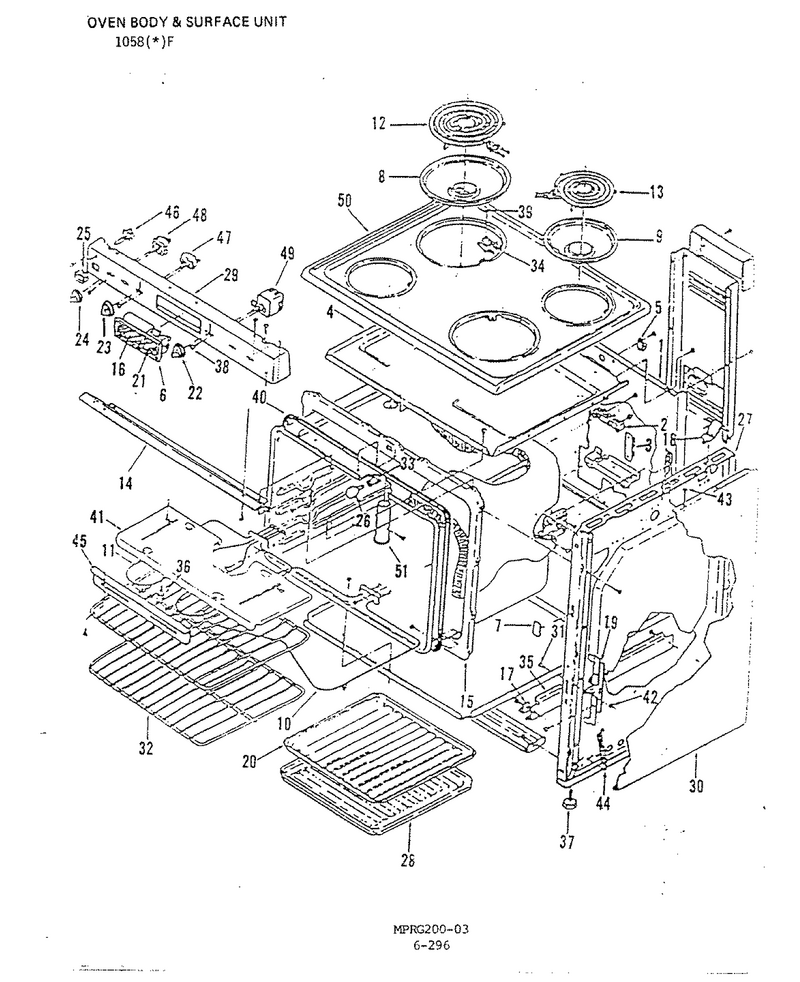

02 - Top Assembly

...
...
1
Back, Main WPL-0903114
...
2
Block-Term WPL-WPW10245259
...
3
Block WPL-1867210
...
4
Brace WPL-3802F048-80
...
5
Clip- Ther WPL-WP7112P004-60
...
6
+ Clock- A WPL-W10127330
...
7
Cover WPL-1201211
...
8
Bowl-Drip WPL-WPW10196405
...
9
Bowl-Drip WPL-WPW10196406
...
10
Elmnt-Surf WPL-WP3191455
...
13
Ks-60 Filler Strip WPL-1430241K
...
14
Frame, Burner Box Front WPL-4012F013
...
15
Frame Assy. WPL-Y0462234
...
16
Glass, Clock WPL-1327135
...
17
Glide, Service Drawer (Front) WPL-8016E005
...
18
Hinge, Main Top WPL-7706P170-60
...
19
+ Hinge, Oven Door (Lt) WPL-Y0528261
...
20
Insert WPL-WP3413F018-19
...
21
Knob- Cloc WPL-WP7711P466-60
...
22
Knob, Thermostat WPL-7735P016-60
...
23
Knob Kit-2 WPL-12500063
...
24
Knob, Surface Switch WPL-7737P015-60
...
25
Light, Indicator WPL-W10127320
...
26
Light Bulb WPL-8009
...
27
Lining, Inner Side WPL-4019J022
...
28
Procelain Broiler (Pan And Grid) WPL-4396923
...
29
Trim WPL-1916261
...
30
Panel, Side ((Coffee) WPL-0801240B
...
31
Plate, Conduit WPL-3605F031-80
...
32
Rack, Oven WPL-1636254
...
33
Receptacle, Oven Light WPL-1657202
...
34
Receptacle Assy. WPL-12001676
...
35
Runner WPL-Y0766215
...
36
Screw WPL-WP7101P126-60
...
37
Screw WPL-1986288
...
38
Screw WPL-WP74004005
...
39
Screw WPL-WP74004005
...
40
Seal WPL-1726257
...
41
Shield WPL-3604F066
...
42
Lock Ring For Timer Shaft WPL-211790
...
43
Spacer WPL-1783231
...
44
Strap WPL-1808236
...
45
Support, Broil Element WPL-Y0862419
...
46
Switch, Rocker (Blk) WPL-7403P067-60
...
47
Switch WPL-1832378
...
48
Switch-Inf WPL-W11122006
...
49
Thermostat, Oven WPL-7404E016
...
50
Trim, Side Panel L WPL-7706P132-60
...
51
Tube WPL-1930359

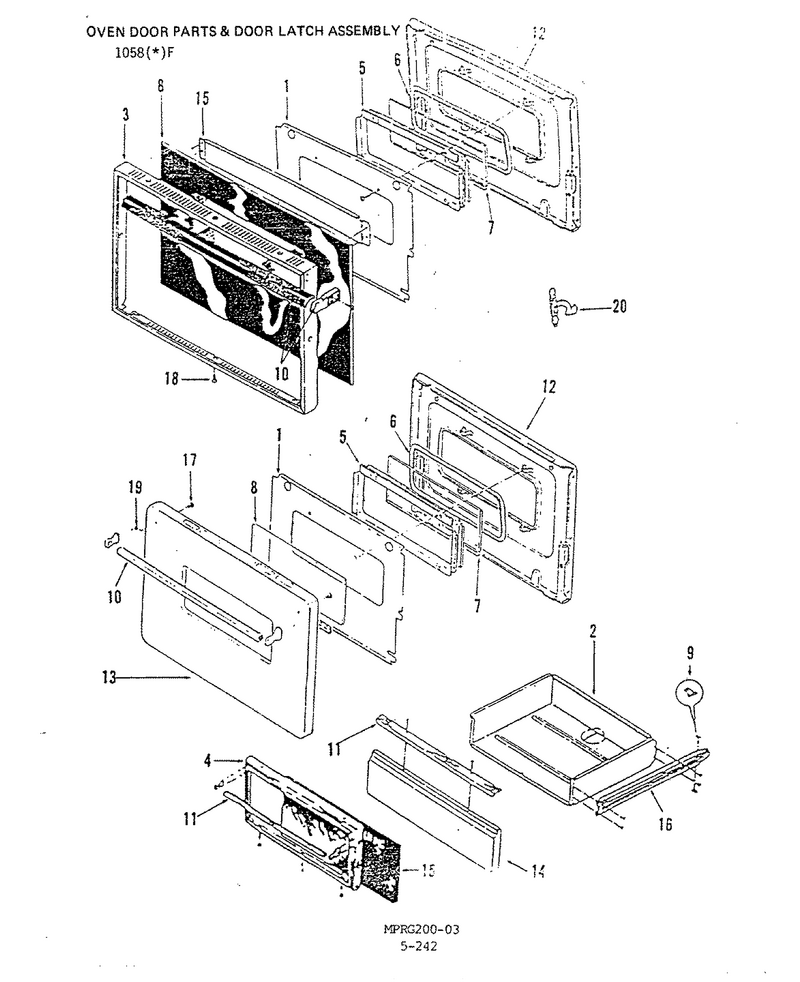

01 - Door & Latch Assy.

...
...
1
Baffle, Oven Door WPL-3601F094
...
2
Drawer Assy. WPL-0384227
...
3
Frame, Ovn Door WPL-7706E007
...
4
Frame, Serv Door WPL-7706E056
...
5
Frame, Window WPL-3603J013
...
6
Gasket WPL-1313263
...
7
Glass-Door WPL-WP7902P715-60
...
8
+ Glass, Door WPL-7902E064
...
9
Glide, Service Drawer (Front) WPL-8016E005
...
10
Handle, Door WPL-7701E019
...
11
Insert, Oven Door Handle WPL-W10127337
...
12
Lining, Oven Door WPL-2422C076
...
13
Panel,window Oven Dr WPL-0680325G
...
14
Panel,broiler Door WPL-0684310G
...
15
Retainer, Glass WPL-3804F040
...
16
Runner WPL-Y0766215
...
17
No.6 32x1/2``ph Hd Self WPL-1986221
...
18
Screw, Special WPL-1986258
...
19
Spring- Ov WPL-WP7803P058-60
...
20
Stop, Door WPL-Y0112241
