Admiral 1058AH-Z

Model: 1058AH-Z

Save Part Not Listed?
product name

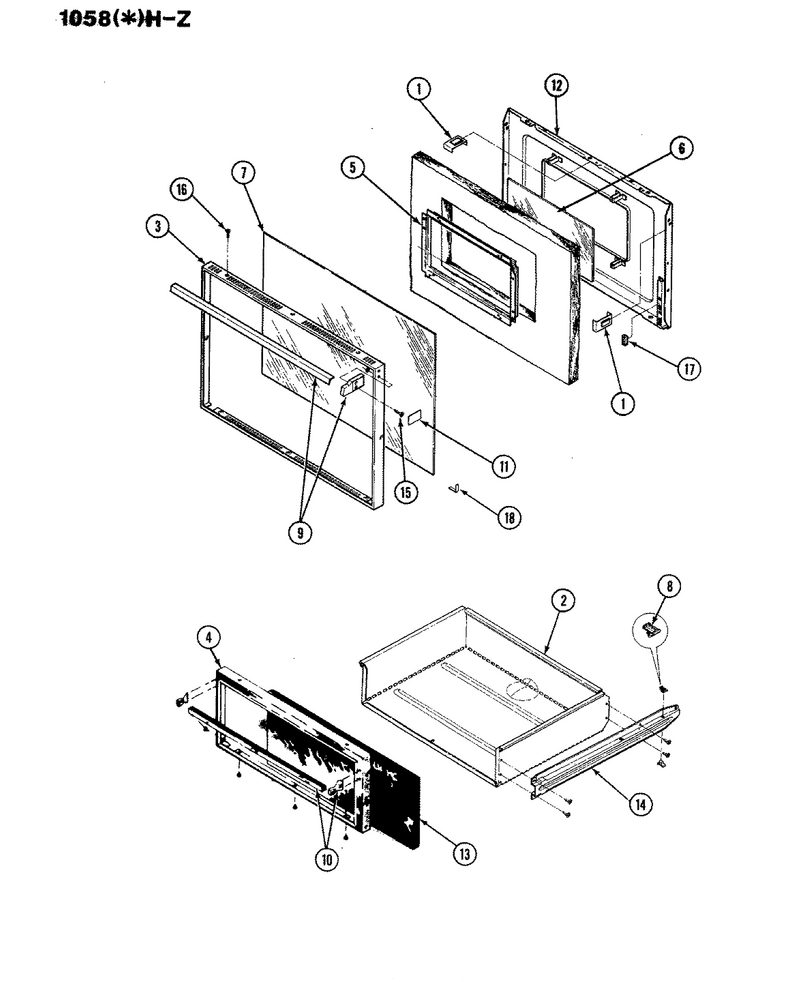

02 - Door

...
...
1
Bracket, Drawer WPL-3801F115-51
...
2
Drawer, Service WPL-3405F008-80
...
3
Frame, Door WPL-7706P243-60
...
4
Frame WPL-7706P180-60
...
5
Gasket, Window WPL-7201P017-60
...
6
Glass-Door WPL-WP7902P715-60
...
7
Glass, Door WPL-7902P274-60
...
8
Glide, Drawer WPL-8016P004-60
...
9
Trim WPL-7703P047-60
...
10
Handle, Storage Door WPL-7701P082-60
...
11
Insert, Oven Door Handle WPL-7728P012-60
...
12
Lining Assy, Ov Dr WPL-2402W091-23
...
13
Panel, Svr Drawer Black WPL-2416F019-70
...
14
Runner, Outer WPL-3406J007
...
15
Screw WPL-7101P123-60
...
16
Screw WPL-WP7101P126-60
...
17
Seal-Strip WPL-WP854334
...
18
Stop, Oven Door WPL-3420A033-34

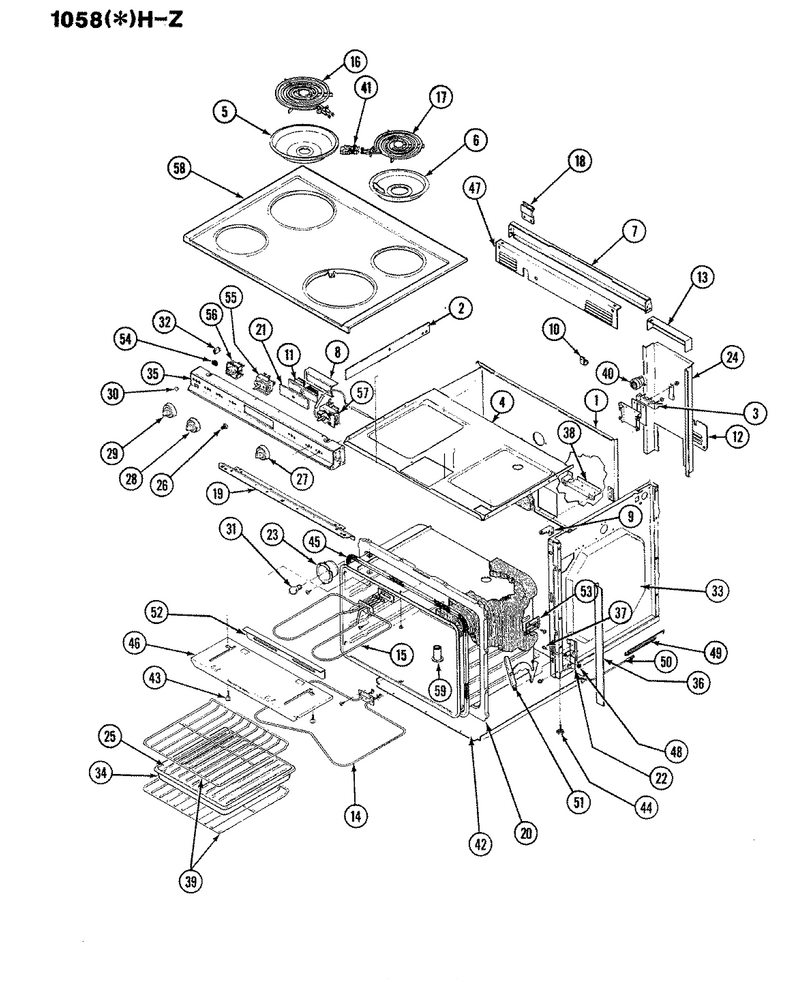

01 - Body

...
...
1
Back, Main WPL-4002F092-80
...
2
Baffle, Side Panel WPL-3601F106-51
...
3
Block-Term WPL-WPW10245259
...
4
Box, Burner WPL-4011F082-23
...
5
Bowl-Drip WPL-WPW10196405
...
6
Bowl-Drip WPL-WPW10196406
...
7
Brace, Main Top WPL-3802F071-80
...
8
Bracket, Clock Mtg WPL-3801F113-51
...
9
Channel, Wire Rear WPL-3818F021
...
10
Clip- Ther WPL-WP7112P004-60
...
11
Clock WPL-7602P051-60
...
12
Shield WPL-4005F013-80
...
13
Cover, Housing WPL-4005F082-80
...
14
Element- B WPL-WPY04000041
...
15
Element- B WPL-WPY04000048
...
16
Elmnt-Surf WPL-WPY04000035
...
17
Elmnt-Surf WPL-WPY04000036
...
18
Hinge, Main Top WPL-7706P170-60
...
19
Front, Burner Box WPL-4012F013-80
...
20
Front, Oven Upper WPL-2201F060-23
...
21
Glass WPL-7902P034-60
...
22
Hinge, Oven Door (Lt) WPL-3418F029-34
...
23
Housing, Lamp WPL-4001F016-23
...
24
Housing, Main Wire WPL-4001F034-80
...
25
Insert, Broil Pan WPL-3413F002-23
...
26
Knob- Cloc WPL-WP7711P466-60
...
27
Knob, Thermostat WPL-7735P016-60
...
28
Knob, Selector WPL-7739P019-60
...
29
Knob, Surface Switch WPL-7737P015-60
...
30
Lens, Signal Lamp WPL-7730P001-60
...
31
Light Bulb WPL-8009
...
32
Lamp, Signal WPL-7407P017-60
...
33
Lining, Inner Side WPL-4009W040-80
...
34
Procelain Broiler (Pan And Grid) WPL-4396923
...
35
Panel, Upper Front Trim WPL-7722A076-60
...
36
Panel, Side Angle WPL-2618F045-80
...
37
Pin, Hinge WPL-7113P002-60
...
38
Plate, Conduit WPL-3605F031-80
...
39
Rack, Oven WPL-7801P030-60
...
40
Receptacle, Lamp WPL-7408P002-60
...
41
Block, Surface Unit WPL-7401P014-60
...
42
Retainer, Bottom Ins. WPL-3804F093-80
...
43
Not Required Part Or See Note WPL-W10124350
...
44
Screw, Inf Switch WPL-7101P102-60
...
45
Seal, Oven WPL-7212P002-60
...
46
Shield, Broil WPL-3604F092-45
...
47
Shield WPL-3604F017-45
...
48
Clip, Hinge Pin WPL-7112P019-60
...
49
Spring- Ov WPL-WP7803P058-60
...
50
Tie-Wire WPL-WPW10339879
...
51
Stop, Oven Door WPL-3420A033-34
...
52
Support, Broil Element WPL-3807F176-15
...
53
Support, Oven Rear WPL-3807F205-45
...
54
Switch, Rocker (Blk) WPL-7403P067-60
...
55
Switch, Selector WPL-7403P031-60
...
56
Switch-Inf WPL-W11122006
...
57
Thermostat WPL-7404P029-60
...
58
Top Assy, Main Avoc Nla In Pro WPL-2002W049-97
...
59
Tube WPL-8026P001-60
