9885-3 Briggs and Stratton Portable Generator 5,500 XL

Model: 9885-3

Save Part Not Listed?
product name

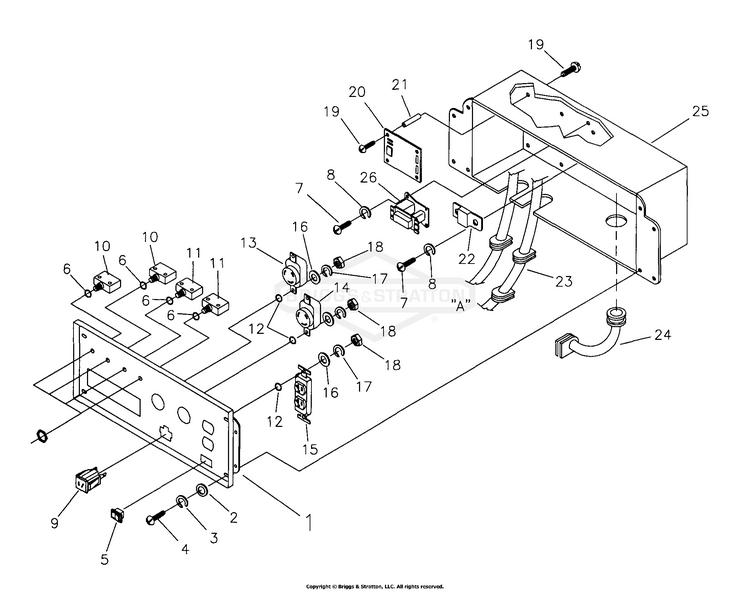

Control Panel

...
...
1
Control Panel BS-A92070
...
2
WASHER, Rivet, 3/16 BS-1910531SM
...
3
WASHER, M5 Lock BS-49226GS
...
4
M5-0.8 x 12mm Screw BS-91526
...
5
SWITCH, Idle Control BS-82538GS
...
6
WASHER, 7/16" Int Lock BS-82881GS
...
7
SCREW, M3-0.5 x 10mm BS-43181GS
...
8
WASHER, M3 Lock BS-43182GS
...
9
OUTLET, 10A, 12VDC BS-90418GS
...
10
BREAKER-CIRCUIT 30A BS-706178
...
11
BREAKER, Circuit BS-75207DGS
...
12
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
13
OUTLET-120V TL30A BS-705932
...
14
120V/240V AC, 30A Locking Outlet BS-43437
...
15
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
16
Thumb Control Lever BS-5043180B
...
17
#8 (M4) Lock Washer BS-22264
...
18
NUT, M4-0.7 Hex BS-51715GS
...
19
#6-32 x 3/8" Screw BS-64526
...
20
BOARD, System Control BS-83970GS
...
21
3/4" Hex Stand-Off BS-64525
...
22
CIRCUIT BREAKER, 10A (Automatic), 12V BS-87962GS
...
23
ASSEMBLY, Wire Harness BS-84335GS
...
24
GROMMET, Rubber Connector BS-84134GS
...
25
Box, Control Panel BS-B92069
...
26
TRANSFORMER, Idle Control BS-84028GS

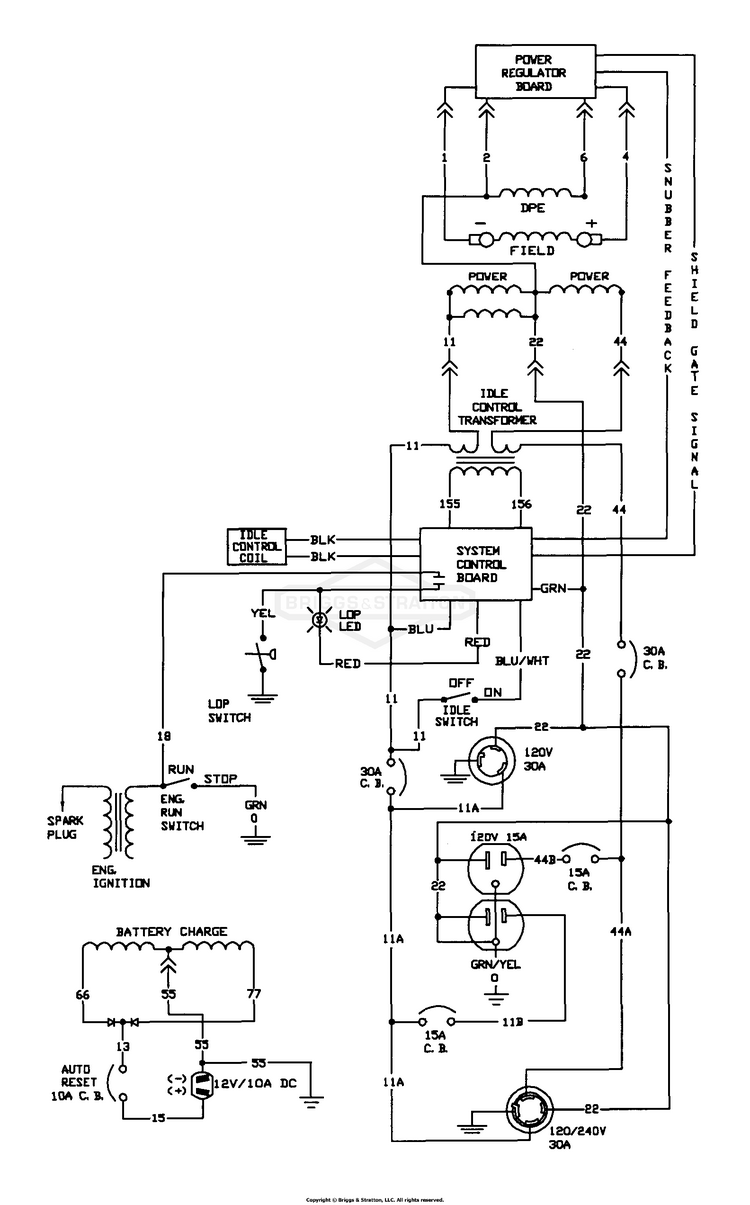

Electrical Schematic

...

No Parts Available for this Schematic

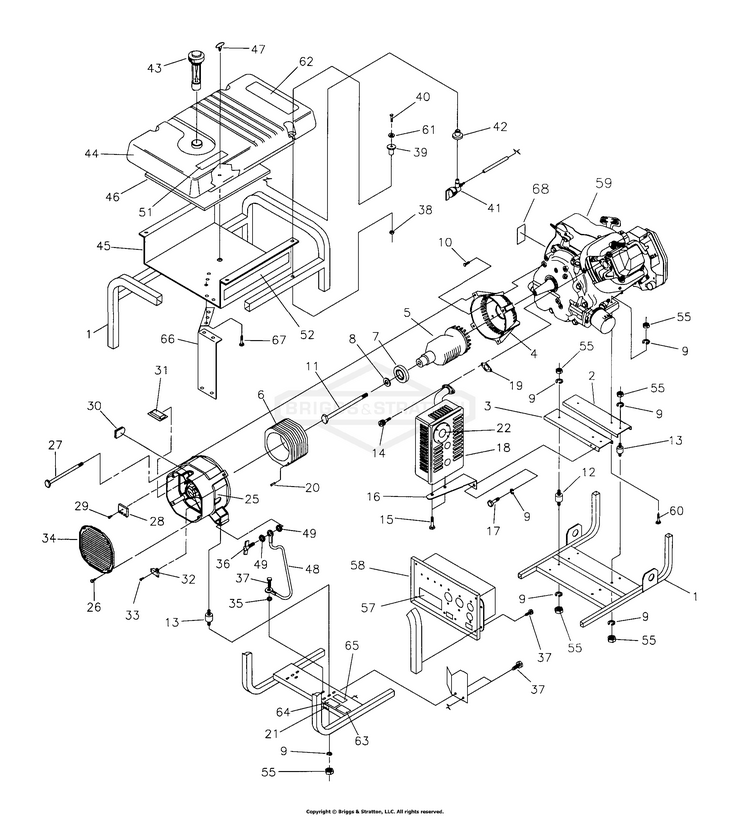

Main Unit

...
...
1
CRADLE BS-A92432GS
...
2
SUPPORT, Engine BS-A92531GS
...
3
SUPPORT, Engine & Muffler BS-M92731GS
...
4
HOUSING, ENGINE ADAPTER BS-92247GS
...
5
ASSY, Rotor BS-92678GGS
...
6
ASSY, STATOR, 5500VR120, 10A-BC BS-92680GGS
...
7
BEARING BS-65791GS
...
8
WASHER, M8 Flat BS-67451
...
9
WASHER, Lock BS-22129GS
...
10
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
11
SCREW BS-28092GS
...
12
MOUNTS,Vibration BS-92609GS
...
13
MOUNT, VIBRATION BS-82857GS
...
14
SCREW, M8 - 1.25 x 20 BS-40976
...
15
SCREW, M6-1 x 12 w/Lock Washer BS-66476GS
...
16
BRACKET, Muffler BS-92532GS
...
17
MODULE BS-84009650
...
18
MUFFLER BS-A7433GS
...
19
GASKET, Exhaust BS-90239GS
...
20
PIN, ROLL 4MM x 10 BS-81917GS
...
21
DECAL, Ground BS-B4986GS
...
22
SCREEN, Spark Arrest BS-83083GS
...
25
CARRIER, Rear Bearing BS-SRV66825DGS
...
26
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
27
BOLT, M6-1 x 145mm Stator BS-86308AGS
...
28
RECTIFIER, BATTERY CHARGE BS-65795GS
...
29
SCREW BS-66849AGS
...
30
GROMMET, RUBBER BS-67022GS
...
31
ASSEMBLY, POWER REGULATOR BS-84132GS
...
32
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
33
HHCS, M5-0.8 X 16 BS-49815GS
...
34
COVER, Bearing Carrier BS-B4871GS
...
35
WASHER, SHAKE PROOF INT.# 10 BS-22769GS
...
36
SCREW, M6-1.0 x 16 LG. WING BS-86494GS
...
37
SCREW BS-313085GS
...
38
NUT, FLANGE LOCK - M6 BS-77395GS
...
39
GROMMET, TANK BS-83465GS
...
40
HHMS, M6-1.0 x 55 BS-57058GS
...
41
Kit, Valve BS-192980GS
...
42
Kit, Valve BS-192980GS
...
43
CAP, Fuel Gauge BS-B4363GS
...
44
TANK, Fuel 7-Gal BS-B1695
...
45
HEATSHIELD BS-208564GS
...
46
INSULATION, # 2-1/4" THICK BS-92665GS
...
47
CLIP, INSULATION BS-85000GS
...
48
WIRE, Ground BS-195373GS
...
51
DECAL, Danger, French (French & English) BS-194984GS
...
52
DECAL, Heat Shield BS-92611
...
55
NUT, 5/16-18 HEX BS-25244GS
...
57
DECAL, PNL, CNTRL, 5500XL BS-92639GS
...
58
ASSY, Control Box BS-96198GS
...
59
ENGINE BS-~NSP
...
60
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
62
SCREW (French & English) BS-690341
...
63
DECAL, CSA BS-25717
...
64
DECAL, Neutral Ground BS-74728GS
...
65
DECAL, Ground, French (French & English) BS-76247GS
...
66
SHIELD, Heat BS-192983GS
...
67
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
68
DECAL, DATA, GNRC GEN BS-78817GS
...
Battery Charge Cable Item Not Illustrated BS-65787
...
PLUG, 125V 30A 3-Prong Item Not Illustrated BS-100523GS
...
PLUG, 250V, 30A Item Not Illustrated BS-43438GS
...
MANUAL-OPERATOR Item Not Illustrated BS-B2674GS
...
MANUAL, Engine Item Not Illustrated BS-A8927GS
...
ELEMENT,Air Cleaner Item Not Illustrated BS-73111GS
...
PLUG, SPARK Item Not Illustrated BS-84007216
...
WRENCH, Sparkplug Item Not Illustrated BS-84882GS

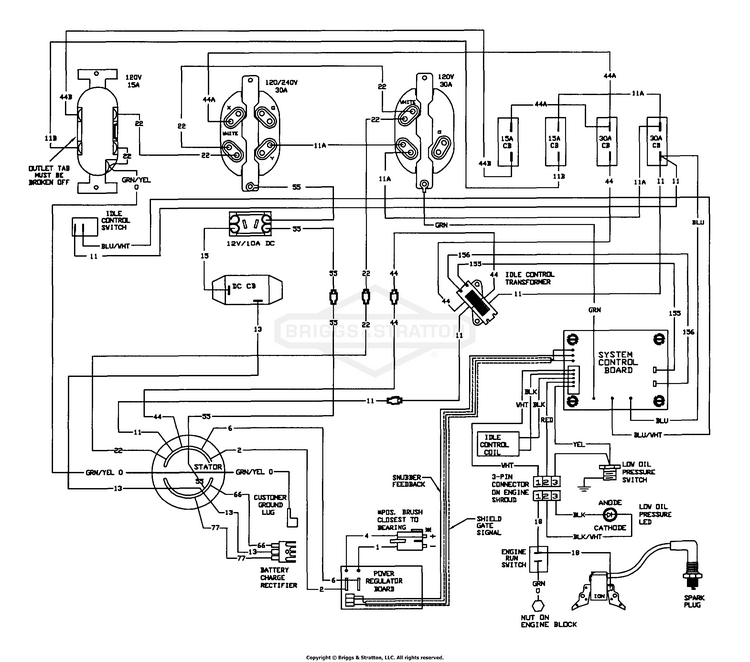

Wiring Diagram

...
