9855-0 Briggs and Stratton Portable Generator Home & Away, 1,850 Watt

Model: 9855-0

Back To Assemblies

Save Part Not Listed?
product name

Wheel Kit

...
...
1
Handle Bar BS-94463
...
2
WHEEL BS-197061GS
...
3
STUD,Axle BS-93728GS
...
4
JAM NUT, Lock 5/8" - 18 BS-94222QGS
...
5
PIN, DETENT, 0.25 BS-94461GS
...
6
Handle Bar Mount BS-94462
...
7
HHCS, 1/4-20 X 1-1/4 BS-22203GS
...
8
CAP BS-5022097SM
...
9
1/4" Hex Nut BS-22127
...
10
GRIP, Handle BS-75928GS
...
11
WASHER, Flat BS-49808GS
...
12
PIN, 3/32 X 1.6 BS-703300
...
13
SPPRT, FOOT PAD BS-94440GS
...
14
CAPSCREW M8-1.25X16 BS-703988
...
15
WASHER, Lock BS-22129GS
...
16
SKID PLATE BS-5045771B

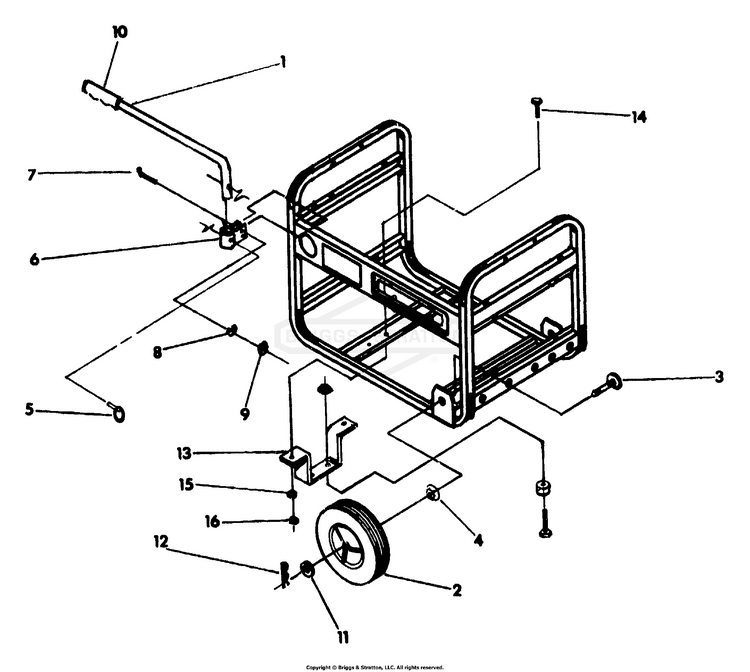

Schematic Image Zoomed
