9855-0 Briggs and Stratton Portable Generator Home & Away, 1,850 Watt

Model: 9855-0

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

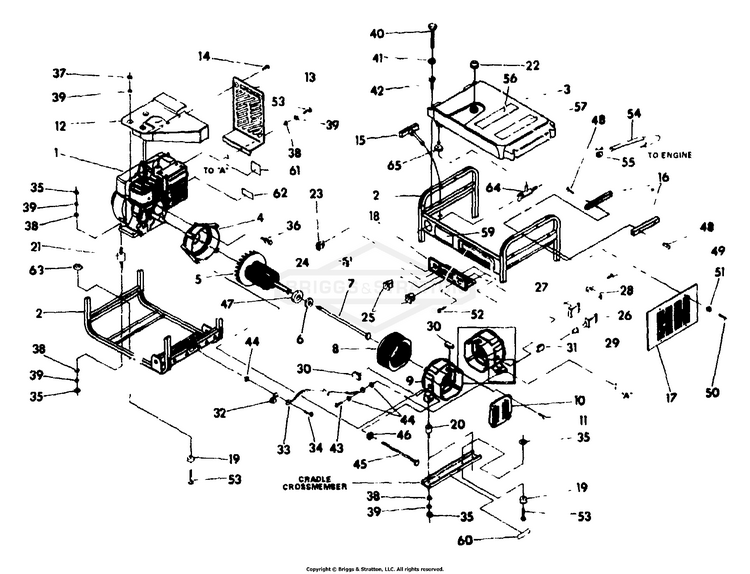

Generator & Cradle

...
...
1
PIPE, Oil BS-690307
...
2
SUPPORT LEG BS-93694
...
3
TANK, Fuel (No Longer Available) BS-NLA - 93941
...
4
HSNG, ENG, FML BS-66365FGS
...
5
ASSY, RTR, 1400, W/PLSTC FAN BS-93705GGS
...
6
WASHER, Flat M8 x 20 Special BS-67451
...
7
HHCS, 5/16-24 X 5 1/2 BS-75444GS
...
8
ASSY, STATOR, 1400DPE35, 10A-BC, H/A BS-93706GGS
...
9
SCREW BS-691044
...
10
COVER, Rear Bearing Carrier BS-67025
...
11
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
12
Heat shield BS-93628
...
13
GUARD, MFFLR, H/A BS-93638GS
...
14
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
16
COVER, Carrying Handle BS-66450
...
17
SCREW BS-93704
...
18
SCREW BS-93702
...
19
MOUNT, Rubber Donut BS-87841GS
...
20
MNT, VIBR, GEN 1.25OD BS-66443BGS
...
21
MOUNT,Vibration BS-85651GS
...
22
CAP, FUEL, H/A BS-94133GS
...
23
SWITCH, Run - Stop BS-78653GS
...
24
OUTLET, 10A, 12VDC (Contact Generac for quantity required) BS-90418GS
...
25
OUTLET, 120 V AC, 15 A Duplex BS-66818GS
...
26
BREAKER, Circuit BS-75207DGS
...
27
BREAKER, Circuit BS-83514GS
...
28
BAR, Retaining BS-93857GS
...
29
CAP, Breaker, Circuit BS-84198GS
...
30
GROMMET, RUBBER BS-67022GS
...
31
GROMMET, Plastic RBC BS-84242GS
...
32
LUG 13/64 1-6 TO 14 BS-25433
...
33
WIRE, Ground BS-195373GS
...
34
SCREW BS-313085GS
...
35
SKID PLATE BS-5045771B
...
36
HHMS, 5/16-24 x 3/4 LG. SEMS BS-86307GS
...
37
NUT, 5/16-18 HEX BS-5025032SM
...
39
WASHER, Lock BS-22129GS
...
40
HHCS, M6-1 0 X 40 BS-51753GS
...
41
WSHR, SPCL, BLK BS-78830GS
...
42
GROMMET, TANK BS-83465GS
...
43
SCREW, M6 x 12 BS-43116GS
...
45
HHCS, M6-1.0 X 60 BS-74095GS
...
46
CAP BS-5022097SM
...
47
BEARING BS-65791GS
...
48
Mat, Left BS-94383
...
49
SCREW, Phillips, Head 3.5 x 18 BS-84543CGS
...
50
#M5-0.8 x 12 Mach. Screw BS-94352
...
51
WASHER, M5 Lock BS-49226GS
...
52
L-BRACKET BS-94360
...
53
CAPSCREW M8-1.25X16 BS-703988
...
54
HOSE, 1/4" x 21" I.D. SAE-30R7 BS-30340
...
55
CLAMP, Fuel Hose - 1/4" BS-48031C
...
56
DECAL, Danger BS-194799GS
...
57
DECAL, START INSTRUCTIONS BS-93826GS
...
58
DECAL, Fuel Shut - Off BS-73054
...
59
SCREW BS-94134
...
60
DECAL, GRD LUG BS-67210AGS
...
61
DECAL, DATA, GNRC GEN BS-78817GS
...
62
DECAL, STA-BIL BS-81886GS
...
63
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
64
Kit, Valve BS-192980GS
...
65
Kit, Valve BS-192980GS
...
66
RECTIFIER, BATTERY CHARGE BS-65795GS
...
67
Brush Holder and Bridge Rectifier Assembly BS-91825
...
68
SCREW BS-66849AGS
